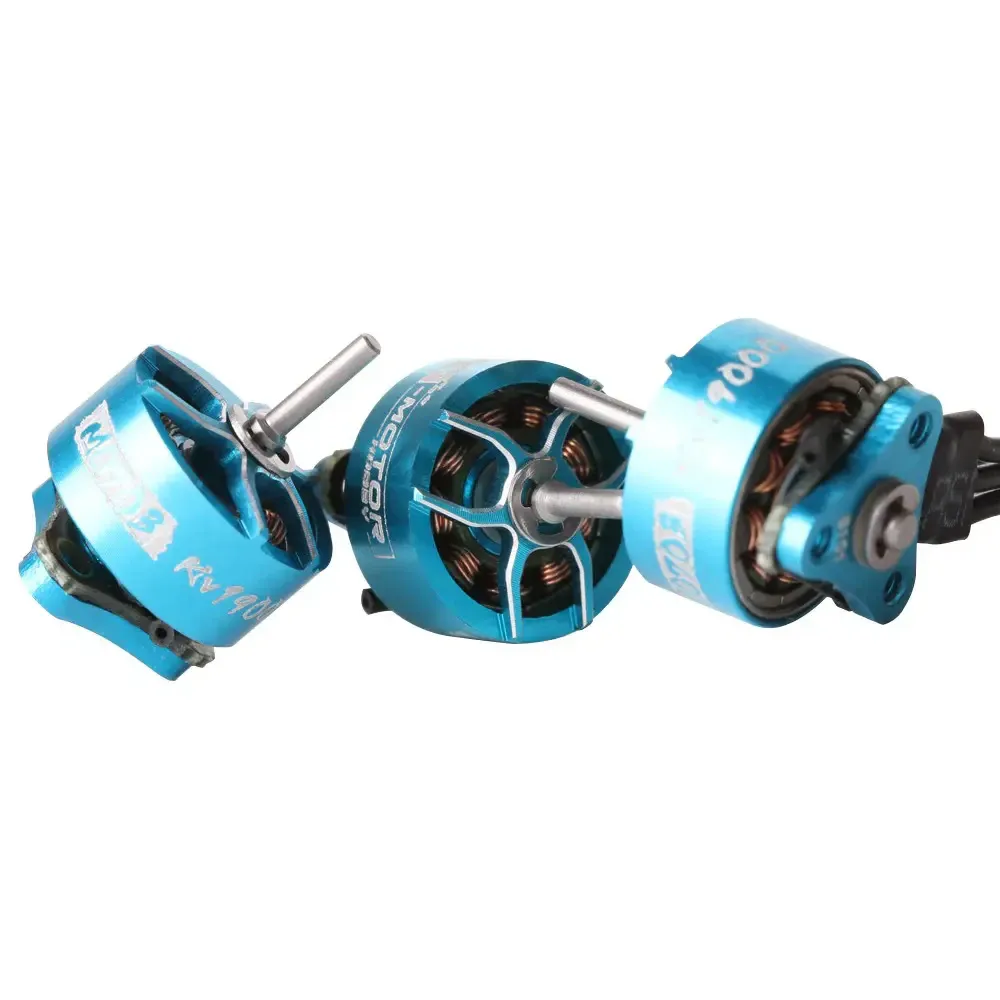

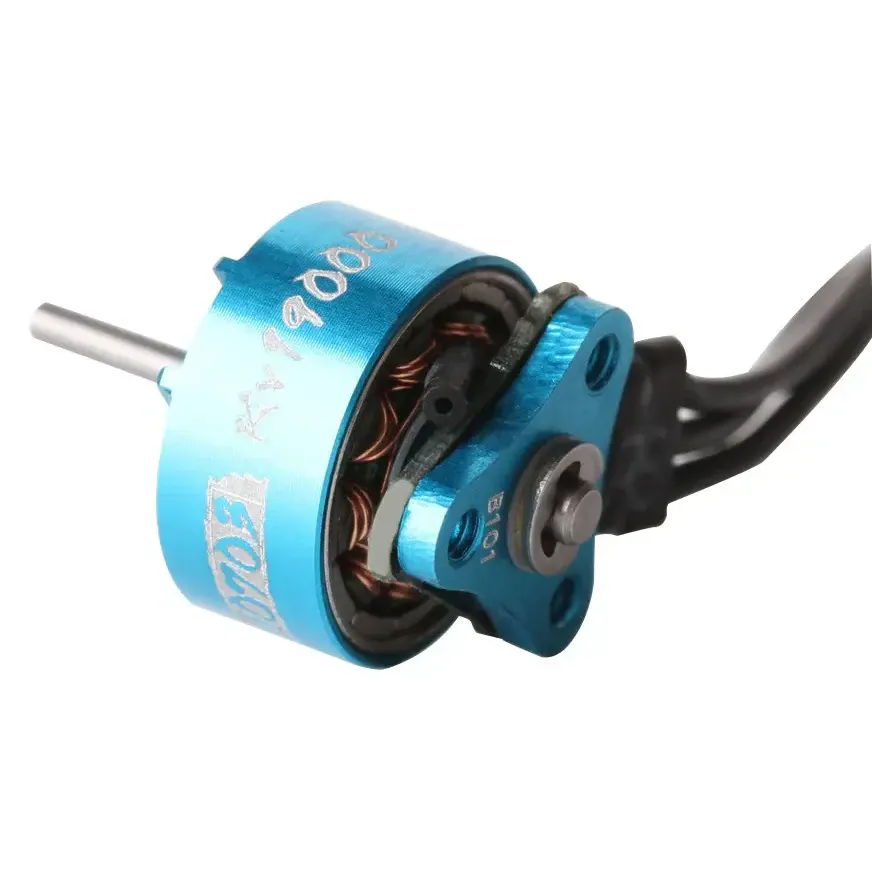

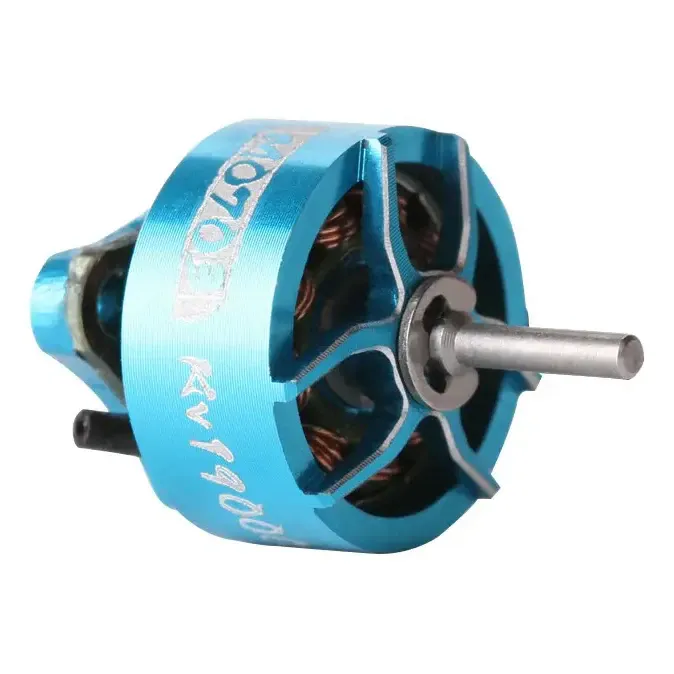

T-Motor M0703 19000KV Tiny Whoop Brushless Motor

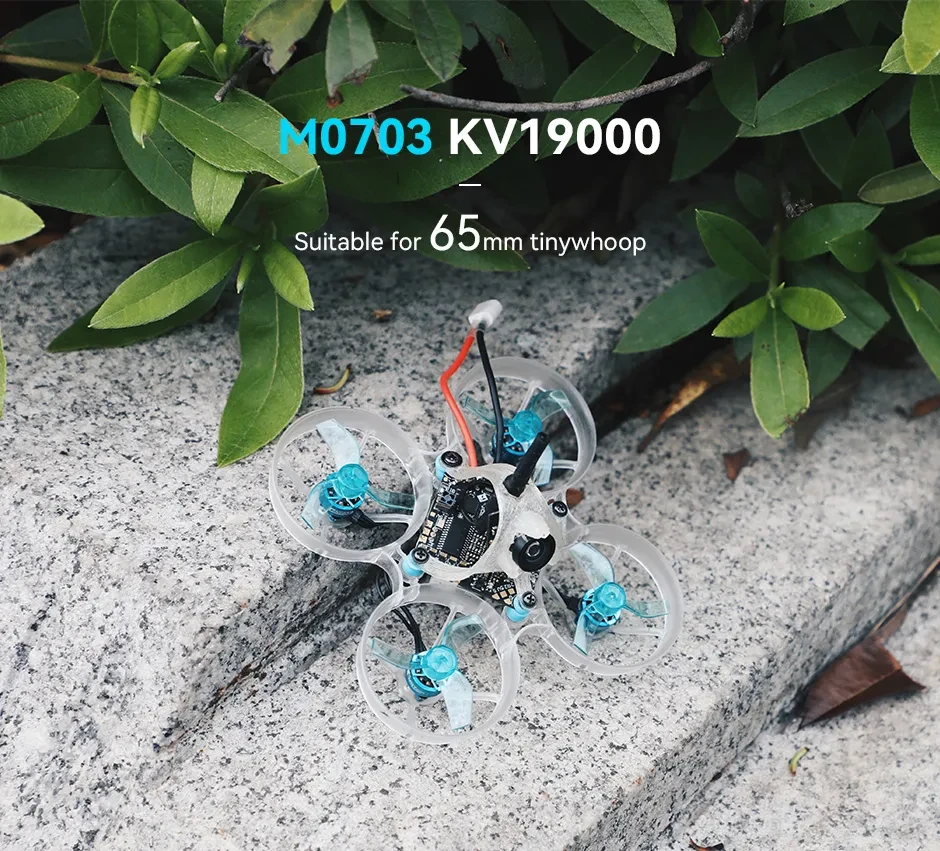

The T-Motor M0703 is a 19000KV brushless motor for 1S tiny whoops on 65mm frames. At 1.7 g including its lead, it is built for indoor racing and freestyle whoops running 1S packs.

Key features

• 7 x 3 mm stator in a 9N12P layout, rated for 7.5 W peak over 10 seconds

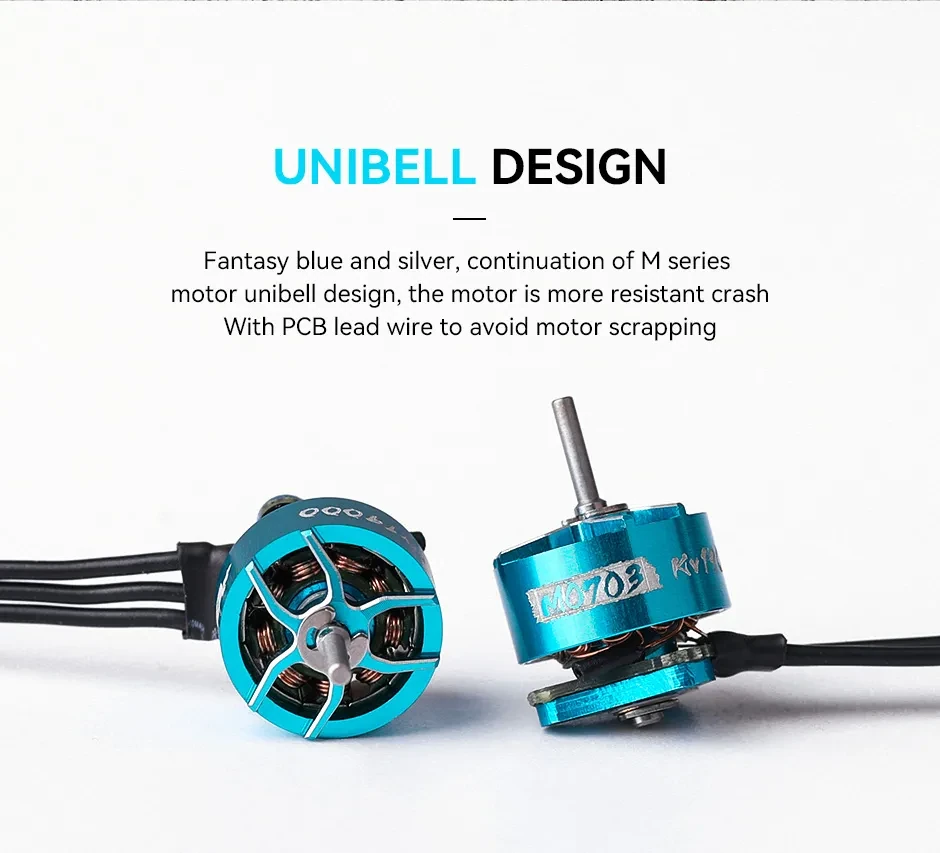

• Unibell construction with N52 magnets, designed for better crash resistance

• 1 mm shaft for standard 1 mm-bore whoop props

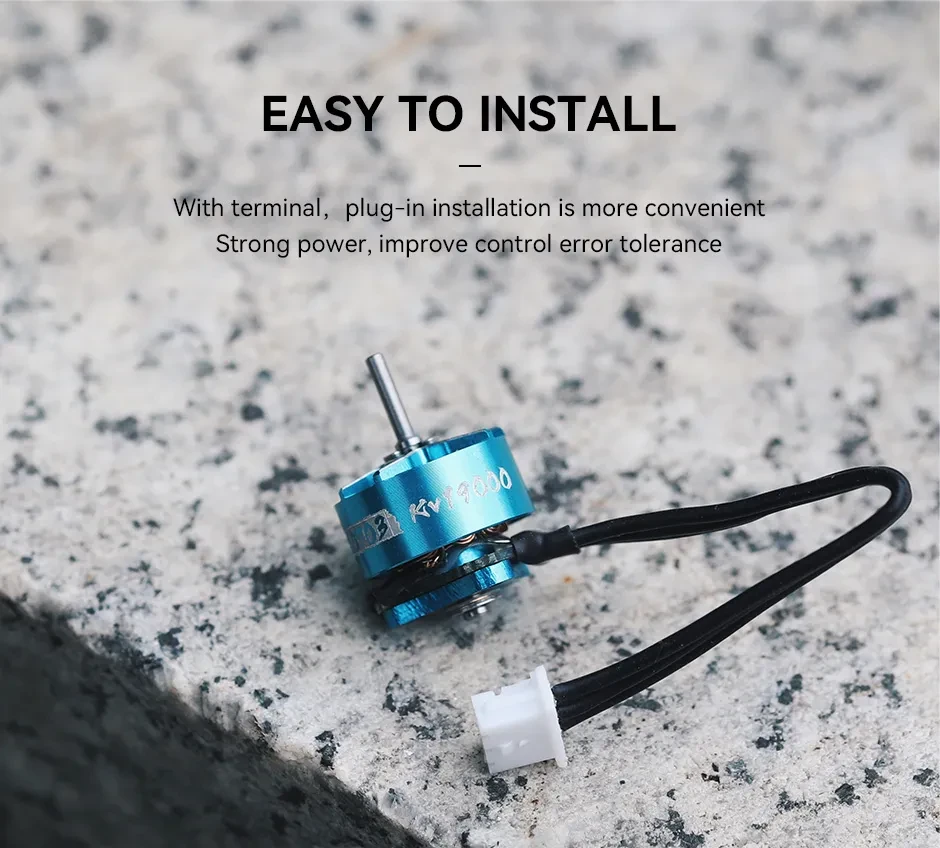

• 6.6 mm 3-hole mount and a 40 mm lead with a JST-1.25 plug

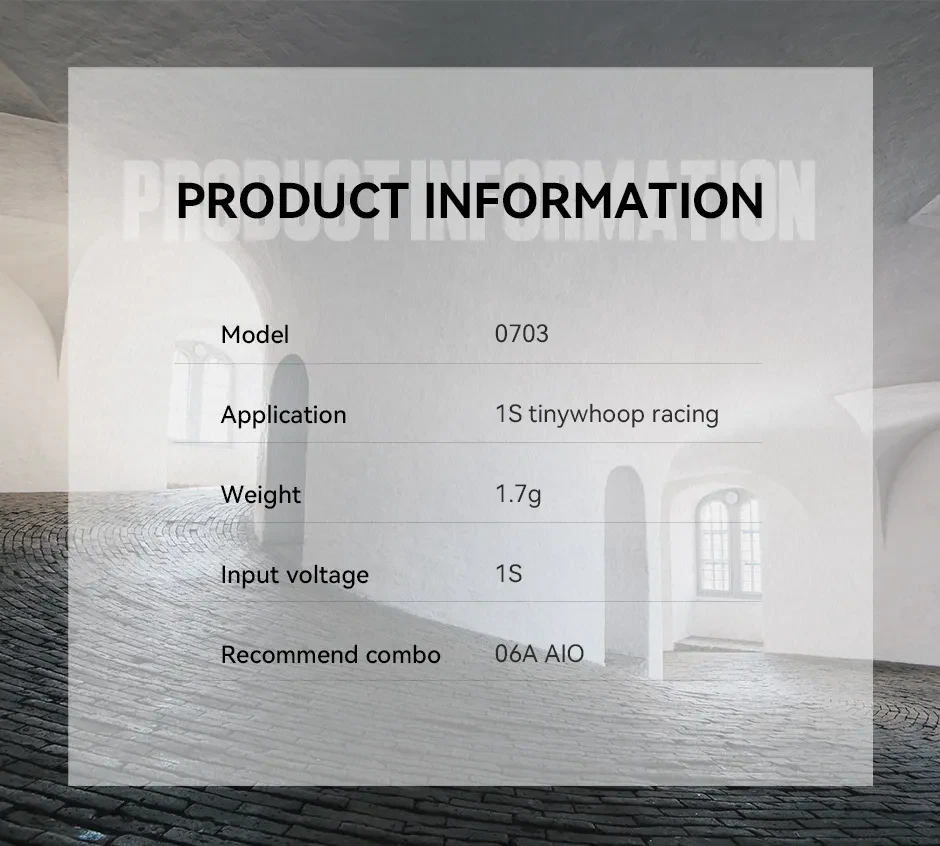

Specifications

• KV: 19000KV

• Rated voltage: 1S (3.7 V nominal)

• Stator: 7 mm x 3 mm

• Configuration: 9N12P

• Shaft: 1 mm

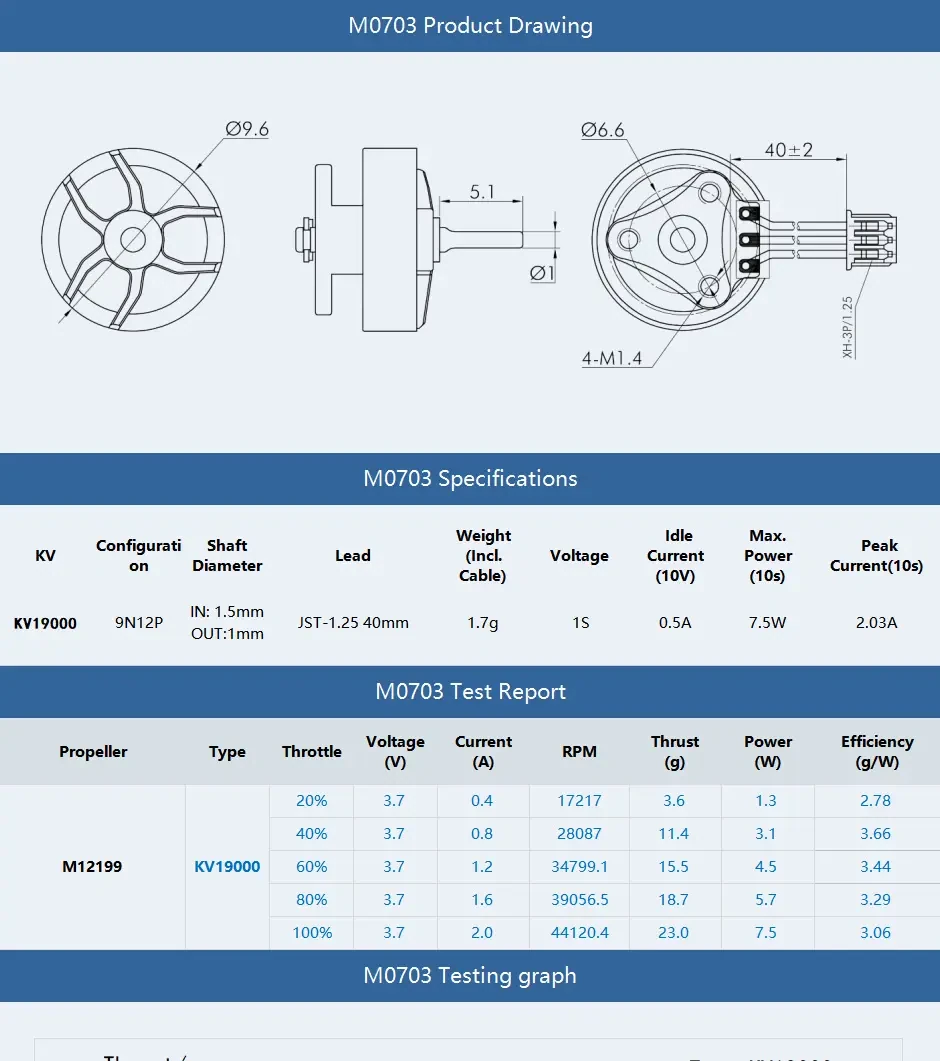

• Mounting: 6.6 mm 3-hole pattern, M1.4 screws

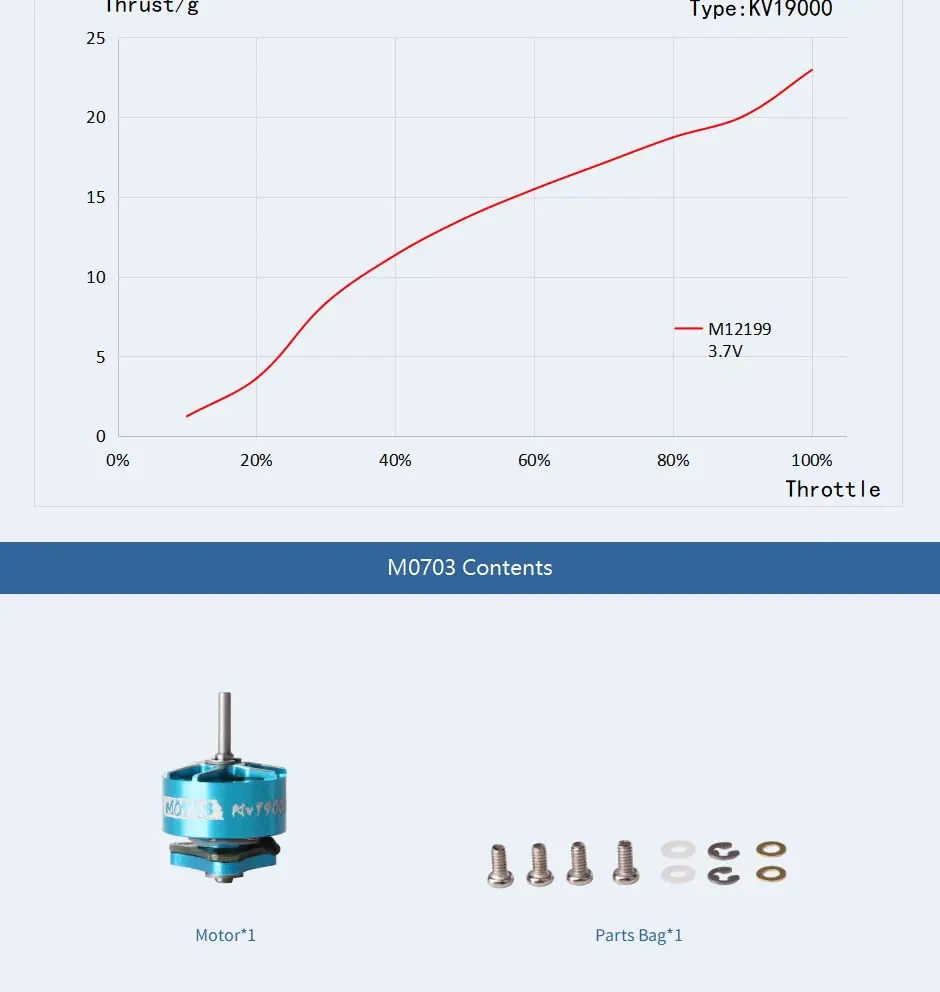

• Max power (10 s): 7.5 W

• Peak current (10 s): 2.03 A

• Lead: 40 mm with JST-1.25 plug

• Weight: 1.7 g including lead

Sold as a single motor, so order four for a quad. Check that your whoop flight controller has JST-1.25 motor sockets; if it has solder pads instead, trim the plug and solder the leads directly.
