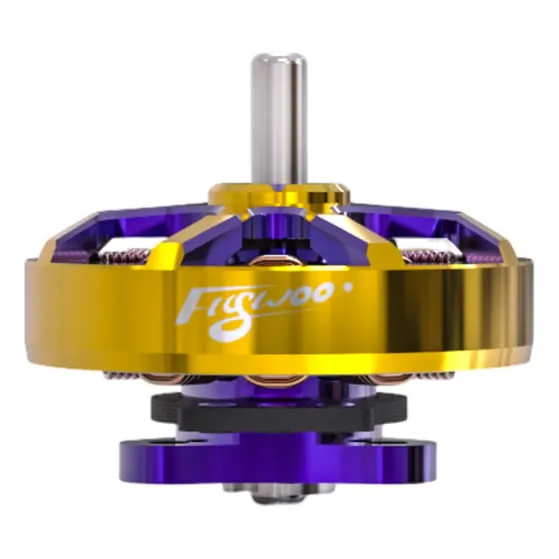

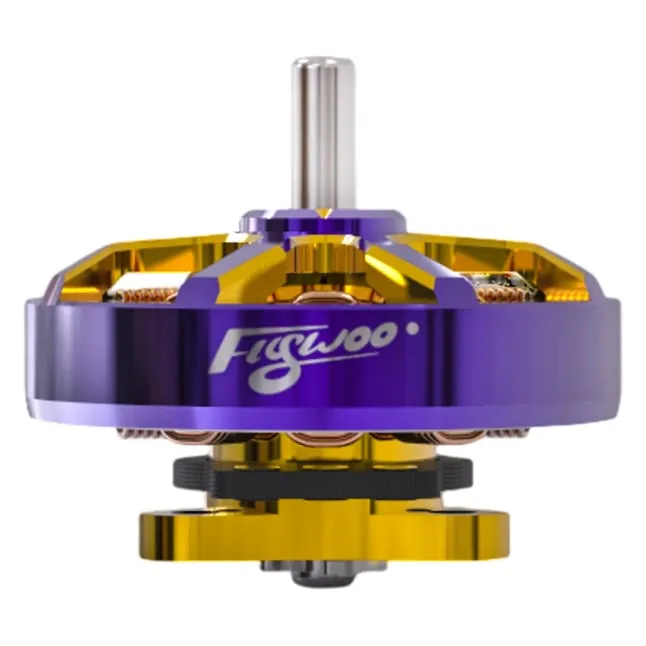

Flywoo ROBO 1002 Micro Brushless Motor

The Flywoo ROBO 1002 is an ultralight brushless motor with a 10 × 2 mm stator for tiny whoops and micro FPV builds, sold as a single motor. It comes in three windings, 15500KV, 19800KV and 23500KV, so you can match it to your battery and prop size.

Key features

• Just 2.4 g including 5 cm leads, keeping all-up weight low on micro whoops
• 9N12P stator layout on a 1.5 mm shaft for props with a 1.5 mm hole
• Compact Φ13.5 × 7.75 mm body

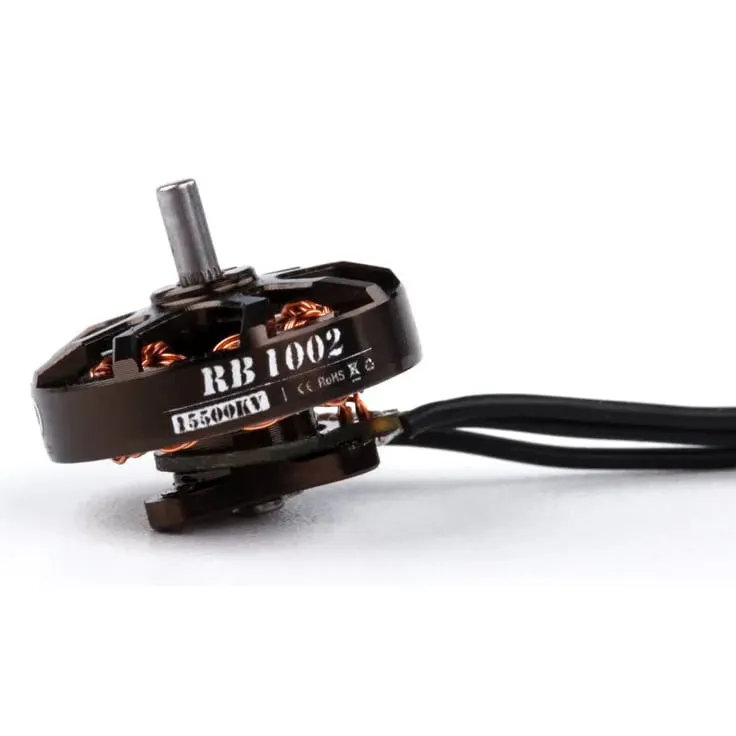

• 15500KV version rated for 1–2S LiPo, with 165 mΩ internal resistance

Specifications

• Stator: 10 mm diameter × 2 mm height (1002)
• Configuration: 9N12P
• KV options: 15500KV, 19800KV, 23500KV
• Shaft: 1.5 mm
• Motor size: Φ13.5 × 7.75 mm
• Weight: 2.4 g (with 5 cm wire)
• Cells (15500KV): 1–2S LiPo
• Internal resistance (15500KV): 165 mΩ
• Pack: 1 motor

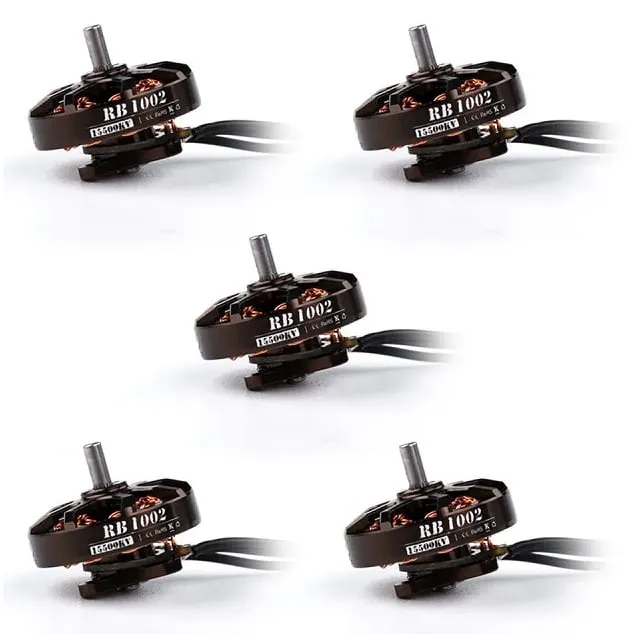

A quad needs four motors, so order four of the same KV. As a rule, higher KV pairs with lower voltage and smaller props; the 15500KV winding is the one rated for 1–2S. If you are replacing a motor on a ready-built whoop, match the KV it shipped with so all four motors respond identically.
