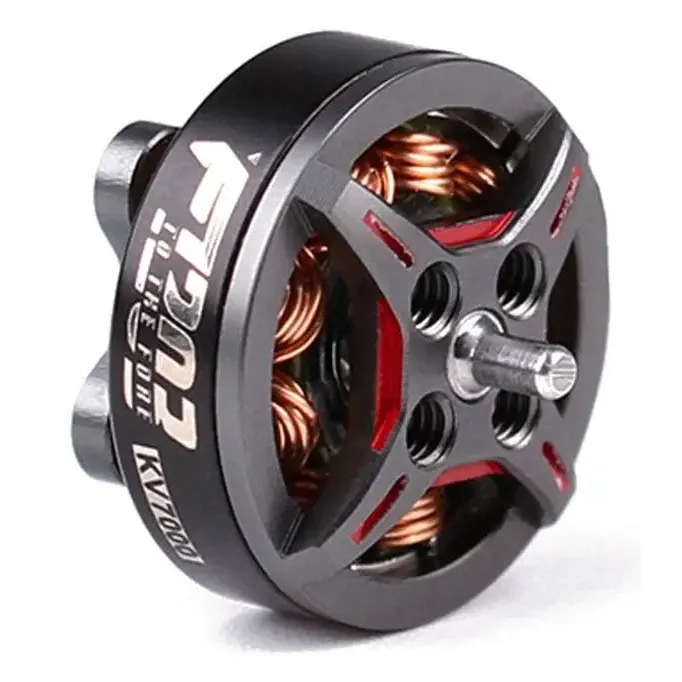

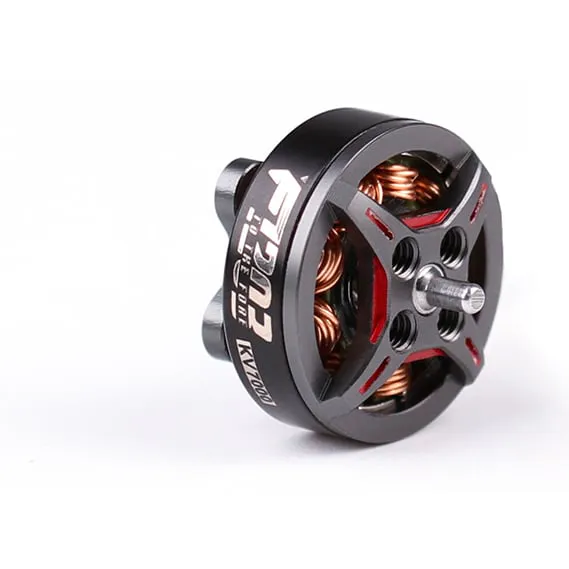

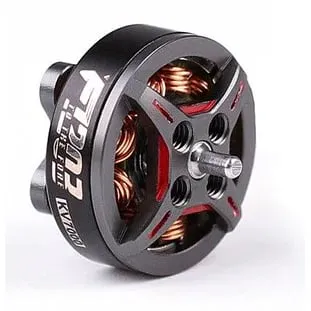

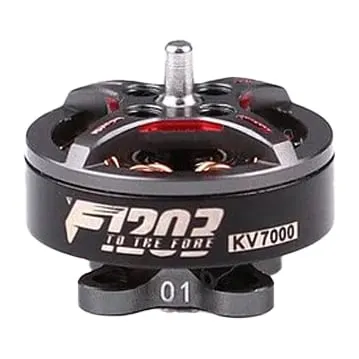

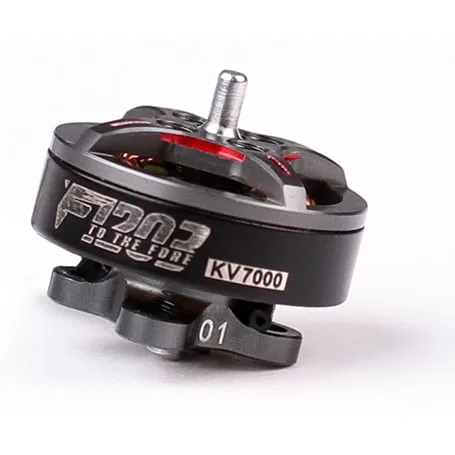

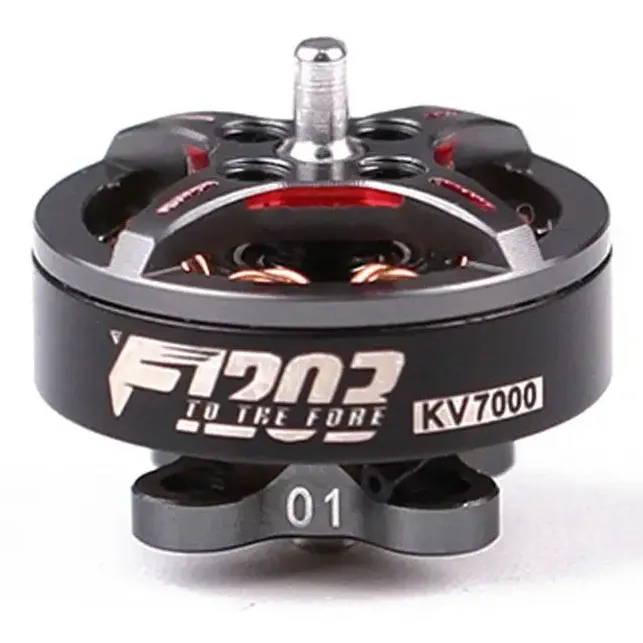

T-Motor F1203 7000KV 2-3S Brushless Motor

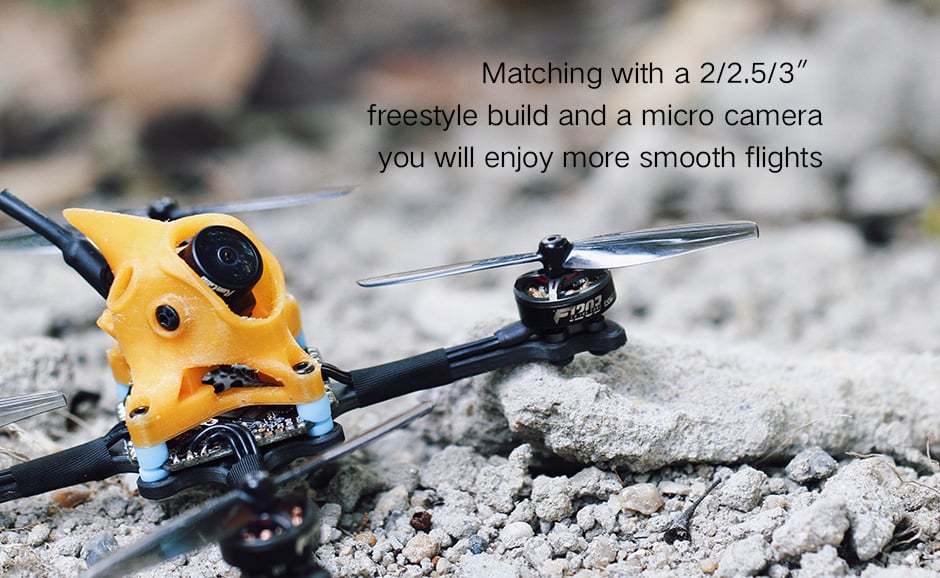

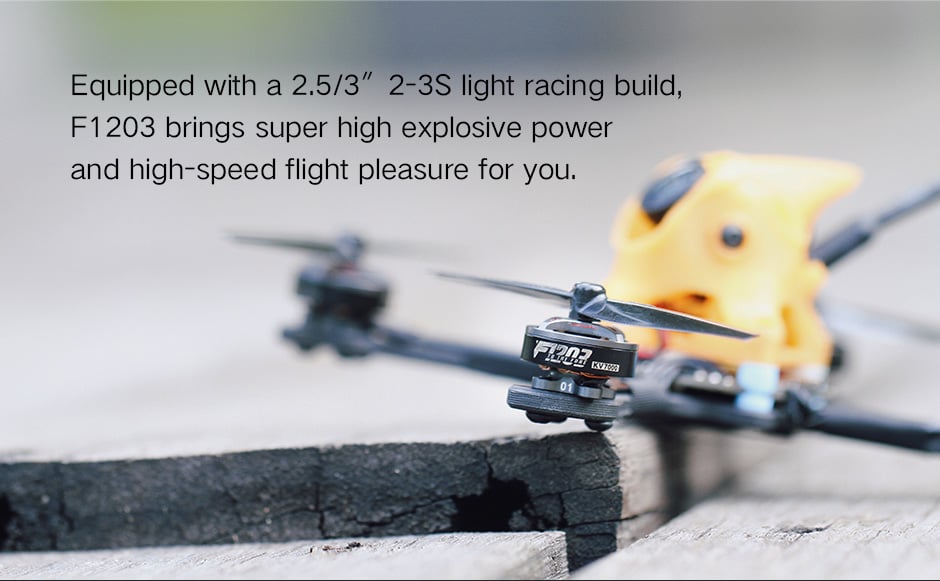

The T-Motor F1203 7000KV is a 12xx-class brushless motor for 2-3 inch ultralight quadcopters running 2S or 3S LiPo. At 5.25 g with cables it keeps a toothpick or micro freestyle build light, and its 9N12P layout with arc magnets is built for efficiency and smooth flight.

Key features

• 7000KV winding matched to 2-3S packs on 2-3 inch props

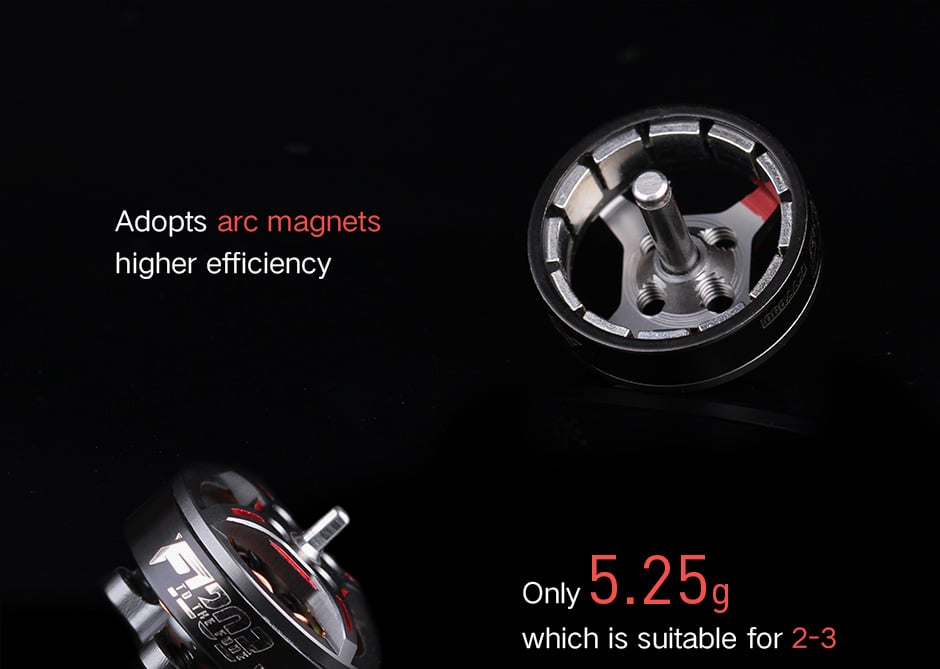

• 9N12P configuration with arc magnets for higher efficiency

• Up to 192 W for 60 s

• 198 mΩ internal resistance and 0.64 A idle current at 10 V

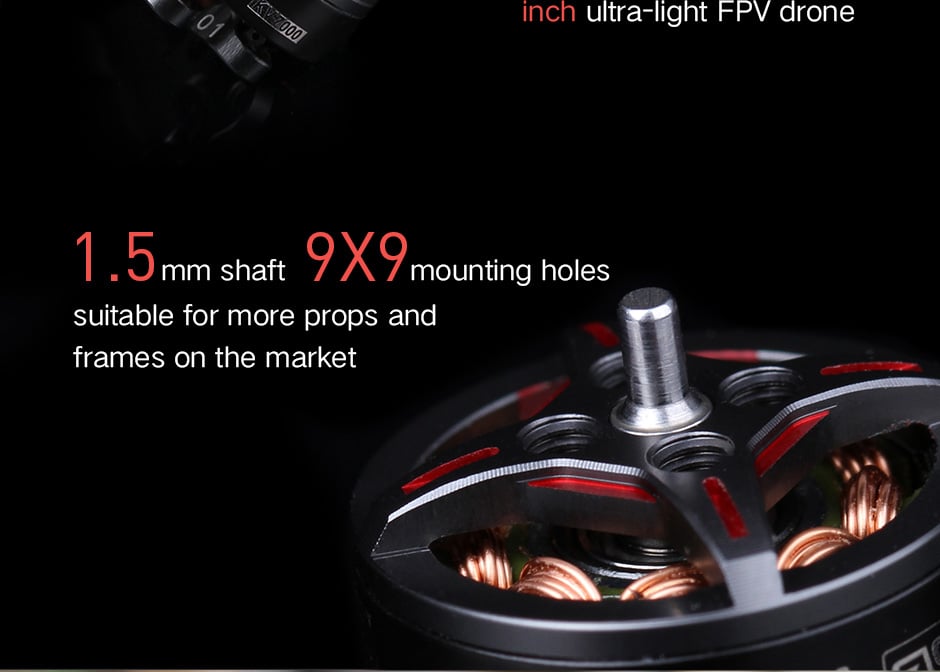

• 9 x 9 mm M2 mounting pattern, the common micro-frame layout

• Supplied with mounting screws

Specifications

• Stator: 1203 (12 mm x 3 mm)

• KV: 7000

• Configuration: 9N12P

• Cells: 2-3S LiPo

• Idle current (10 V): 0.64 A

• Internal resistance: 198 mΩ

• Max power (60 s): 192 W

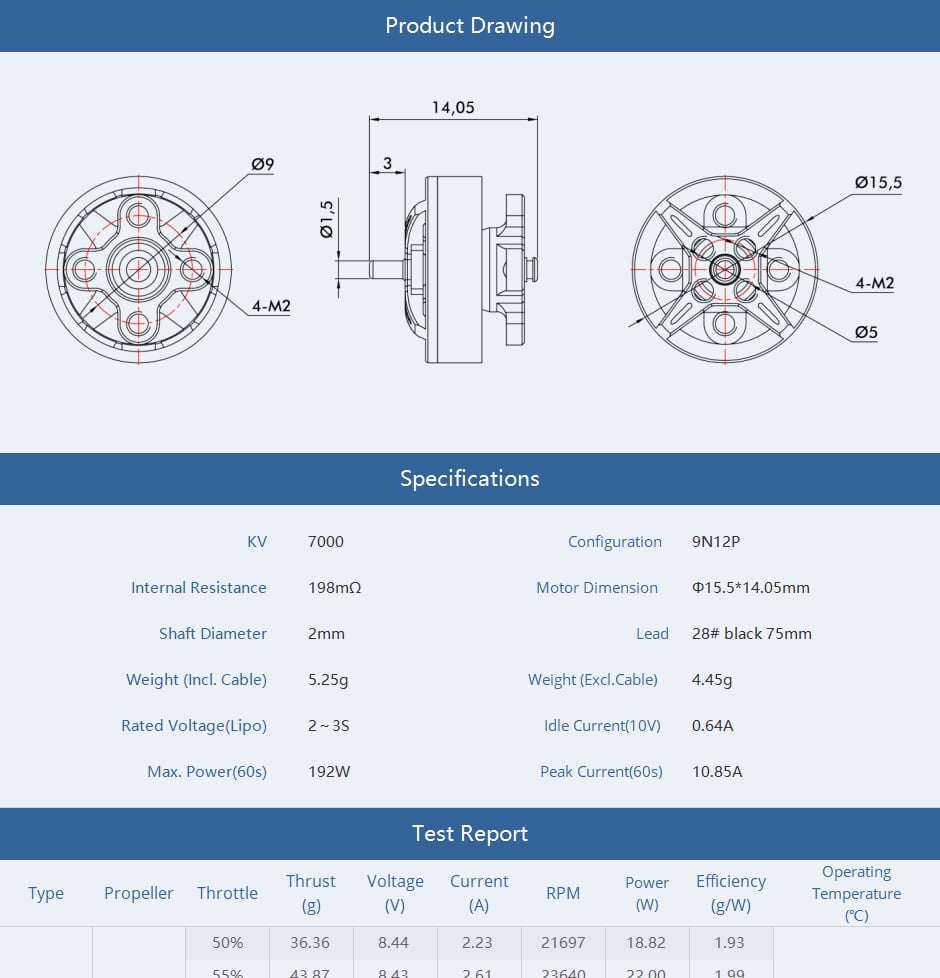

• Motor dimensions: 15.5 mm diameter x 14.05 mm

• Mounting: 9 x 9 mm, M2

• Weight: 5.25 g with cables

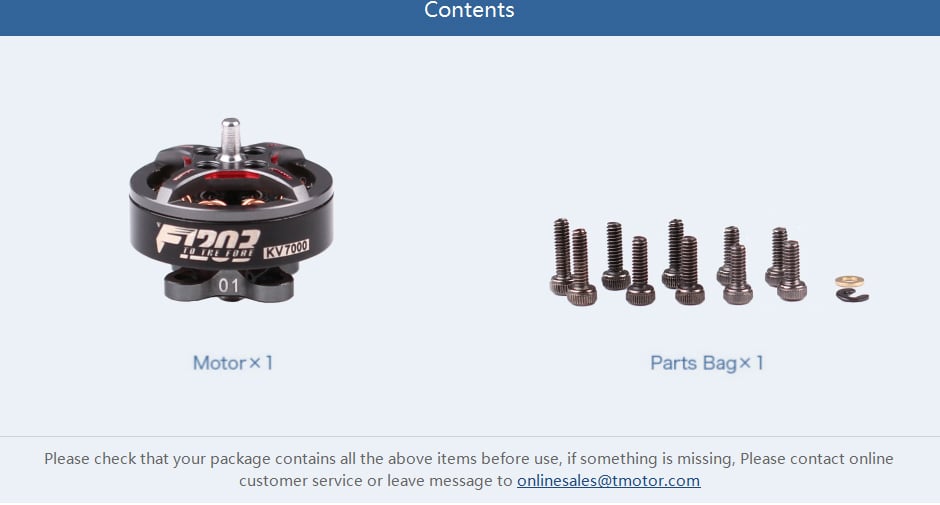

• In the box: 1 motor, screws

Sold singly, so order four for a quad. Check the hub of your chosen 2-3 inch props against the motor shaft before ordering, and pair it with an ESC rated for 2-3S.
