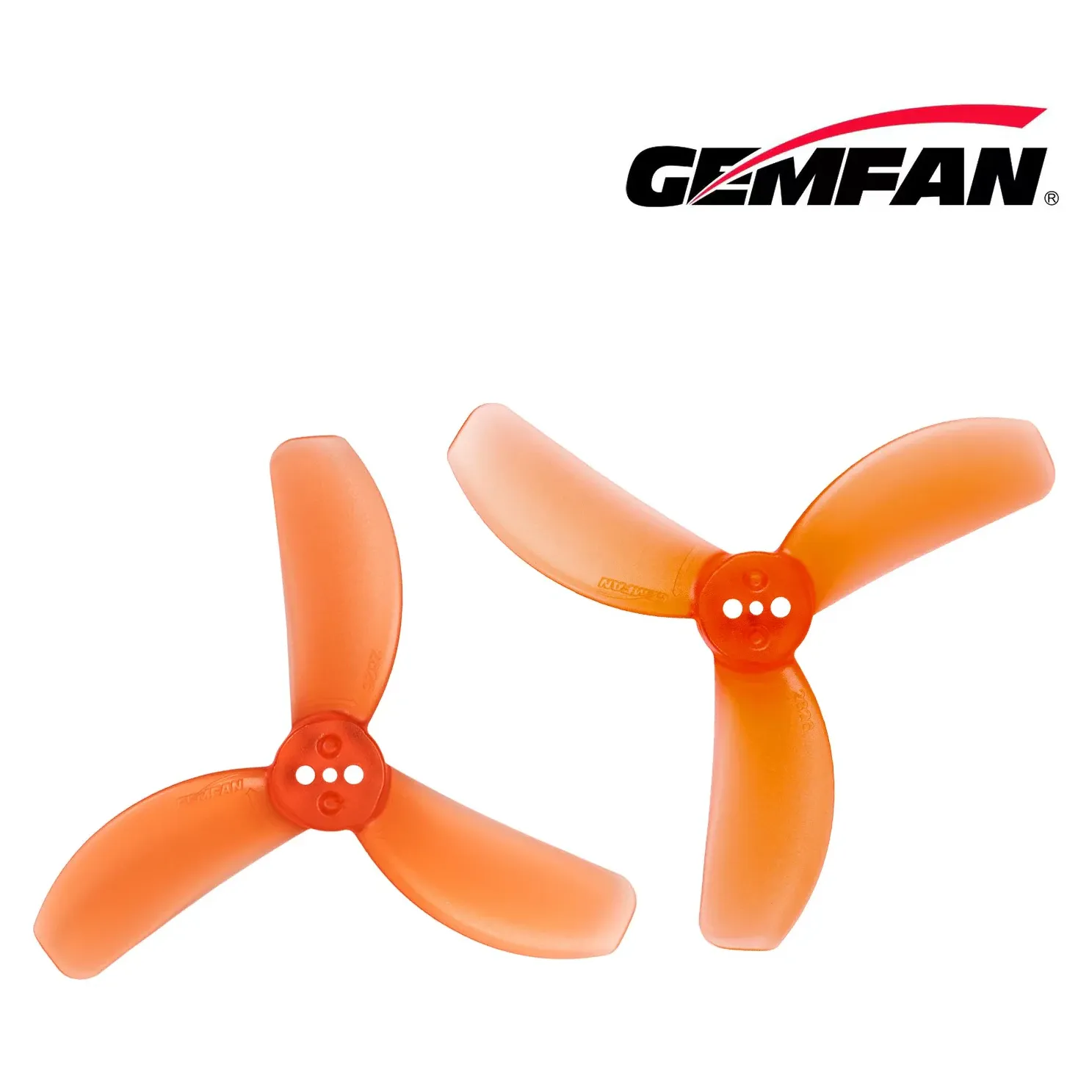

Gemfan 2826 Drone Soccer 3-Blade Propeller

The Gemfan 2826 is a 71 mm (2.8-inch) tri-blade propeller developed for 200 mm drone soccer, where caged drones collide throughout a match. Its polycarbonate blades are built to resist breaking and bending on impact while giving the thrust needed for both defending and attacking.

Key features

• 71 mm diameter with a 2.4-inch pitch and three blades
• Polycarbonate construction, 1.68 g per prop
• T-mount hub for 1.5 mm shafts, 5.5 mm centre thickness
• Gemfan recommends 1205 4300KV motors on drones of around 300 g take-off weight
• Available in blue or red

Specifications

• Diameter: 71 mm (2.8 in)
• Pitch: 2.4 in
• Blades: 3
• Material: Polycarbonate
• Weight: 1.68 g per prop
• Mount: T-mount, 1.5 mm shaft
• Centre thickness: 5.5 mm
• Max blade width: 13.3 mm
• Recommended motor: 1205 4300KV
• Recommended take-off weight: 300 g
• Colours: Blue, Red

T-mount props fix to the motor bell with small screws, so check that your motors have a T-mount bell before ordering. The blue and red options are otherwise identical.
