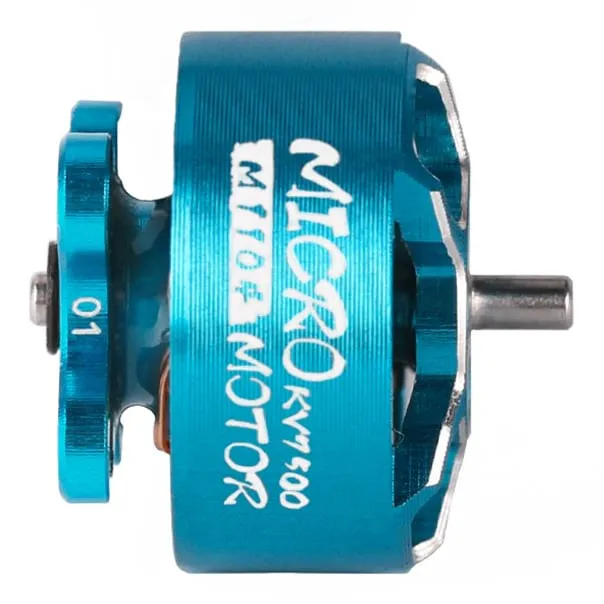

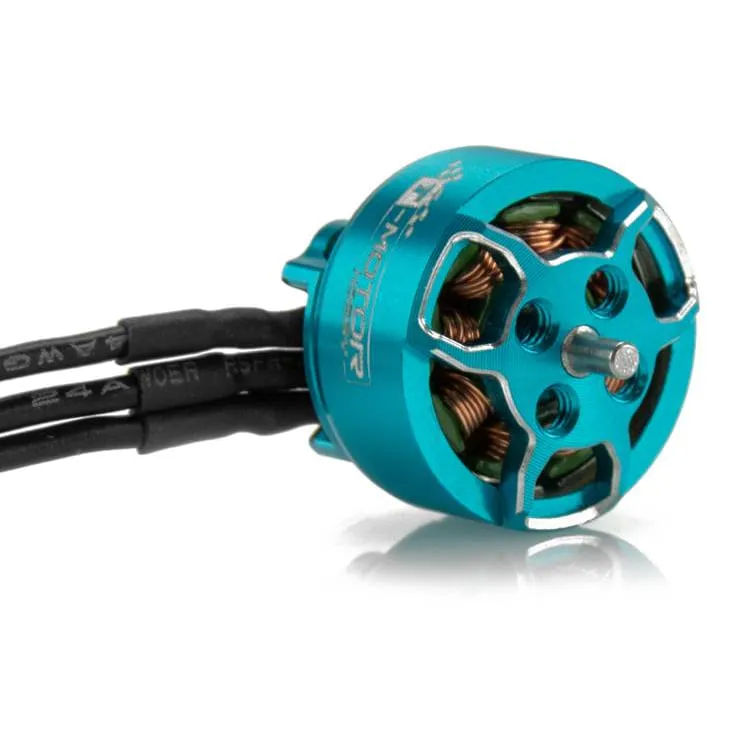

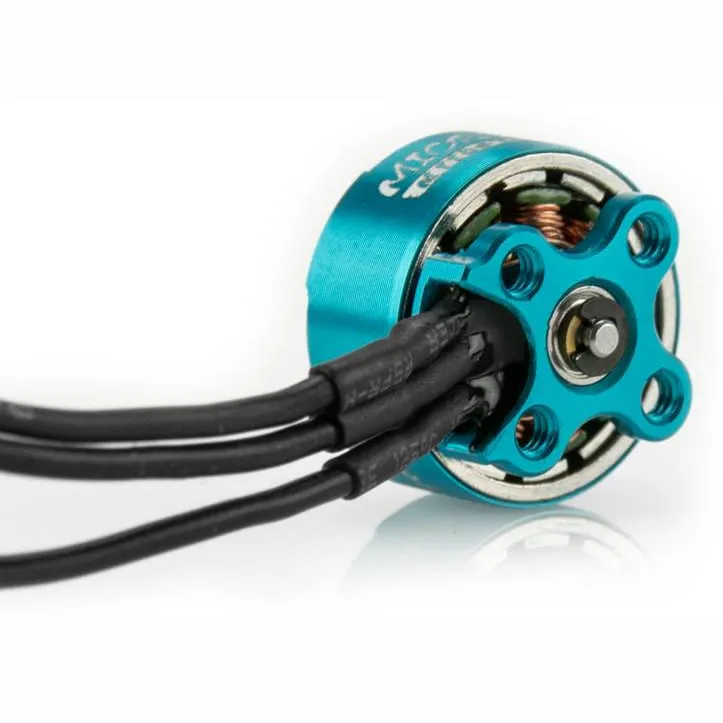

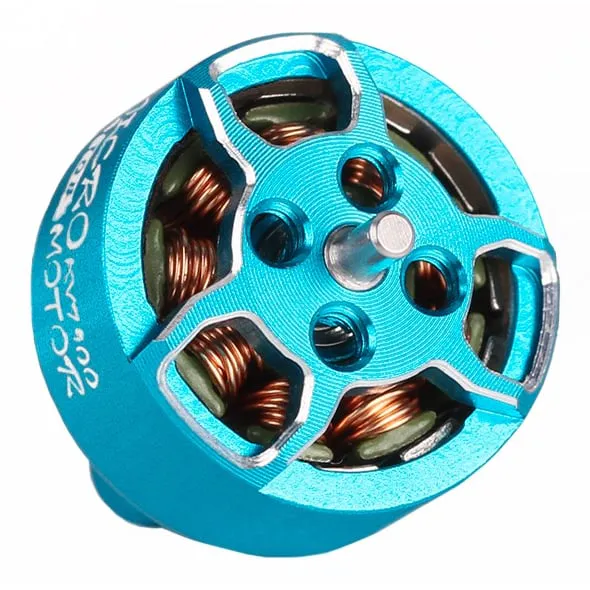

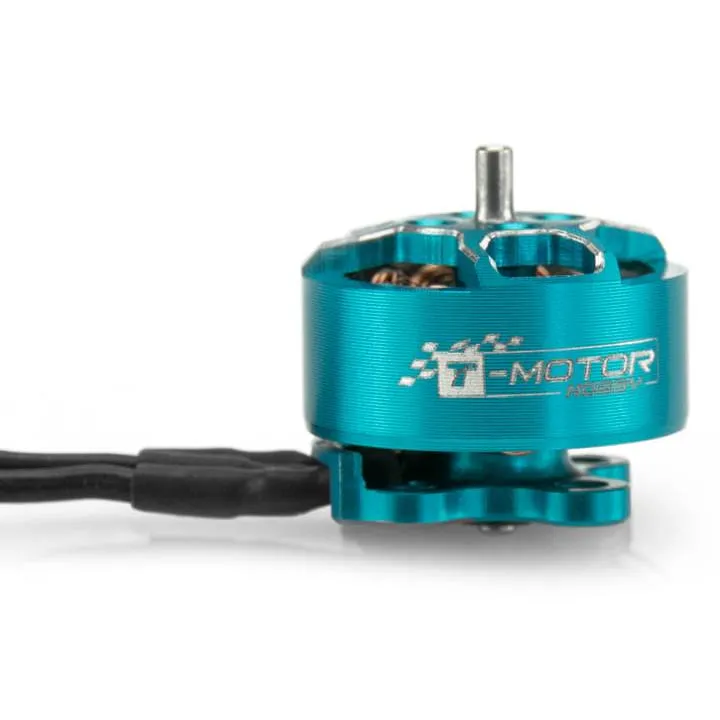

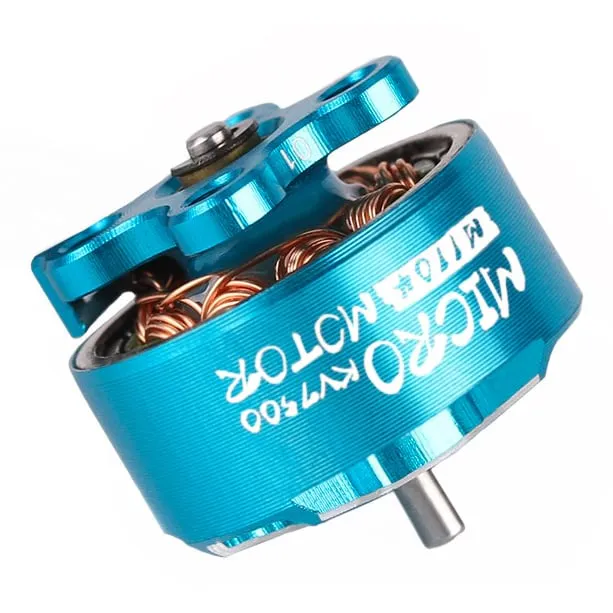

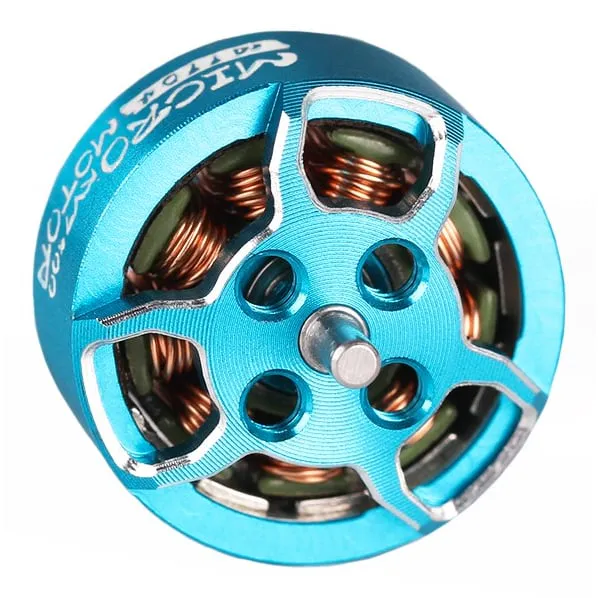

T-Motor M1104 7500KV Micro Motor

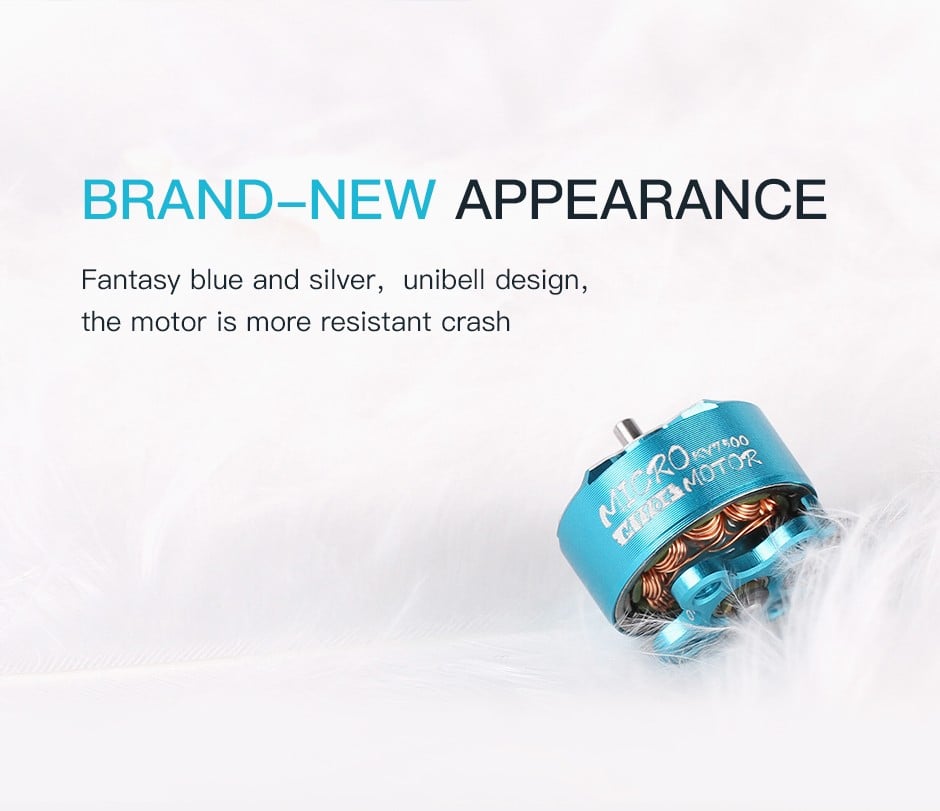

T-Motor's M1104 is a unibell brushless micro motor; this 7500KV version runs on 2–4S and suits 2-inch toothpicks and light micro quads where every gram counts.

Key features

• 11 × 4 mm stator with a 9N12P layout

• 1.5 mm shaft for 1.5 mm-bore micro props

• 9 × 9 mm mounting pattern with M2 screws

• Up to 198 W, with 13.1 A peak current for 10 s

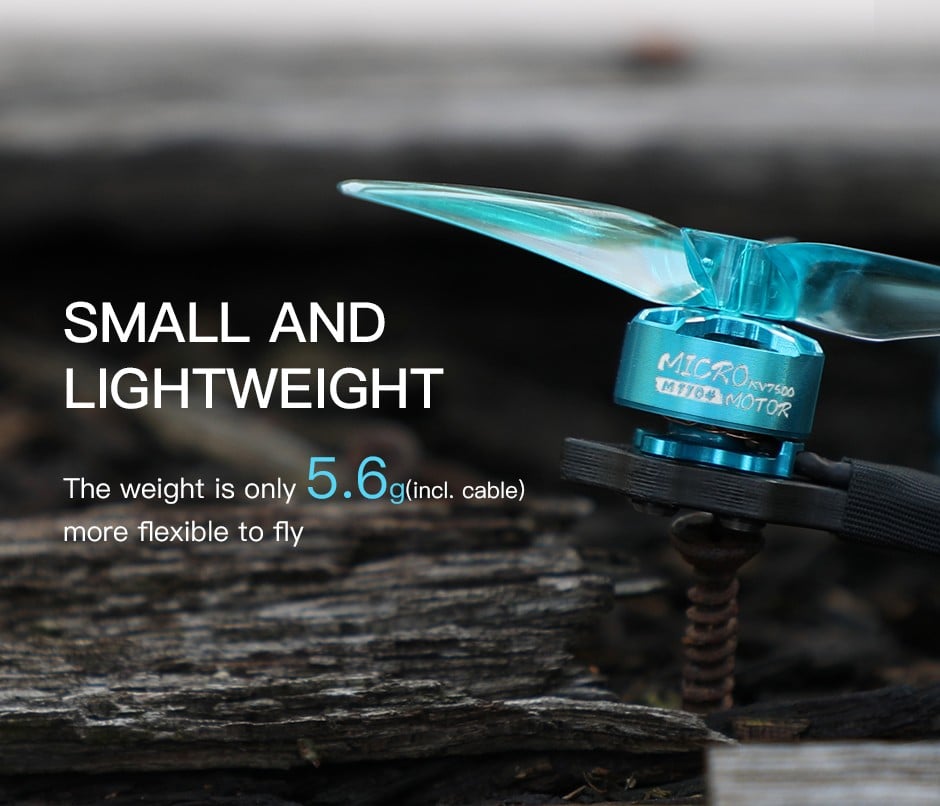

• 5.6 g, with 75 mm 24 AWG leads

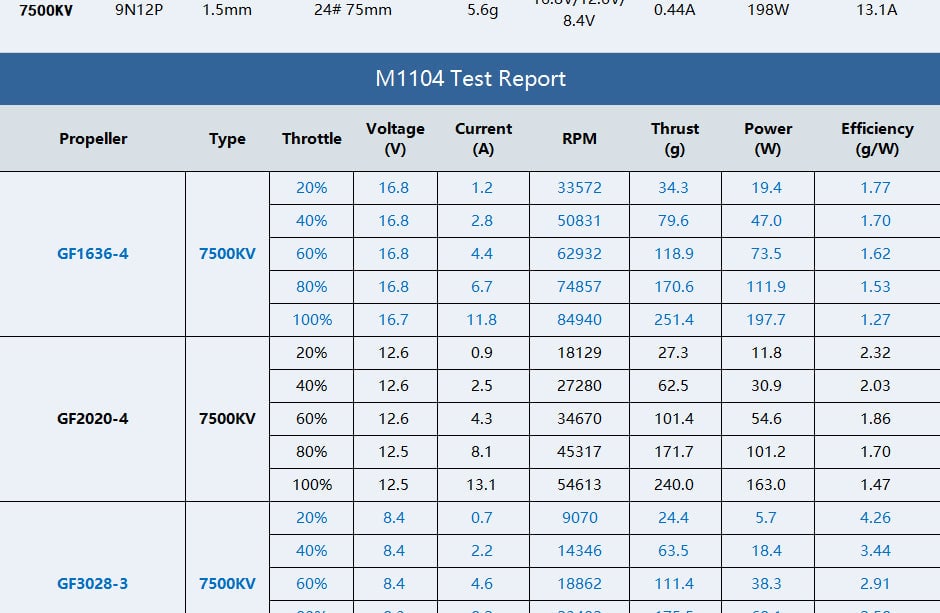

Specifications

• KV: 7500KV

• Stator: 1104 (11 mm × 4 mm)

• Configuration: 9N12P

• Input: 2–4S LiPo

• Shaft: 1.5 mm

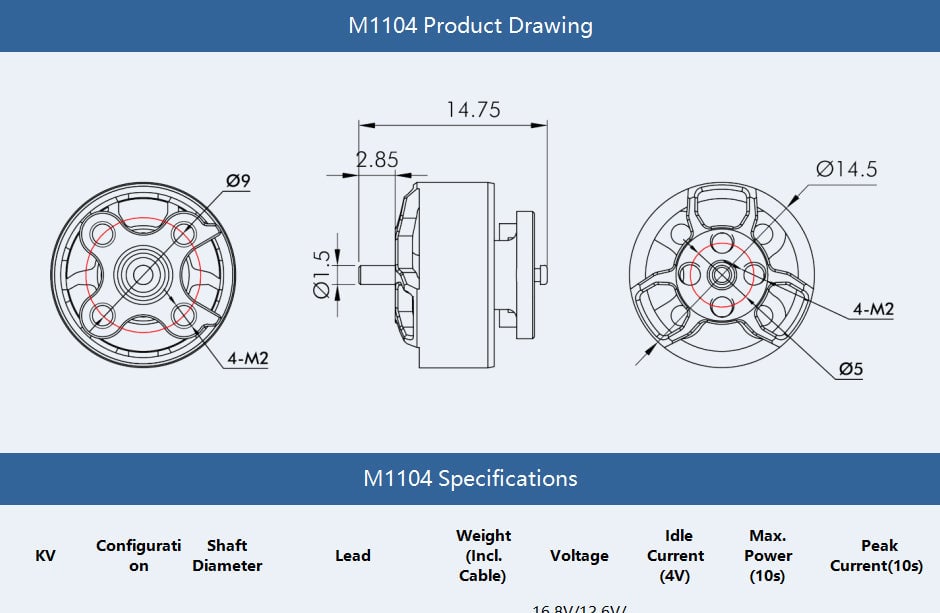

• Mounting: 9 × 9 mm, M2

• Max power: 198 W

• Peak current: 13.1 A (10 s)

• Leads: 75 mm, 24 AWG

• Weight: 5.6 g

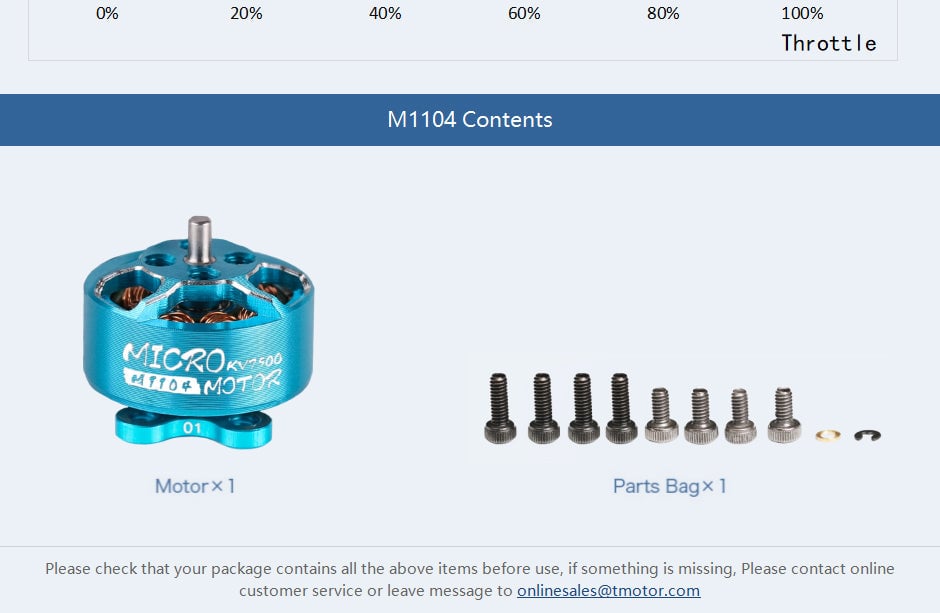

Sold as a single motor — order four for a quad and pick an ESC whose per-motor rating covers the 13.1 A peak. Check that your frame's arms carry a 9 × 9 mm hole pattern and your props have a 1.5 mm bore.
