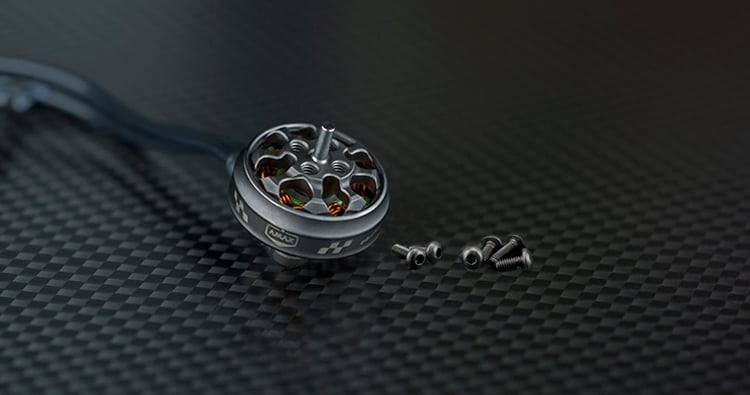

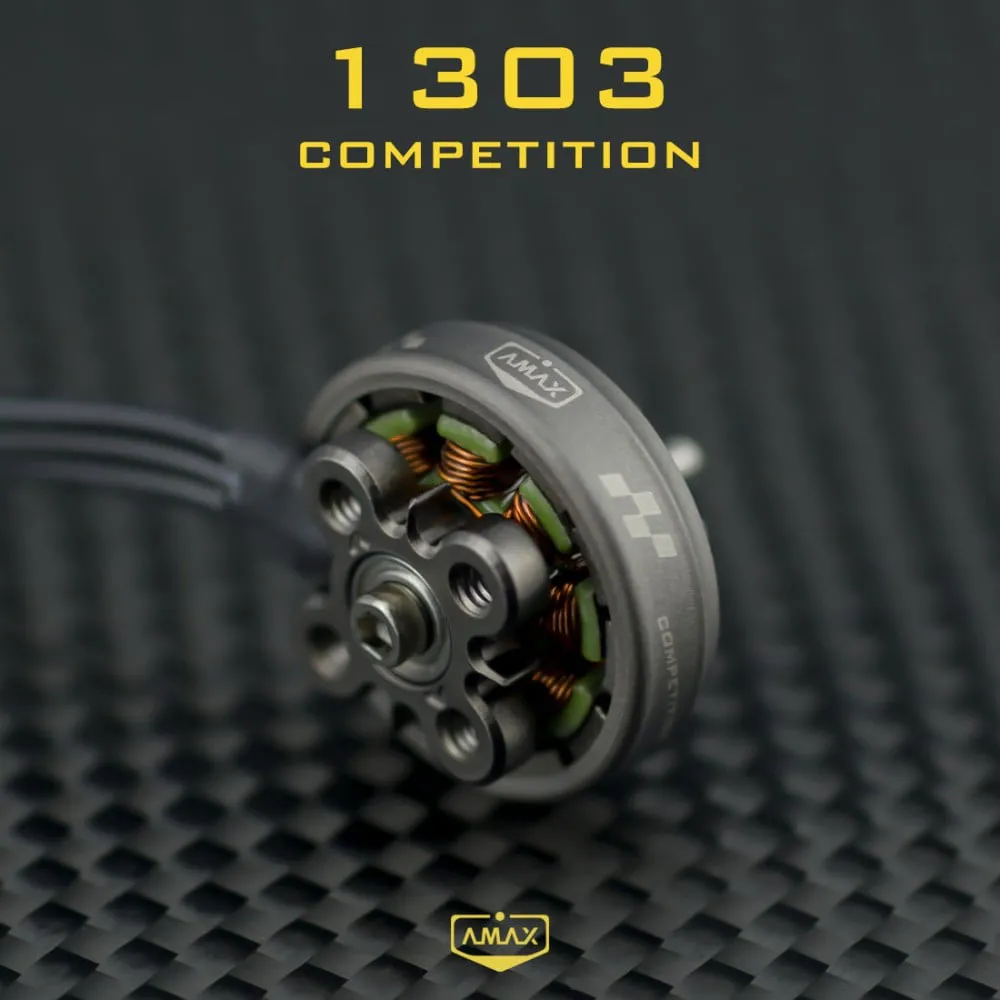

AMAX Competition 1303 5500KV Brushless Motor

The AMAX Competition 1303 is a 5500KV brushless micro motor for small FPV builds such as toothpicks and compact cinewhoops, with a 1.5 mm shaft and a 9 × 9 mm M2 mount.

Key features

• 1303 stator: 13 mm × 3 mm, a low-profile micro stator that keeps the all-up weight of small quads down.

• 1.5 mm shaft: takes press-fit micro props with 1.5 mm hubs.

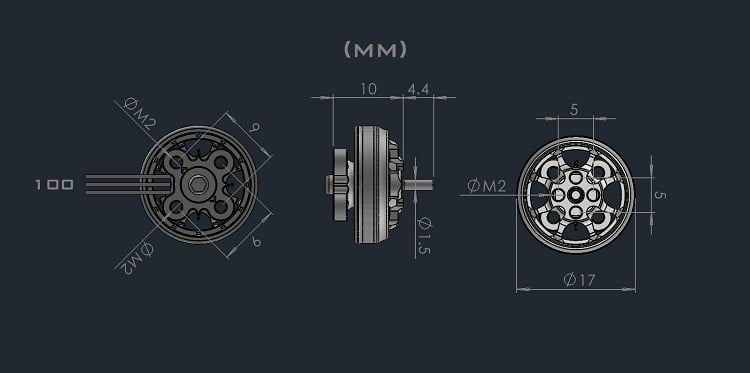

• 9 × 9 mm M2 mount: the common bolt pattern on micro and toothpick frame arms.

• Sold singly: each unit is one motor; order four for a quad.

Check that your frame's motor arms are drilled 9 × 9 mm for M2 screws and that your props have 1.5 mm hubs: props made for 1 mm shafts will not fit, and 2 mm hubs sit loose. Keep motor screws short so they cannot touch the windings.
