iFlight TITAN DC5 HD 222mm 5" Frame
₹6,599Incl. GST
SKU IFL-TITAN-DC5-HD-222
Prop Size: 5"Wheelbase: 222 mmCamera Size: 19mm, 22mmMade in India: No
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The iFlight TITAN DC5 HD is a 3K carbon-fibre deadcat frame for 5-inch freestyle builds, with a 222mm wheelbase and mounting for both 20x20 and 30.5x30.5 electronics stacks.
Key features
- Deadcat arm layout keeps the propellers out of the camera's field of view.
- Centres the stack and HD digital air unit for balanced weight distribution.

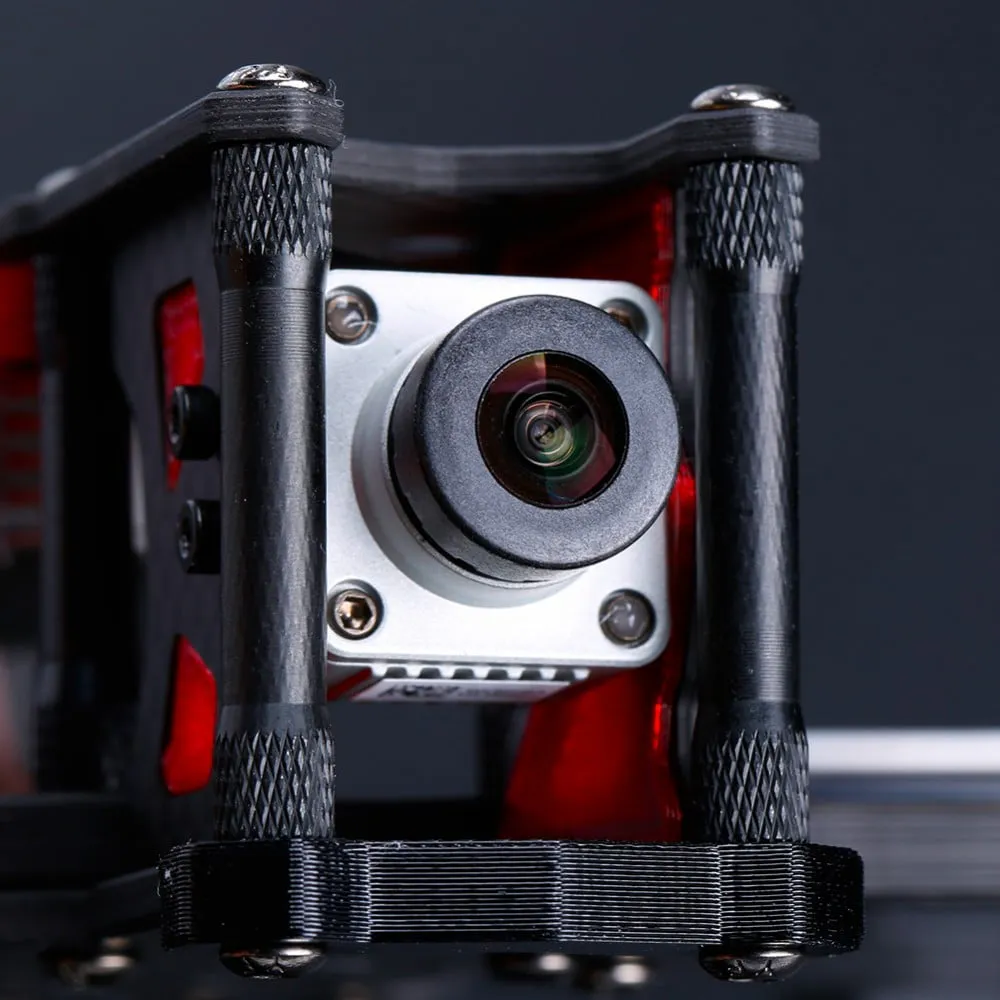

- Fits 19x19mm or 22x22mm FPV cameras.

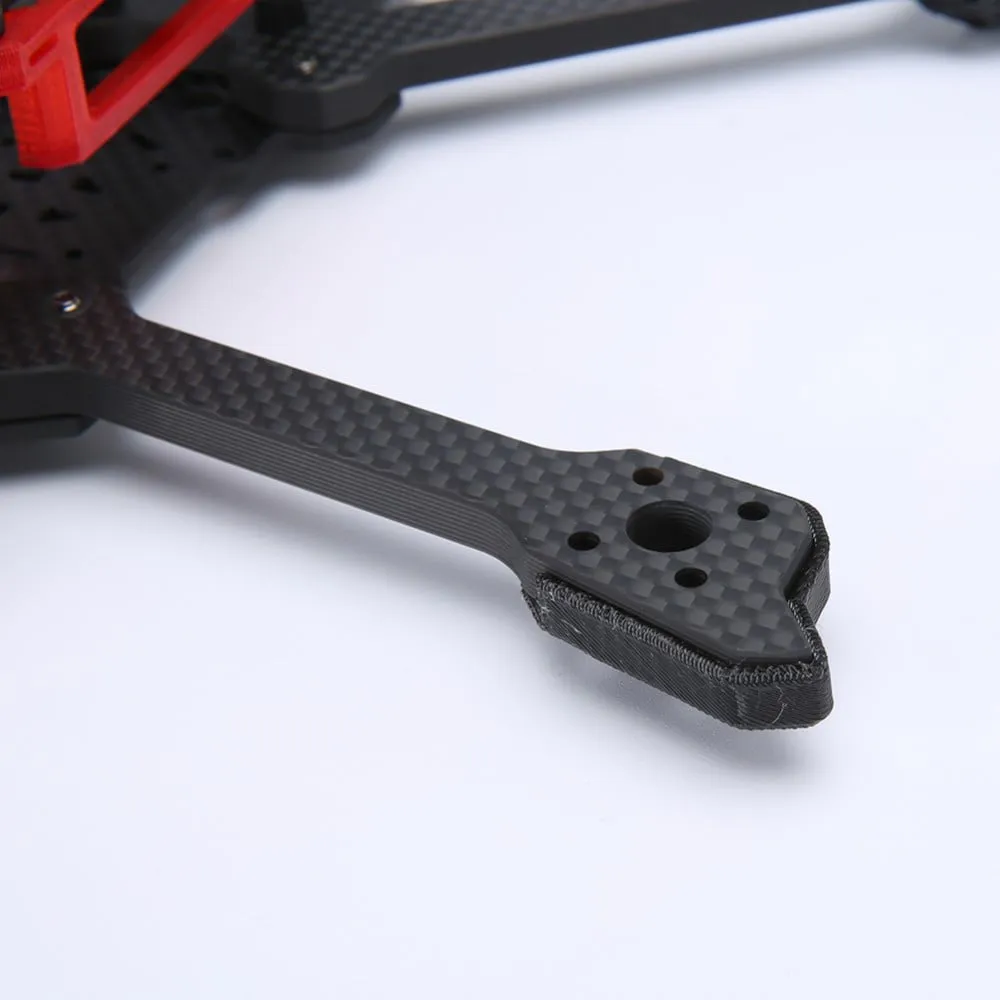

- 6mm arm thickness with a chamfered profile for added stiffness.
- Recommended for 2207-2306-class motors on 5-inch propellers.
Specifications

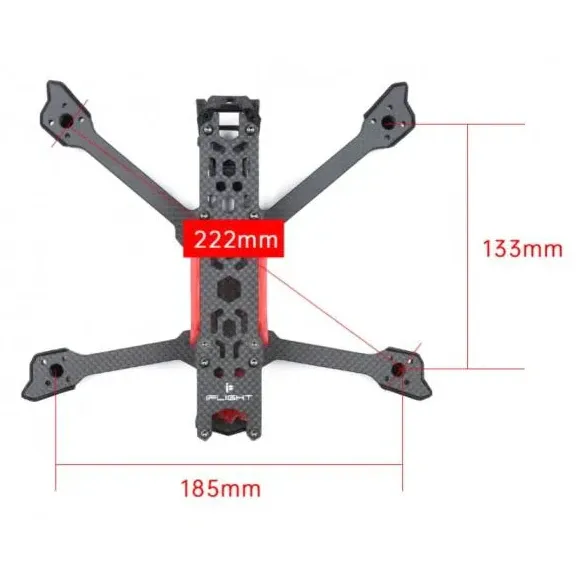

- Wheelbase: 222mm

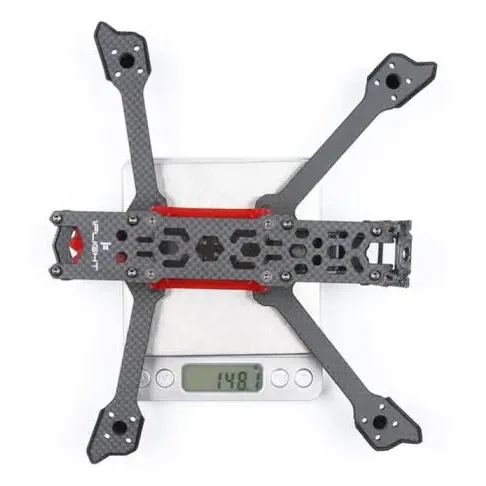

- Weight: 150.4g (with TPU parts and battery pads)
- Main body: 185 x 133mm
- Bottom-to-top height: 35mm
- Arm thickness: 6mm
- Bottom plate thickness: 3mm
- Top plate thickness: 2.5mm
- Camera plate thickness: 1.5mm (2.5mm with TPU inserts)
- Mounting holes: 30.5 x 30.5mm

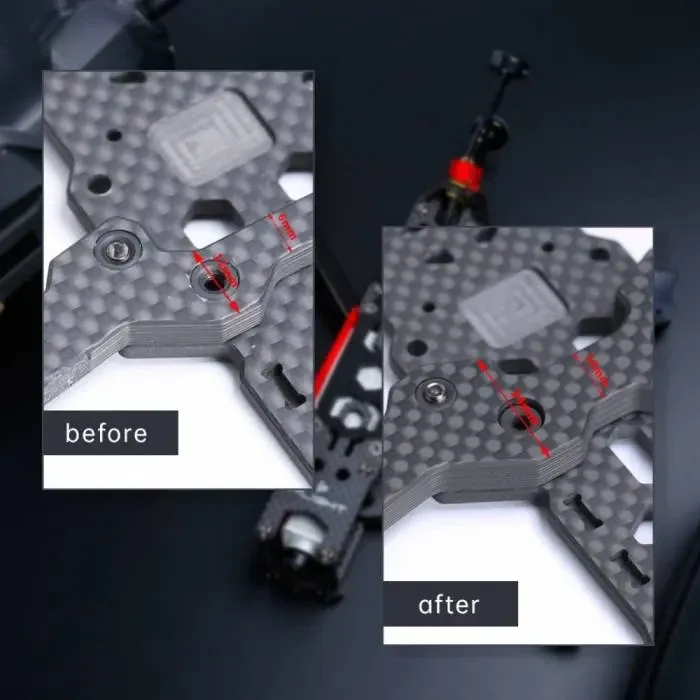

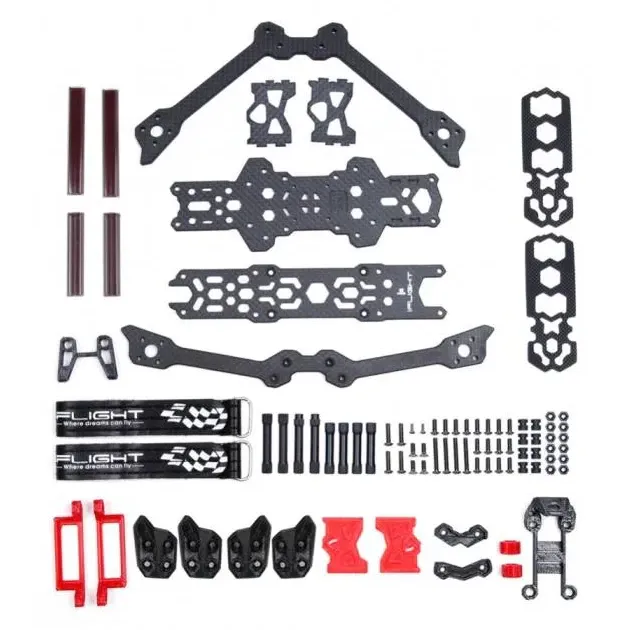

Includes arm guards, TPU camera and air-unit mounts, and a battery strap set; check your stack, camera and air-unit dimensions fit the frame's internal space before building. The V1.4 arms are wider and thicker at the screw points than earlier revisions for added strength.
| Prop Size | 5" |
|---|---|
| Wheelbase | 222 mm |
| Camera Size | 19mm, 22mm |
| Made in India | No |
| Brand | iFlight |
| Weight | 150.4 g |
