iFlight ELRS 500mW Receiver 40mm Mini Antenna

₹2,999Incl. GST

SKU IFL-ELRS-500MW-40MM

RC Protocol: ELRSMade in India: NoBrand: iFlightFrequency: 2.4GHz
Dispatched within 2 business days — quality-checked in Gurugram

Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.

Questions about this part? Ask us on WhatsApp

Buying in bulk? Ask for a better price on WhatsApp or by email.

Product details

The iFlight ELRS 500mW Receiver is a 2.4GHz ExpressLRS receiver with a 40mm mini antenna, built for FPV drones that need a strong telemetry return link in a compact package.

Key features

  • Temperature-compensated crystal oscillator (TCXO) reduces frequency drift and packet loss versus non-TCXO receivers.
  • Telemetry power up to 500mW for a stronger return link on long flights.
  • Built-in LNA on the 2.4GHz band improves reception sensitivity.
  • Aluminium heatsink plate and single-sided components keep the board compact and better shielded from interference.

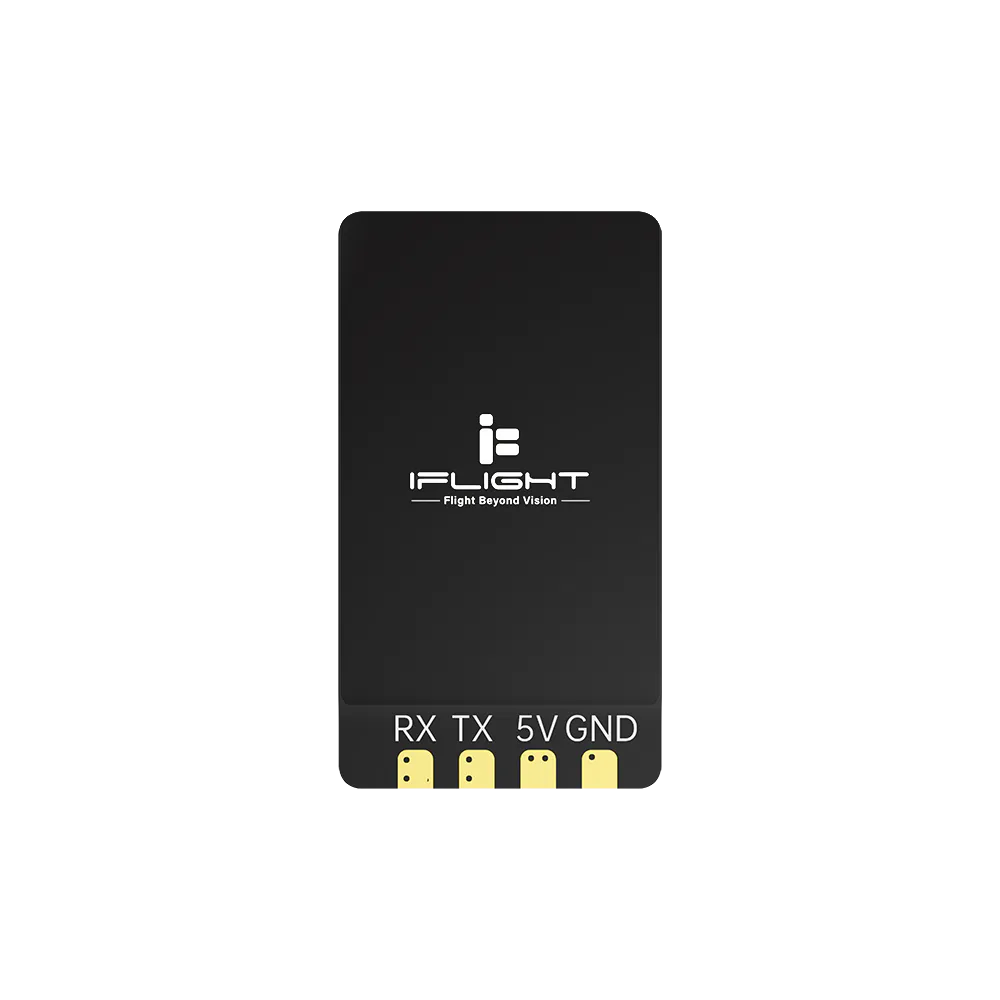

  • Pre-soldered SH1.0 connector gives plug-and-play wiring with compatible iFlight flight controllers.
  • Outputs CRSF from an ESP8285 MCU for wide flight-controller compatibility.

Specifications

  • Frequency: 2.4GHz ISM
  • Protocol: CRSF
  • Dimensions: 14 x 25 x 4.3mm
  • Weight: 1.8g

Flash the latest ELRS firmware and bind to a compatible 2.4GHz transmitter before flying; keep the antenna clear of carbon and metal components.
