HGLRC MY 3215 900KV 5-6S Brushless Motor

The HGLRC MY 3215 900KV is a high-load brushless motor for 10-inch long-range and heavy-duty FPV quads on 5–6S. Its 32 x 15 mm stator and 900KV wind are sized to turn 10-inch props with the torque needed for long-range cruising and aerial cinematography.

Key features

• 12N14P configuration with an M5 shaft 16 mm long; an M5 prop nut is supplied

• At 24V on a 1050 tri-blade prop it reaches 4946 g thrust, drawing 69.6 A and 1560.1 W at full throttle

• 16AWG leads, 250 mm long, for routing to a central ESC on large arms

• Four-hole M3 mount on a 19 mm pattern, with four M3 x 12 mm screws included

• 135 g including leads

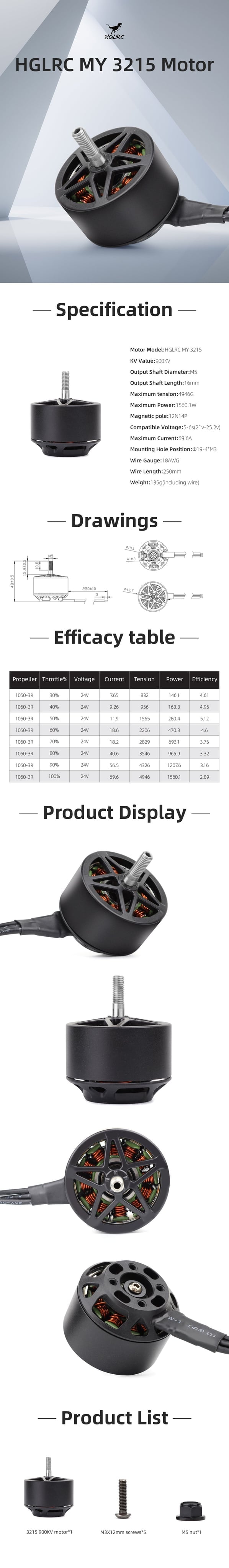

Specifications

• Stator: 3215 (32 x 15 mm)

• KV: 900KV

• Configuration: 12N14P

• Input voltage: 5–6S (21–25.2V)

• Max current: 69.6 A

• Max power: 1560.1 W

• Max thrust: 4946 g (1050 tri-blade, 24V)

• Shaft: M5, 16 mm long

• Mounting: 19 x 19 mm, 4x M3

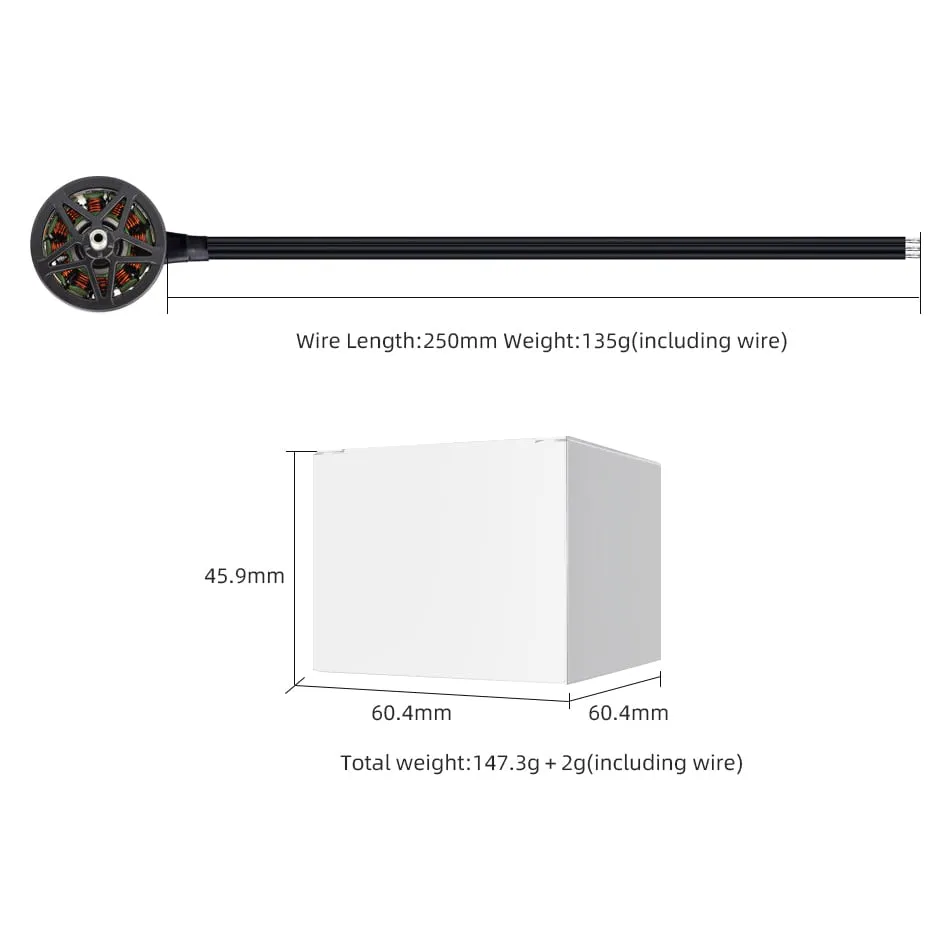

• Leads: 16AWG, 250 mm

• Weight: 135 g with leads

• In the box: 1 motor, 1 M5 nut, 4 M3 x 12 mm screws

Budget close to 70 A per motor at full throttle when choosing the ESC and battery: an ESC rated above that peak and a 6S pack with enough current headroom keep a 10-inch build within limits.
