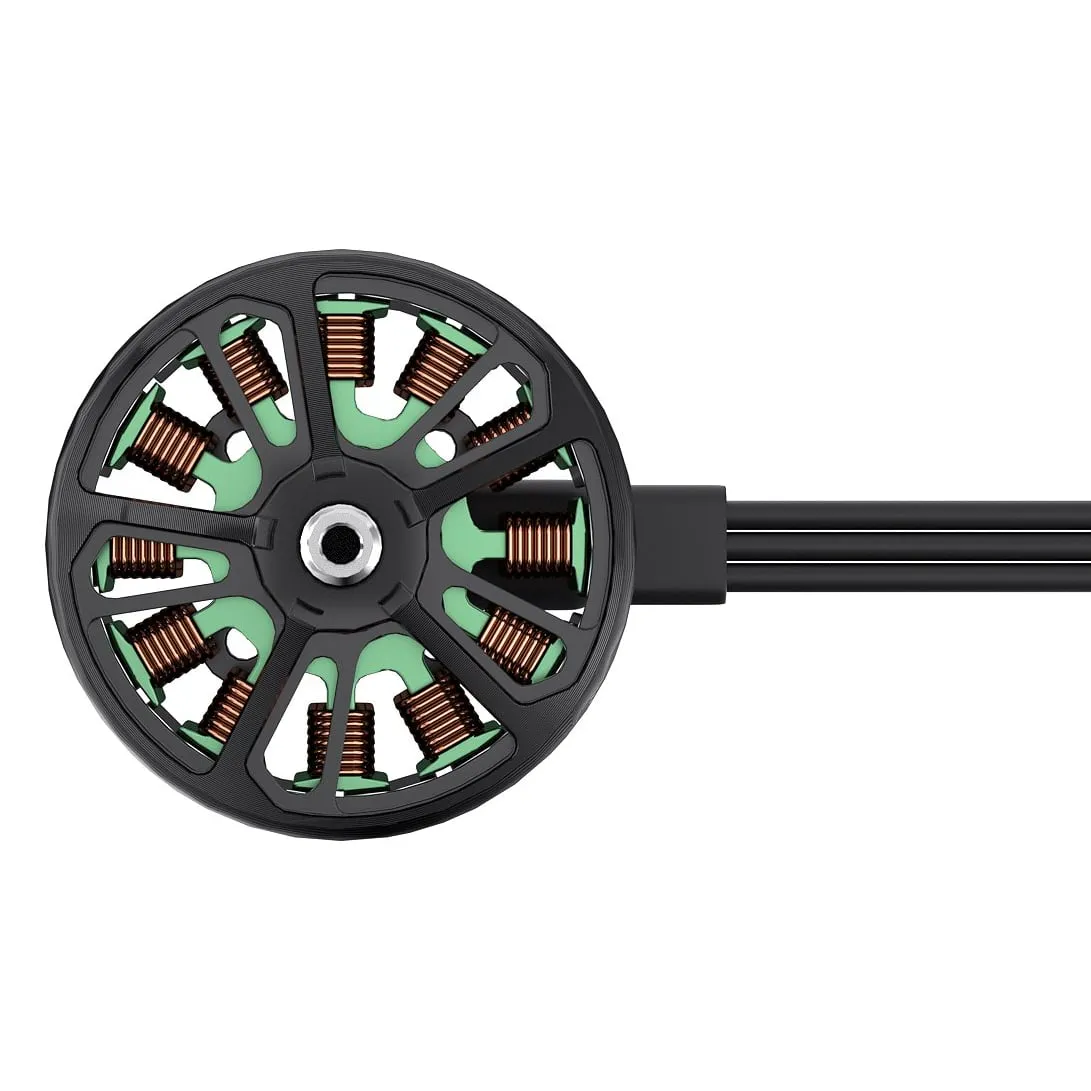

GEPRC EM3215 900KV Motor

The GEPRC EM3215 900KV is a high-torque brushless motor for 10-inch macroquads, long-range platforms and heavy-lift cinelifters running 6S power.

Key features

• Optimised for 9-10 inch propellers on heavy-lift FPV frames and macroquads.
• N52H arc magnets and an NMB bearing maintain consistent output under sustained payload stress.
• 12N14P stator configuration rated to 1780W max power and 75A peak current on 6S.
• M5 steel prop shaft and 19x19mm mounting pattern suit standard heavy-lift motor plates.
• Single-strand copper winding keeps the motor efficient across the higher current draw of sustained heavy-lift duty cycles.

Specifications

• KV: 900
• Stator size: 3215
• Configuration: 12N14P
• Max power: 1780W
• Peak current: 75A
• Interphase resistance: 33 mOhm
• Rated voltage: 6S LiPo (25.2V)
• Mounting pattern: 19x19mm
• Prop shaft: M5, 17.2 mm protrusion
• Dimensions: 38.6 x 30.7 mm
• Wire gauge: 18AWG, 300mm lead
• Weight: 122g (including wire)

Pair with a 60-80A ESC and 9-10 inch propellers for an efficient, vibration-controlled cinematic or long-range rig; mounting screws and an M5 flange nut are included for direct fitment.
