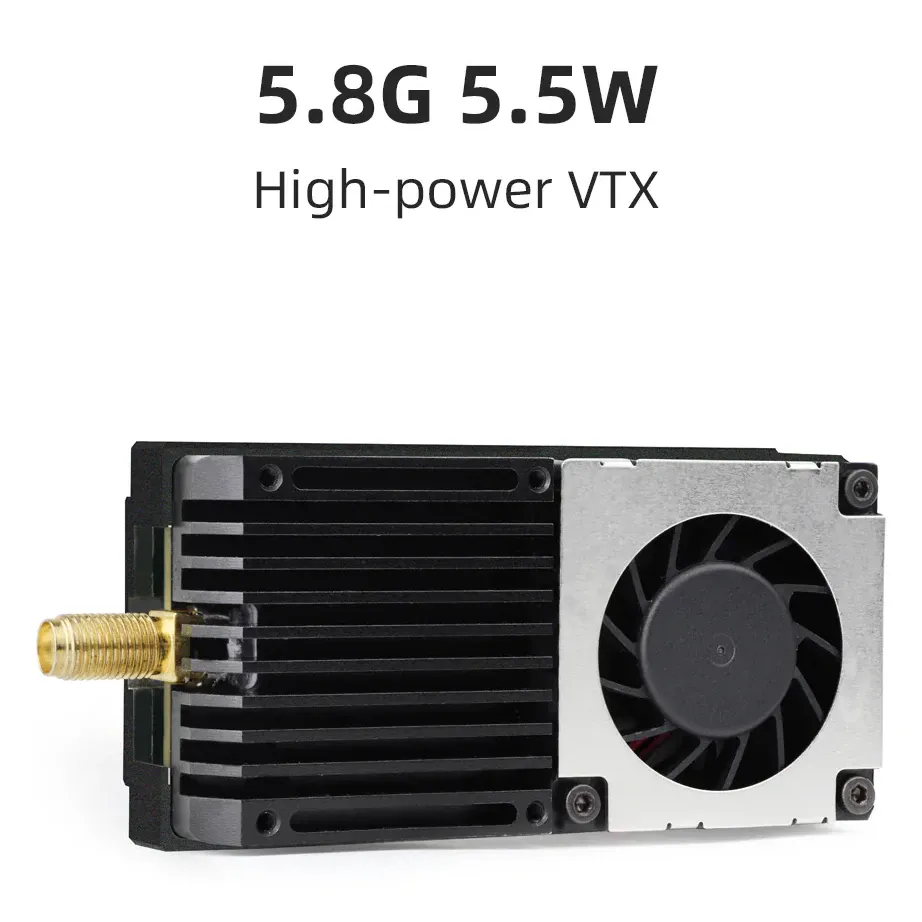

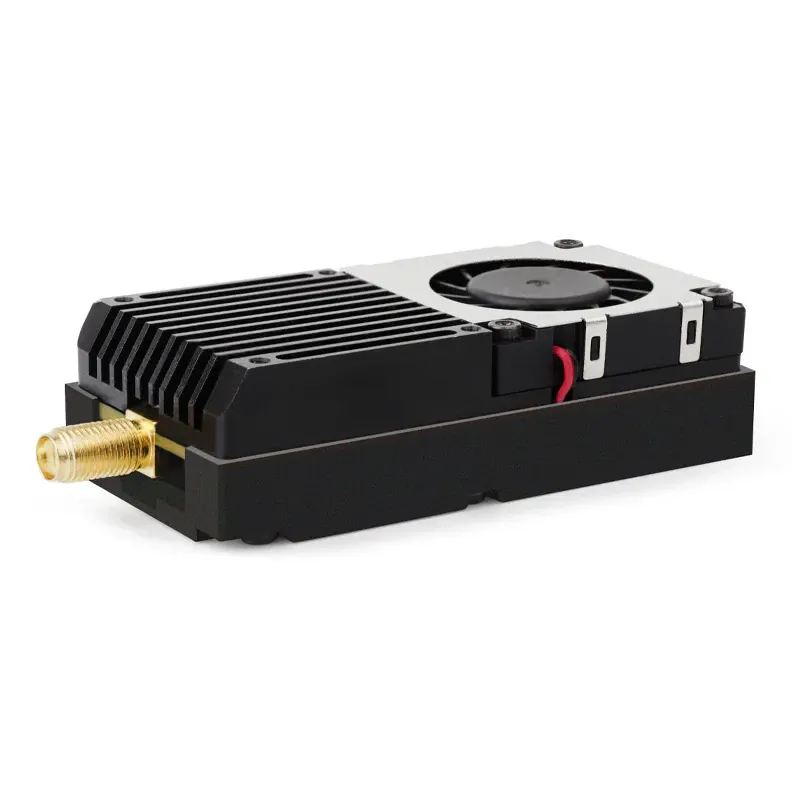

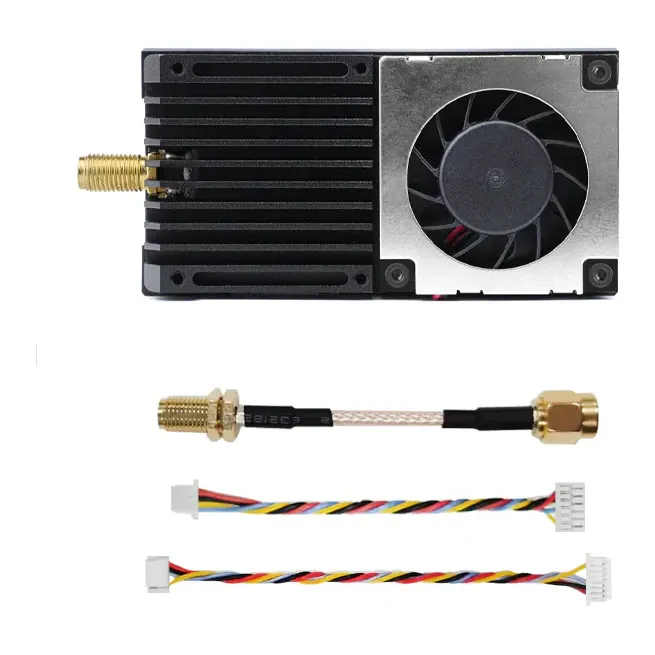

HGLRC 5.8G 5.5W High Power Video Transmitter Adjustable Power

The HGLRC 5.8G 5.5W is an ultra-high-power analog video transmitter built for extreme long-range FPV, mountain surfing, and heavy-lift agricultural drones. Delivering up to 5500mW of RF output, this VTX is designed to push video signals through heavy foliage, structural obstacles, and over extended distances where standard 1W or 2W transmitters typically drop out.

Key features

• Seven adjustable output levels from a bench-safe PIT mode up to the maximum 5.5W output.

• Wide 7-36V input range, supporting direct power from 2-8S LiPo batteries on large-scale and macro-quad builds.

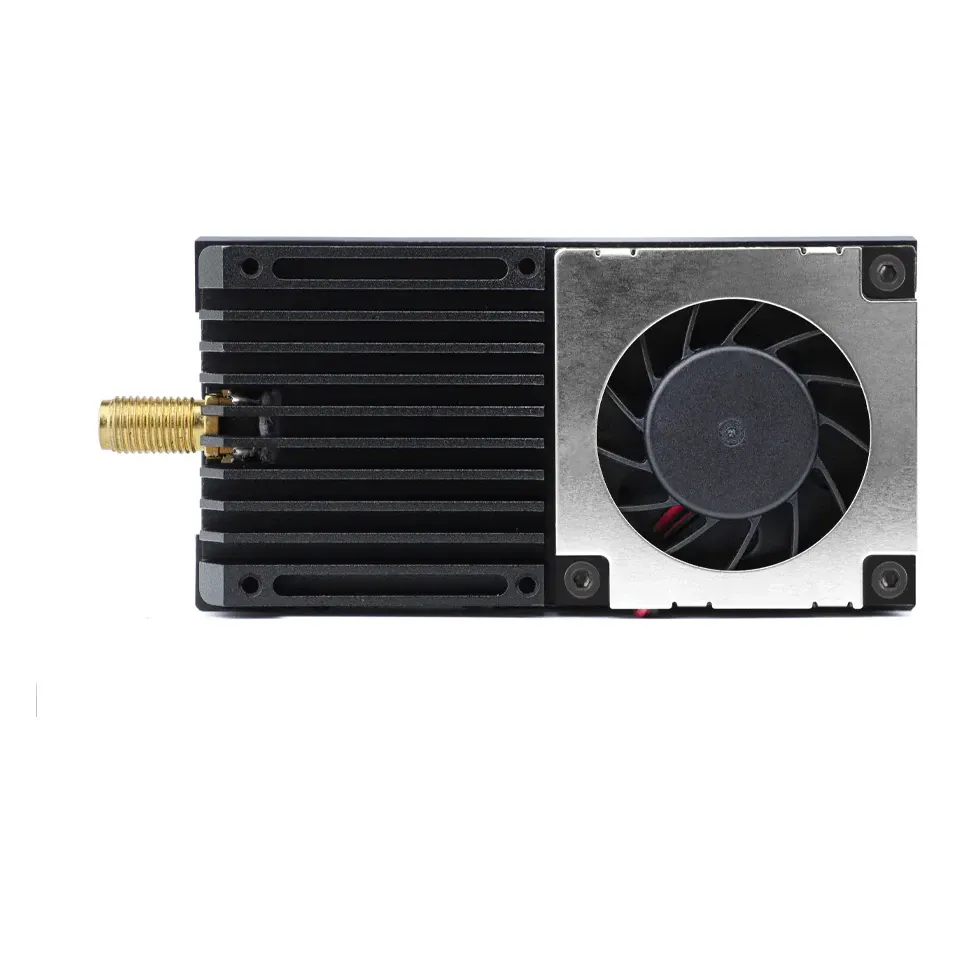

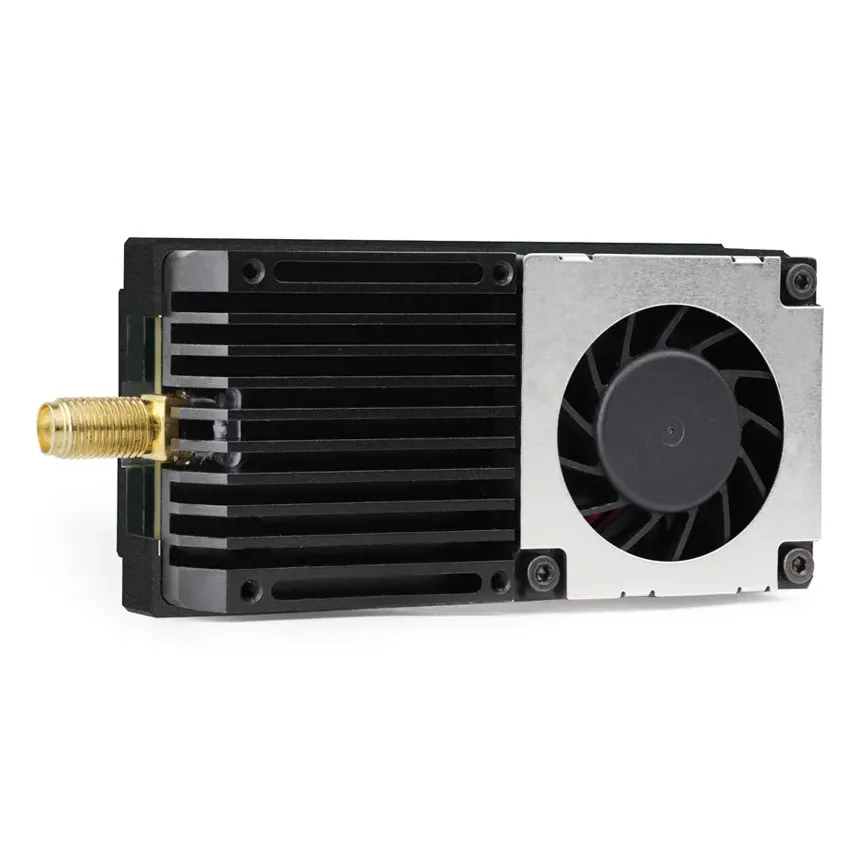

• Integrated active cooling fan and aluminium heatsink to rapidly dissipate heat and prevent thermal throttling during flight.

• Full flight controller OSD control for rapid band, channel, and power switching via the IRC Tramp protocol.

Specifications

• Input Voltage: 7-36V (2-8S LiPo)

• Output Power: PIT / 25 / 400 / 800 / 1500 / 2500 / 5500 mW

• Channels: 40CH

• Control Protocol: IRC Tramp

• BEC Output: 5V

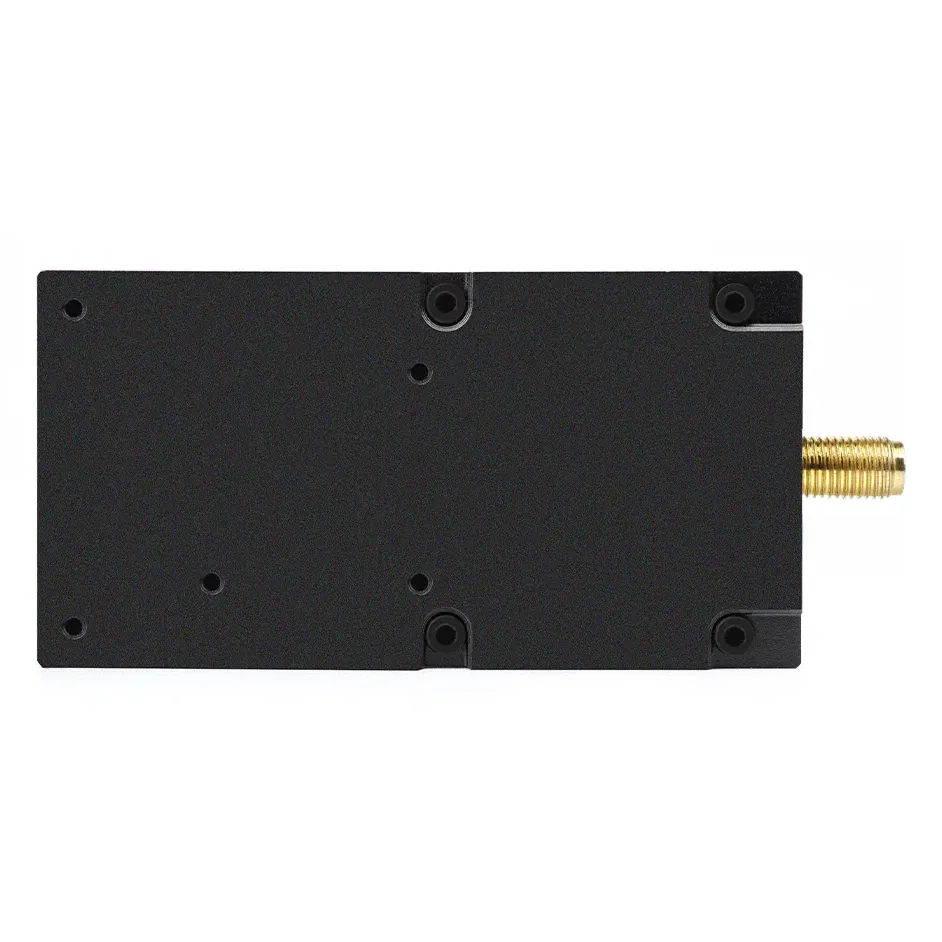

• Mounting Pattern: 30.5x30.5 mm

Due to the massive heat generated at the 2.5W and 5.5W output levels, always ensure a matched antenna is securely connected before applying power. Active airflow is strictly required; never leave the VTX idle on the bench at high power settings without additional cooling.
