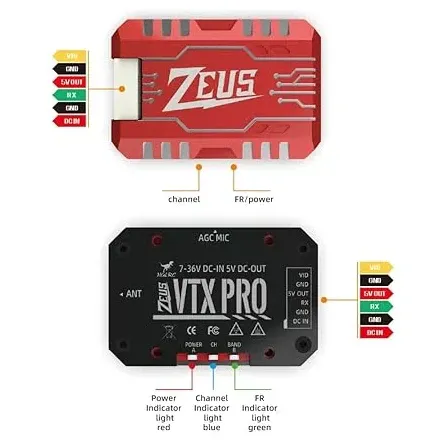

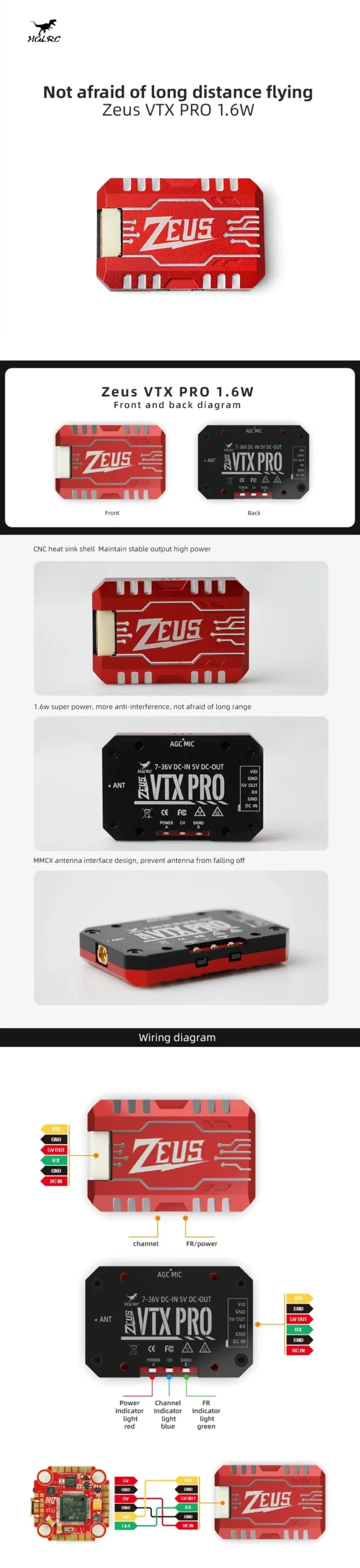

HGLRC Zeus VTX Pro 1.6W

The HGLRC Zeus VTX Pro is a high-power 5.8GHz analog video transmitter built for long-range mountain surfing, bando bashing, and heavy-duty freestyle quads. Outputting up to a massive 1.6W, it blasts through dense foliage, concrete structures, and severe multi-pathing to maintain a solid video link. A thick CNC-machined aluminium heatsink dominates the board, rapidly dissipating heat to prevent thermal throttling before takeoff and during aggressive punch-outs.

Key features

• Five variable power levels up to 1600mW to suit proximity flying or extreme long-range flights.

• Built-in microphone delivers real-time motor and prop audio feedback straight to your goggles.

• Integrated CNC aluminium heatsink ensures stable power output without rapid overheating.

• Supports IRC Tramp protocol for quick channel and power adjustments via your flight controller OSD.

Specifications

• Input Voltage: 7-36V (2-8S LiPo)

• Output Power: PIT / 25mW / 400mW / 800mW / 1600mW

• Frequency Band: 5.8GHz (40 Channels)

• Protocol: IRC Tramp

• Antenna Connector: MMCX

• BEC Output: 5V / 500mA

• Mounting Pattern: 30.5x30.5mm

• Dimensions: 38.2 x 28.1 x 9 mm

• Weight: 12.6g (without antenna)

Equipped with standard 30.5x30.5mm mounting holes, this VTX bolts seamlessly onto the top of full-size 5-inch to 10-inch drone stacks. Always ensure an antenna is firmly attached before powering on, and provide adequate airflow over the heatsink when running at 800mW or 1600mW to maximise lifespan.
