GEPRC TAKER F745 BT 8Bit 60A Stack

The GEPRC TAKER F745 BT 8Bit 60A stack pairs an F7 flight controller with a matching 60A 4-in-1 ESC for freestyle and racing builds on a 30.5x30.5mm mounting pattern. The flight controller and ESC are also sold separately for pilots upgrading only one half of an existing stack.

Key features

• STM32F745 (Cortex-M7, up to 216MHz) processor with dual MPU6000 and ICM42688-P gyros for stable control.
• Built-in Bluetooth allows wireless Betaflight parameter tuning, and a 512MB black box logs flight data.
• Runs Betaflight, iNav or ArduPilot, with 7 UART ports (one fixed for Bluetooth) and an integrated barometer.
• Dual BEC outputs 5V at 3A and 12V at 2.5A, with a direct plug for a DJI Air Unit and a Type-C USB port.
• The TAKER H60_BLS ESC delivers 60A continuous and 65A peak current (5 seconds) on 3-6S input with DShot150/300/600 support.
• Eight motor outputs on the ESC support X8 builds as well as standard quads.

Specifications

• FC processor: STM32F745, dual gyro (MPU6000 + ICM42688-P)
• OSD: AT7456E
• FC dimensions: 38.5 x 38.5 mm
• FC weight: 8.4g
• ESC current: 60A continuous / 65A peak
• ESC dimensions: 42 x 45.7 mm
• ESC weight: 14.9g
• Input voltage: 3-6S LiPo
• Mounting: 30.5x30.5mm

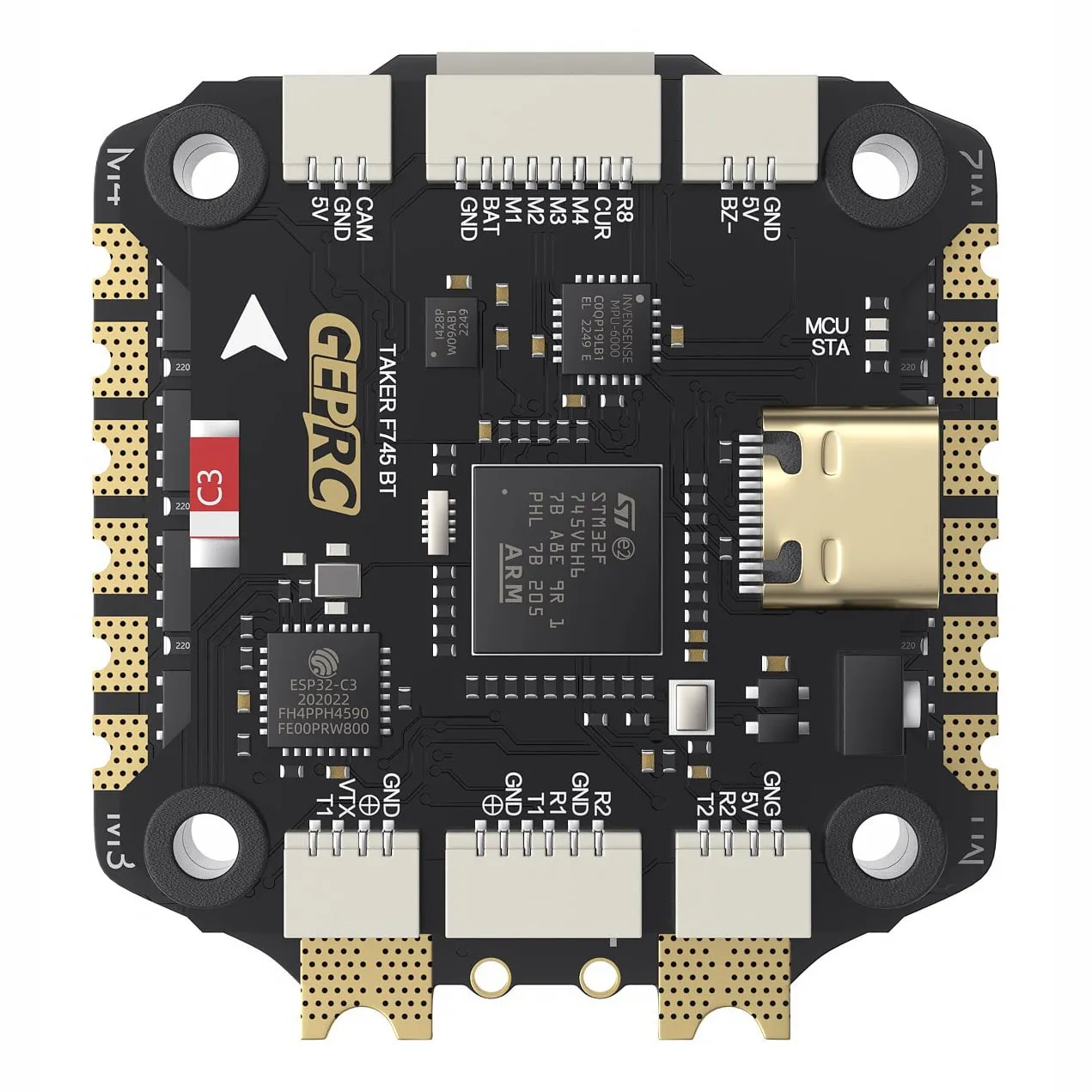

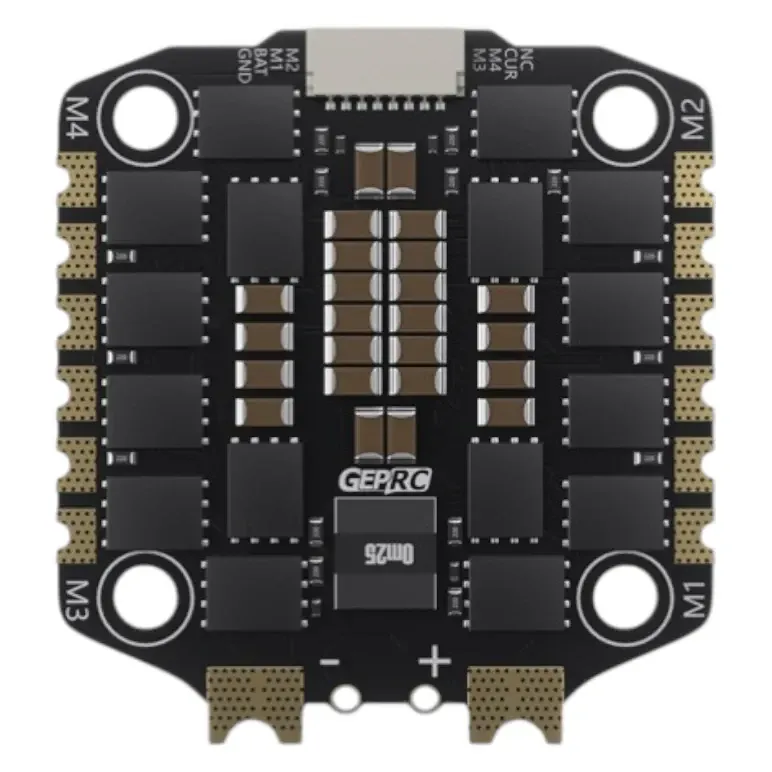

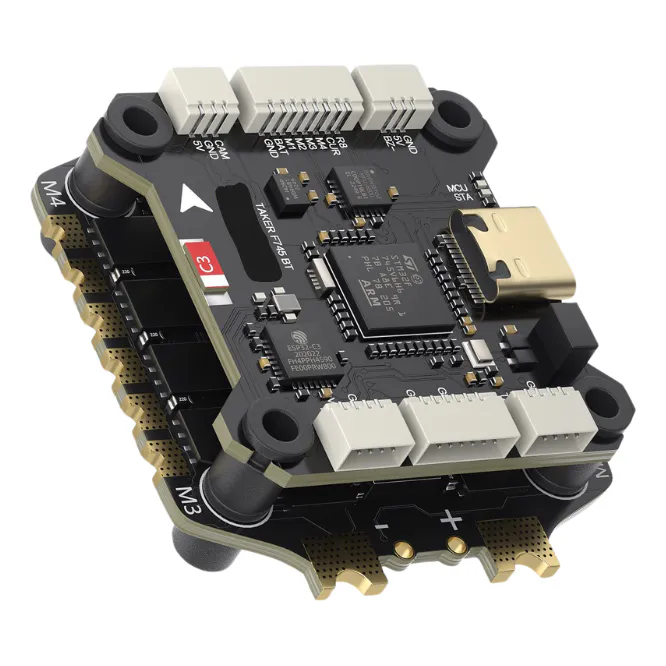

Choose the FC-only or ESC-only option to replace just one half of an existing stack, or the full stack for a new build.
