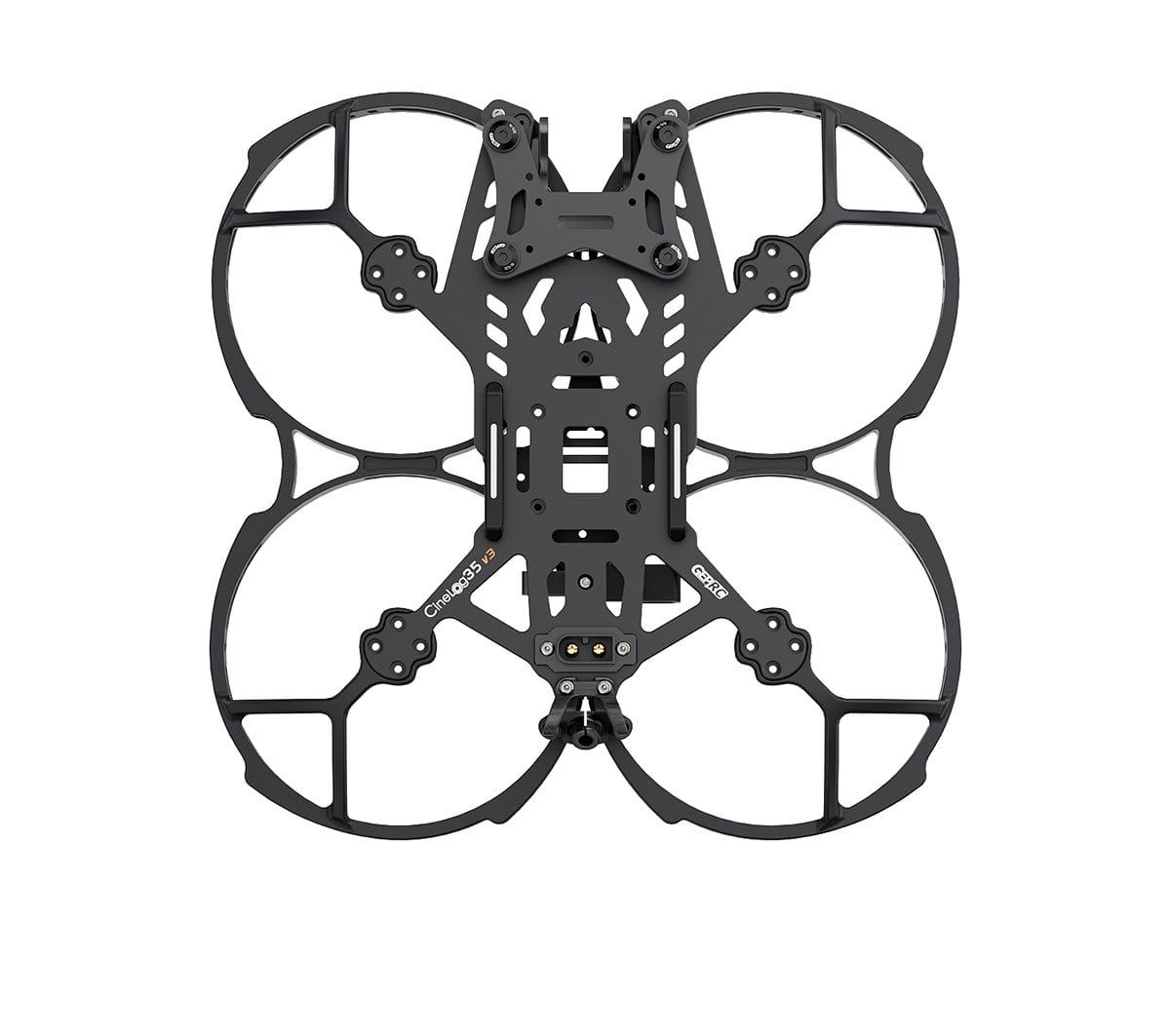

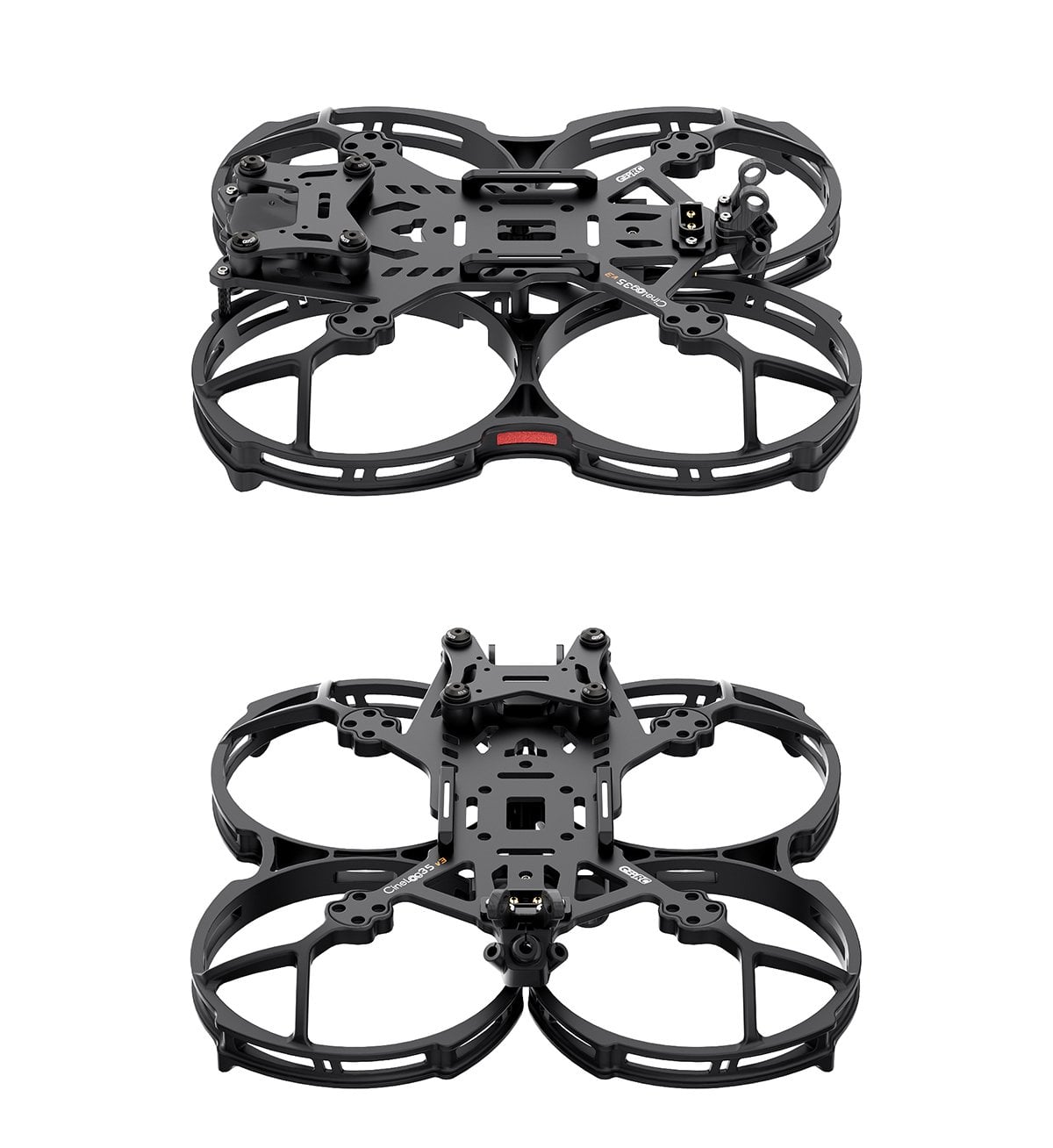

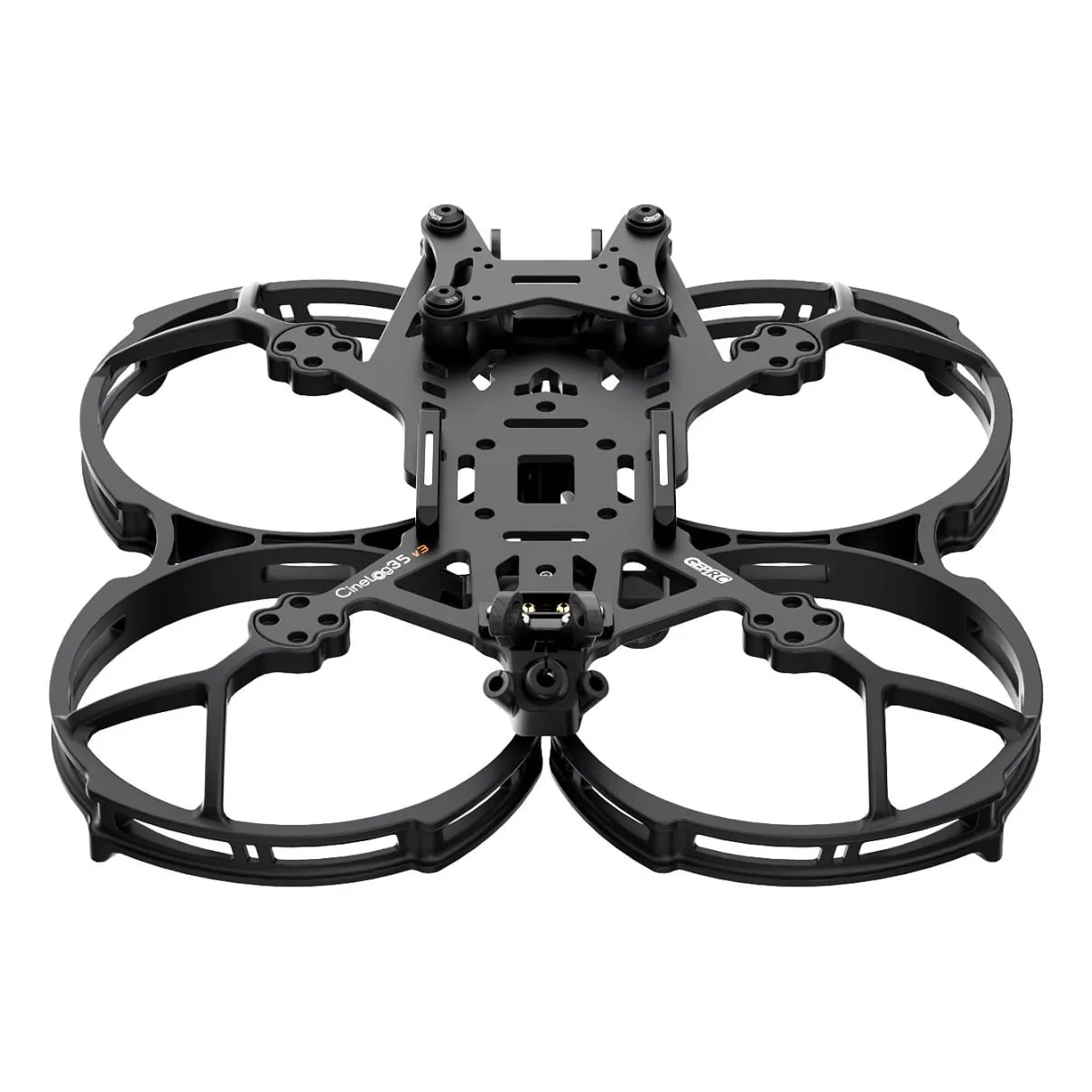

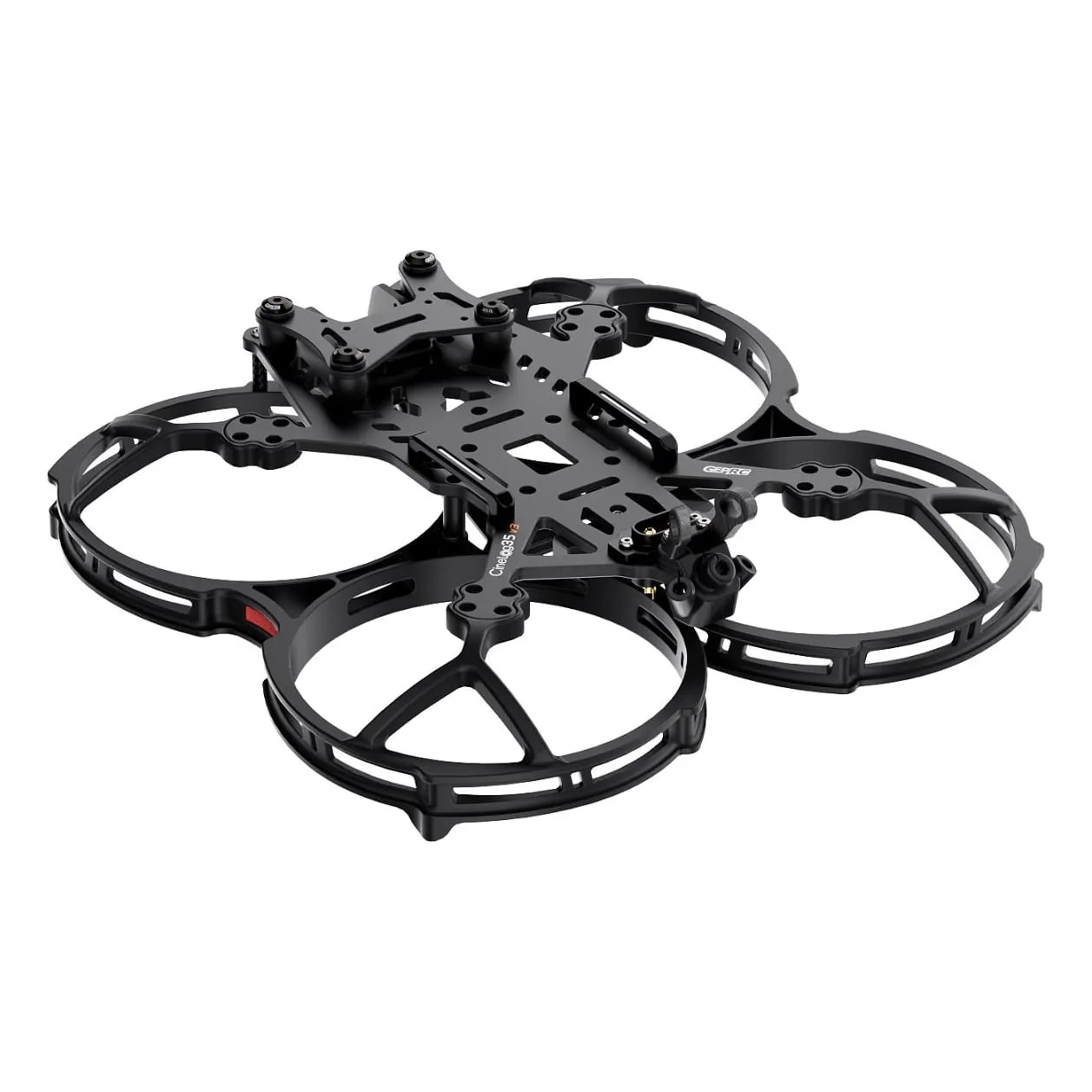

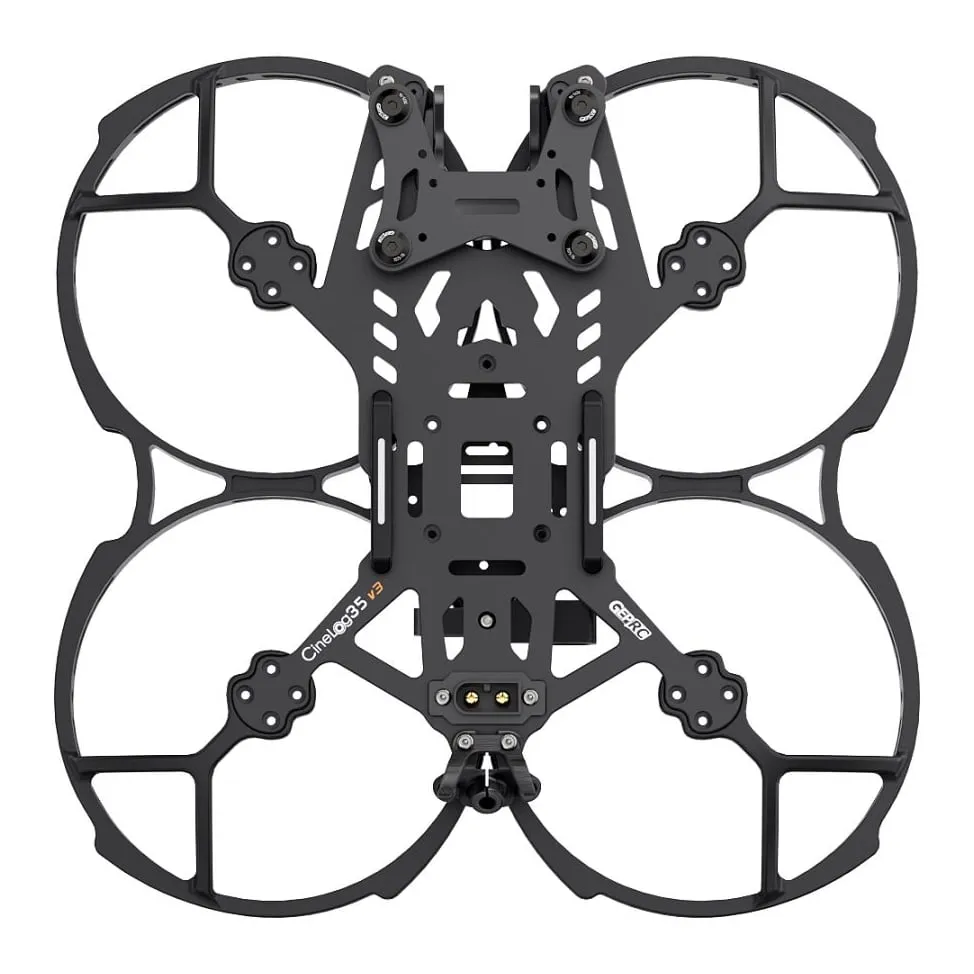

GEPRC GEP-CL35 V3 3.5" Cinewhoop Frame for DJI O4 Pro

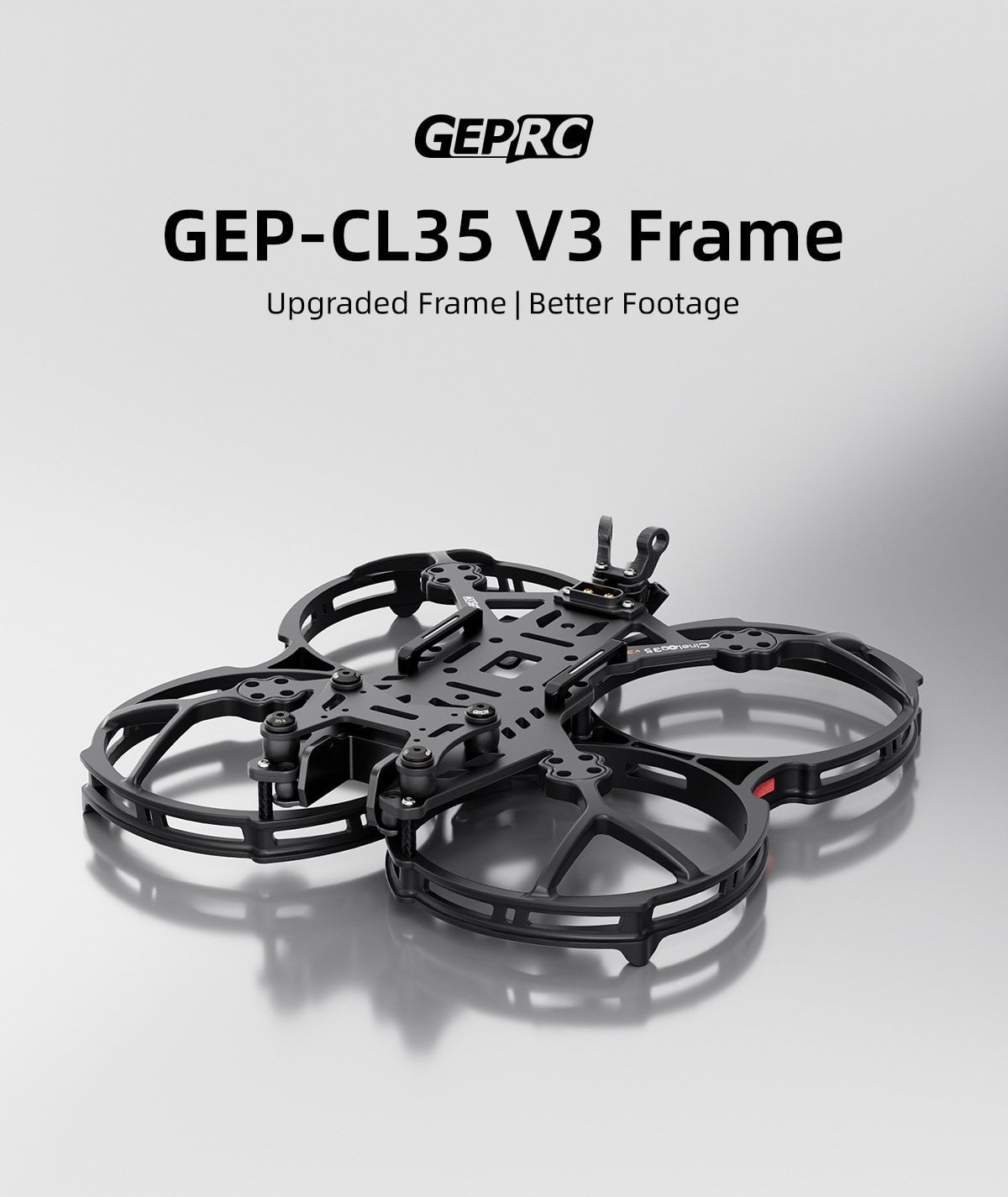

The GEPRC GEP-CL35 V3 is the frame kit from the Cinelog35 V3: a 142 mm, 3.5-inch ducted cinewhoop re-moulded around the DJI O4 Air Unit Pro. It suits pilots building a compact HD cinewhoop for indoor, close-proximity and property shots who want the O4 Pro's Type-C port and memory card reachable without stripping the frame.

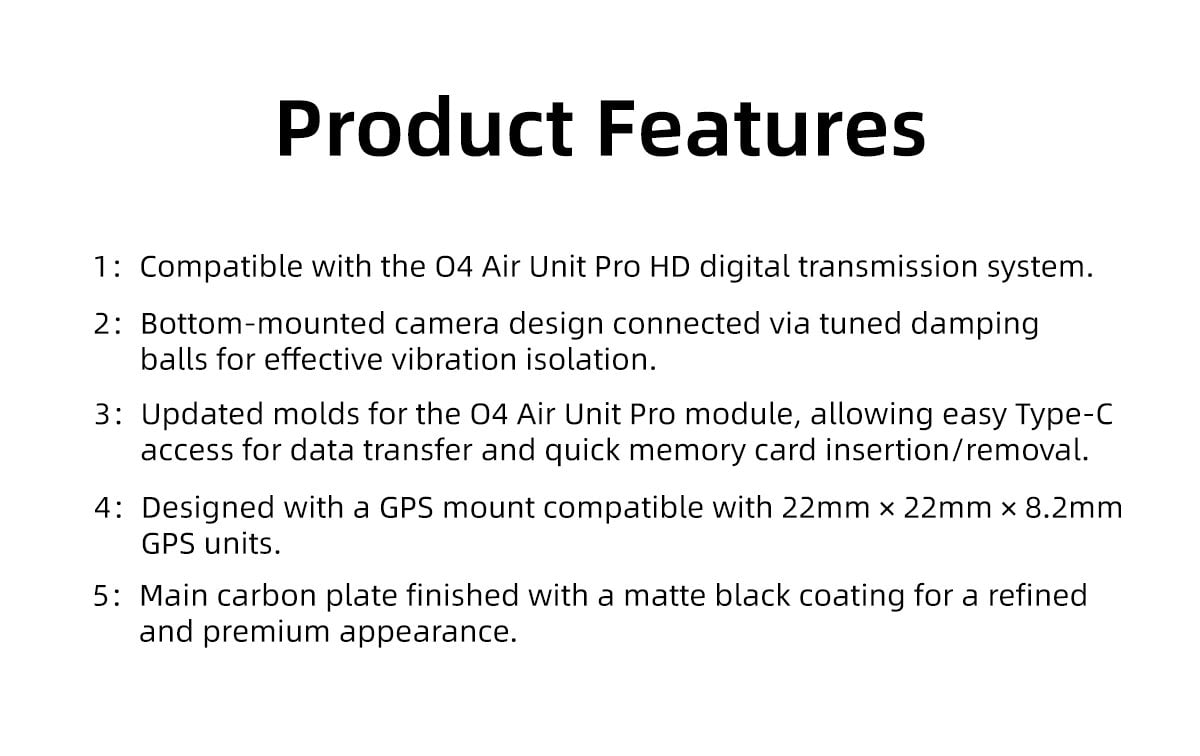

Key features

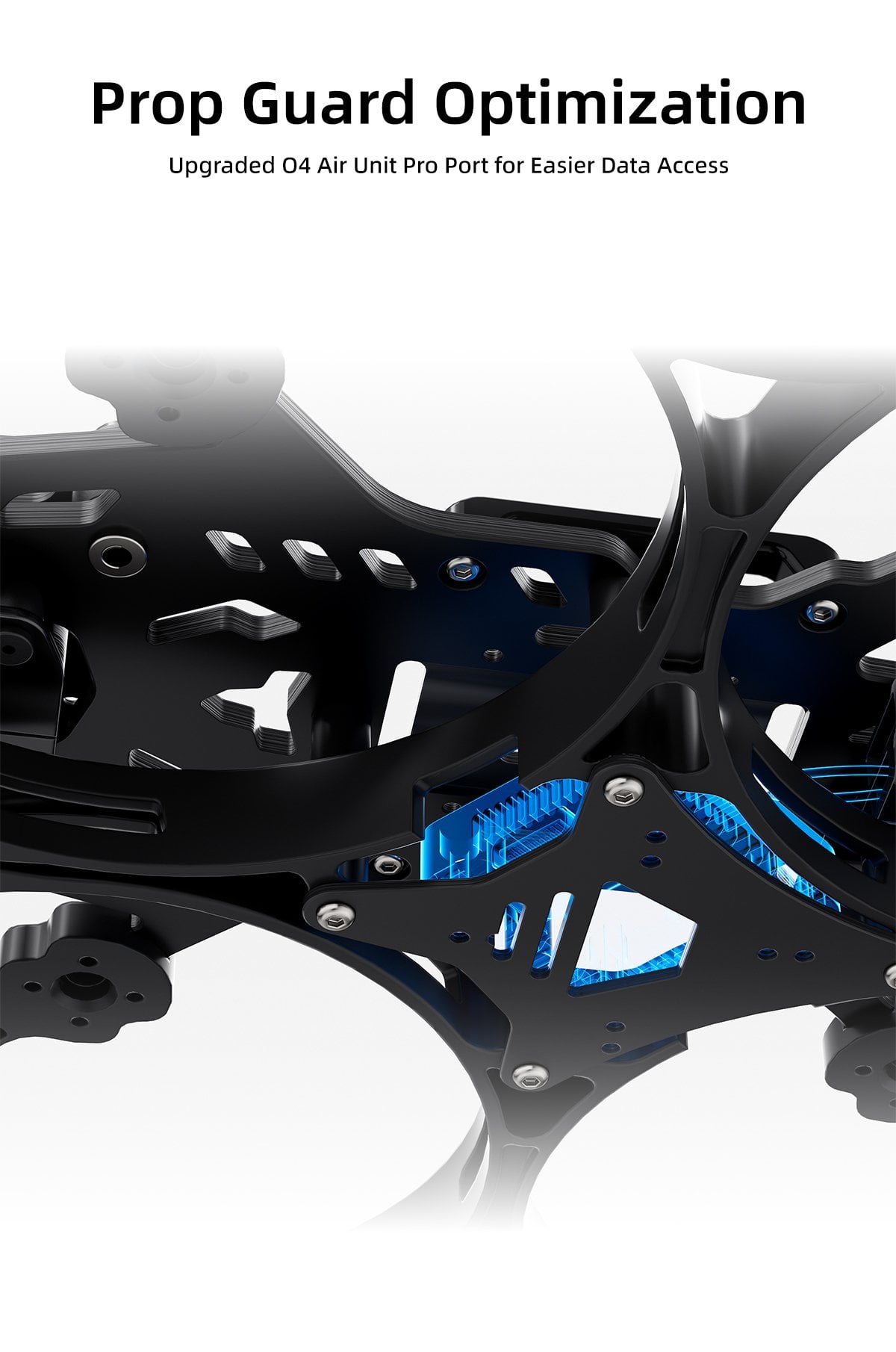

• Moulded mounts for the DJI O4 Air Unit Pro with open access to its Type-C port and card slot

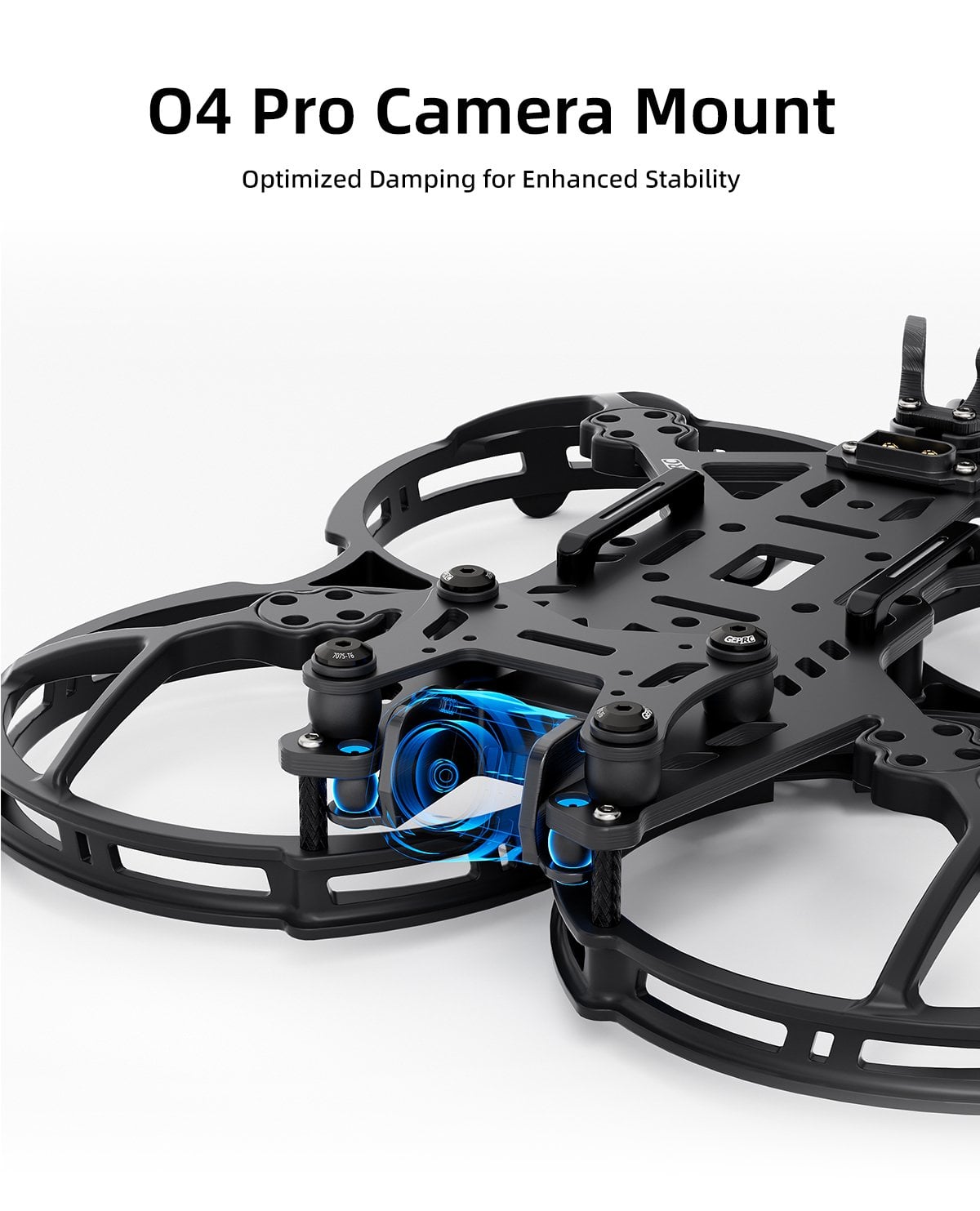

• Bottom-mounted 20 mm camera cradle on retuned damping balls to cut jello in footage

• 95 mm inner-diameter ducts sized for 3.5-inch props

• 25.5 x 25.5 mm FC mount, 20 x 20 or 25.5 x 25.5 mm VTX mount and 12 x 12 mm motor pattern

• GPS mount for 22 x 22 x 8.2 mm modules, plus an action-camera base and T-antenna mount

• Matte-black carbon main plate

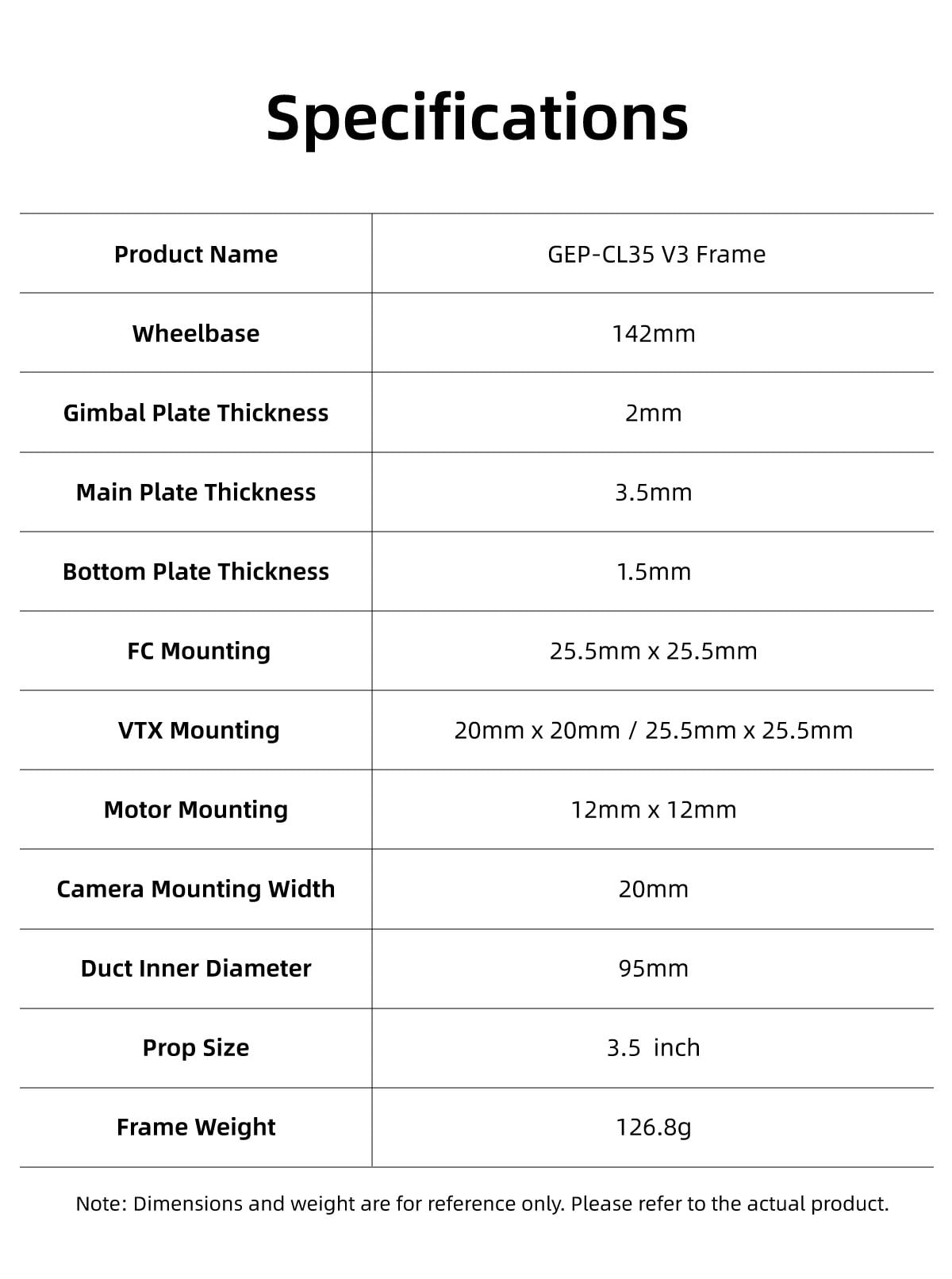

Specifications

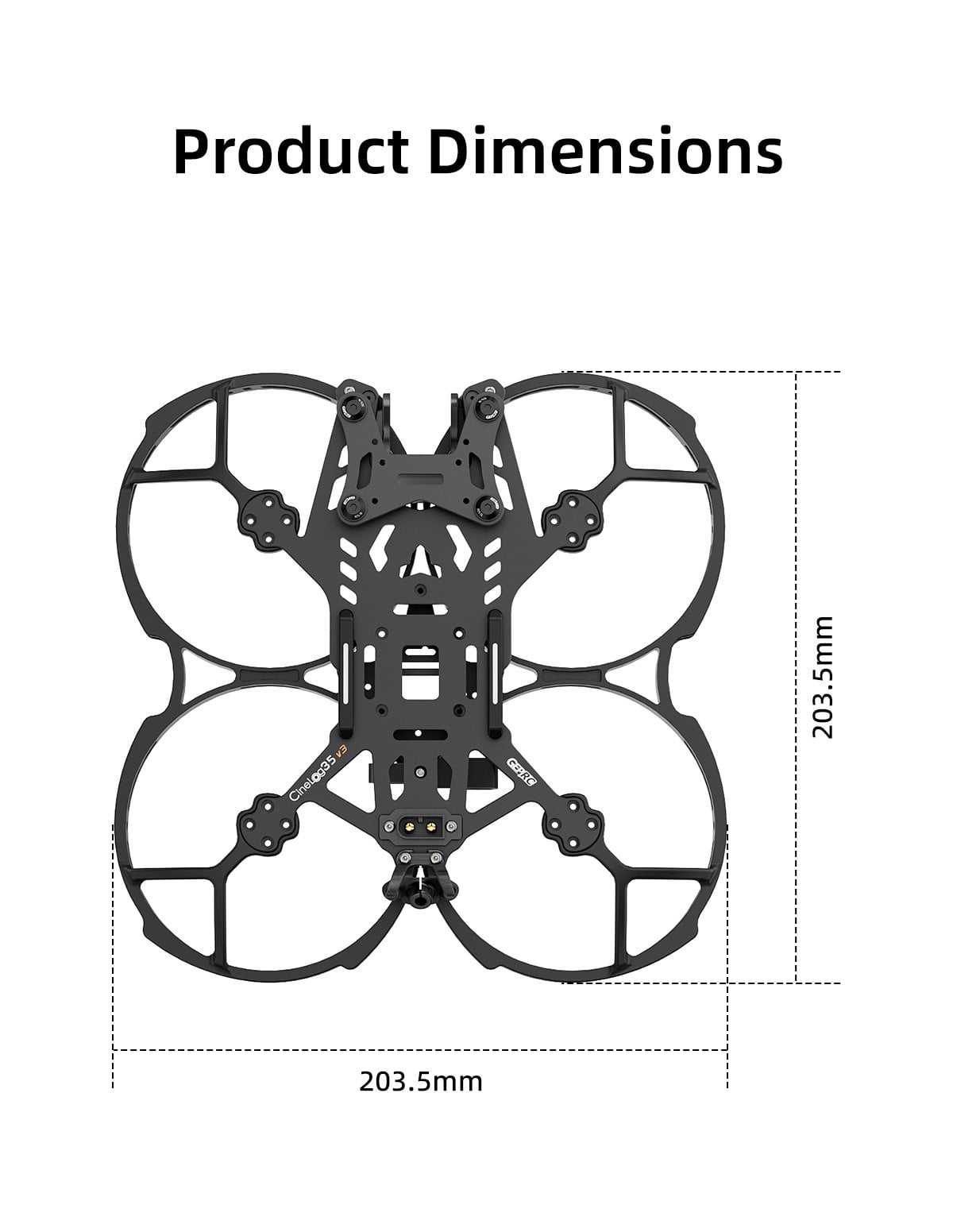

• Wheelbase: 142 mm

• Prop size: 3.5 inch

• Duct inner diameter: 95 mm

• Plate thickness: 3.5 mm main, 2 mm gimbal, 1.5 mm bottom

• FC mounting: 25.5 x 25.5 mm

• VTX mounting: 20 x 20 mm / 25.5 x 25.5 mm

• Motor mounting: 12 x 12 mm

• Camera mounting width: 20 mm

• Frame weight: 126.8 g

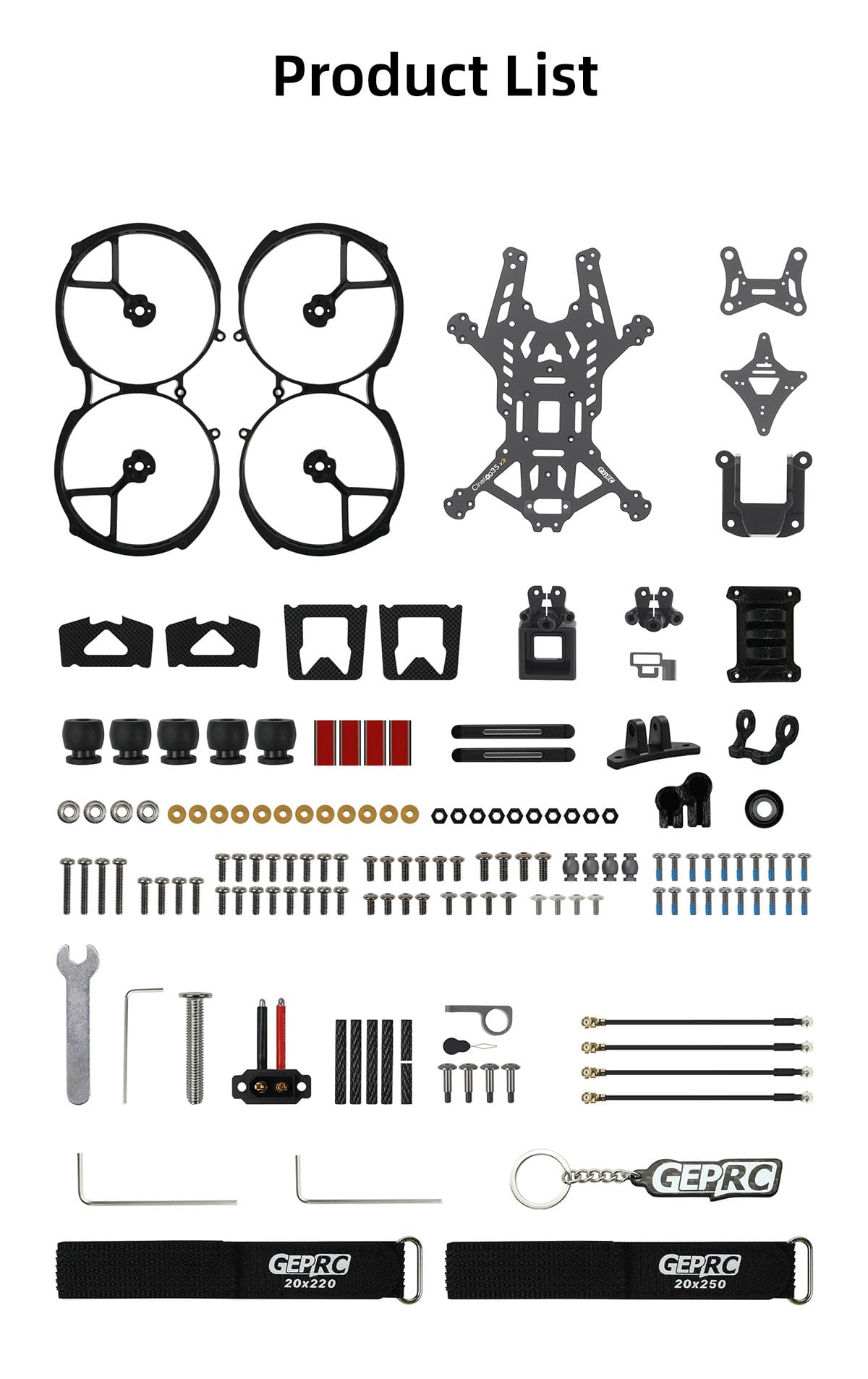

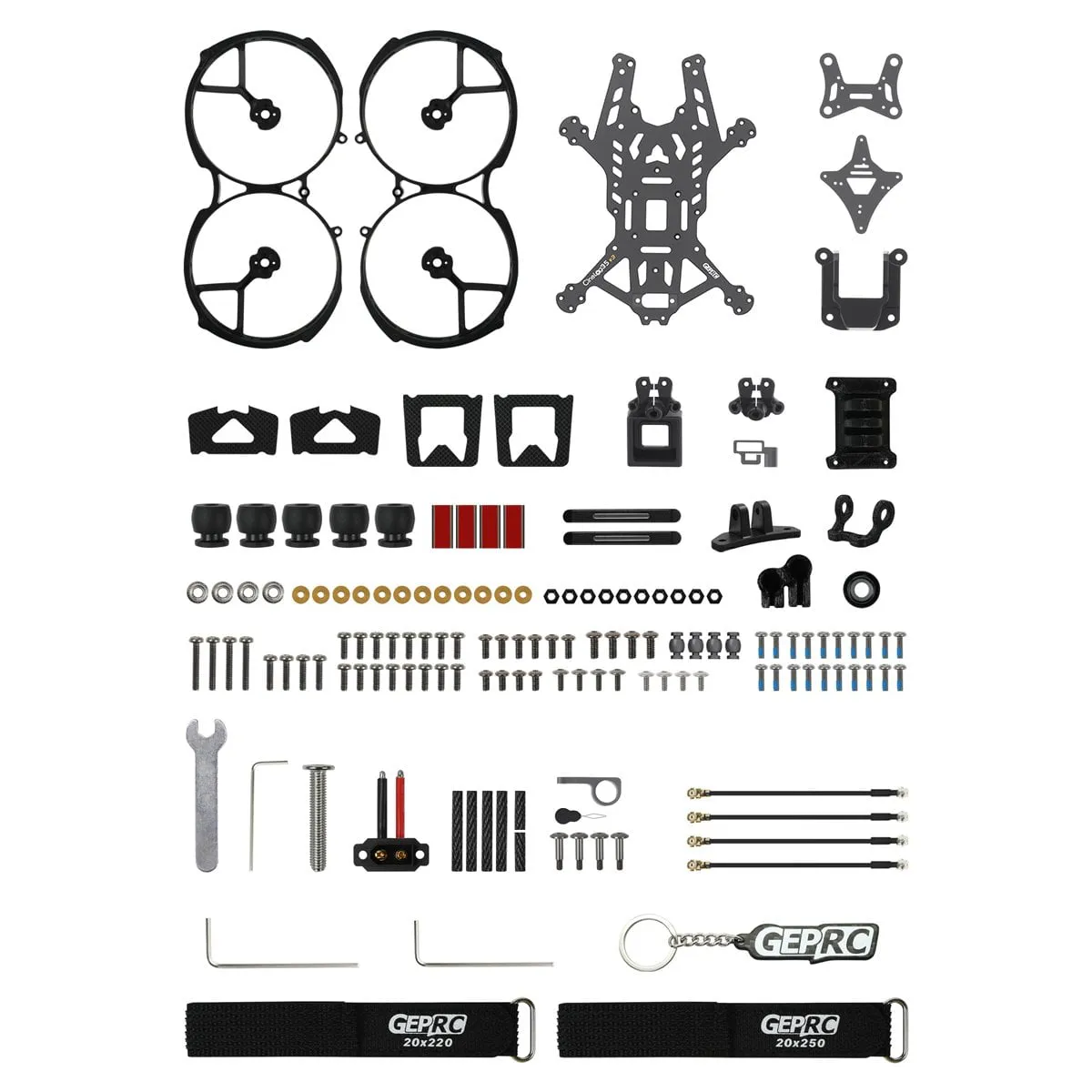

In the box: main, gimbal and bottom carbon plates, the prop guard pair, camera, receiver, T-antenna, capacitor, power-connector, VTX-antenna, GPS and action-camera mounts, four 40 mm UFL antenna extension cables, two sets of battery anti-slip pads, two aluminium strap mounts, an XT60 plug and battery straps. Pair it with 12 x 12 mm-pattern motors and a 25.5 mm AIO or stack.
