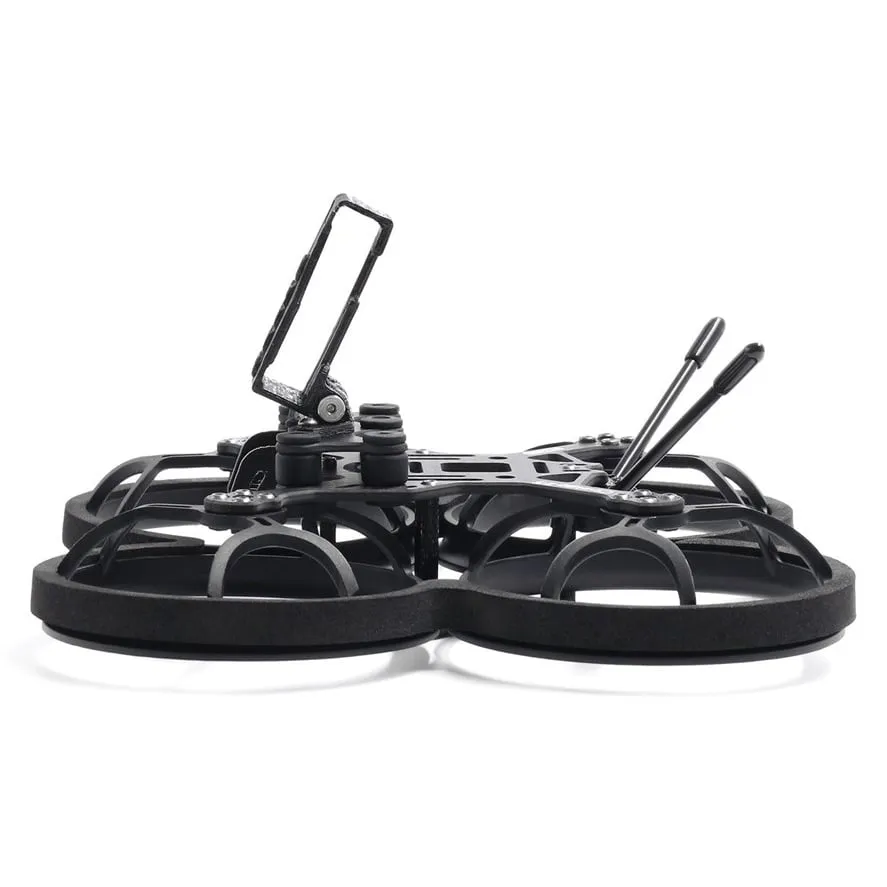

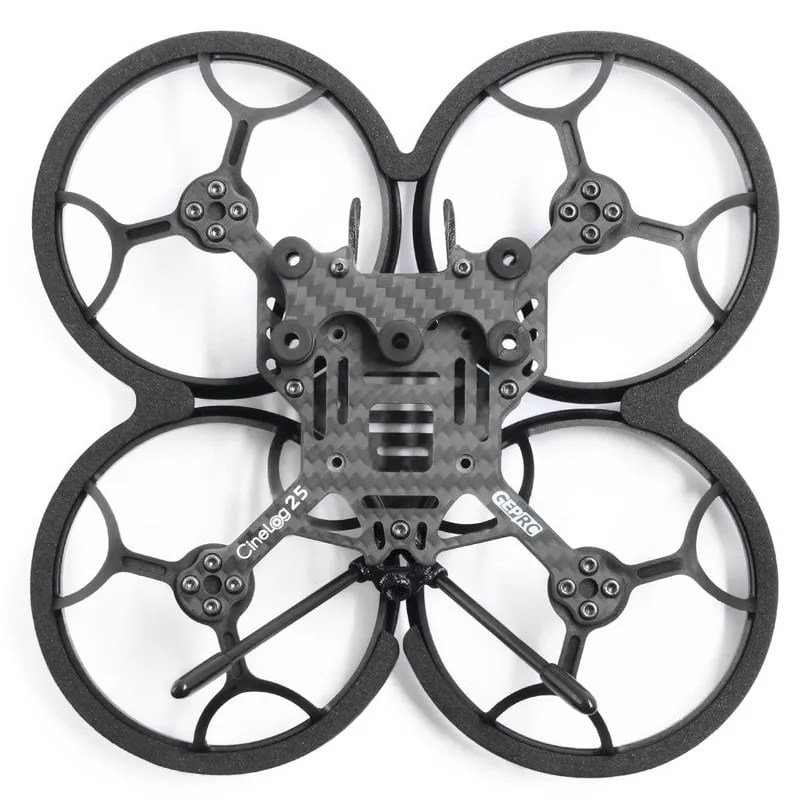

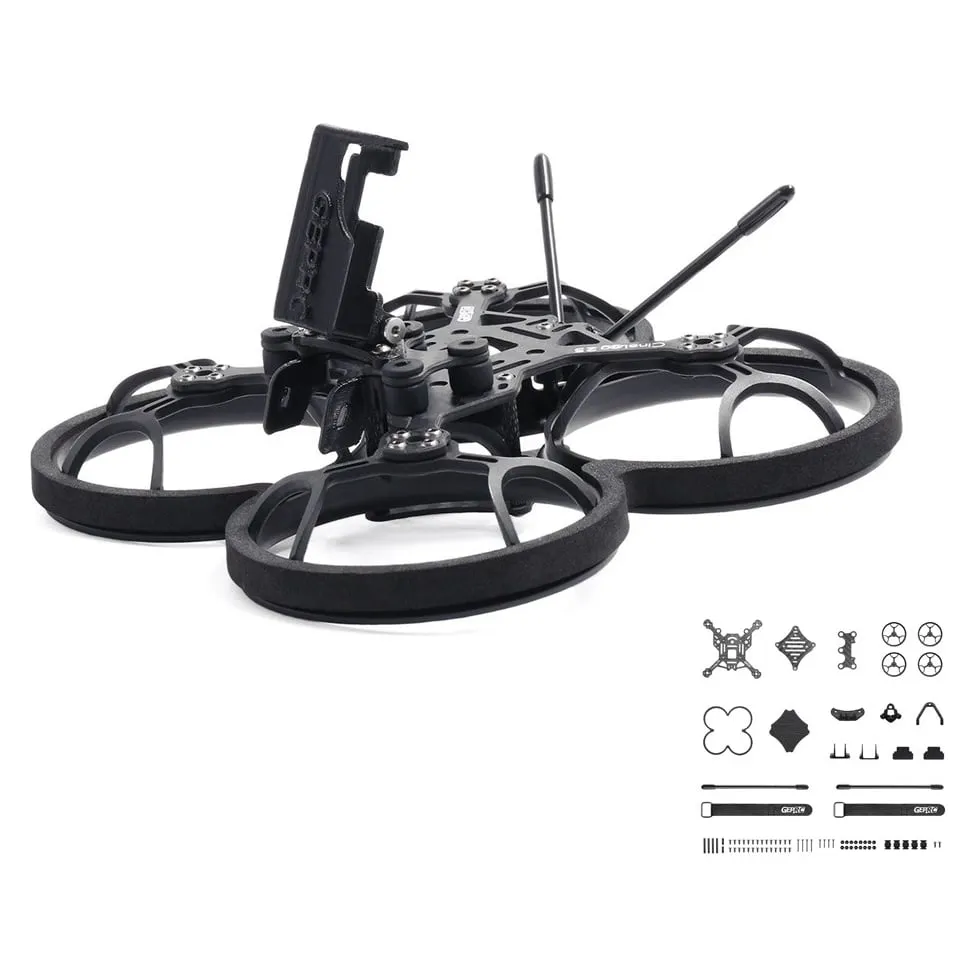

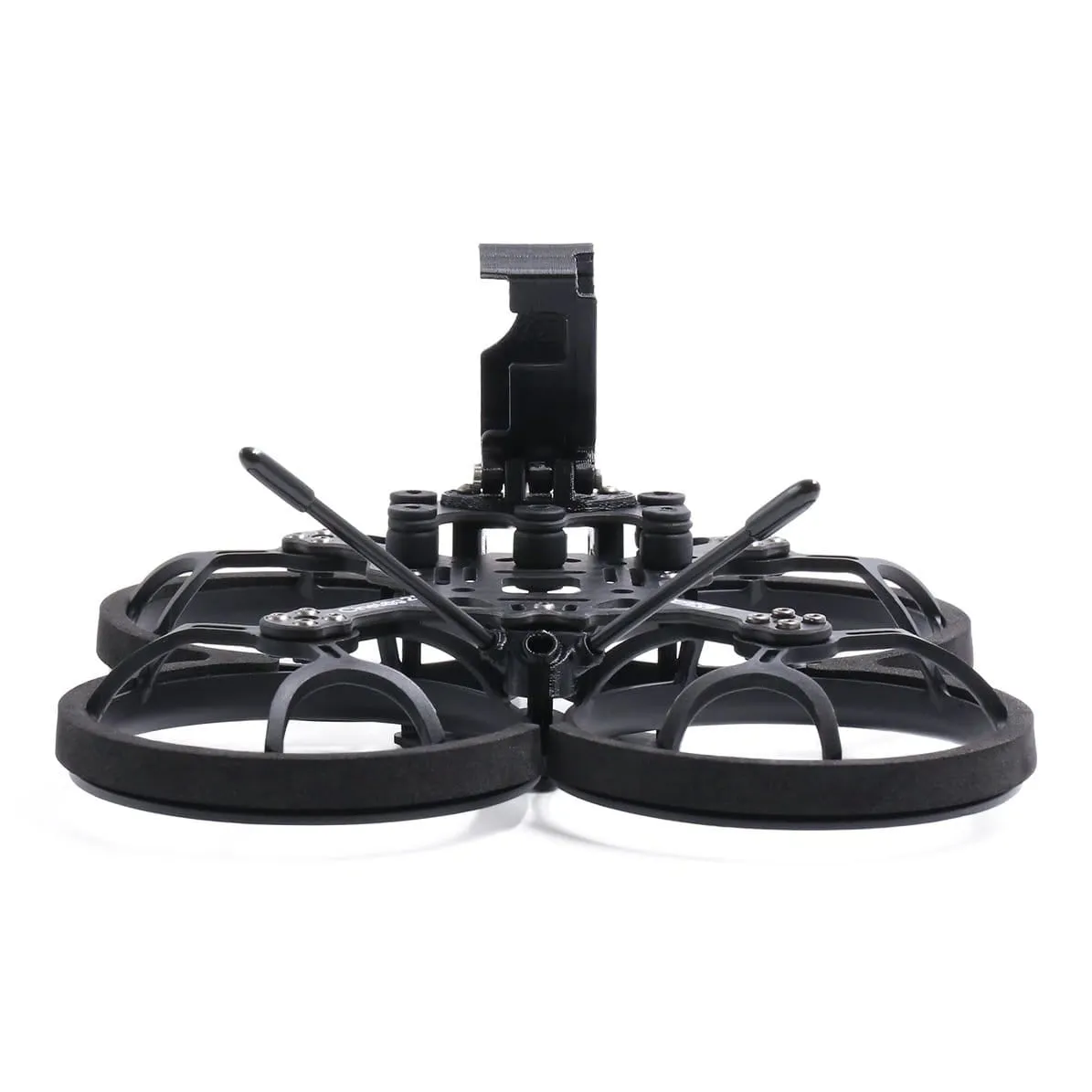

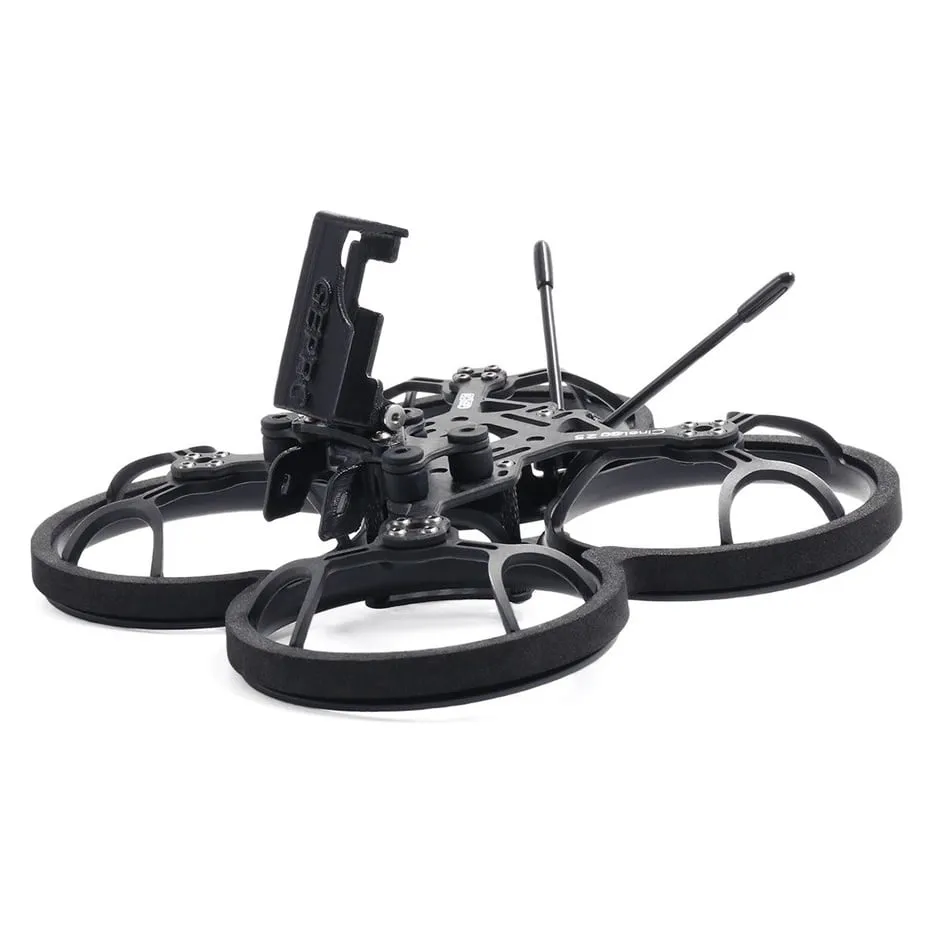

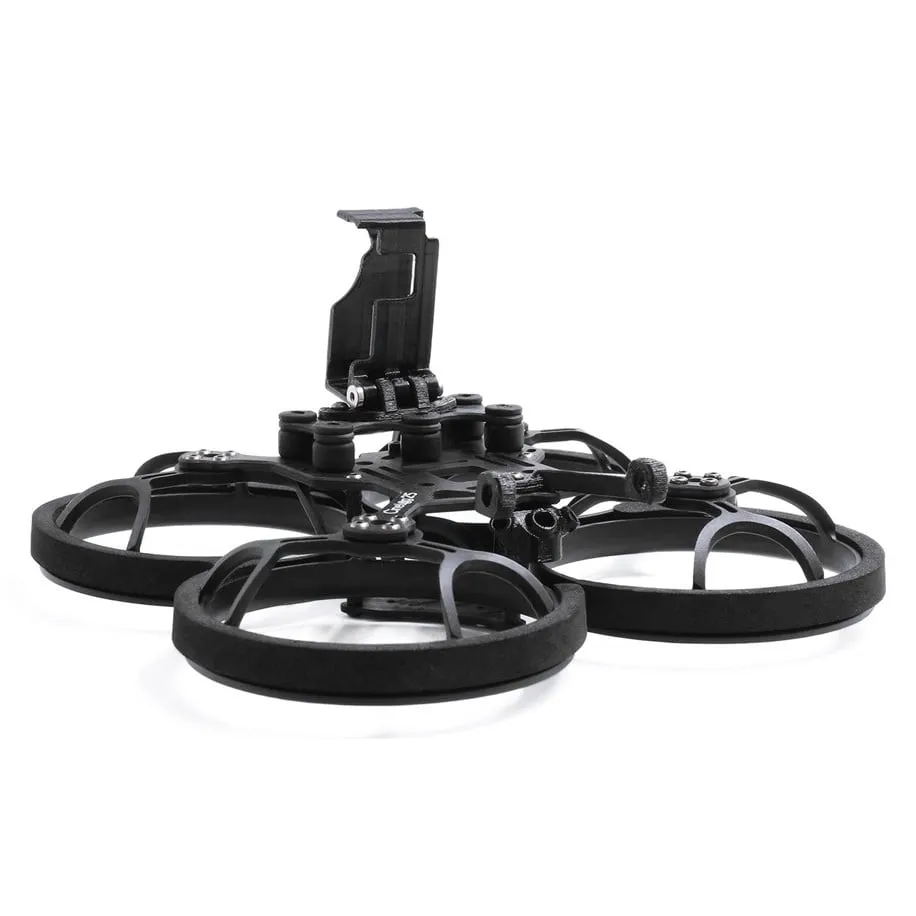

GEPRC CineLog 25 (CL25) Cinewhoop Frame Kit

The GEPRC CineLog 25 (CL25) is a compact 2.5-inch cinewhoop frame kit designed specifically for smooth cinematic flights and indoor proximity work. Utilising a pusher-style motor layout, the frame improves thrust efficiency and stability while keeping the centre of gravity ultra-low. It provides an excellent platform for carrying lightweight stripped-down action cameras like a Naked GoPro or SMO 4K through tight gaps.

Key features

• Injection-moulded prop guards with outer EVA foam bumpers for safe indoor flying and obstacle deflection.
• Independent vibration-dampening system isolates the camera and VTX from high-frequency motor resonance, preventing jello in HD footage.
• Pusher configuration directs airflow downwards cleanly without obstruction from the frame arms.
• Reversible camera mount design allows for flexible tilt adjustment depending on flight speed.

Specifications

• Wheelbase: 109mm
• Supported propellers: 2.5 inch
• Camera spacing: 19-20mm
• Flight controller mounting: 25.5x25.5
• Motor mounting: 9x9
• Compatible motors: 1105 / 1204 / 1206
• Top plate thickness: 2.5mm
• Bottom plate thickness: 1.5mm
• Camera bottom plate thickness: 2mm

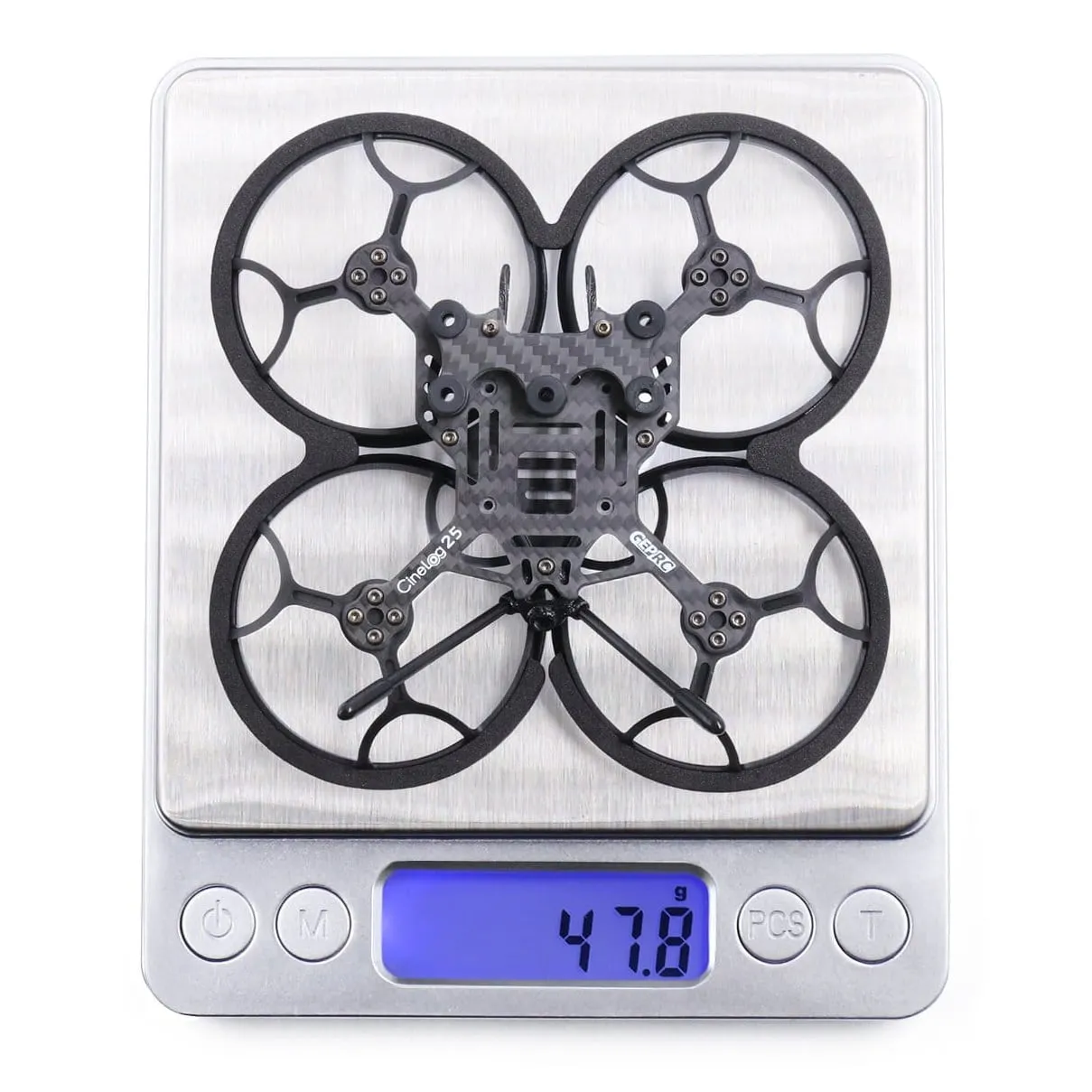

• Weight: 47.8g

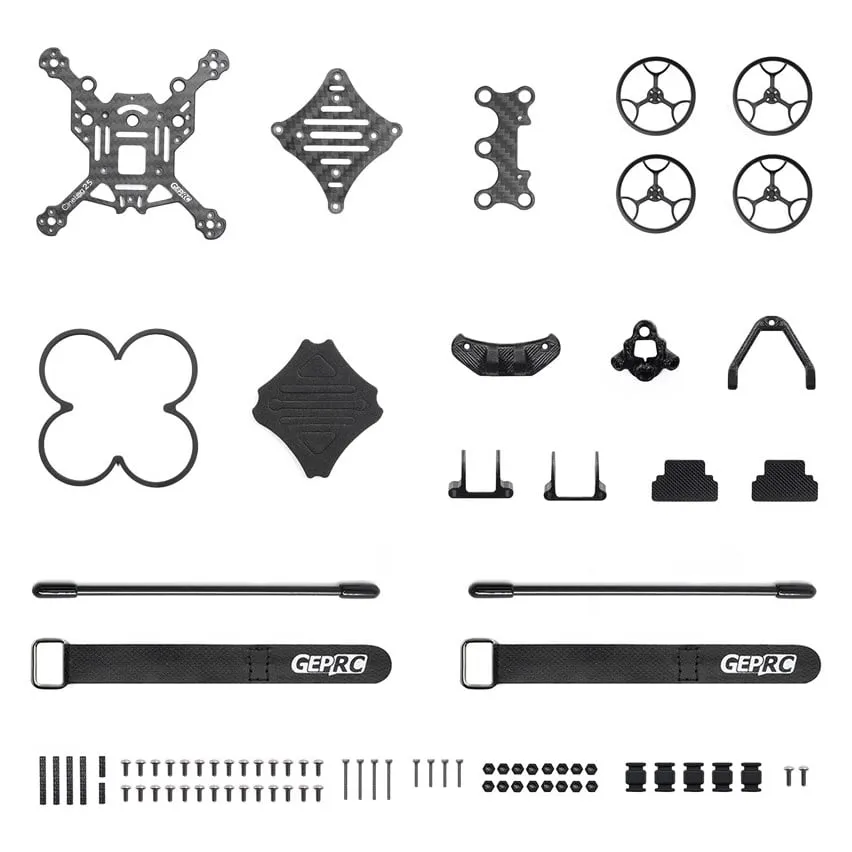

• In the box: top and bottom plates, camera plate, aluminium standoffs, screws and nuts, 5 damping rings, 19x19mm and 14x14mm camera mounts, naked camera base, 3D-printed antenna mounts, 4 x 2.5-inch guards, EVA guard bumper, battery pads, EVA landing pads, antenna tubes and 2 battery straps

For the best balance of flight time and agility, pair this frame with a 25.5x25.5 AIO flight controller, 1204 to 1404 motors, and a 4S 450mAh to 750mAh LiPo battery.
