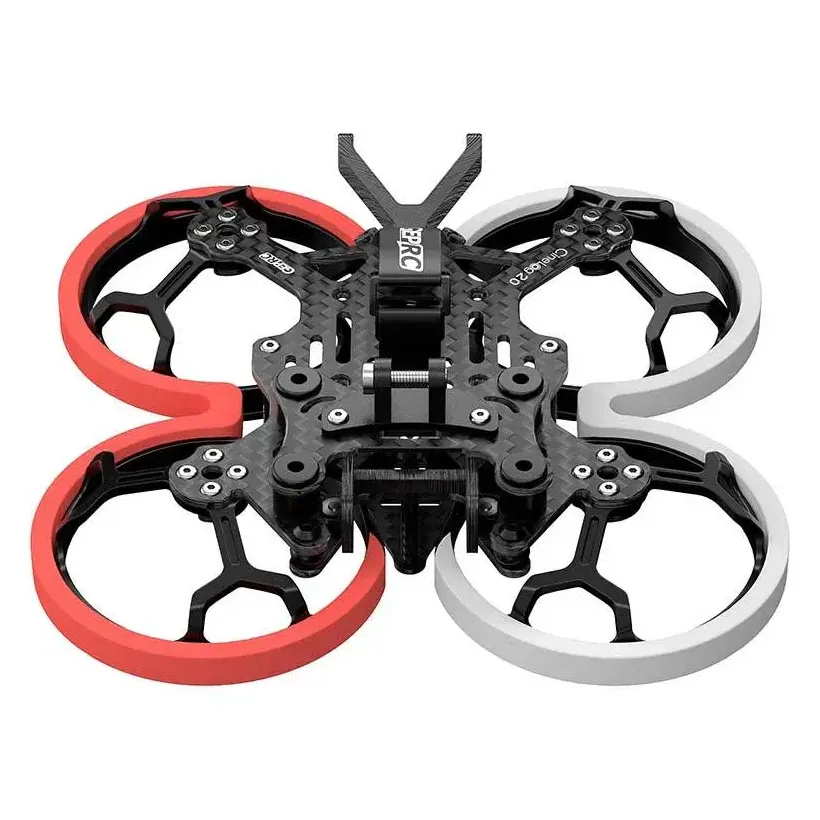

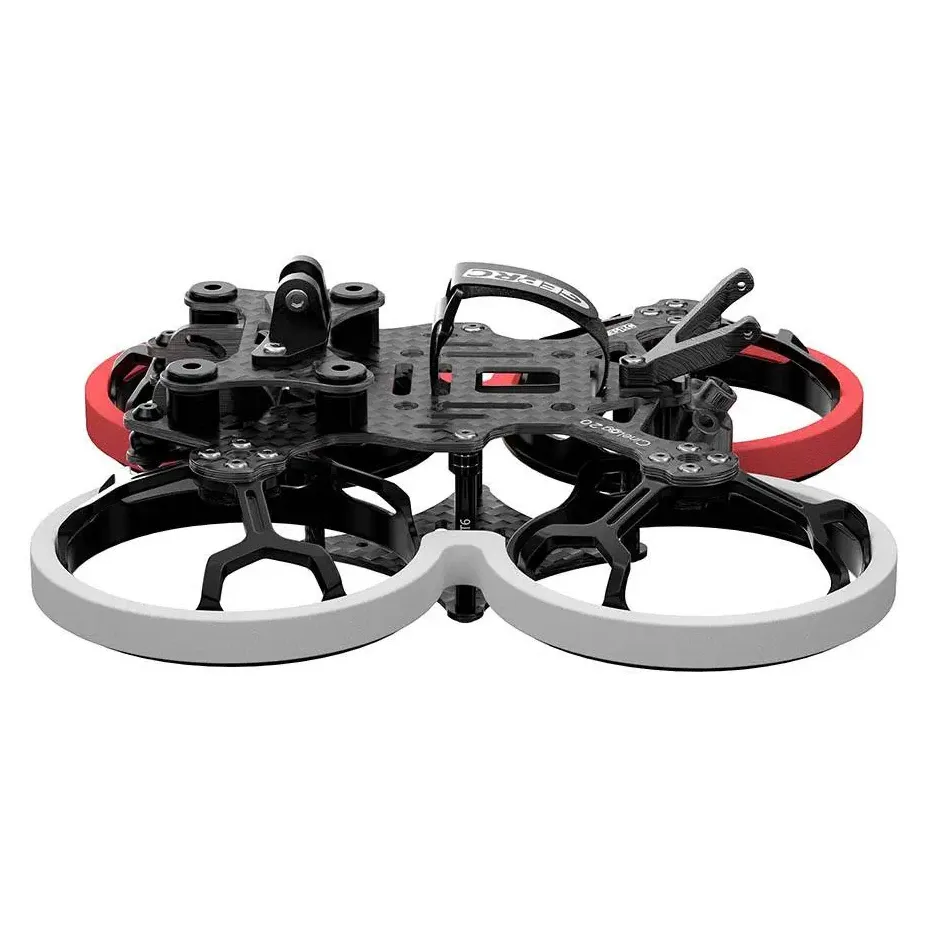

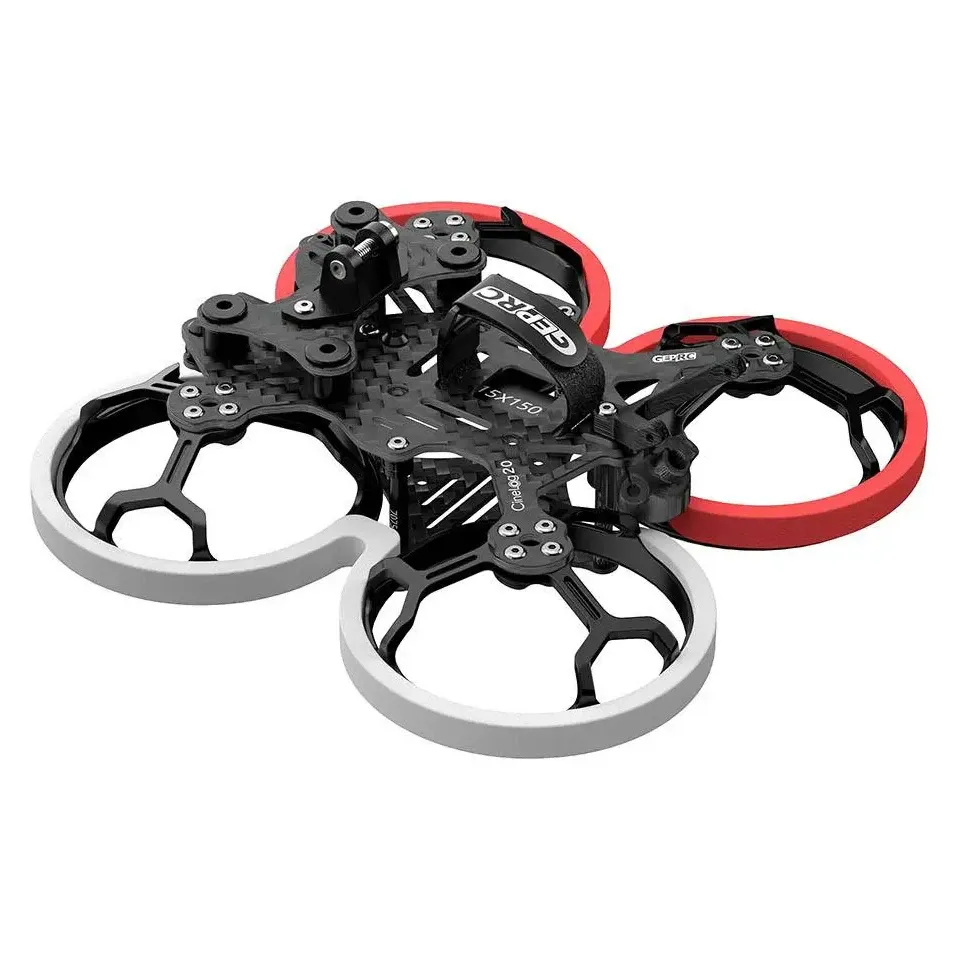

GEPRC CineLog 20 (CL20) 2" Frame Kit

The GEPRC CineLog 20 (CL20) frame kit is a purpose-built 2-inch micro cinewhoop platform engineered for smooth indoor and close-proximity filming. Designed to house high-definition video systems like the DJI O3 Air Unit in a sub-250g form factor, it utilizes durable injection-moulded prop guards that protect the drone and its surroundings while channelling airflow for improved thrust efficiency.

Key features

• Suspended camera damping plate eliminates high-frequency motor vibrations and jello from HD footage.

• Tough injection-moulded prop guards feature integrated EVA bumpers for impact resistance during indoor flights.

• Flexible VTX compatibility with dual 20x20mm and 25.5x25.5mm rear mounting patterns.

• Aluminium camera side plates natively support both 19mm and 20mm FPV cameras.

Specifications

• Wheelbase: 100mm

• Propeller Size: 2 inch

• FC Mounting: 25.5x25.5mm

• VTX Mounting: 20x20mm, 25.5x25.5mm

• Motor Mounting: 9x9mm

• Camera Width: 19mm, 20mm

• Plate Thickness: 2.5mm (main), 2.0mm (camera gimbal), 1.5mm (bottom)

• Recommended Battery: 4S 660mAh

• Action Camera Support: Naked GoPro 8/9/10/11, Insta360 Go2, DJI Action 2 (naked GoPro 8 base included)

• Weight: 53g

• In the Box: plates, hardware kit, 4 injection-moulded prop guards, 3D-printed antenna, camera and receiver mounts, 4S naked GoPro power cable with balance lead, receiver antenna tubes, battery straps and pads, EVA damping rings, 1.5mm L-shaped screwdriver

Pair this frame kit with 1303.5 or 1404 brushless motors and a 25.5x25.5mm AIO flight controller to assemble an agile, HD-capable pusher drone ideal for tight real-estate flythroughs.
