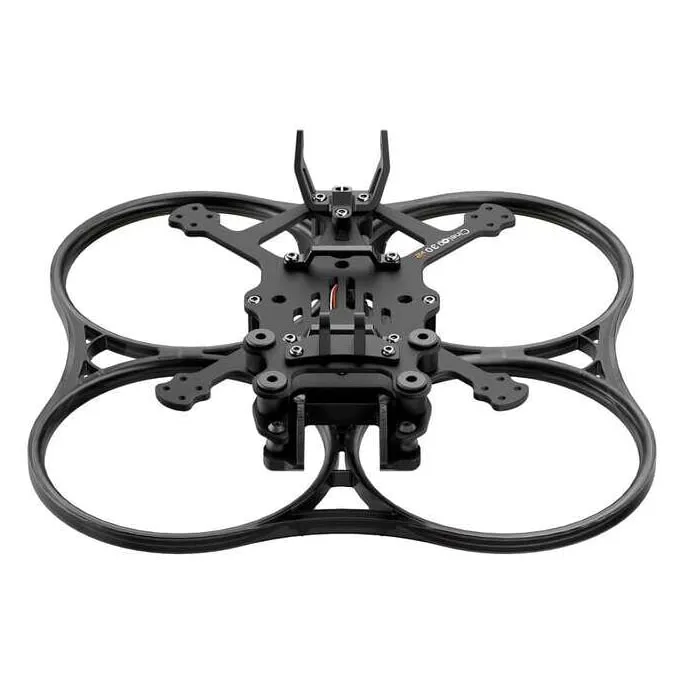

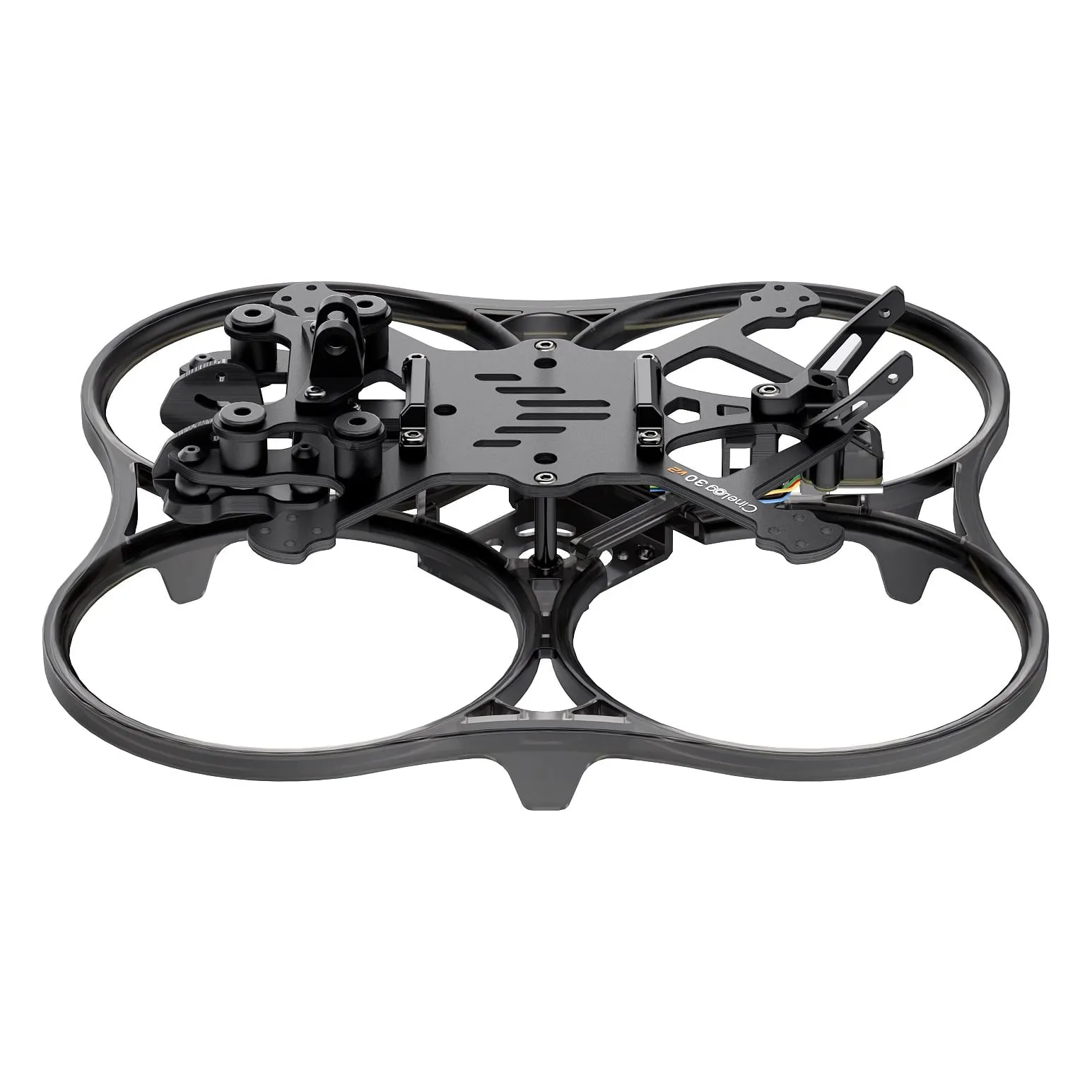

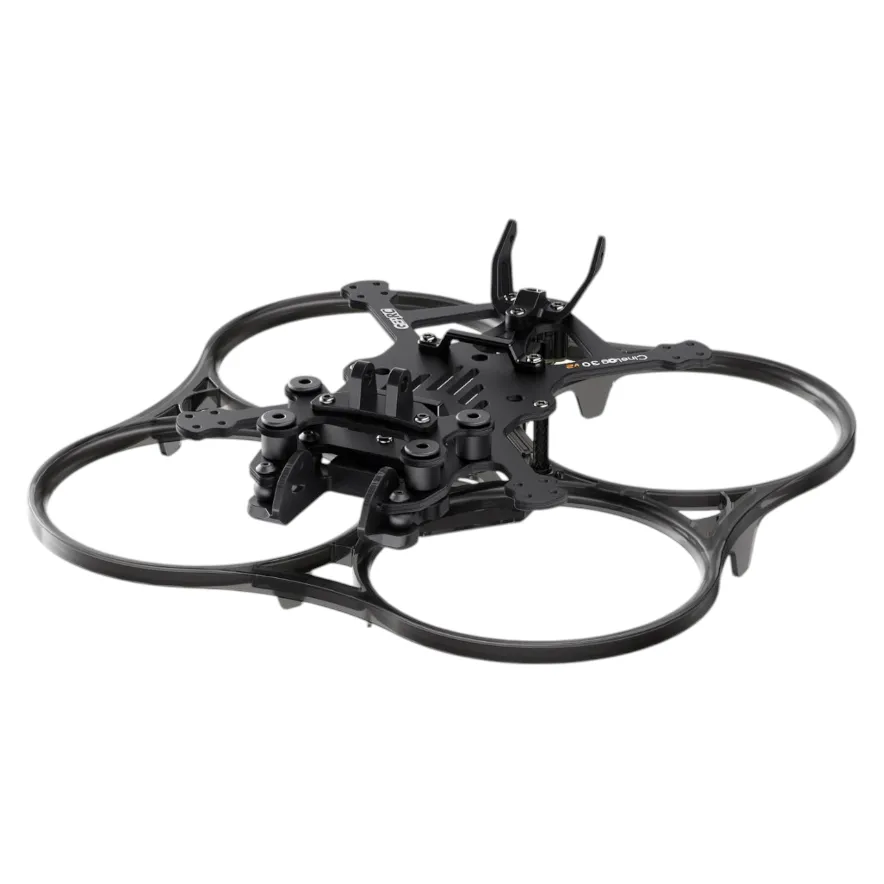

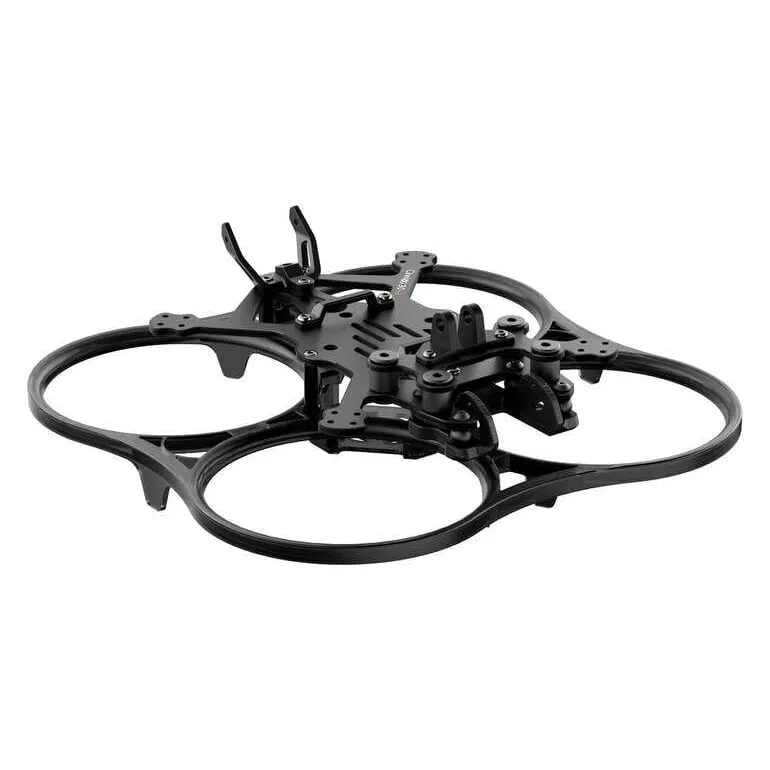

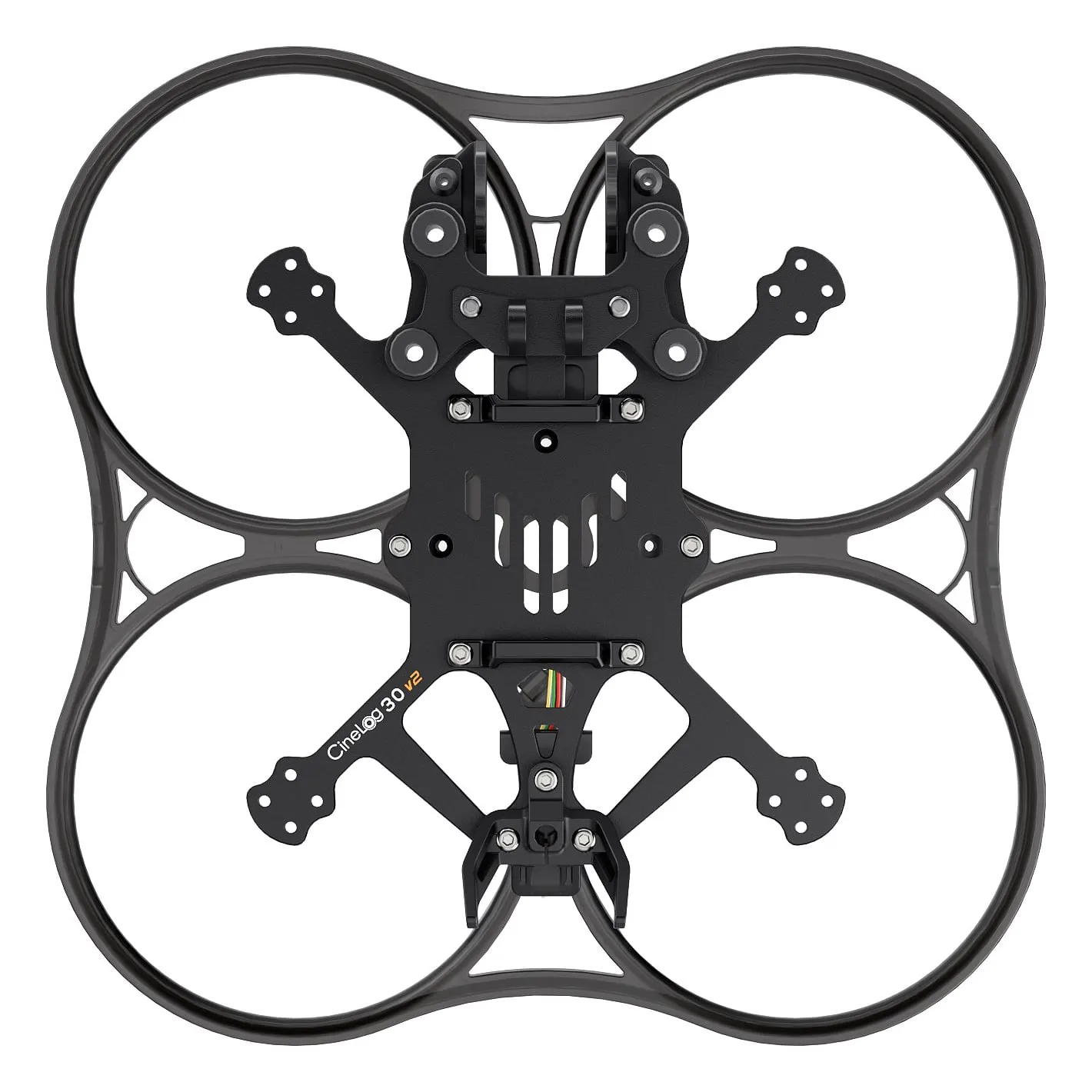

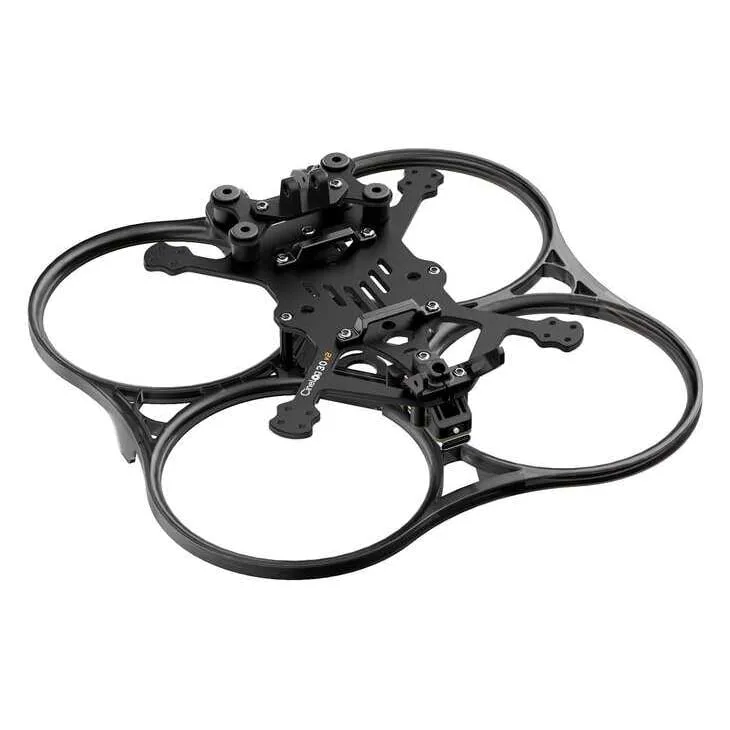

GEPRC GEP-CL30 V2 O3 3-Inch Cinewhoop Frame

The GEPRC GEP-CL30 V2 O3 is a 3-inch cinewhoop frame from the Cinelog30 V2 line, built for the DJI O3 Air Unit with a one-piece protective frame and a built-in COB LED strip for night flying. GEPRC's reference build pairs it with 1404 motors and a 4S 720mAh LiHV pack to keep an O3 quad under 250 g, so it suits pilots after a light, agile HD whoop.

Key features

• Underslung, moulded shock-absorbing camera mount keeps O3 footage steady

• Integrated COB LED mount in the frame for a lit-up look at night

• Rear USB extension module with a built-in LED tail light for setup and tuning without opening the frame

• Custom VTX compartment with easy access to the O3's memory card and USB port

• One-piece T-shaped antenna mount and a quick-release layout for simpler maintenance

• Naked GoPro carbon plate and mount included

Specifications

• Wheelbase: 124 mm

• Props: 3-inch

• Dimensions: 175 × 173 × 40 mm

• Carbon plate: 2.5 mm

• FC mounting: 25.5 × 25.5 mm

• VTX mounting: 20 × 20 / 25 × 25 mm

• Motor mounting: 9 × 9 mm

• Camera mounting: 19 / 20 mm

• Battery connector: XT30

• Weight: 67.6 g

• In the box: integrated frame, integrated board, naked GoPro carbon plate and mount, camera mount, T-shaped antenna mount, USB extension port, rear light cover, damping-ball tool, 2 battery anti-slip pads, 2 × 15 × 150 mm battery straps, screw pack

Plan for a 25.5 × 25.5 mm whoop-pattern flight controller, 9 × 9 mm-pattern 1404-class motors and a 4S pack on an XT30 lead; the O3 camera rides the 19 / 20 mm mount.
