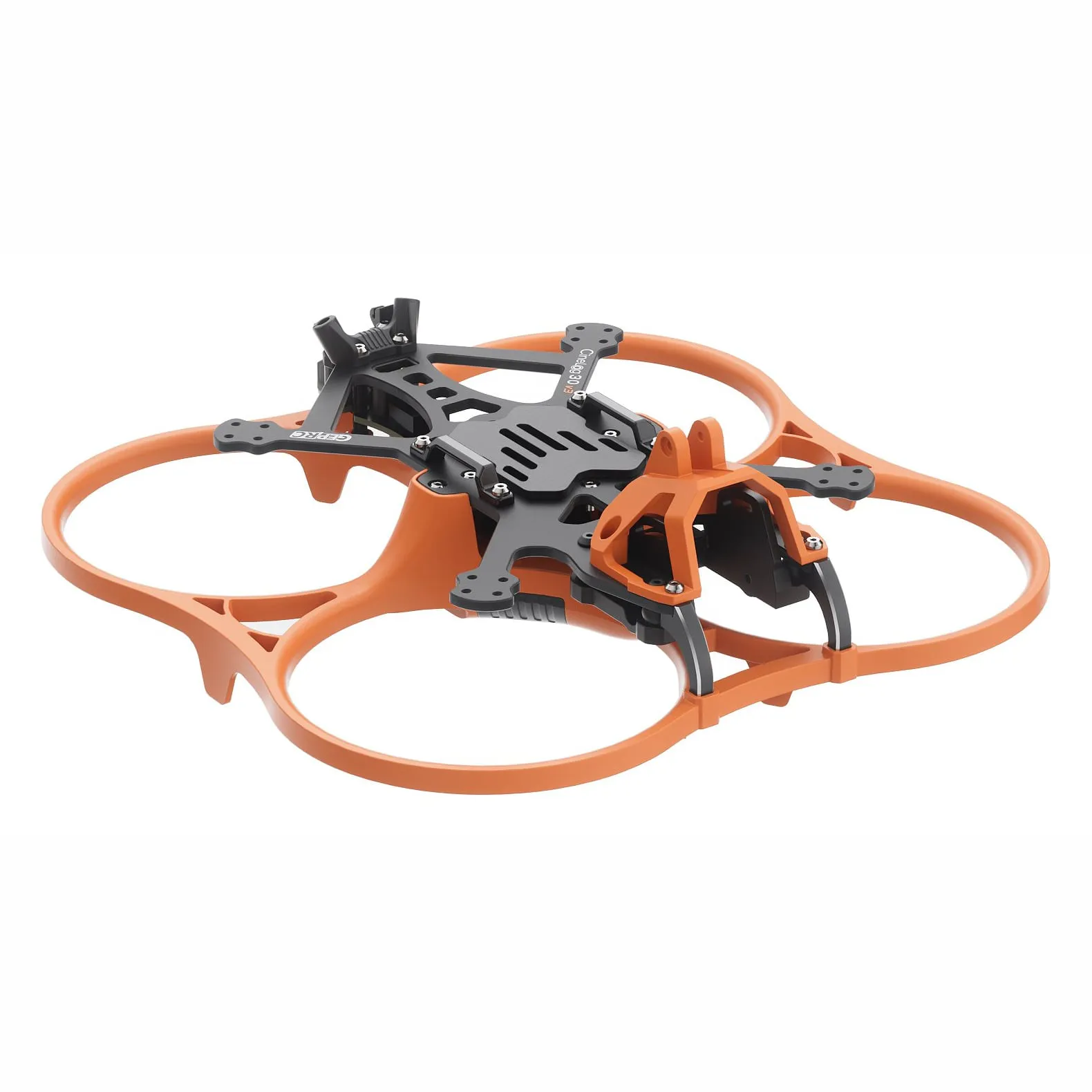

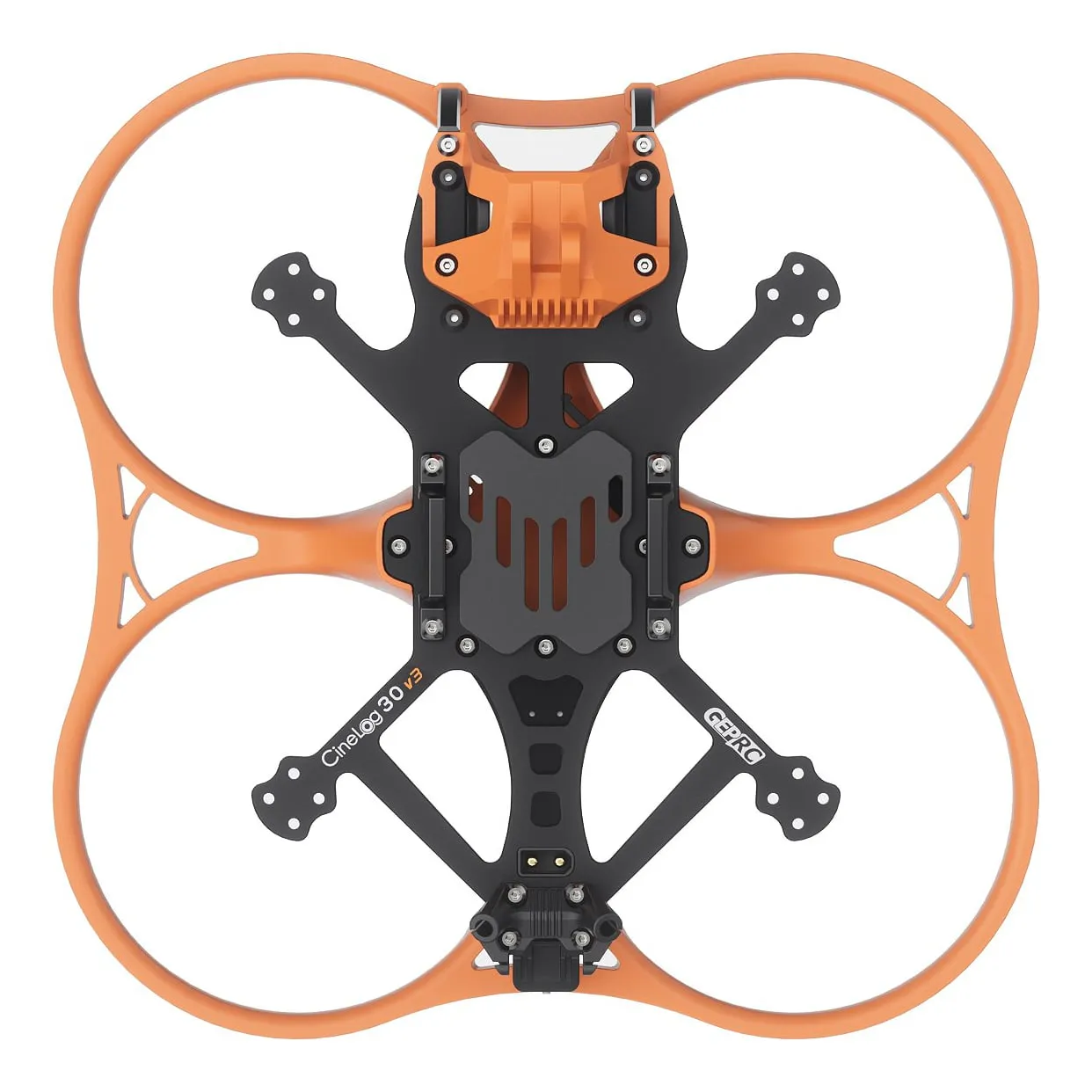

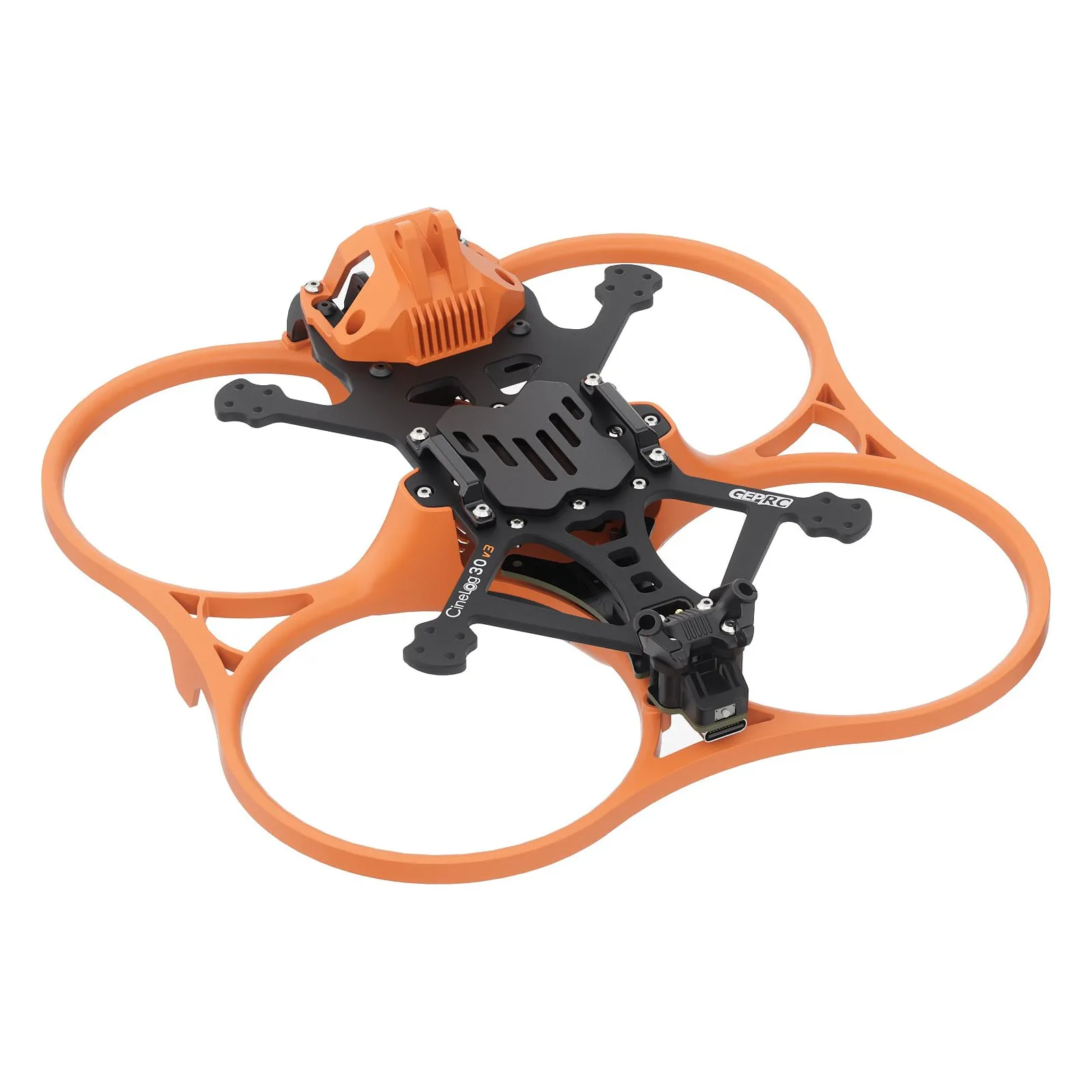

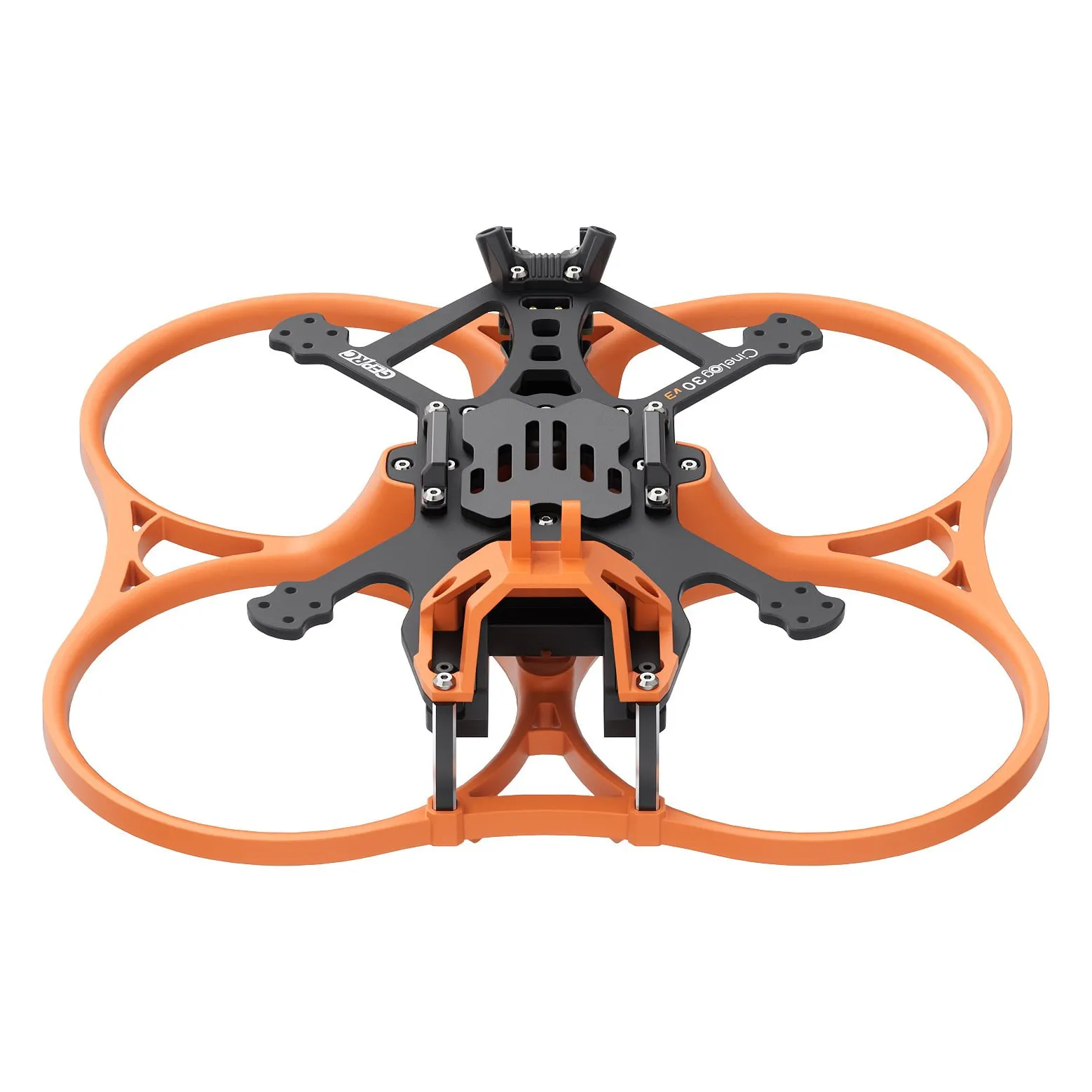

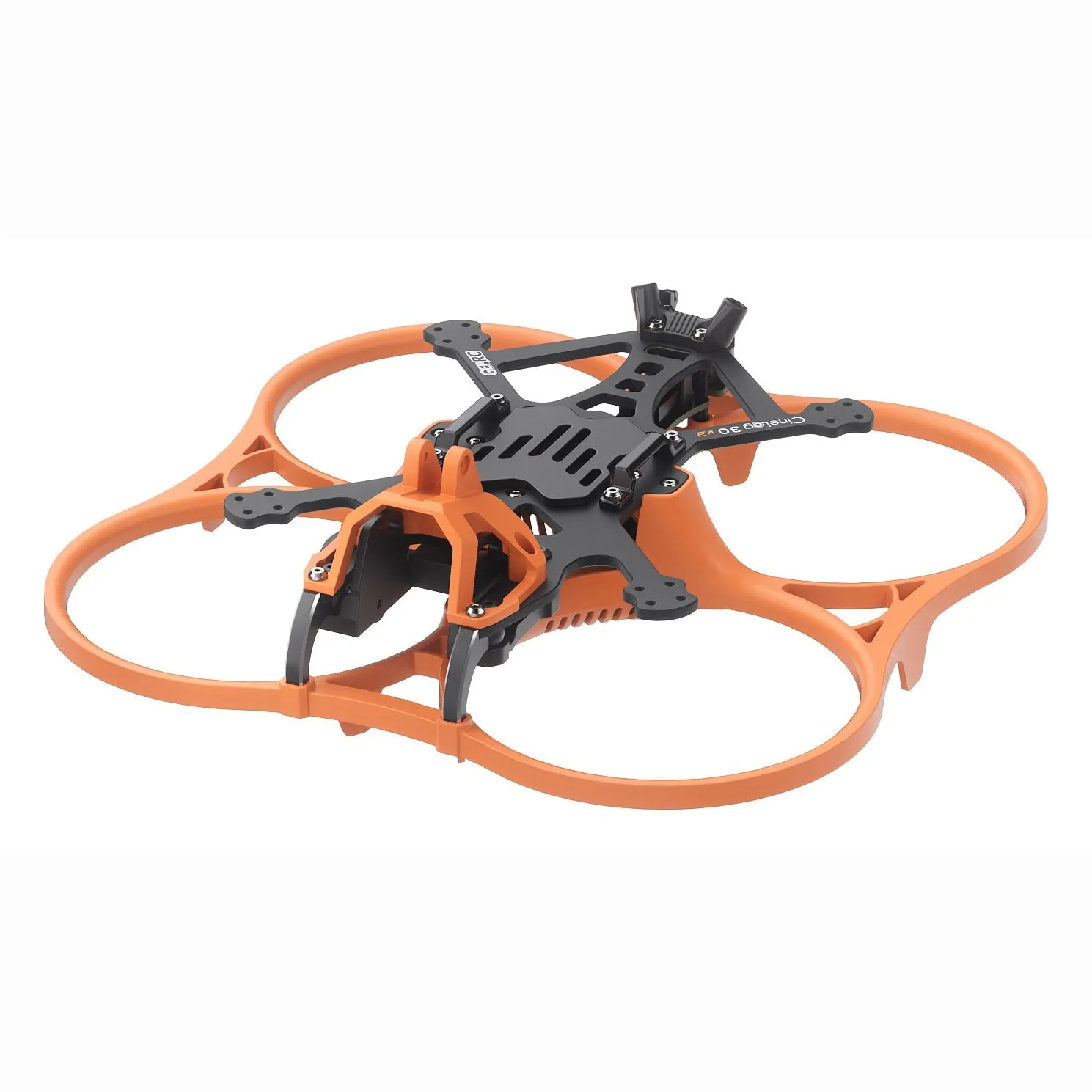

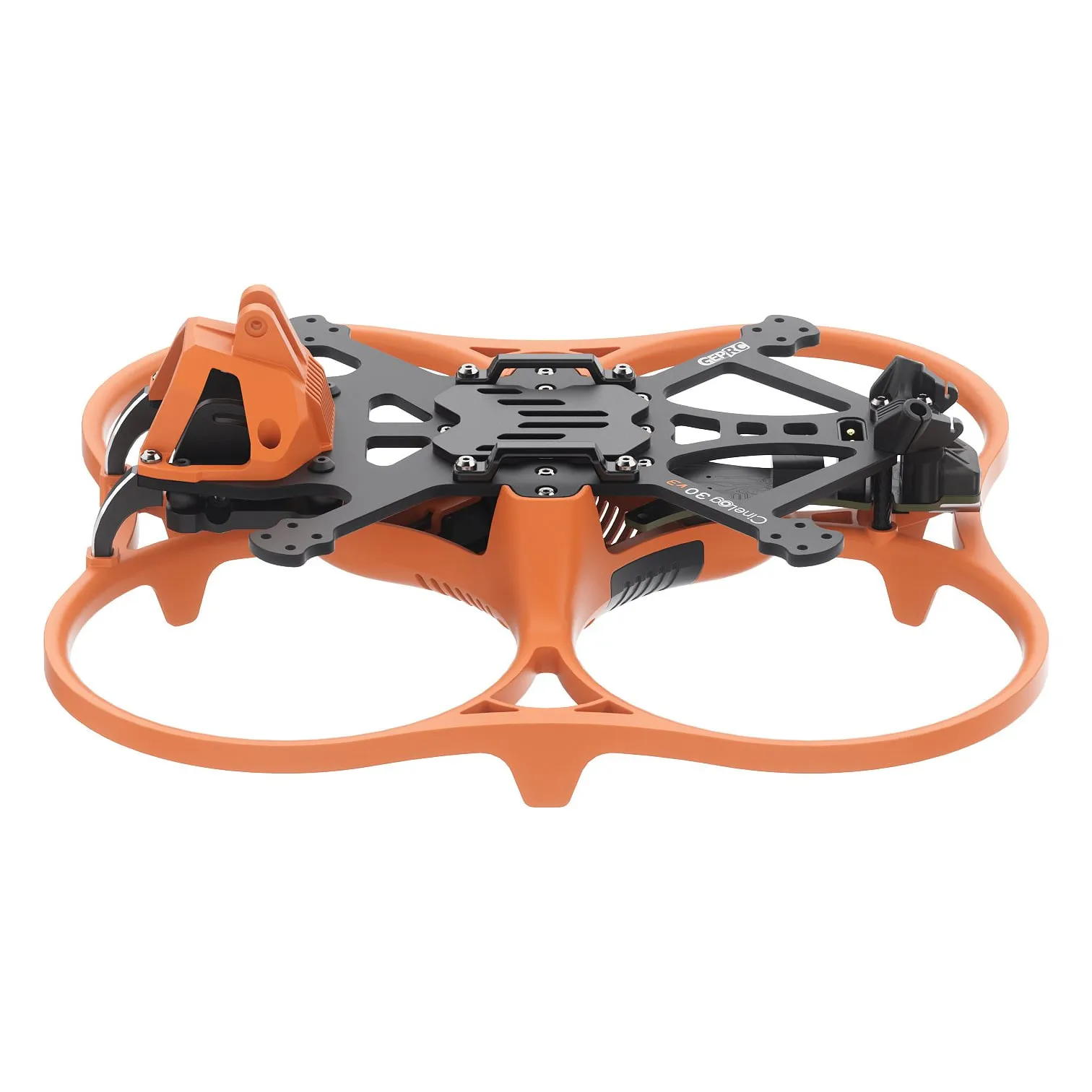

GEPRC GEP-CL30 V3 Frame

The GEPRC GEP-CL30 V3 is a 3-inch cinewhoop frame engineered for indoor proximity flying and smooth HD video capture. Serving as the foundation of the CineLog30 series, this frame utilises a reverse-pusher layout and injection-moulded propeller guards to maximise thrust efficiency while preventing prop strikes against walls and obstacles. A dedicated vibration-isolation plate acts as a dampening platform for both the camera and VTX, physically separating the sensitive HD payload from motor resonance to eliminate rolling shutter jelly in your footage.

Key features

• High-impact injection-moulded 3-inch propeller guards for safe indoor and close-proximity flight
• Reverse-pusher motor configuration improves unobstructed airflow and overall thrust efficiency
• Integrated vibration-dampening platform isolates the camera and VTX from high-frequency frame resonance
• Directly accommodates standard 25.5x25.5mm AIO flight controllers and 20x20mm VTX modules

Specifications

• Model: GEPRC GEP-CL30 V3
• Wheelbase: 126mm
• Supported props: 3-inch
• FC mounting: 25.5x25.5mm
• VTX mounting: 20x20mm
• Motor mounting: 9x9mm
• Camera spacing: 19mm
• Plate thickness: 2.0mm (Top and Bottom)

Pair this frame with 1404-sized brushless motors and a digital VTX system like the Caddx Vista or RunCam Link. The integrated dampening plate makes it an ideal platform for carrying a naked action camera without relying heavily on post-flight software stabilisation.
