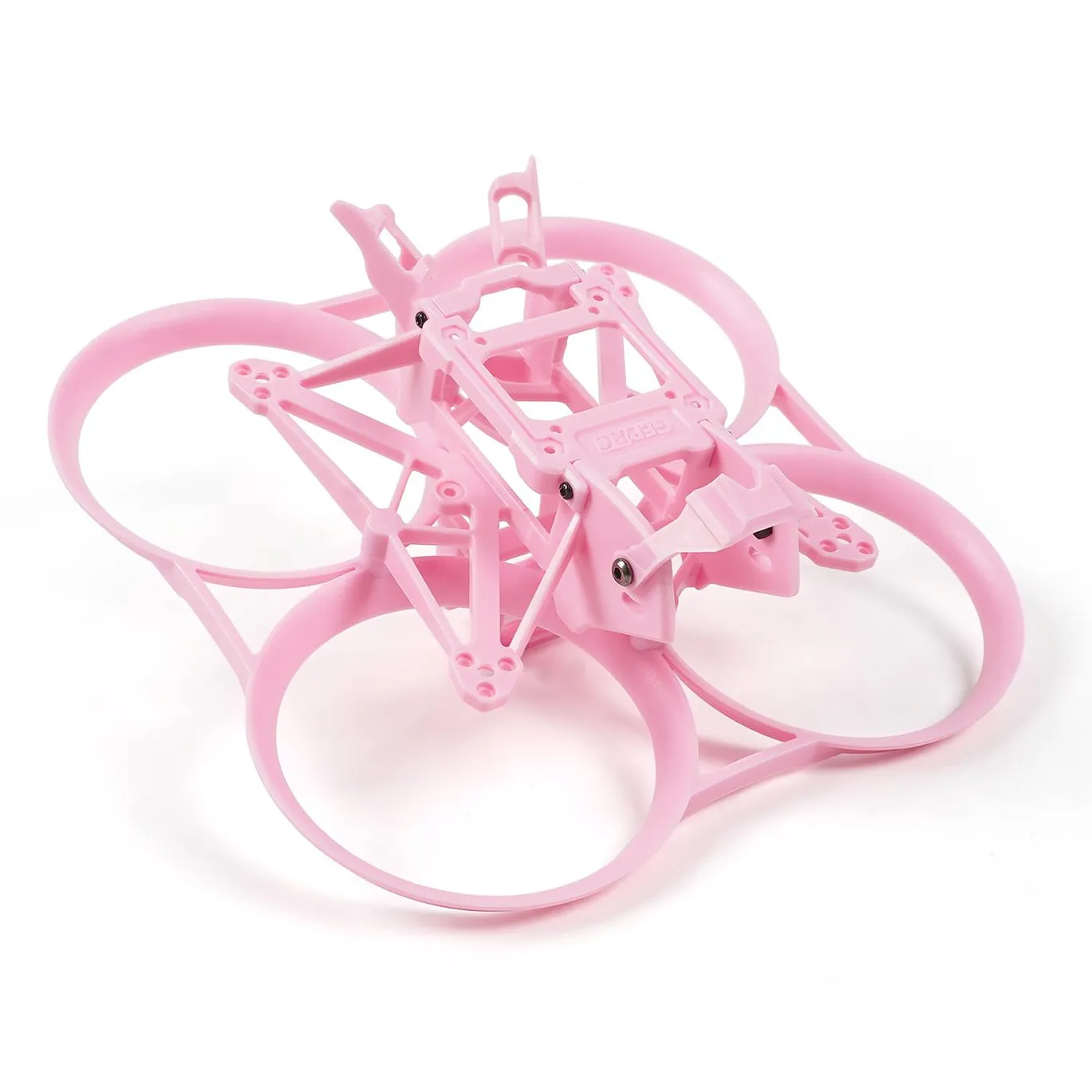

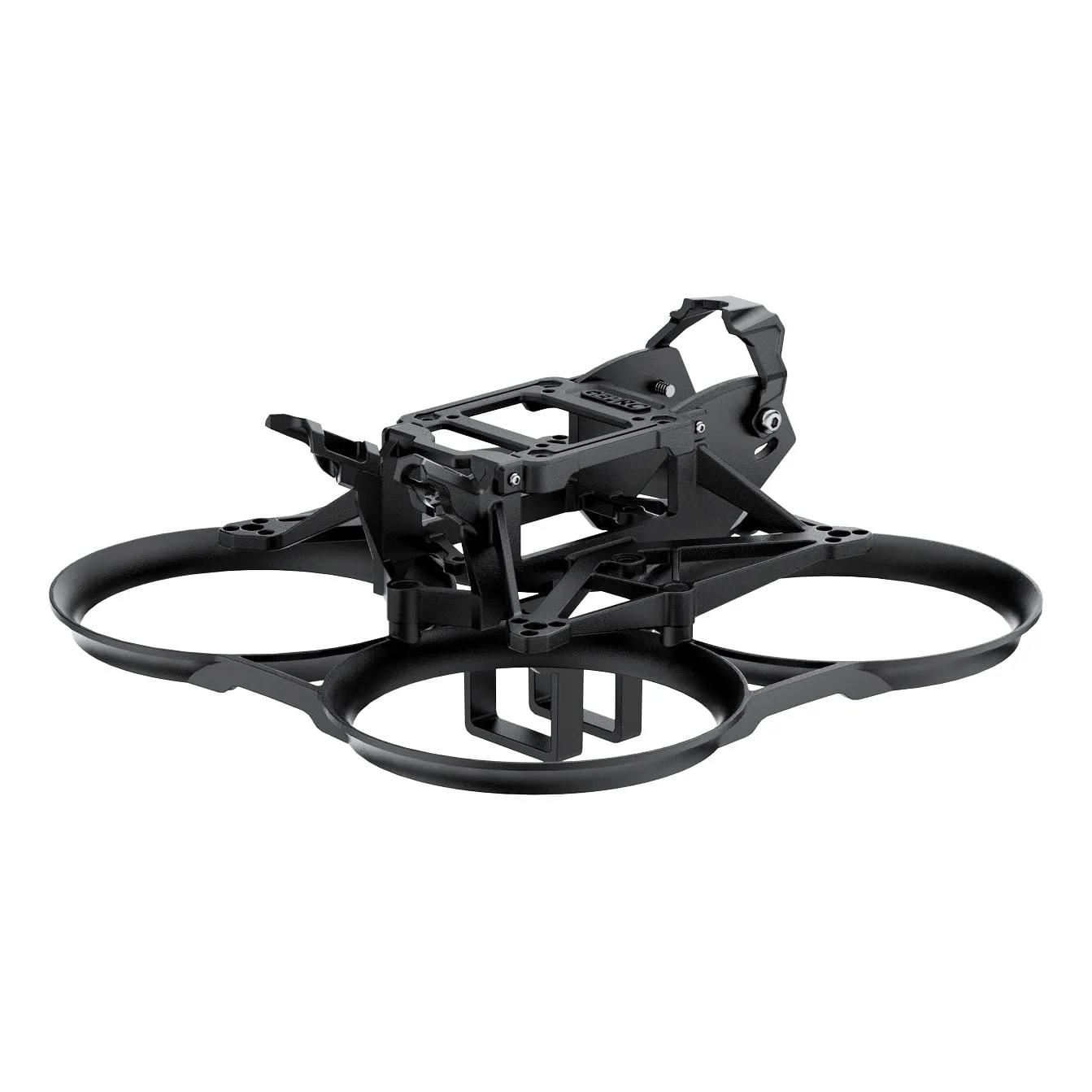

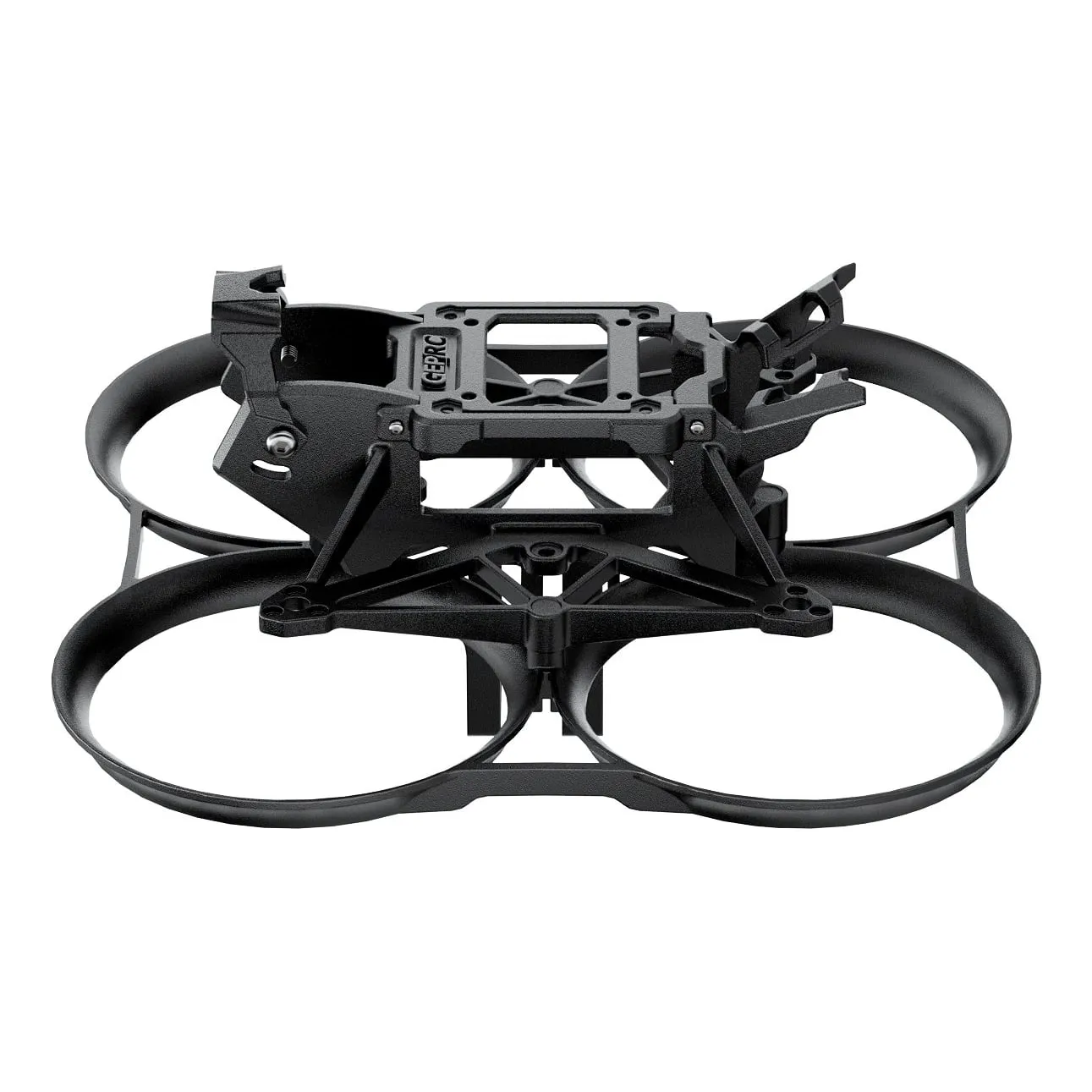

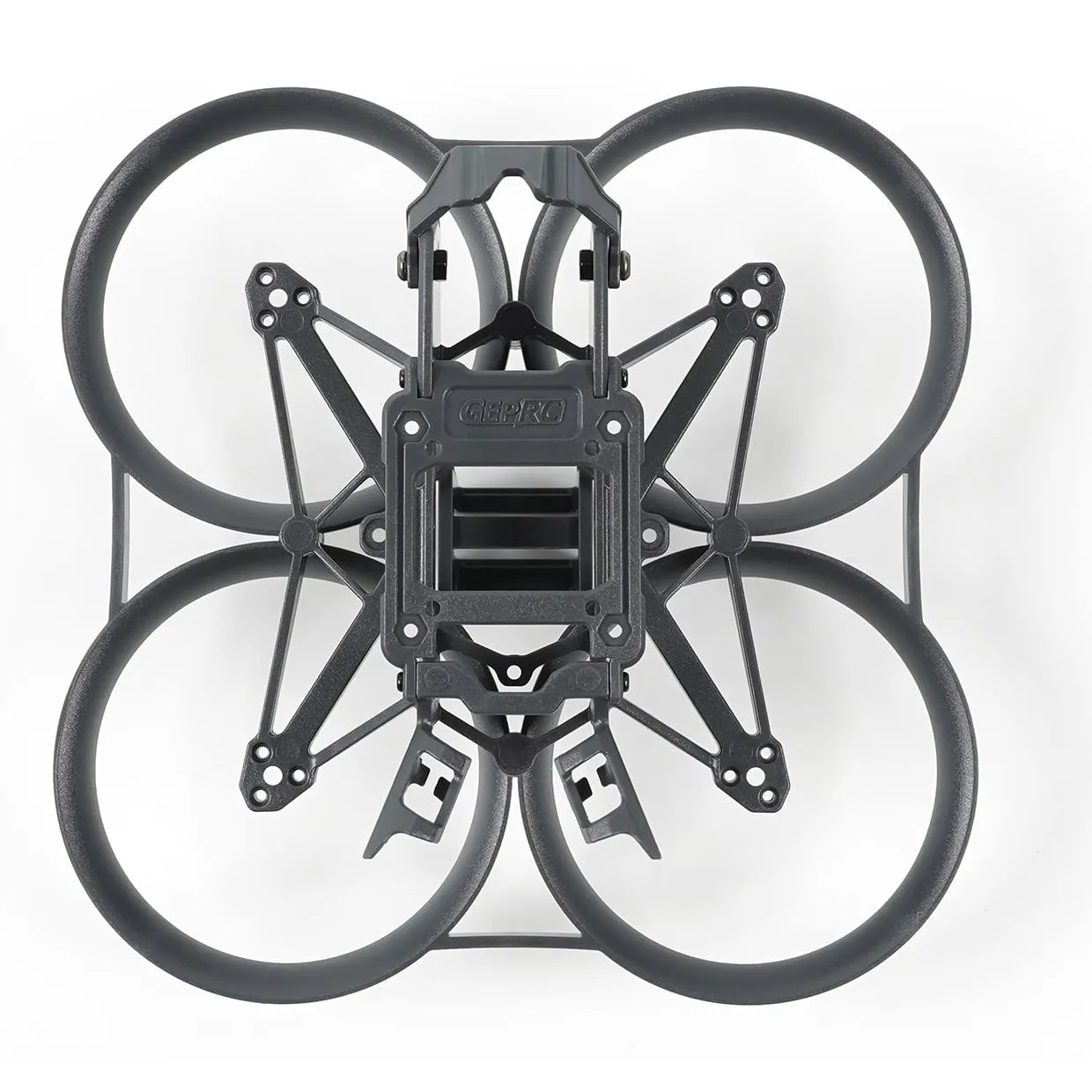

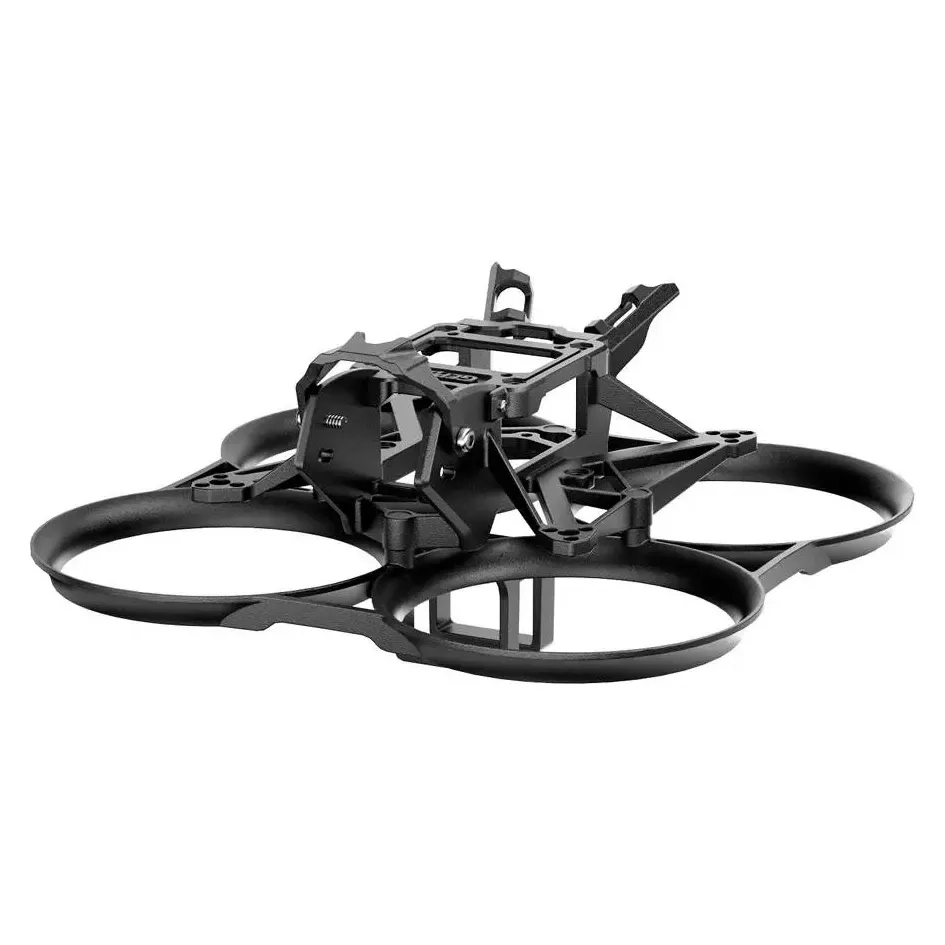

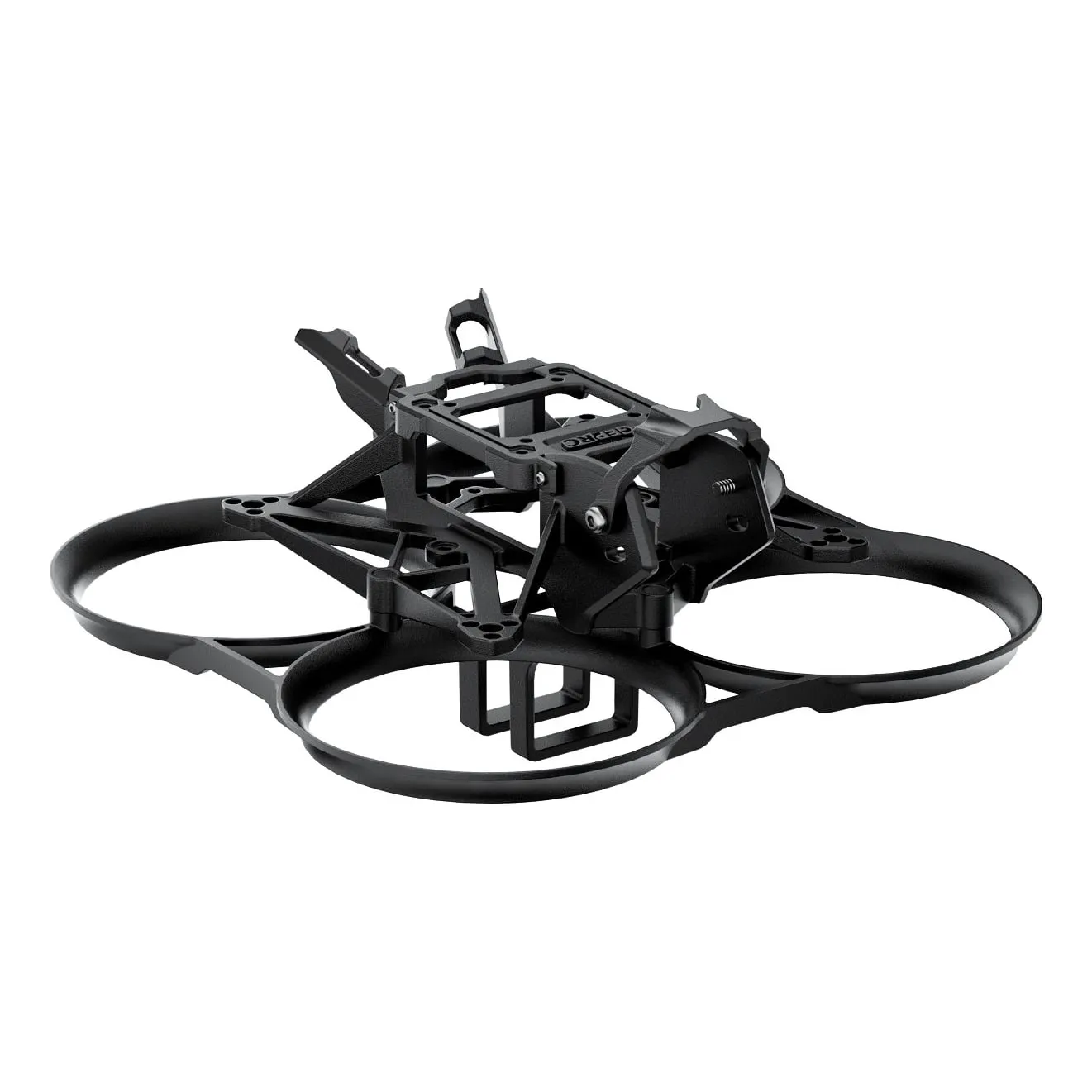

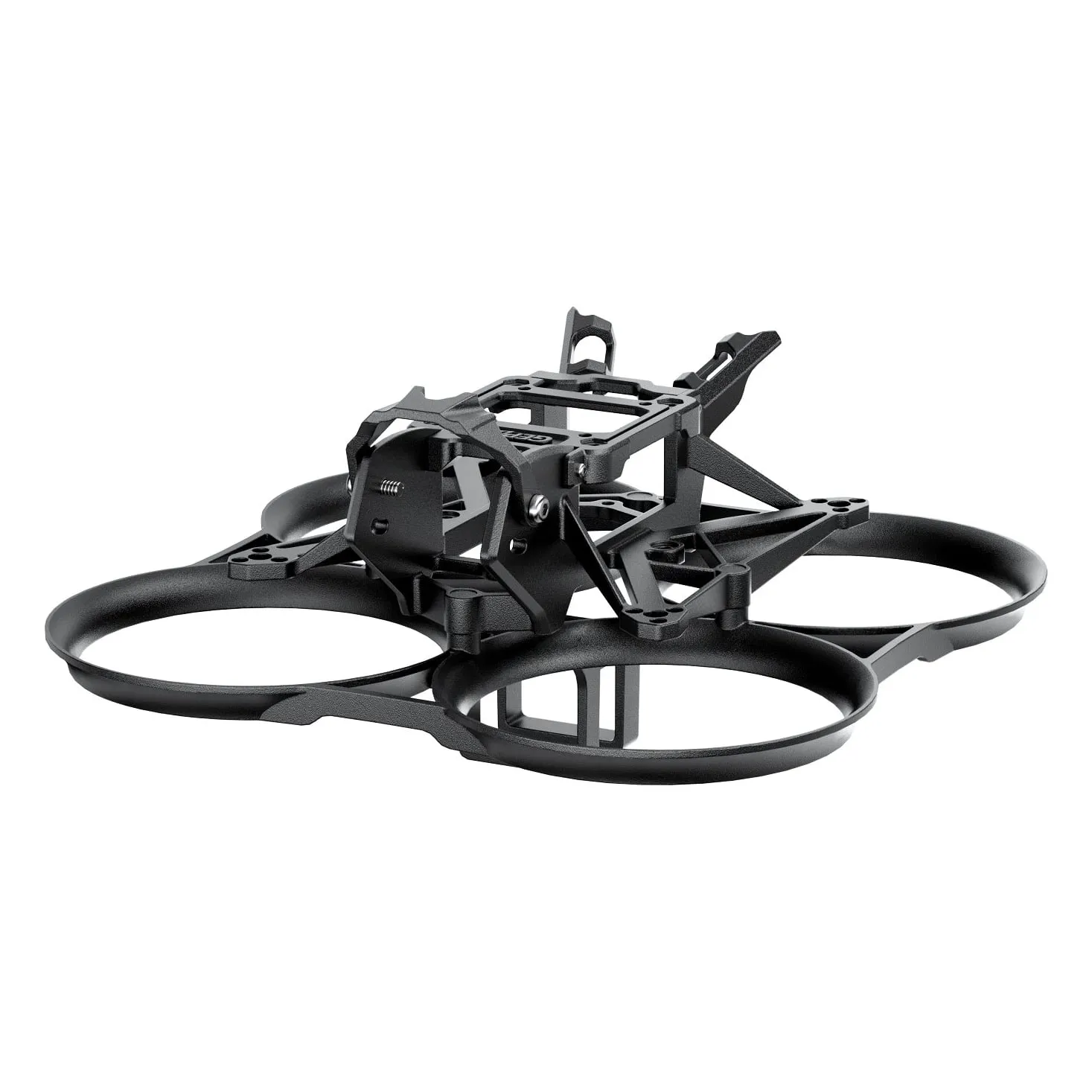

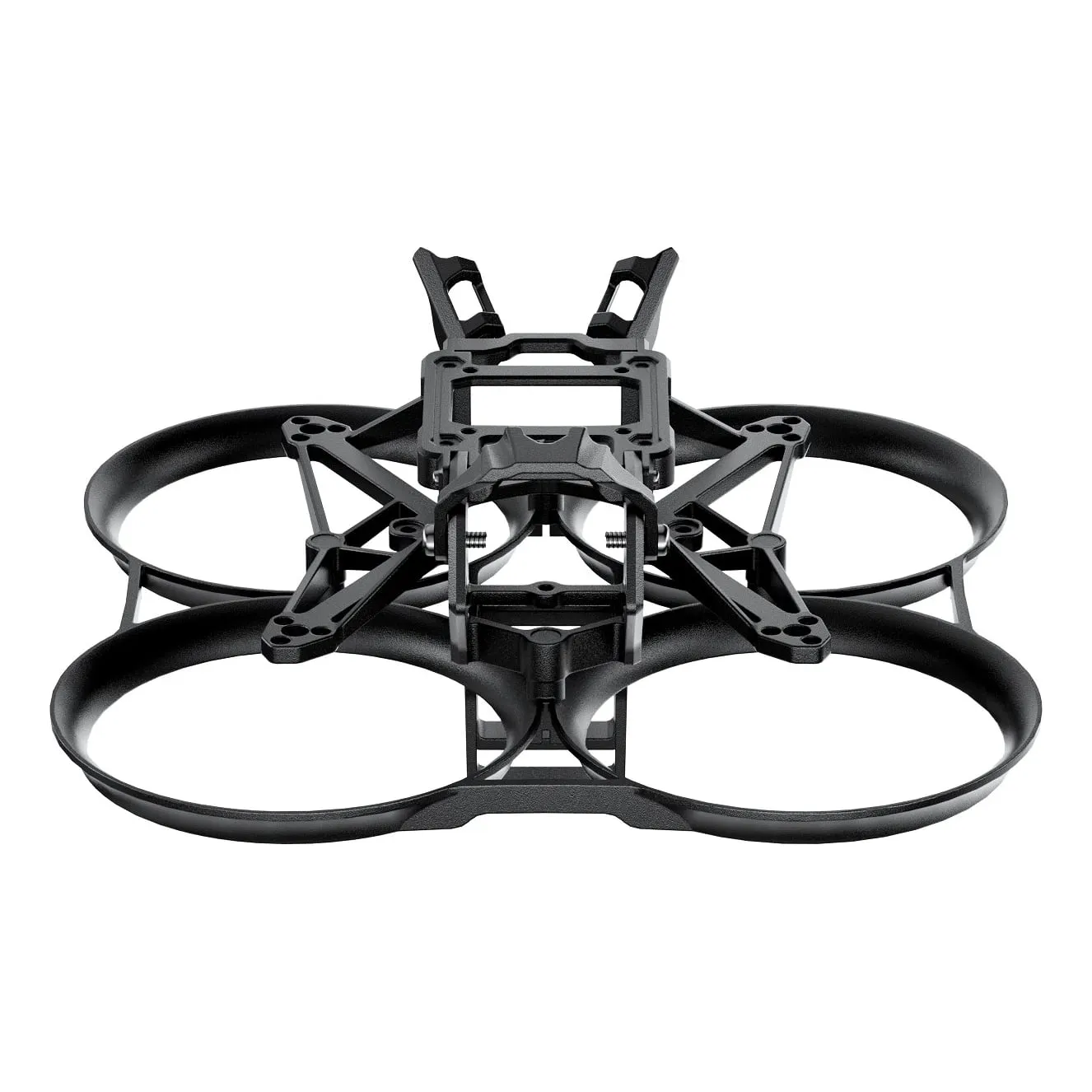

GEPRC DarkStar20 GEP-DS20 Cinewhoop Frame Kit

The GEPRC GEP-DS20 is a compact 90mm-wheelbase frame kit built for 2-inch micro cinewhoop builds. A fully injection-moulded, multi-directional propeller guard forms a resilient integrated protective shell, giving a highly protected platform for indoor flying and tight-proximity cinematic captures without adding unnecessary bulk.

Key features

• Injection-moulded, triangular-braced propeller guard resists prop strikes during close-quarters flights
• Modular construction with a frame-type battery compartment for easy battery swaps
• Supports the DJI O3 Air Unit, HD Link and analogue video systems
• Sized for 1003 or 1102 brushless motors on 1S-2S power

Specifications

• Model: GEP-DS20 (DarkStar20)
• Dimensions: 126 x 126 x 57mm
• Wheelbase: 90mm
• Supported propellers: 2-inch
• Flight controller mounting: 25.5 x 25.5mm
• VTX mounting: 20x20mm / 25.5x25.5mm
• Motor mounting: 3-hole, M1.4, 6.6mm bolt circle
• Camera size: 19mm / 20mm
• Battery slot: 17.3 x 13.5mm
• Frame weight: 25.8g
• In the box: integrated protective frame, main frame, VTX mounting plate, camera protective cap, screw pack, 2 VTX antennas, 1.5mm L-type screwdriver, Torx screwdriver

This black frame kit pairs well with a 1003 or 1102 brushless motor, a 25.5x25.5mm AIO flight controller, and 2-inch props like the HQProp 51mm. The included TPU inserts accommodate both standard nano FPV cameras and digital systems such as the DJI O3 Air Unit.
