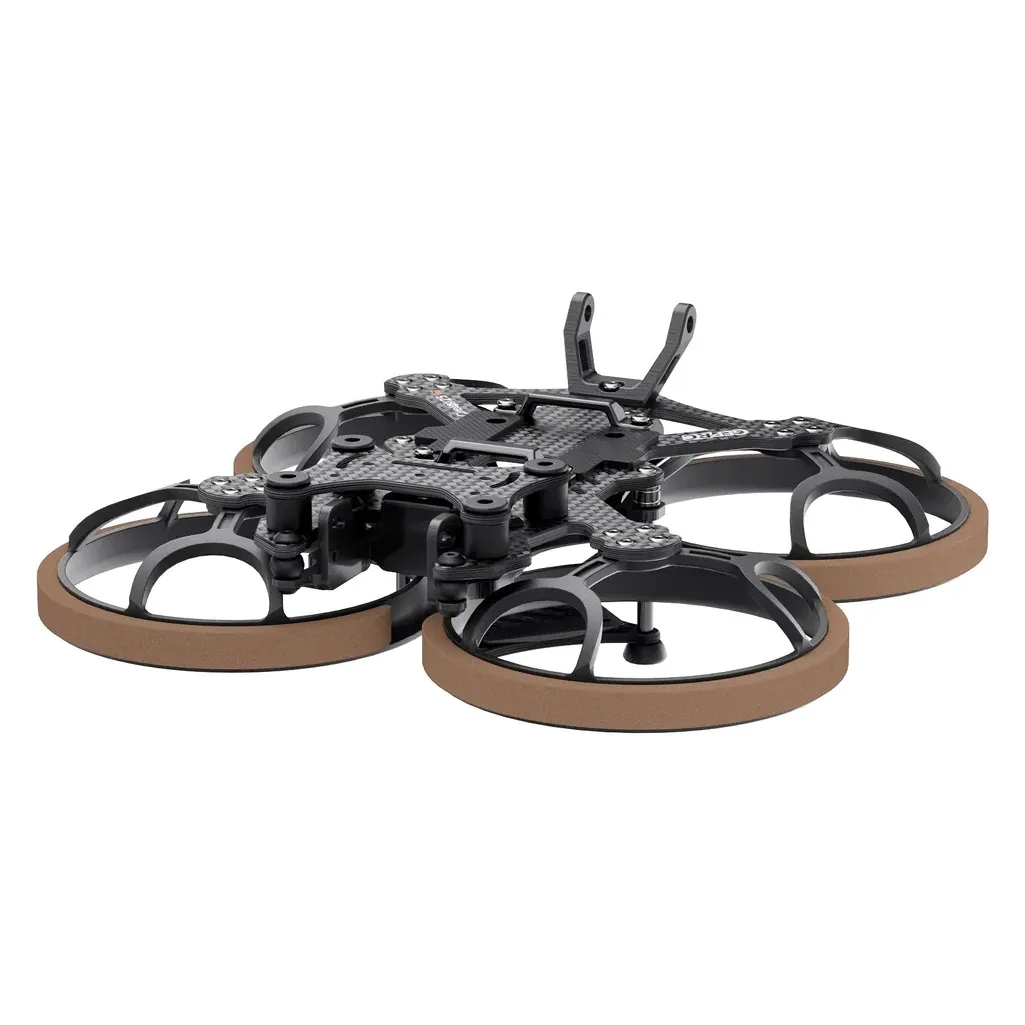

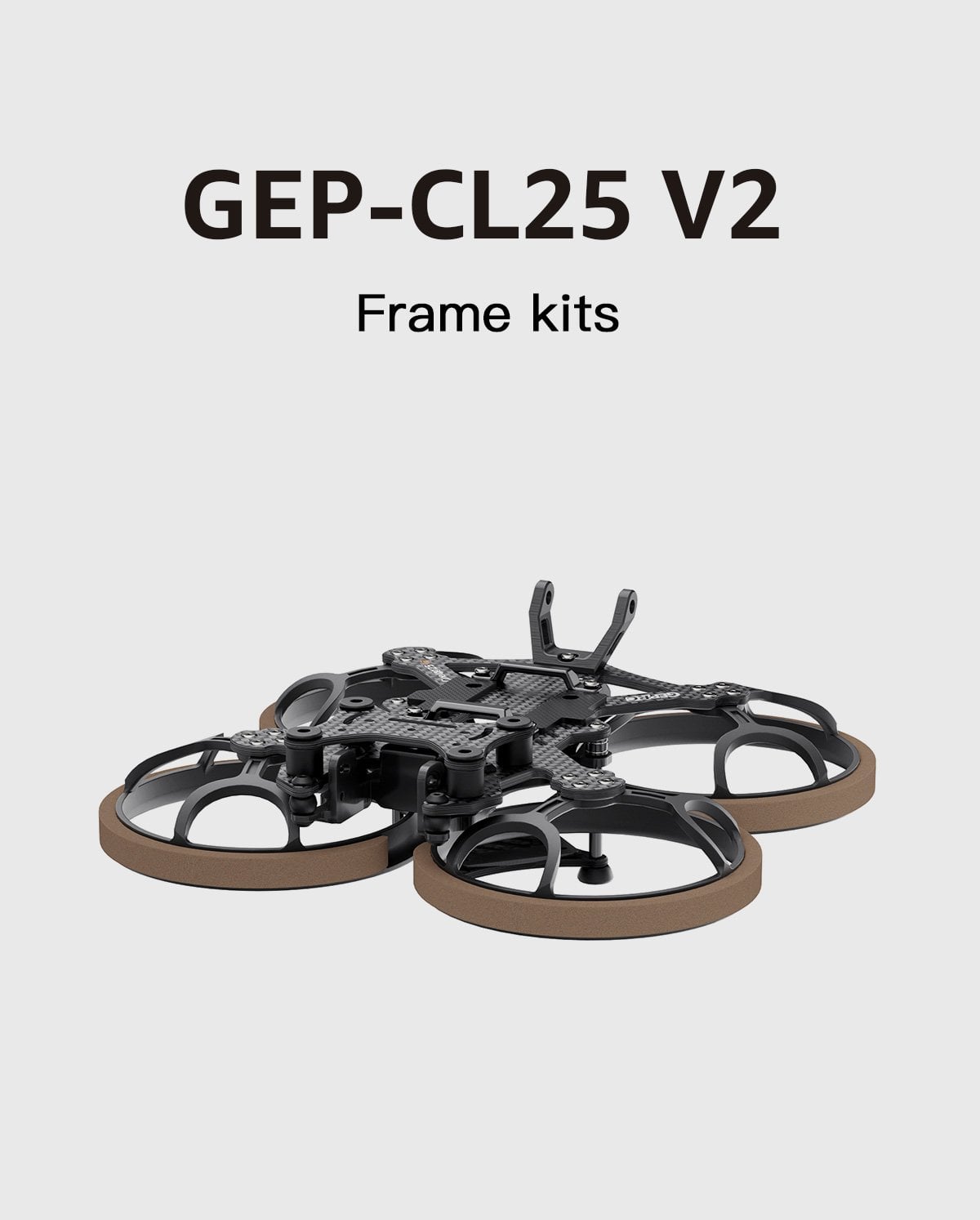

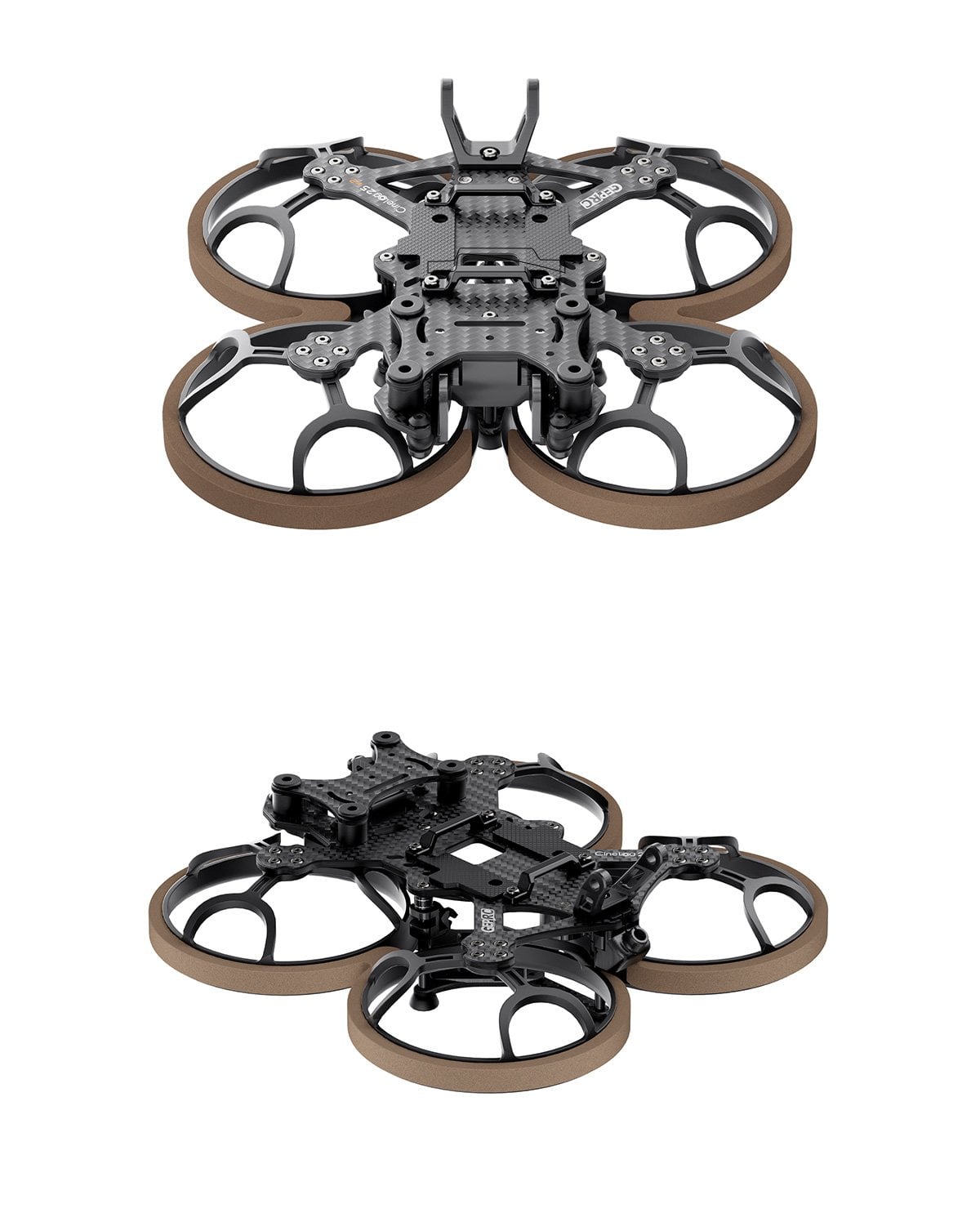

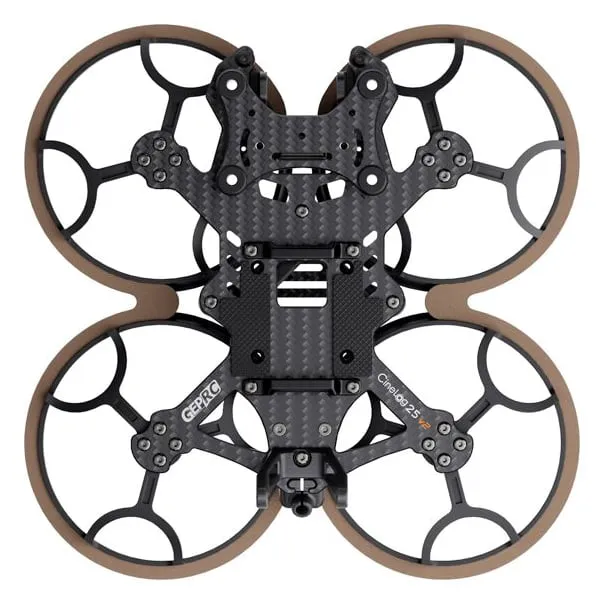

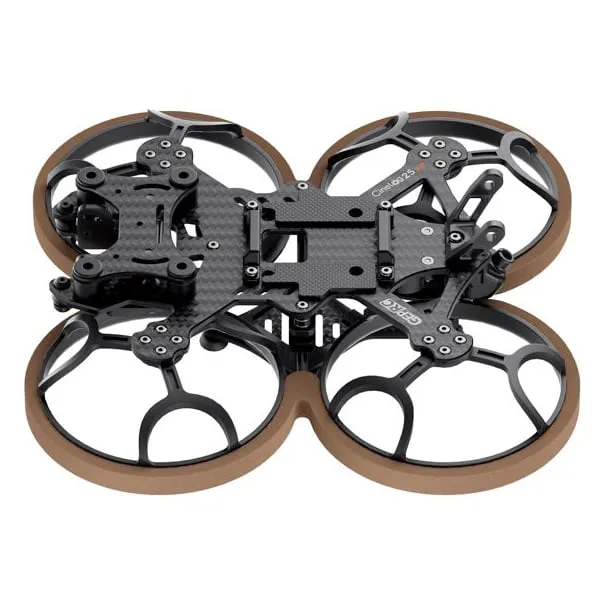

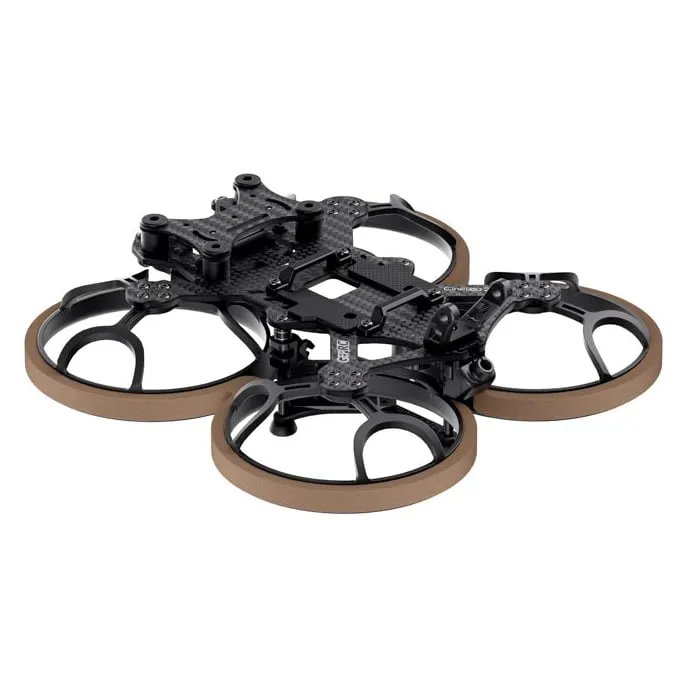

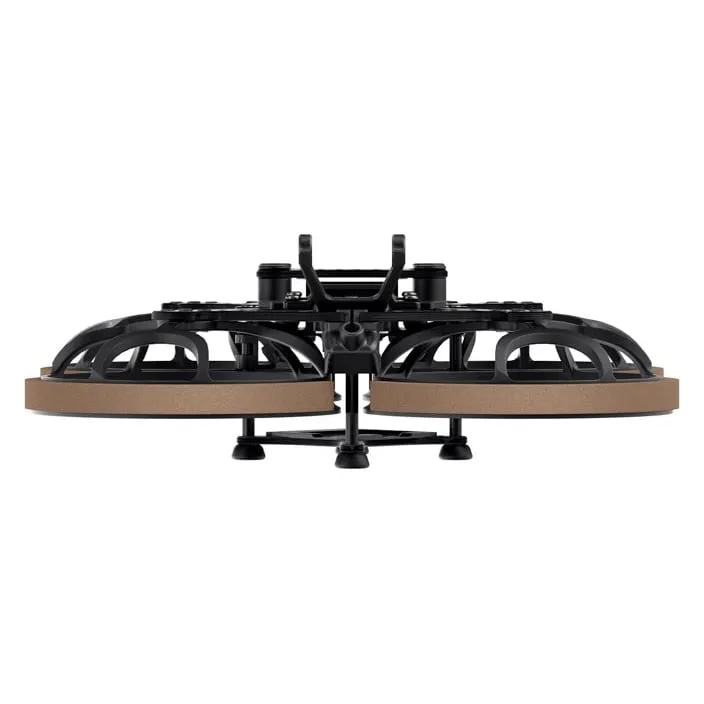

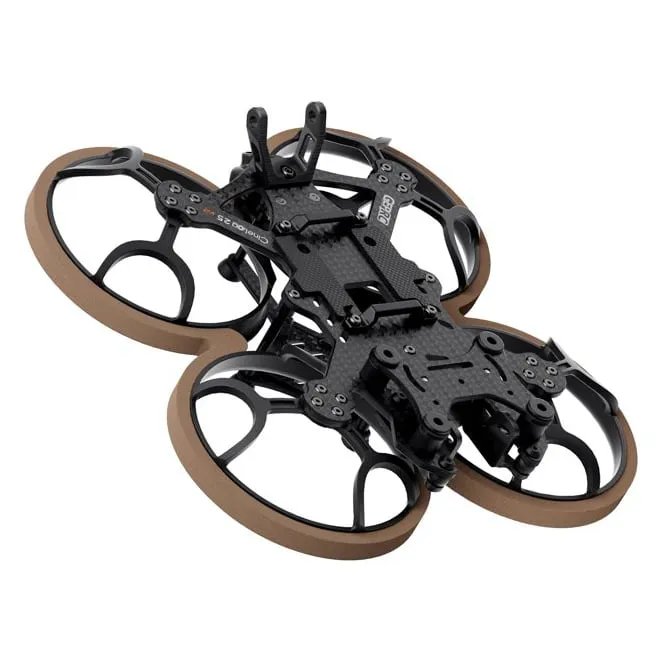

GEPRC CL25 V2 2.5-Inch Cinewhoop Frame for DJI O3

The GEPRC CL25 V2 (Cinelog25 V2) is an upgraded 2.5-inch cinewhoop frame set up to carry the DJI O3 Air Unit, for pilots building a compact HD whoop for indoor, proximity and travel footage. GEPRC reworked the original CL25 around a damped camera mount, 7075 aluminium standoffs and a quicker battery mounting method.

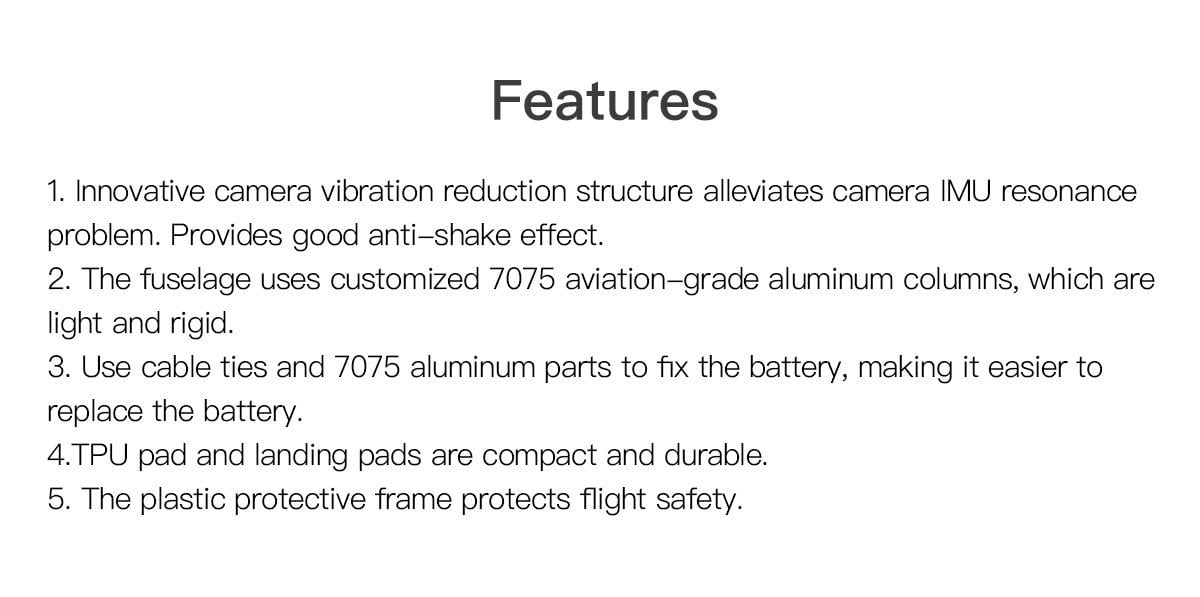

Key features

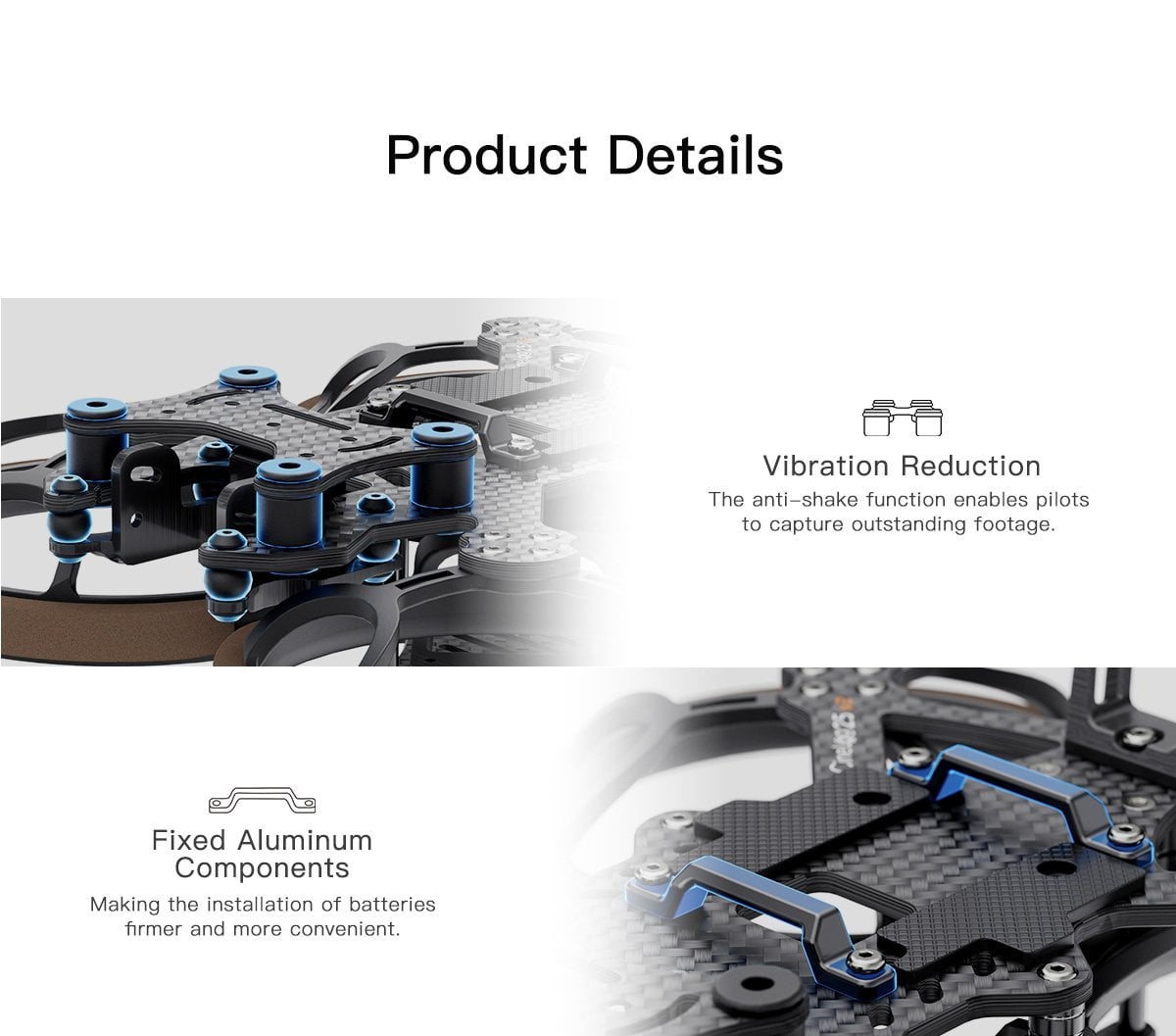

• Bottom-mounted camera damping ball isolates the camera from the frame, cutting IMU resonance for steadier footage

• 7075 aviation-grade aluminium columns keep the carbon stack rigid without adding weight

• Battery held by cable ties and 7075 aluminium fittings for quick pack swaps

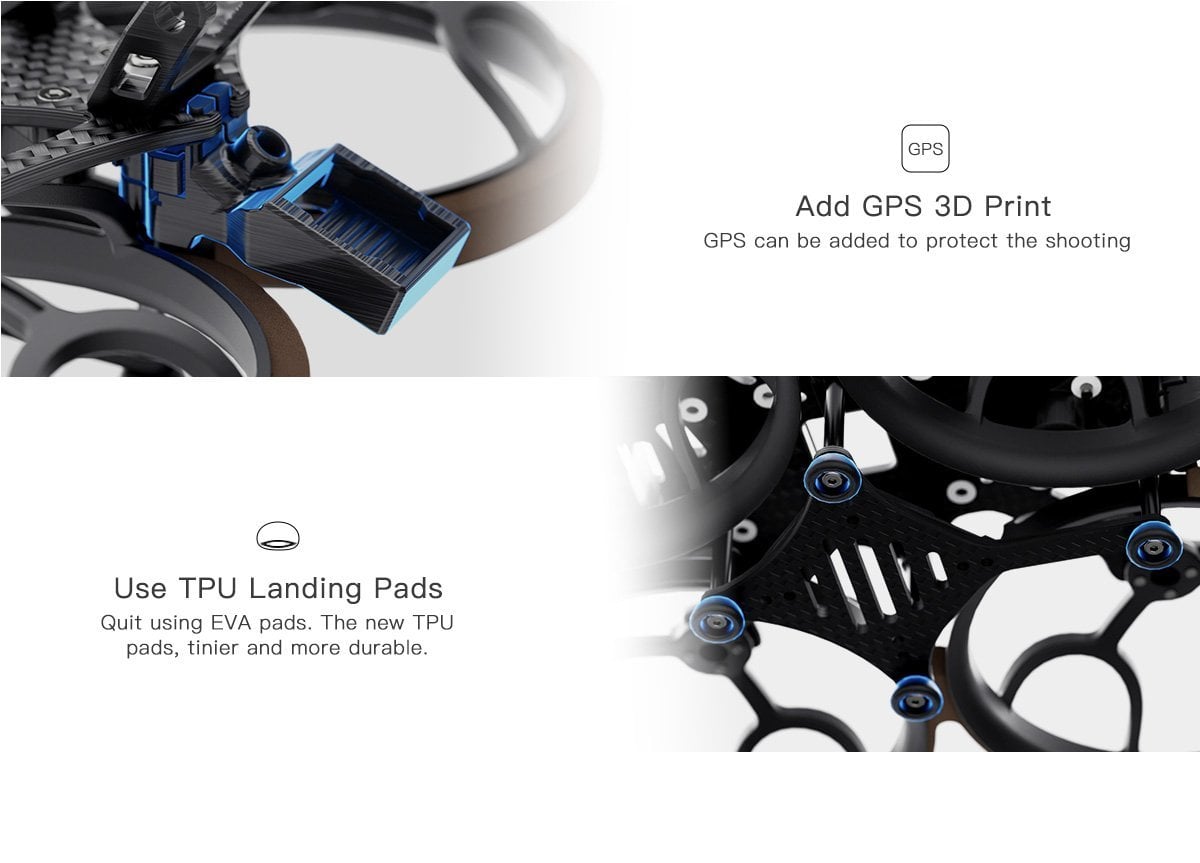

• Injection-moulded protective prop guard frame and durable TPU landing pads

• FC mount 25.5 × 25.5 mm, VTX mount 20 × 20 or 25.5 × 25.5 mm, 9 × 9 mm motor mounts

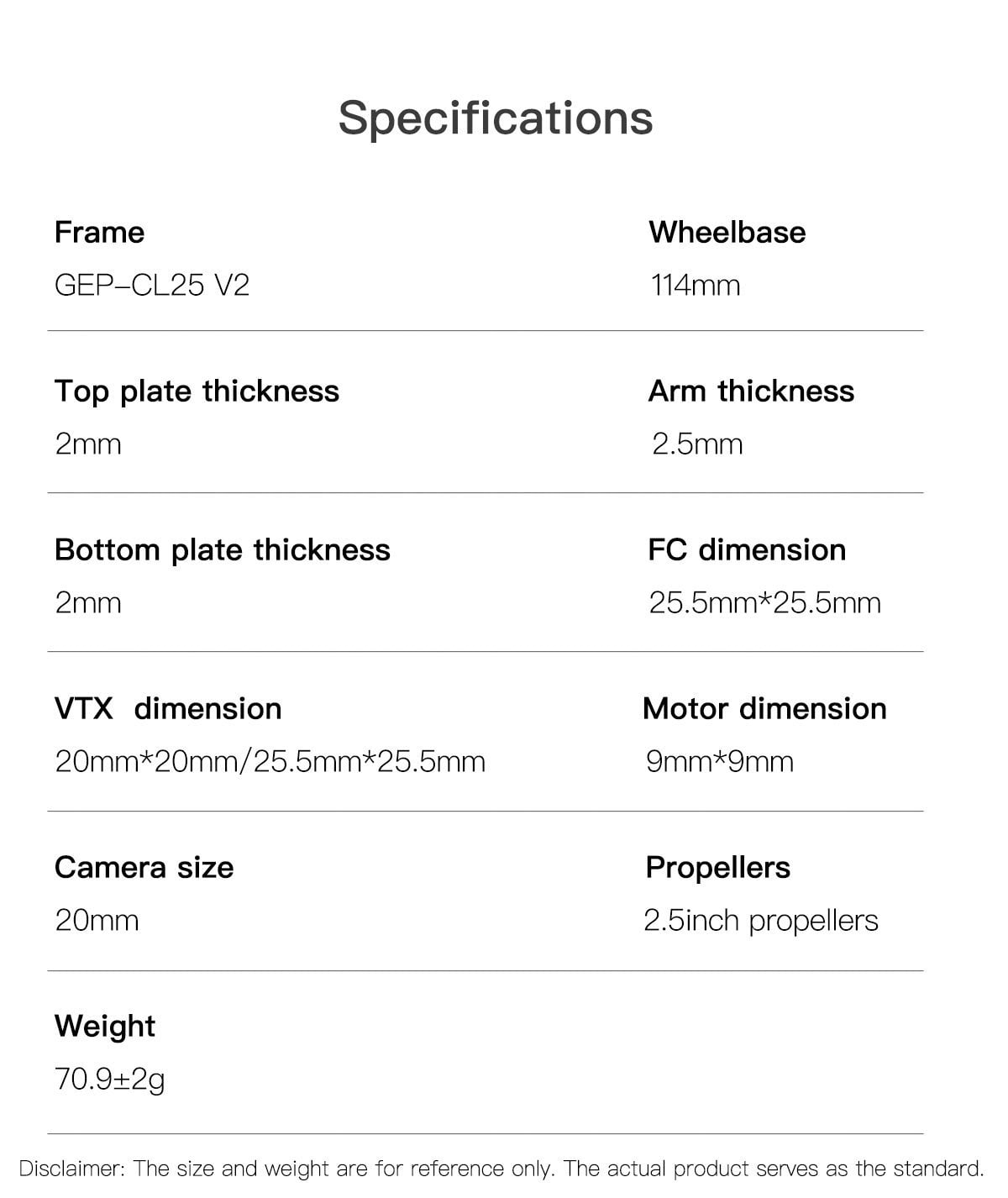

Specifications

• Wheelbase: 114 mm

• Props: 2.5-inch

• Material: carbon fibre plates, injection-moulded guard, 7075 aluminium columns

• Plate thickness: 2.0 mm top, 2.0 mm bottom, 2.5 mm arm plate

• FC mounting: 25.5 × 25.5 mm

• VTX mounting: 20 × 20 / 25.5 × 25.5 mm

• Motor mounting: 9 × 9 mm

• Camera: 20 mm cameras, DJI O3

• Frame weight: 70.9 g ±2 g

• In the box: top, bottom and arm plates; prop guard frame; TPU landing pads; 7075 columns; battery mounting kit; camera damping ball; screw set

Before ordering, check that your motors use a 9 × 9 mm bolt pattern and your flight controller or AIO the 25.5 × 25.5 mm whoop pattern. The 20 mm camera bay takes the O3 camera or a 20 mm analogue camera.
