FlyFishRC M10 Mini GPS Module

₹1,079Incl. GST

SKU FFRC-M10-MINI-GPS

Compass Included: NoMade in India: NoBrand: FlyFishRCRTK Support: No

Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.

Questions about this part? Ask us on WhatsApp

Buying in bulk? Ask for a better price on WhatsApp or by email.

Product details

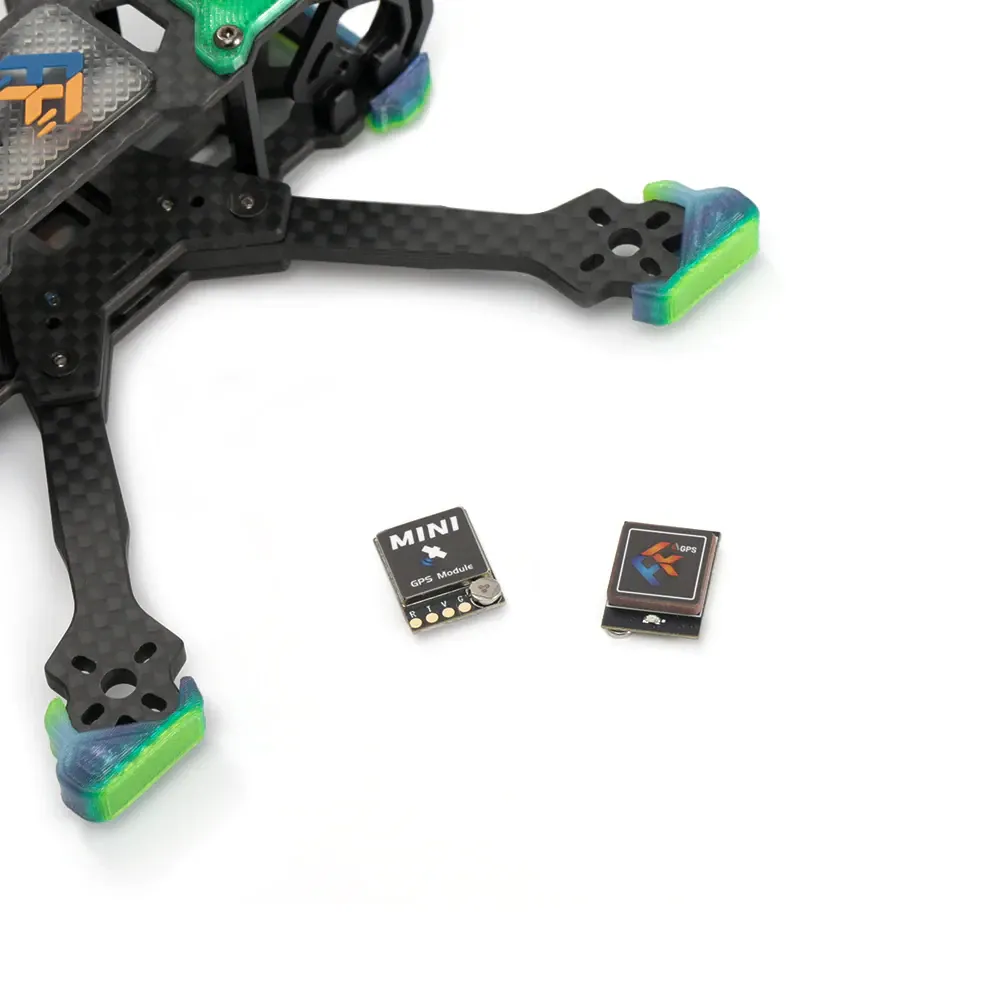

The FlyFishRC M10 Mini is a compact GPS module built around a u-blox M10 chipset, adding satellite positioning to FPV builds that need GPS rescue or navigation logging.

Key features

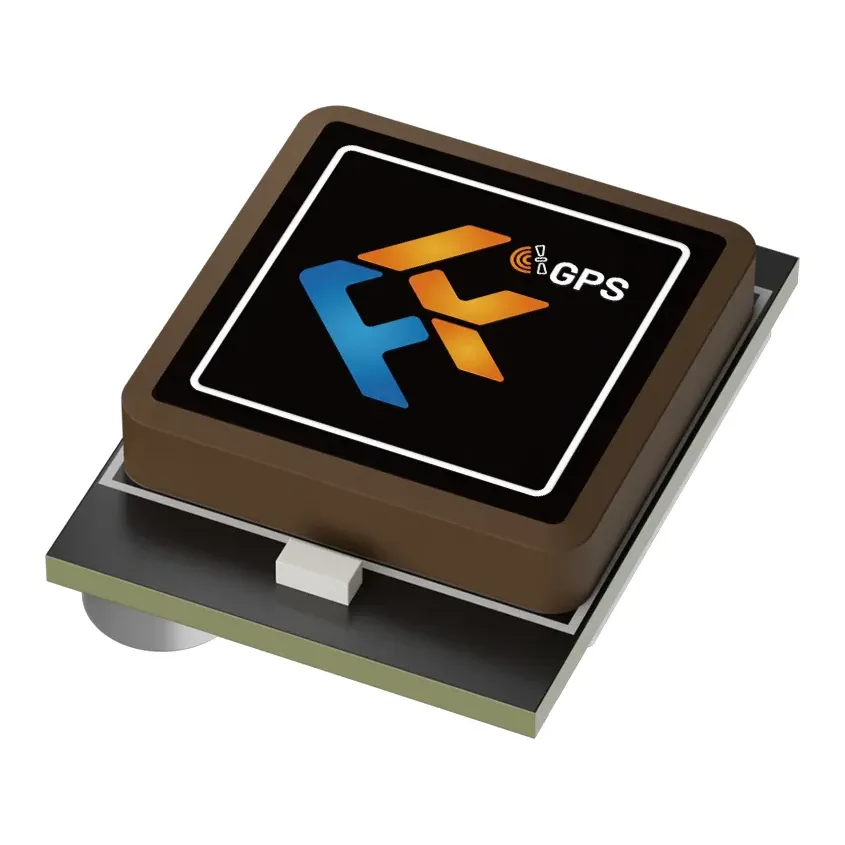

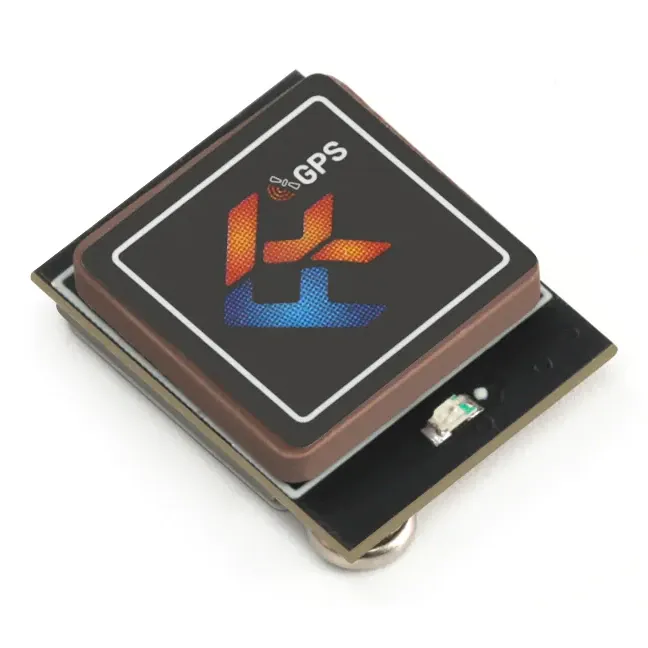

  • 12x12mm RHCP ceramic patch antenna gives stable satellite reception in a small footprint.

  • Hot start of 1-3 seconds and a 30-second cold start get a fix quickly after power-up.

  • Tracking sensitivity of -167dBm and 0.05m/s speed accuracy suit GPS-rescue use.

  • Runs from 3.3-5.5V, drawing around 40mA during normal operation.

  • Serial UART output at up to 115200bps keeps the flight controller link responsive.

Specifications

  • GNSS chipset: u-blox M10

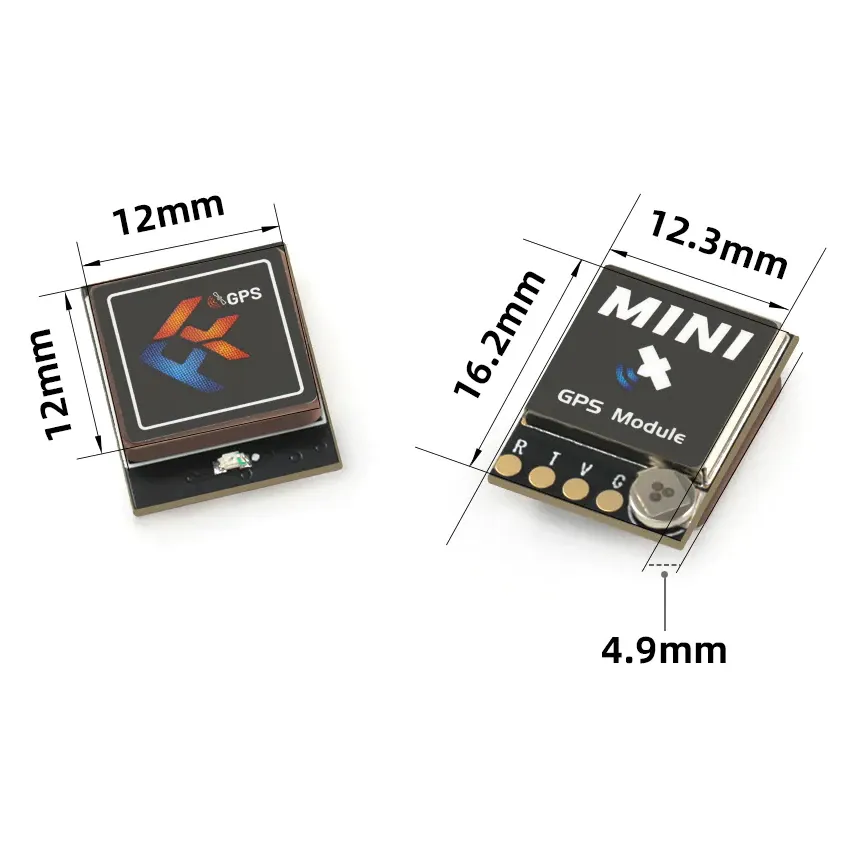

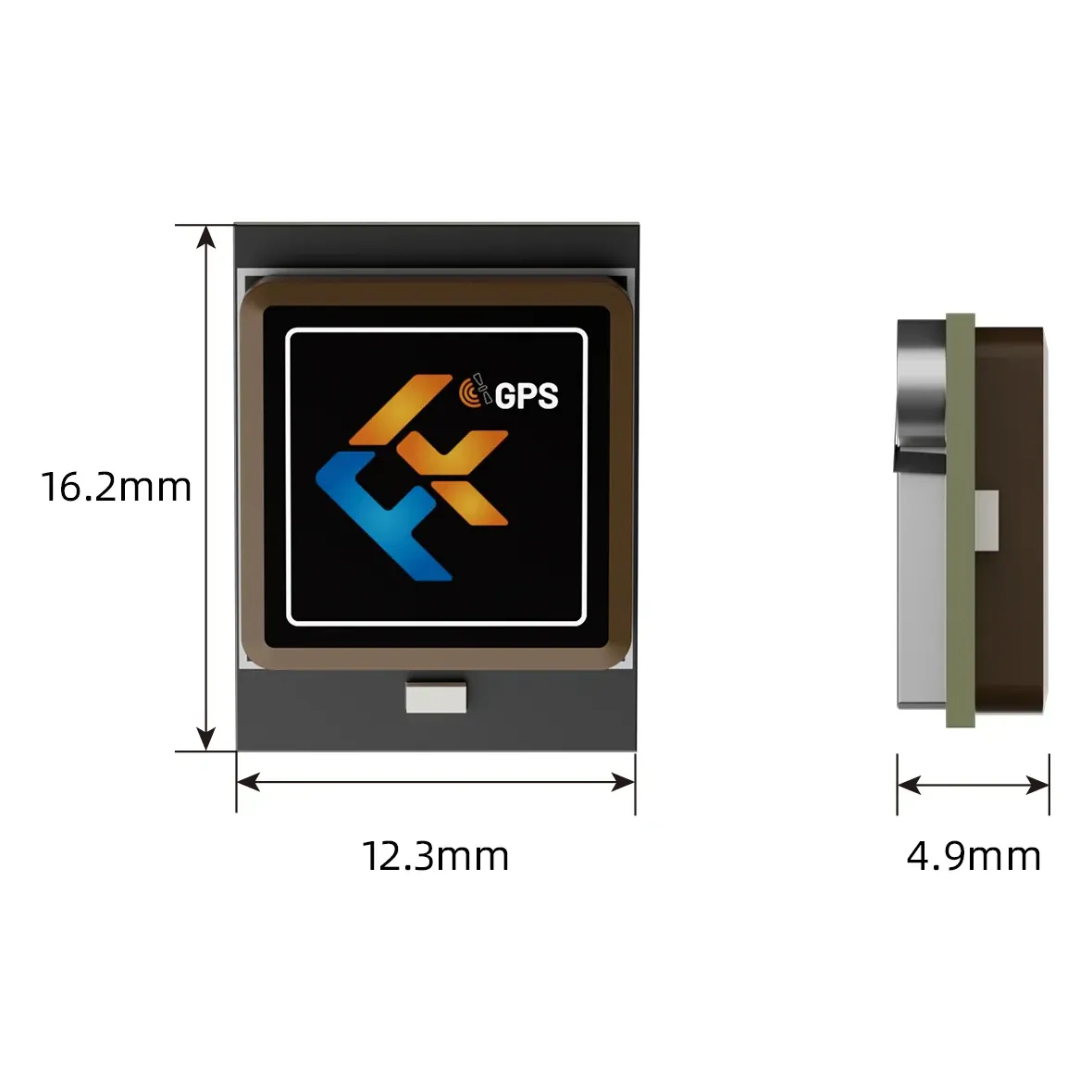

  • Module size: 16.2 x 12.3 x 4.9 mm

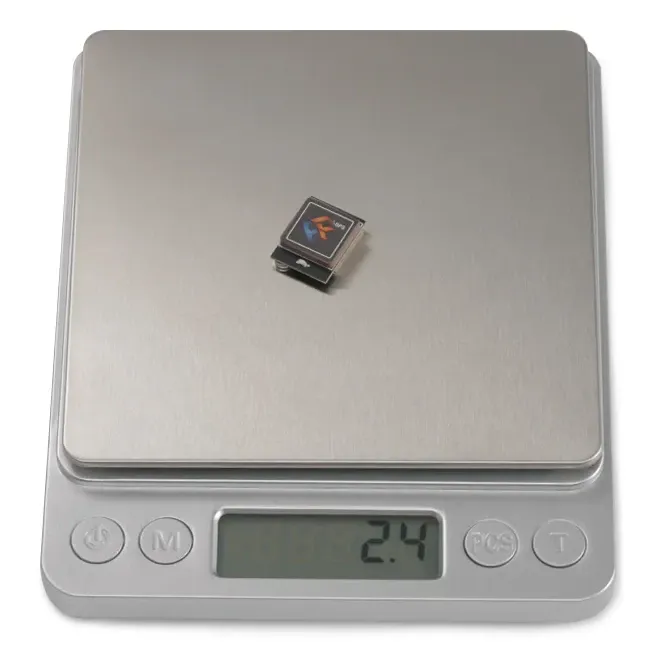

  • Weight: 2.4 g

  • Input voltage: 3.3-5.5 V

  • Max altitude / speed: 50,000 m / 500 m/s

  • In the box: GPS module, battery-strap GPS mount, 4 x #30 silicone wires, manual

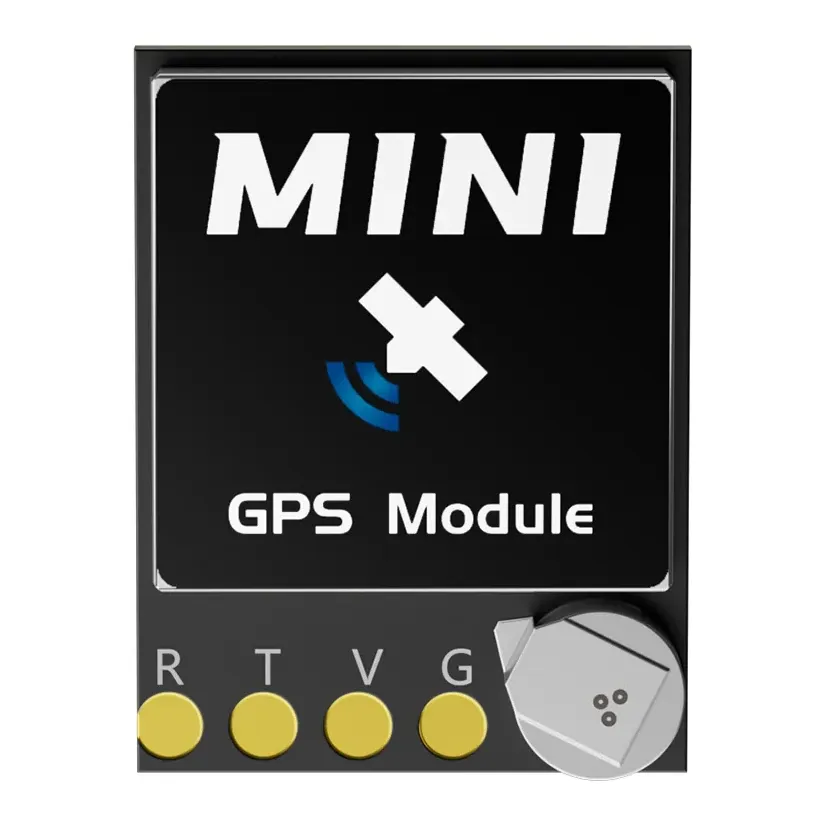

Wire VCC, GND, RXD and TXD to your flight controller's GPS UART, and confirm the baud rate in your firmware's GPS configuration.
