FlyFishRC Flash 2306 FPV Motor – Black

The FlyFishRC Flash 2306 1750KV is a high-performance, punchy brushless motor engineered specifically for 6S 5-inch freestyle, cinematic, and light racing quadcopters. Designed with a balanced 2306 stator profile, it delivers swift throttle response and smooth low-end torque while maintaining excellent efficiency during aggressive flight manoeuvres.

Key features

• 1750KV rating for 6S setups: Optimized for 22.2V nominal LiPo voltage, offering a responsive throttle curve and extended flight times on 5-inch propellers.

• Uni-Bell two-piece structure: High-precision 7075-T6 aluminium bell design enhances structural rigidity and impact resistance against hard crashes.

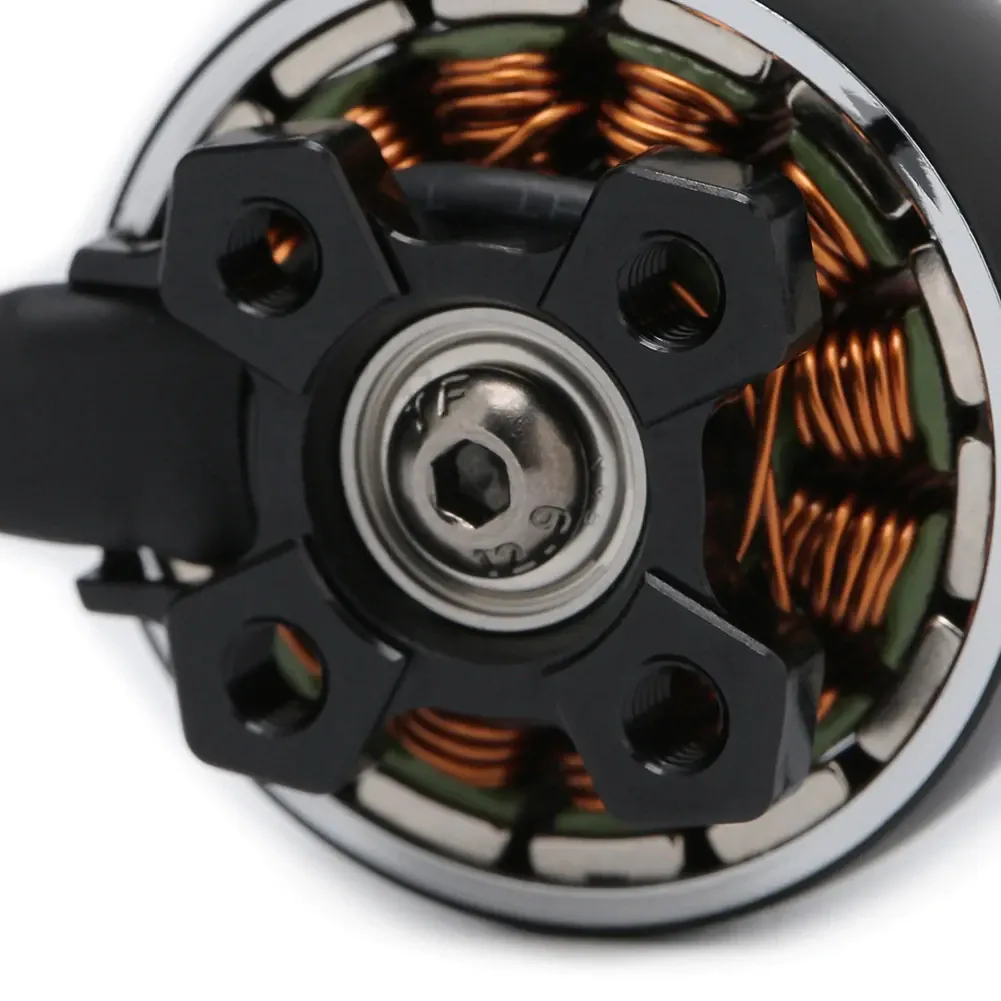

• N52SH arc magnets: Temperature-resistant magnets arranged in a 12N14P configuration ensure strong electromagnetic coupling and precise rotor synchronization.

• High-strength steel shaft: A 4mm internal / 5mm external prop shaft balances durability with weight reduction.

• High-grade NMB bearings: Premium Japanese NMB 9x4x4mm bearings provide smooth, vibration-free rotation at high RPMs.

• 20AWG silicone wire leads: Includes 150mm wire leads for clean, direct soldering to 4-in-1 ESCs on standard 5-inch frames.

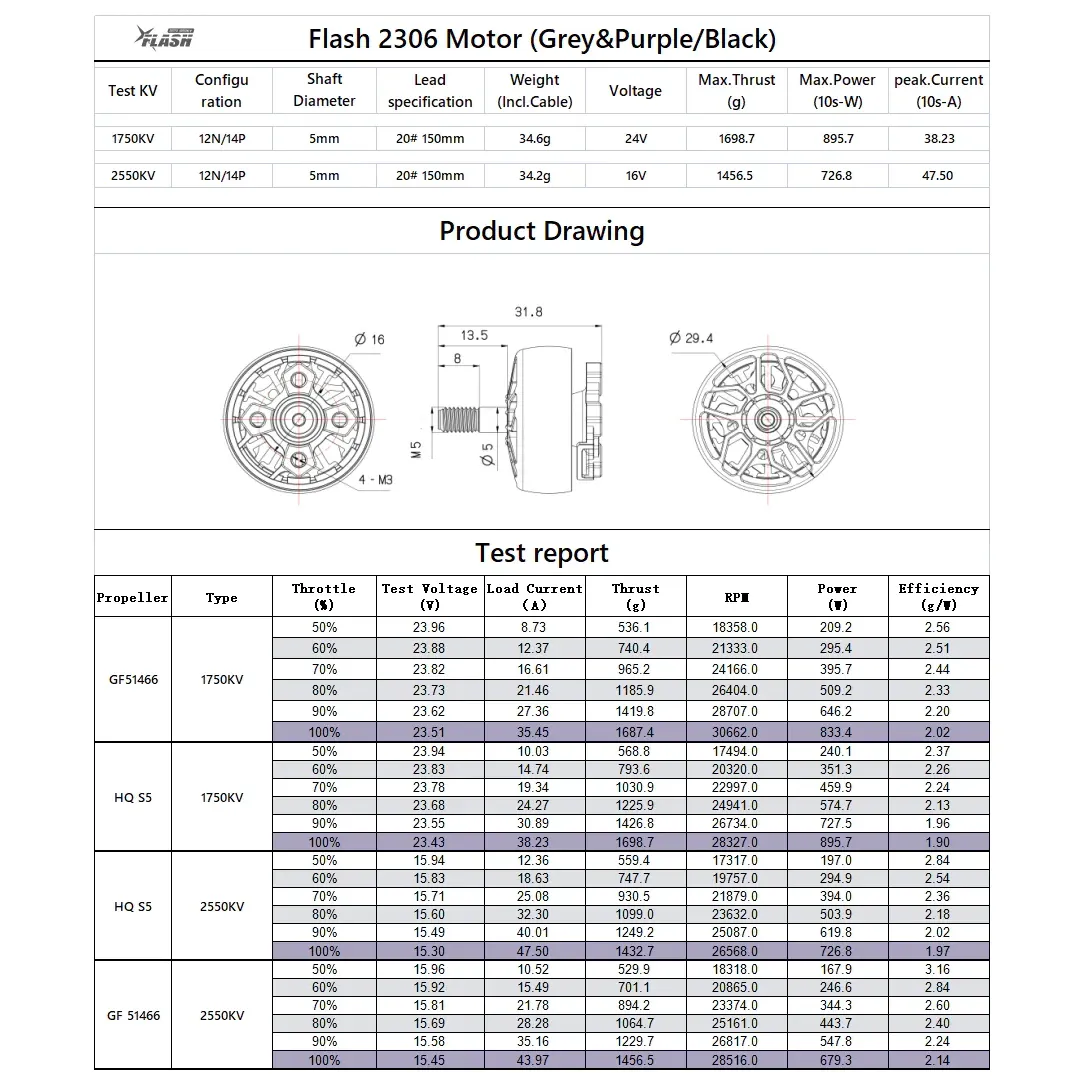

Specifications

• Stator Size: 2306

• KV Rating: 1750 KV

• Configuration: 12N14P

• Input Voltage: 6S LiPo (22.2 V nominal)

• Shaft Diameter: 4 mm internal / 5 mm external prop shaft

• Mounting Pattern: 16x16 mm (M3)

• Dimensions: 29.4 x 31.8 mm

• Wire Gauge & Length: 20AWG, 150 mm

• Bearings: NMB 9x4x4 mm

• Weight: 34.2 g (including wires)

• Colour: Black

• In the box: 1 motor, hardware set

With its standard 16x16 mm mounting pattern and robust M3 threading, the Flash 2306 easily mounts to all modern 5-inch and 6-inch freestyle frame arms. Pair this 1750KV variant with a 6S LiPo battery, a 45A–60A ESC, and standard 5.0–5.1 inch triblade propellers to extract maximum thrust and responsiveness from your build.
