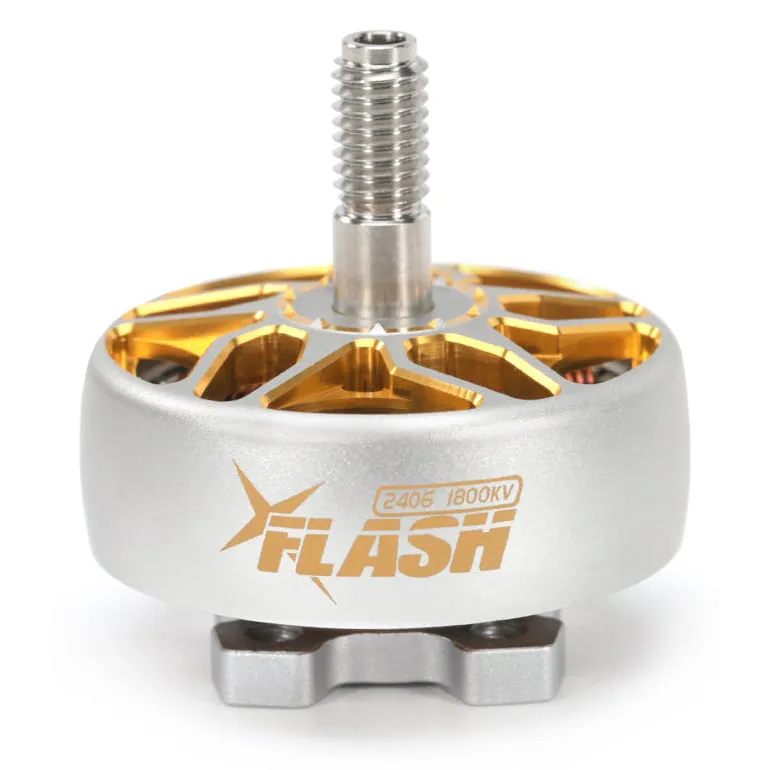

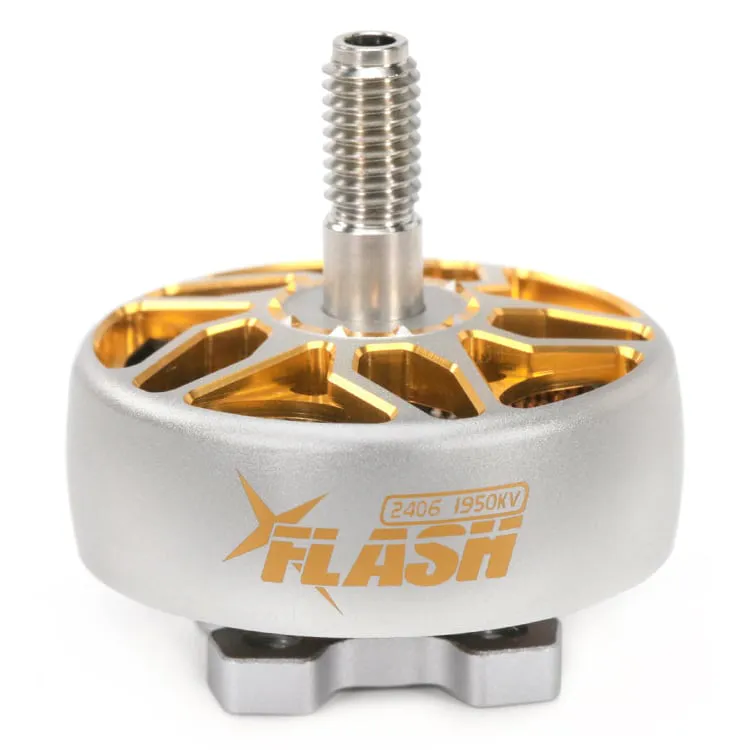

FlyFishRC Flash 2406 FPV Motor, Grey & Gold (1800KV / 1950KV)

The FlyFishRC Flash 2406 is a 24 × 6 mm stator brushless motor for 6S 5-inch freestyle quads, in a grey and gold finish. Pick 1800KV for smoother, more efficient flying on heavier builds, or 1950KV for a punchier throttle response.

Key features

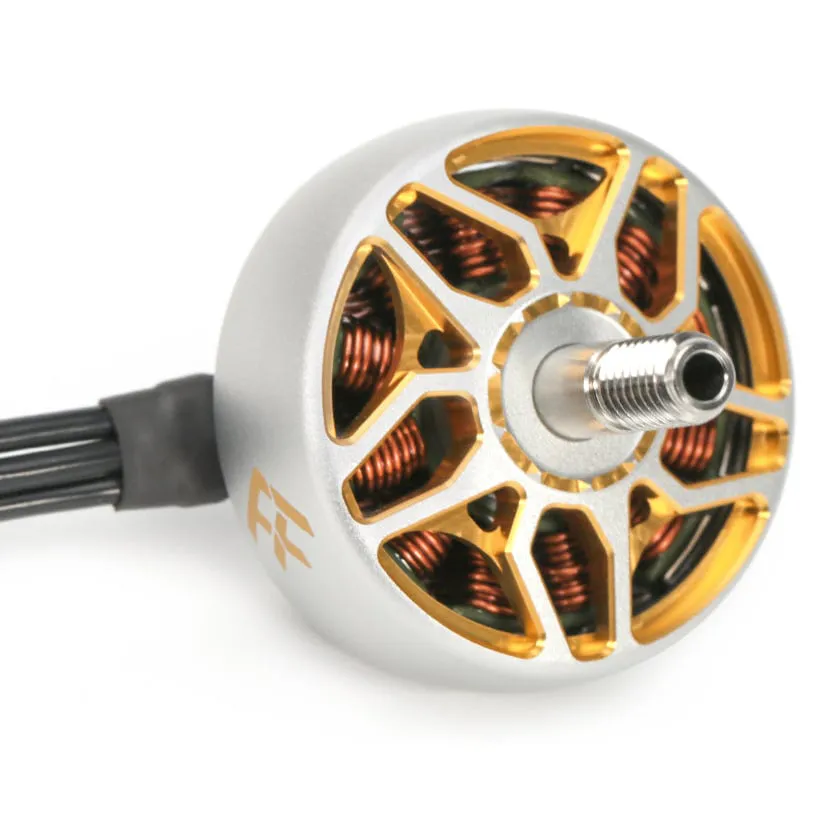

• Uni-Bell structure in 7075 aluminium adds crash resistance without adding weight

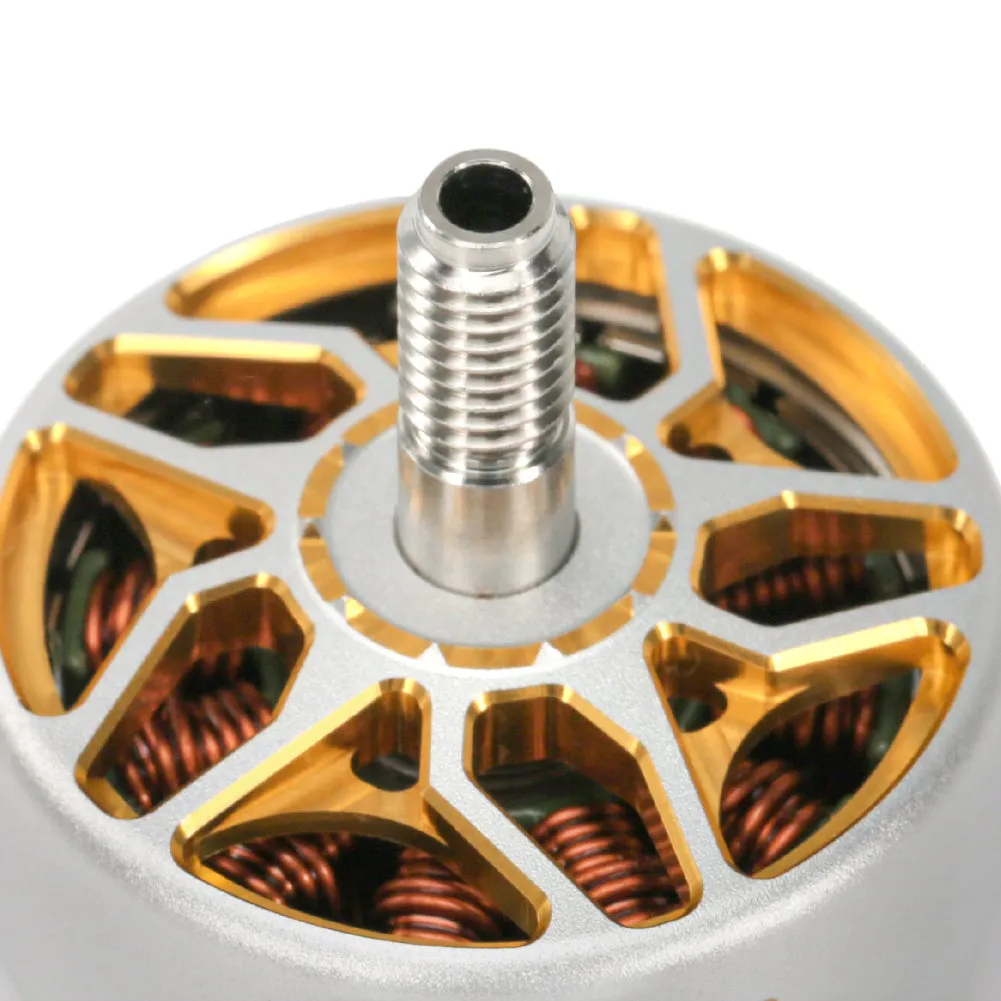

• Titanium-alloy shaft, NMB bearings and N52SH heat-resistant magnets

• 220 °C-rated copper windings

• Non-slip prop seat that keeps props from slipping under hard throttle

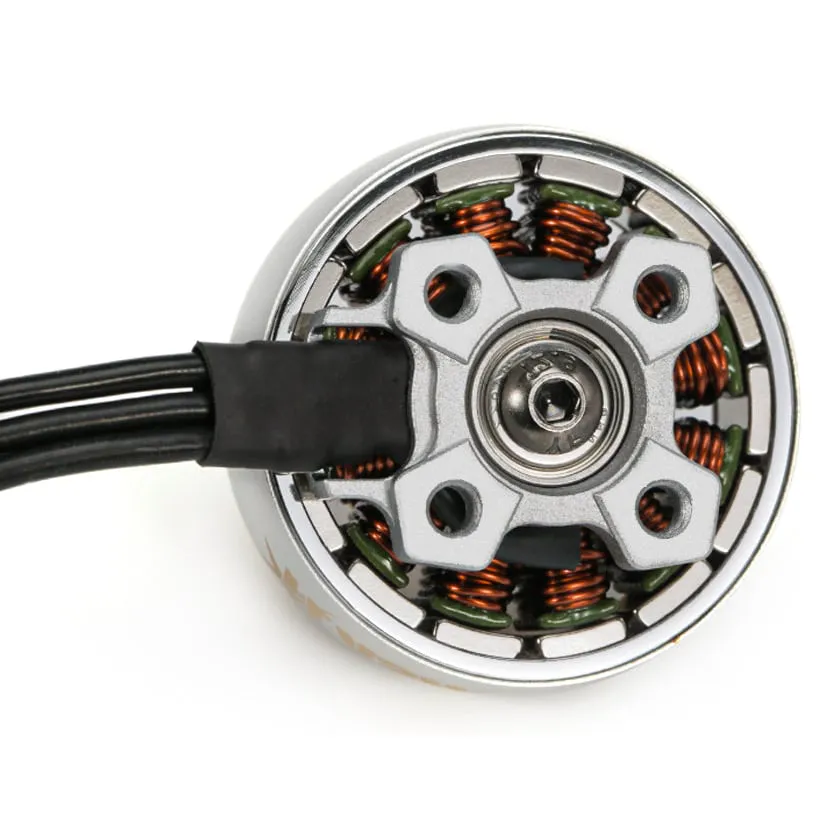

• 16 × 16 mm mounting pattern used by most 5-inch frames

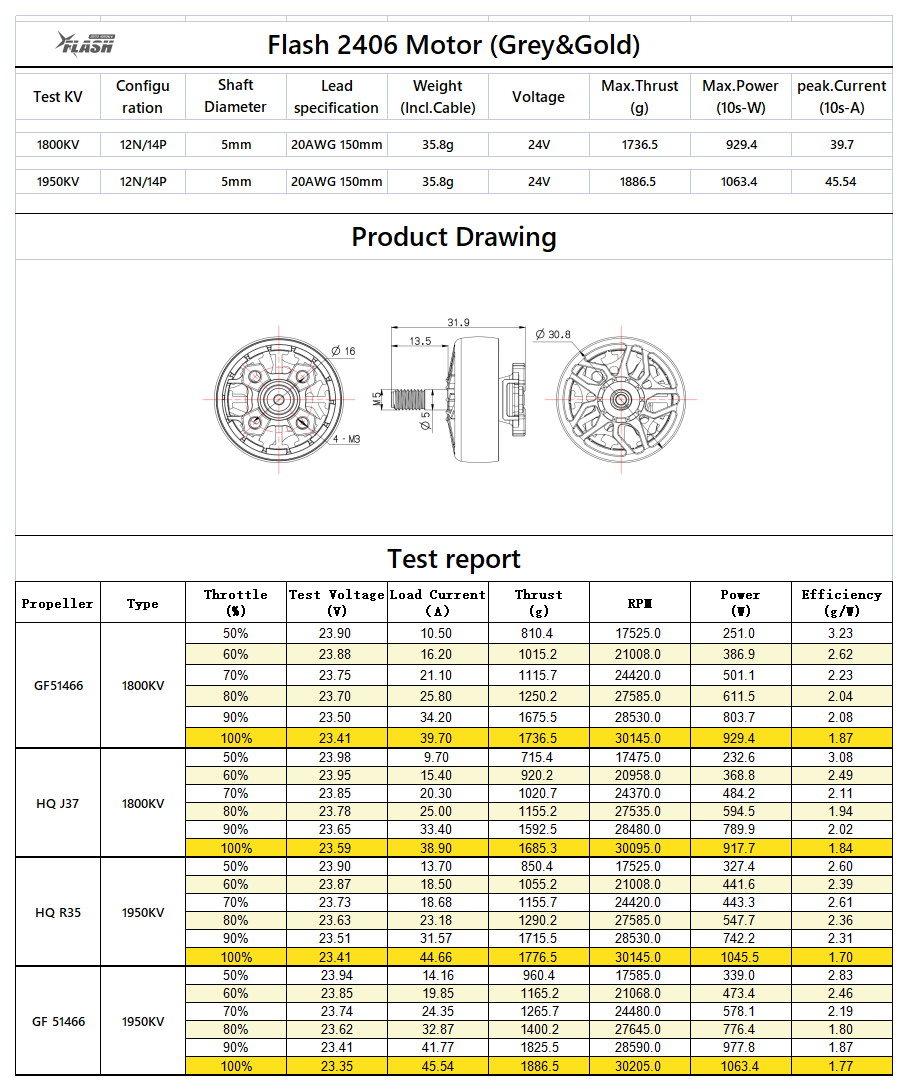

Specifications

• Stator: 24 mm × 6 mm

• KV options: 1800KV, 1950KV

• Input: 6S LiPo

• Configuration: 12N14P

• Motor dimensions: 30.8 × 31.9 mm (diameter × length)

• Weight: 42 g with short leads

• Mounting pattern: 16 × 16 mm

• Leads: 20AWG, 150 mm

• Bearings: NMB

• Magnets: N52SH

• In the box: 1 × motor, 1 × hardware set

Order four for a quad and pair them with ESCs rated for 6S. The wide 24 mm stator favours torque, which helps a 5-inch freestyle build carrying an action camera hold prop speed through hard manoeuvres.
