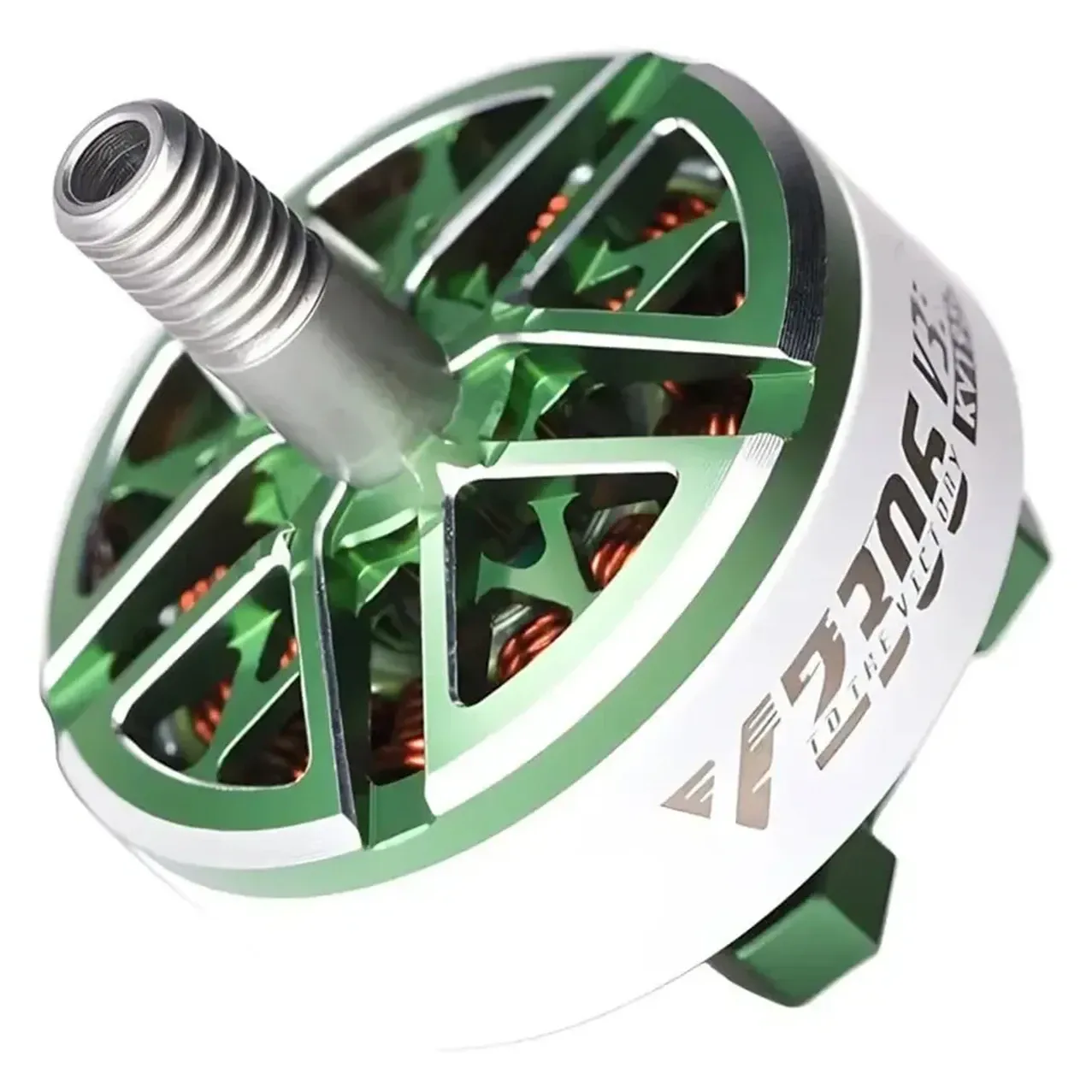

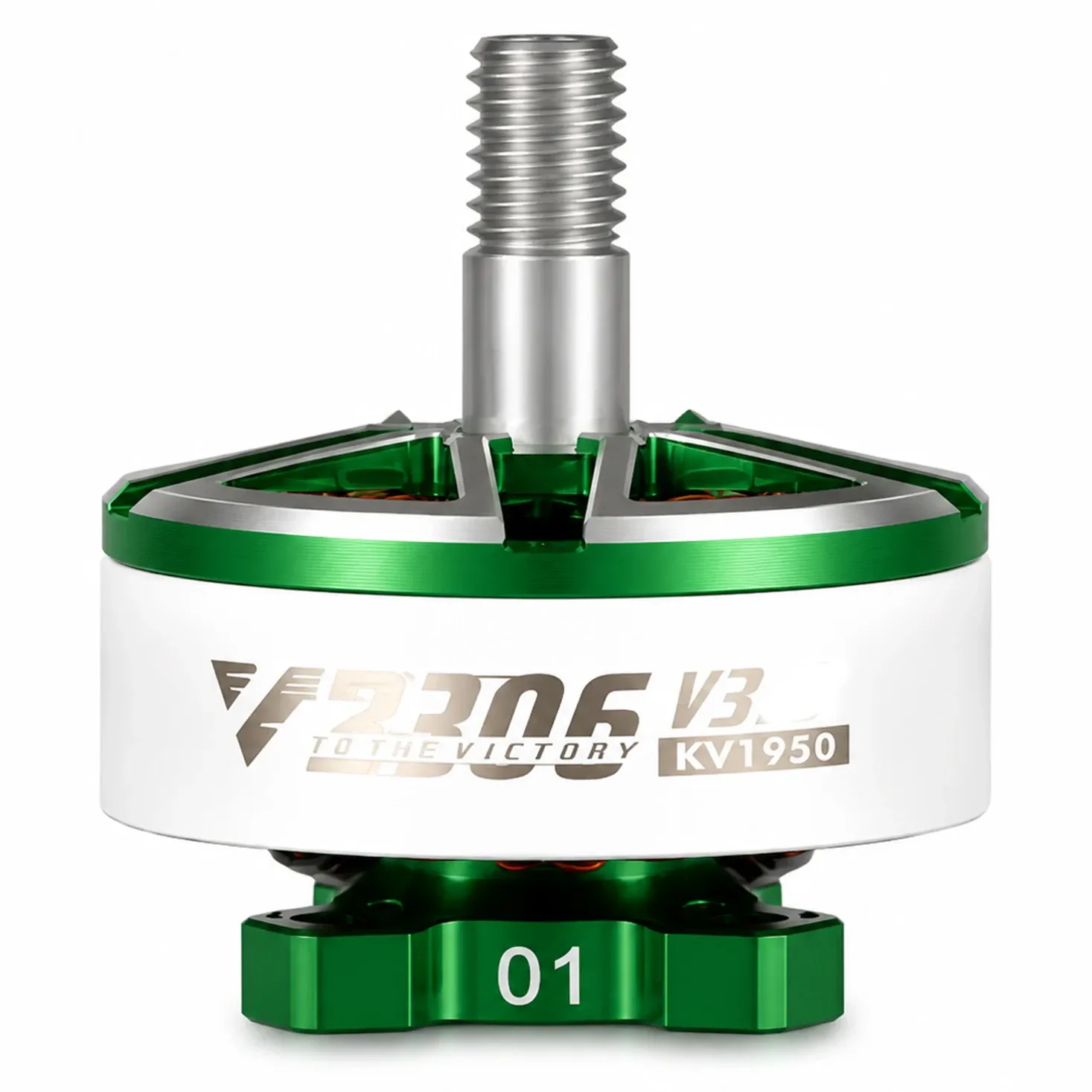

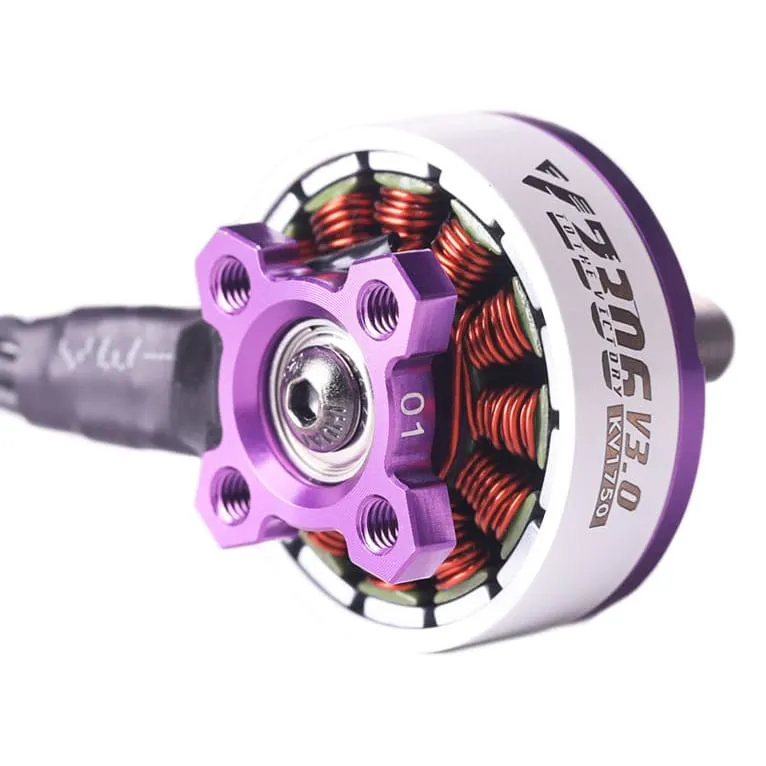

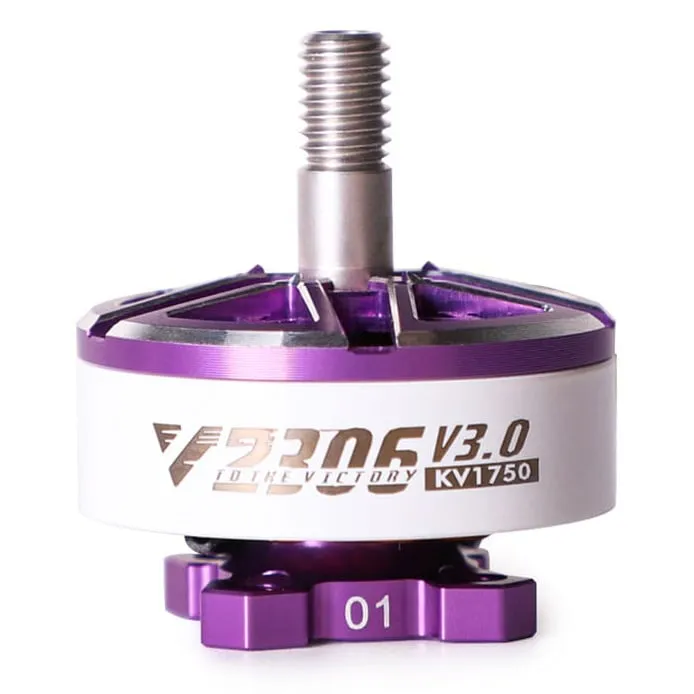

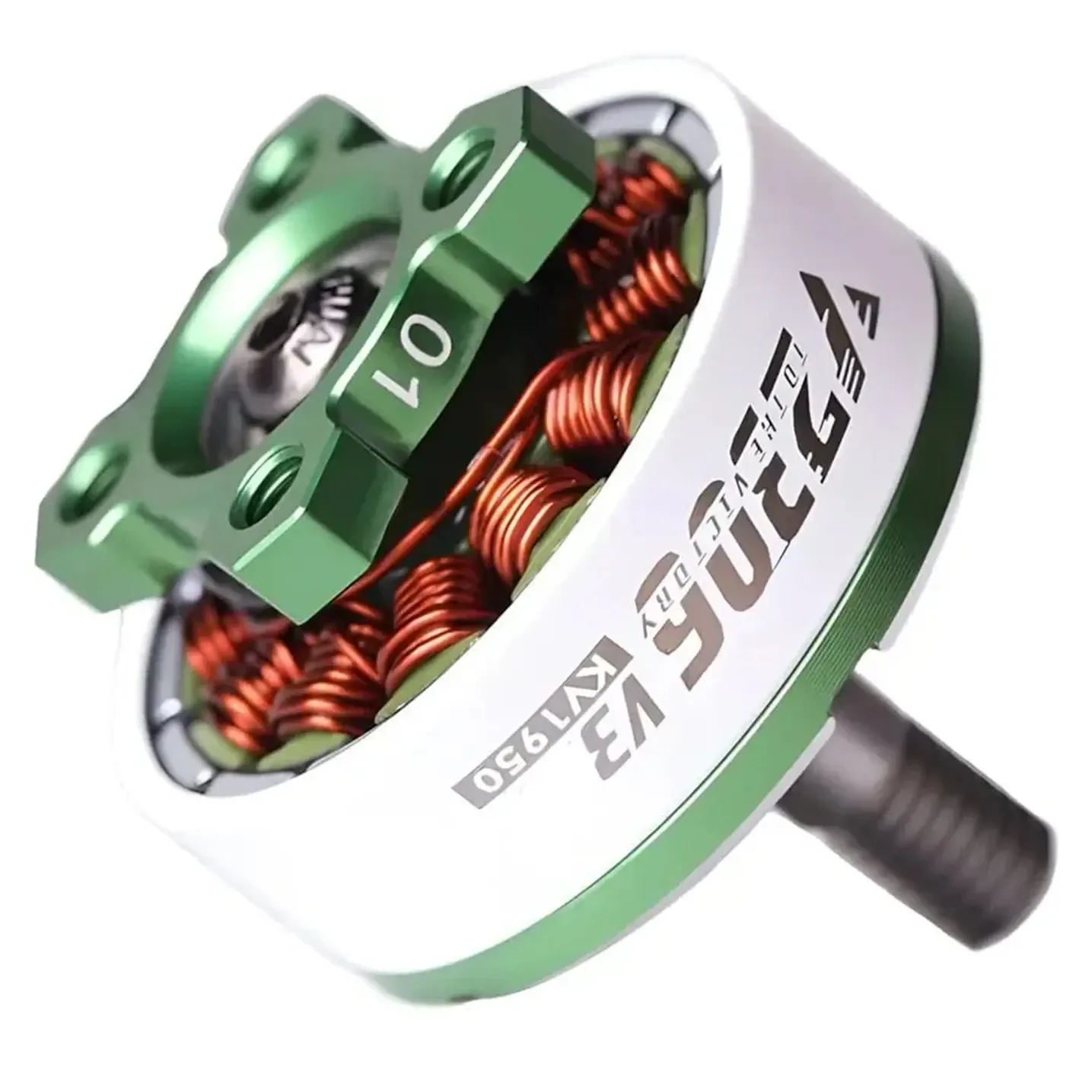

T-Motor Velox V2306 V3.0 5-inch FPV Motor (1750KV / 1950KV)

The T-Motor Velox V2306 V3.0 is a 5-inch freestyle and racing motor from T-Motor's value-focused Velox line, revised over the V2 with curved magnets and a stronger bell. It comes in two windings: choose 1750KV for a smoother, more efficient 6S setup, or 1950KV for a sharper, punchier feel across 4–6S.

Key features

• 12N14P stator with premium curved magnets that reduce magnetic losses and sharpen throttle response
• High-temperature single-strand winding for heat tolerance through long freestyle packs
• Reinforced top structure and a precision-machined angled base to take crashes and keep the bell true
• Dual-diameter shaft: 4 mm inside the bearings, 5 mm at the prop for standard M5 prop nuts
• 16 × 16 mm M3 mounting, the standard pattern on 5-inch frames

Specifications

• Stator: 2306, 12N14P
• KV options: 1750KV, 1950KV
• Battery: 4–6S LiPo
• Shaft: 4 mm inner, 5 mm outer (M5 prop mount)
• Mounting: 16 × 16 mm, M3
• Leads: 20 AWG, 150 mm
• Weight (1950KV): 33.7 g including leads
• Max power (1950KV, 60 s): 976 W
• Peak current (1950KV, 60 s): 41.7 A
• Idle current (1950KV, 10 V): 1.3 A

Each motor comes with mounting screws. Order four of the same KV for a quad, and run an ESC rated for at least 45 A per motor to keep headroom over the 41.7 A peak.
