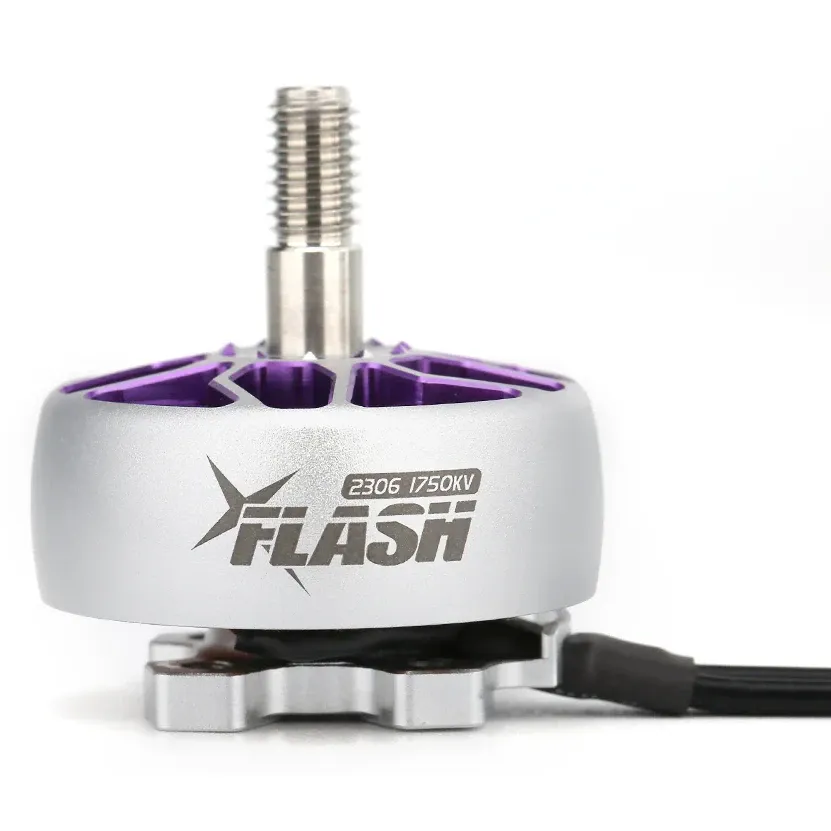

FlyFishRC Flash 2306 1750KV Motor — Grey & Purple

The FlyFishRC Flash 2306 1750KV motor is a premium powertrain choice tailored for 5-inch freestyle and racing FPV drones running a 6S LiPo setup. Featuring a robust unibell design milled from high-strength 7075 aviation aluminium, this motor strikes a careful balance between responsive low-end torque and the durability required to withstand heavy bando impacts. Finished in a two-tone grey and purple, it delivers both precise throttle control and a clean aesthetic for your quad.

Key features

• Precision-machined 7075 aluminium unibell structure for enhanced crash resistance and bell rigidity.

• N52SH high-temperature arc magnets and 220°C heat-resistant copper windings for sustained, fade-free power delivery.

• Equipped with premium NMB bearings for smooth, vibration-free operation at high RPMs.

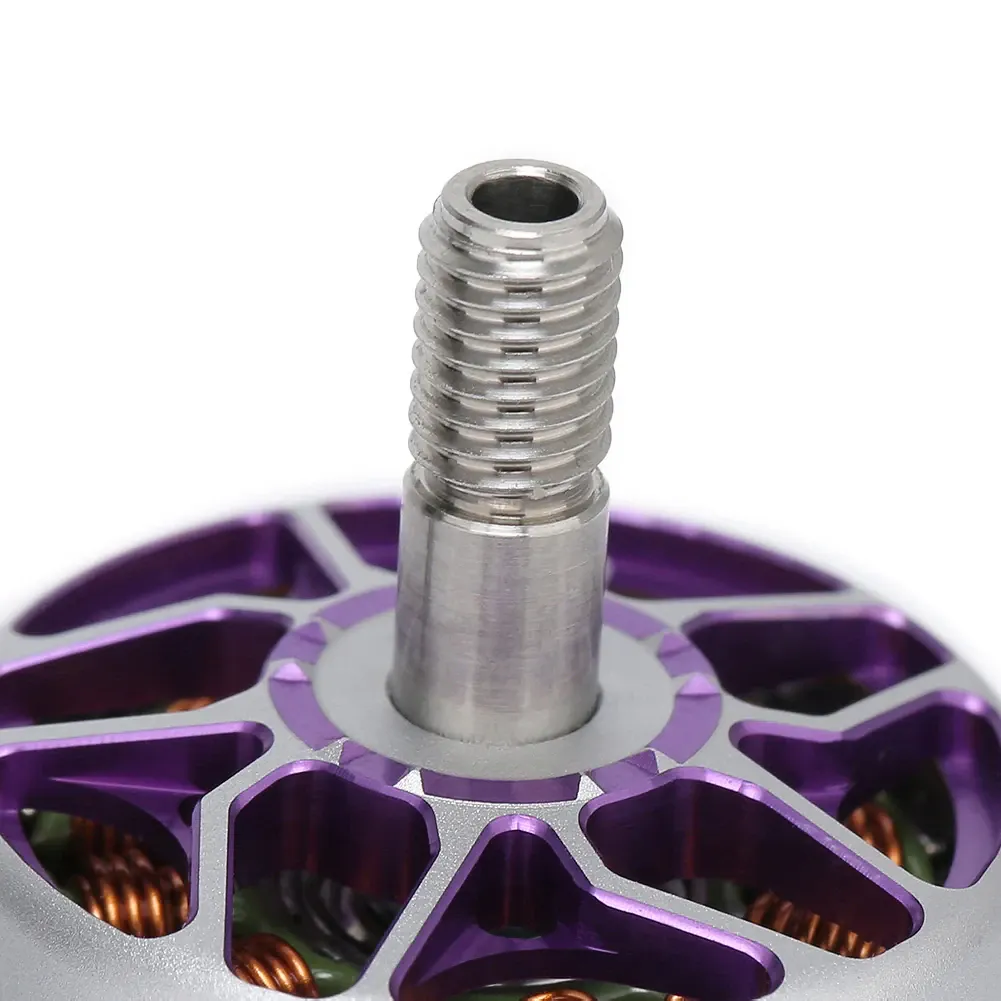

• Reinforced 5mm titanium alloy prop shaft to prevent bending during heavy prop strikes.

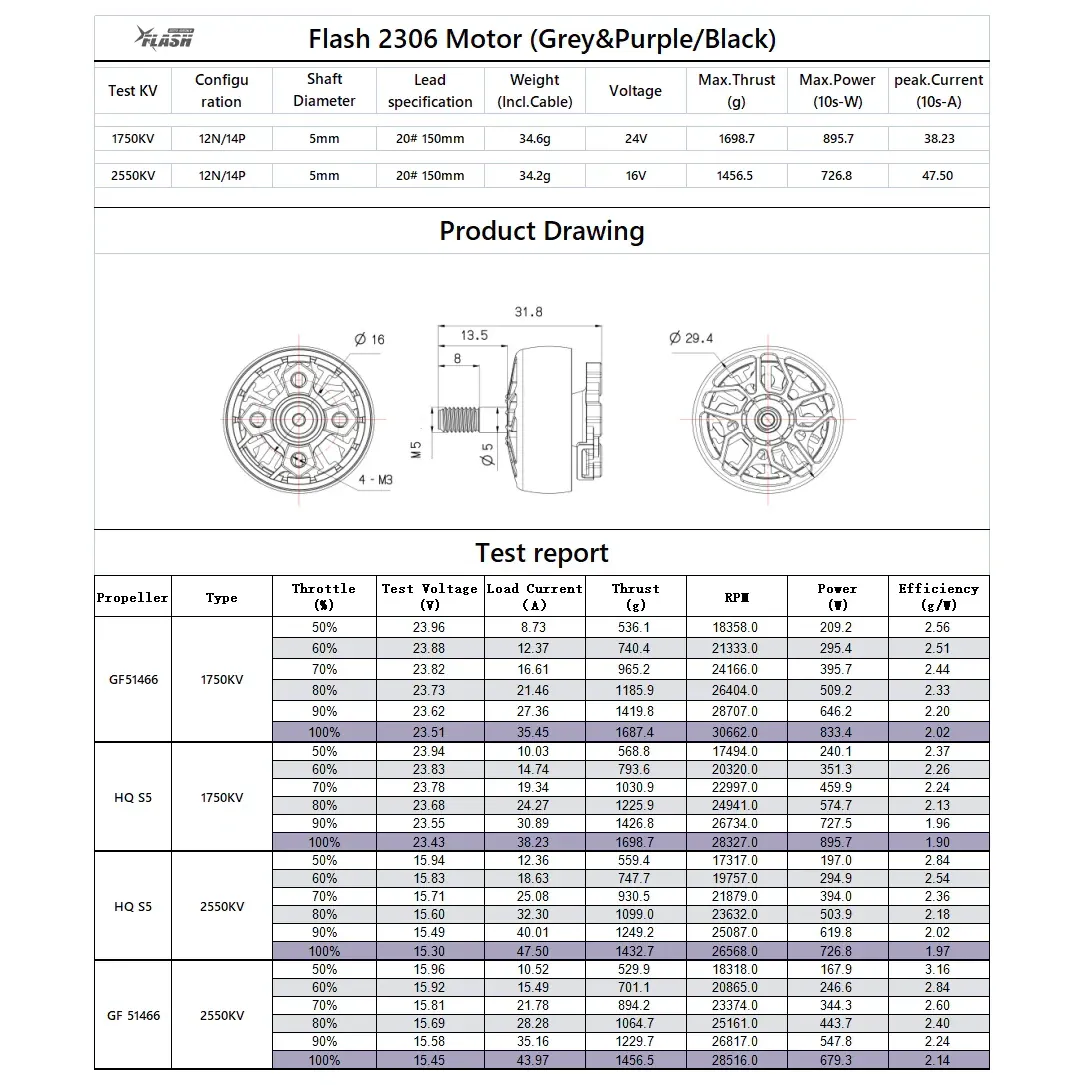

Specifications

• Stator Size: 2306

• KV Rating: 1750KV

• Configuration: 12N14P

• Input Voltage: 6S LiPo

• Prop Shaft: 5mm

• Motor Wire: 20AWG, 150mm

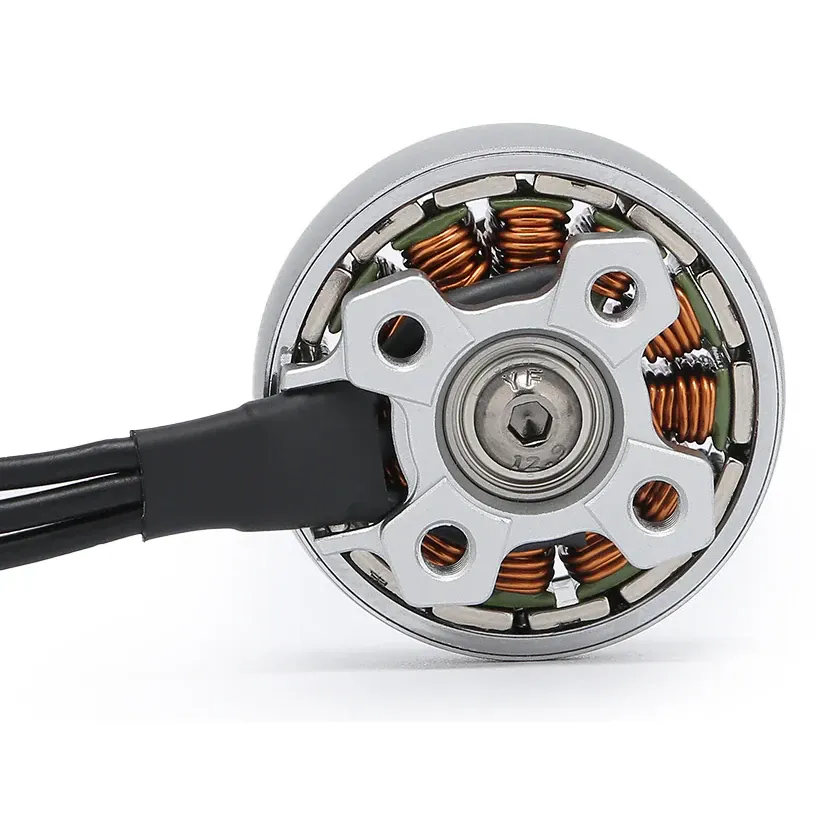

• Mounting Pattern: 16x16 M3

• Motor Dimensions: 29.4 x 31.8 mm (diameter x length)

• Weight: 34.2g (including 150mm wires)

This motor utilizes a standard 16x16mm mounting pattern, making it a drop-in fit for virtually all modern 5-inch freestyle frames. Pair it with a 50A or higher ESC for optimal performance.
