FlyFishRC Sword 2207 6S Motor

The FlyFishRC Sword 2207 is a budget-friendly brushless motor built around a 2207 stator for 6S 5-inch freestyle and racing builds, sold in 1850KV, 1950KV and 2050KV options. Its Uni-Bell design and thickened motor base are aimed at pilots who fly close to obstacles and want a motor that survives regular contact.

Key features

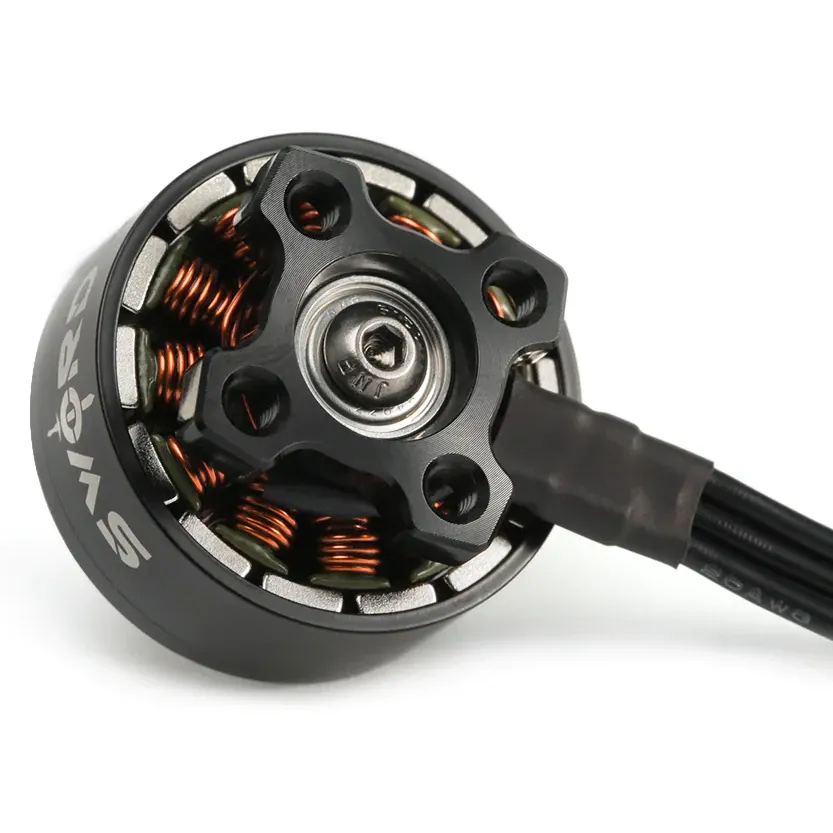

• Uni-Bell construction with a thickened motor base and a wire-outlet protection brace for crash resistance.
• 220°C-rated copper windings on NMB bearings and N52SH magnets for sustained output under load.
• 12N14P winding configuration on a 6S input, matched to 16×16mm motor mounting.
• 1850KV suits a balanced, efficient throttle curve for cinematic freestyle; 1950KV adds top-end RPM for racing.

Specifications

• Stator size: 2207
• Input voltage: 6S LiPo
• KV options: 1850KV / 1950KV / 2050KV
• Configuration: 12N14P
• Shaft: 4 mm

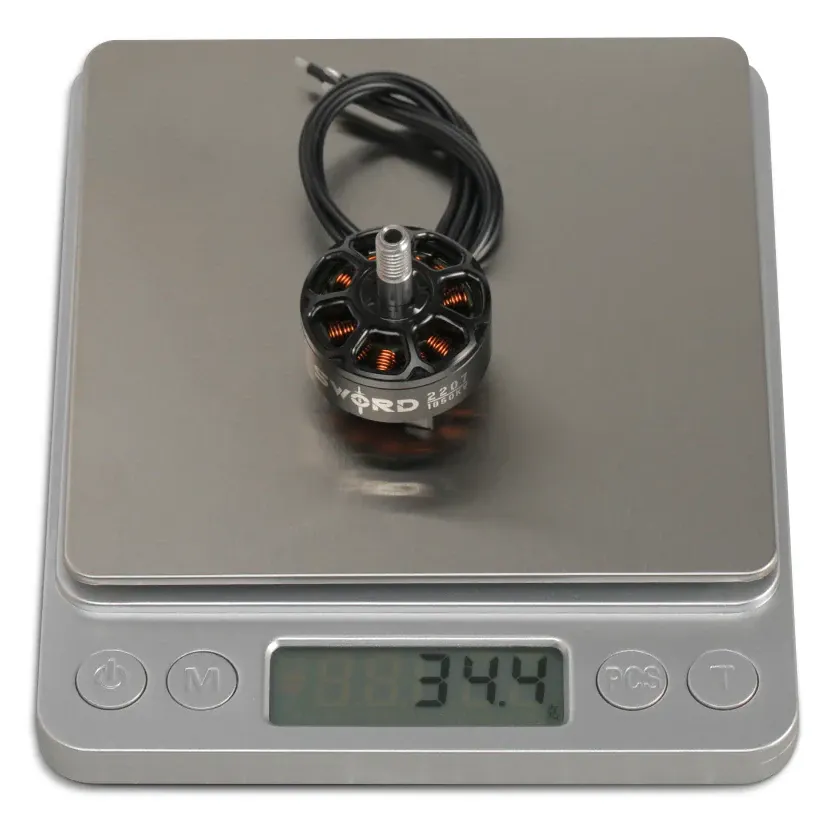

• Weight: 34.4 g with short wire
• Motor dimensions: 26.9 x 32.4 mm (diameter x length)
• Motor wire: 20AWG, 150 mm
• Mounting pattern: 16×16mm
• In the box: 1 x motor, 1 x hardware set

Pair these motors with a 50–60A 4-in-1 ESC sized to the cell count, and confirm your propeller's hub matches the 4mm shaft before ordering.
