DYS Samguk Shu 2306 1750KV Brushless Motor

The DYS Samguk Shu 2306 1750KV is an affordable 5-inch motor from DYS's Samguk series, aimed at pilots building a first 6S freestyle or racing quad and at anyone keeping trainer quads flying on a budget. The 1750KV winding gives 5-inch props smooth, manageable thrust on 6S, and the motor is rated for 4-6S LiPo.

Key features

• 23 x 6 mm stator in a 28.5 x 17 mm motor body

• M5 prop shaft for standard 5-inch props

• 33.6 g per motor, so a set of four weighs about 134 g

• Peak rating of 40 A and 750 W

• Supplied as the CW version

Specifications

• Stator: 23 x 6 mm (2306)

• KV: 1750KV

• Input: 4-6S LiPo

• Shaft: M5

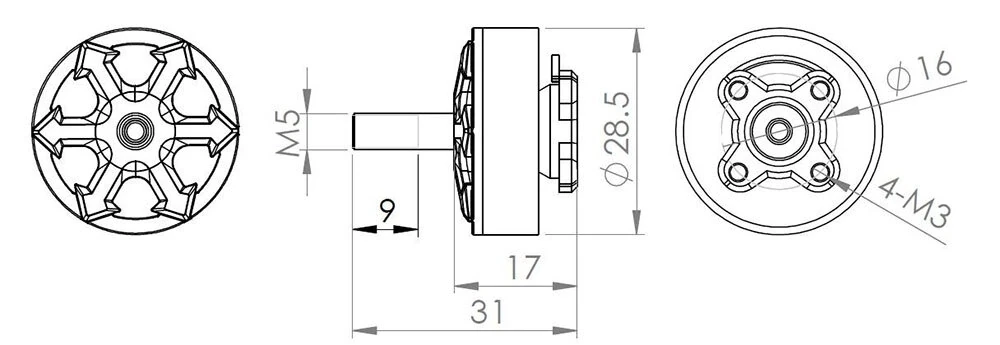

• Motor size: 28.5 x 17 mm

• Weight: 33.6 g

• Max current: 40 A

• Max power: 750 W

Choose 1750KV for 6S: on 4S it feels soft with 5-inch props, and a higher-KV 2306 suits 4S builds better.
