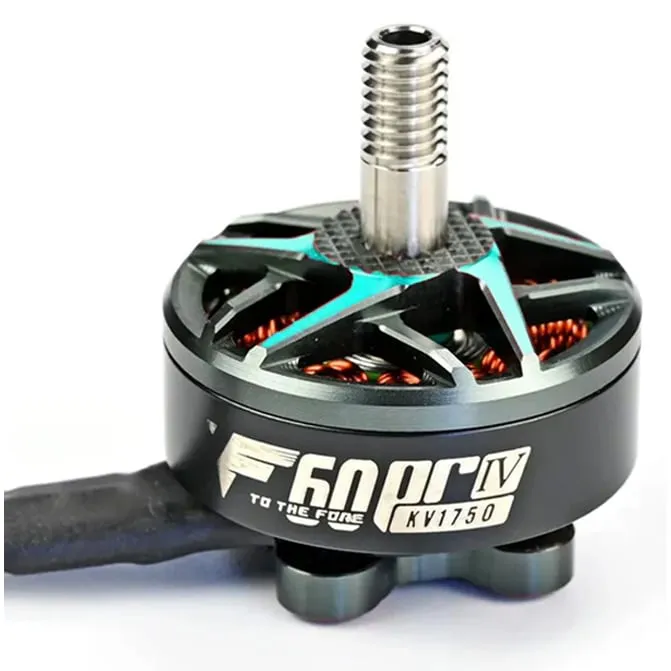

T-Motor F60 Pro IV V2.0 2207.5 FPV Motor 1750/1950/2550KV

The T-Motor F60 Pro IV V2.0 is a 2207.5 racing and freestyle motor for 5-inch quads, sold as a single motor. It comes in 1750KV, 1950KV and 2550KV windings; the 1750KV, rated for 4–6S, runs cooler for longer flights or heavier camera payloads.

Key features

• EZO bearings for smooth running and long service life

• High-temperature silver-core windings, with motor temperature after one minute at full throttle of 88°C on the 1950KV and 61°C on the 2550KV

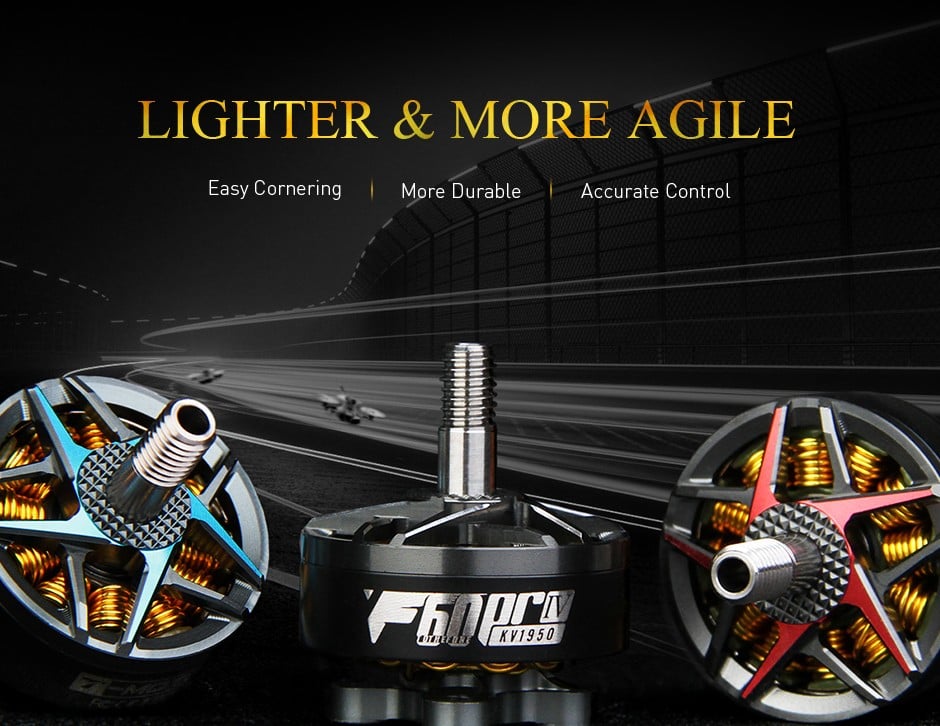

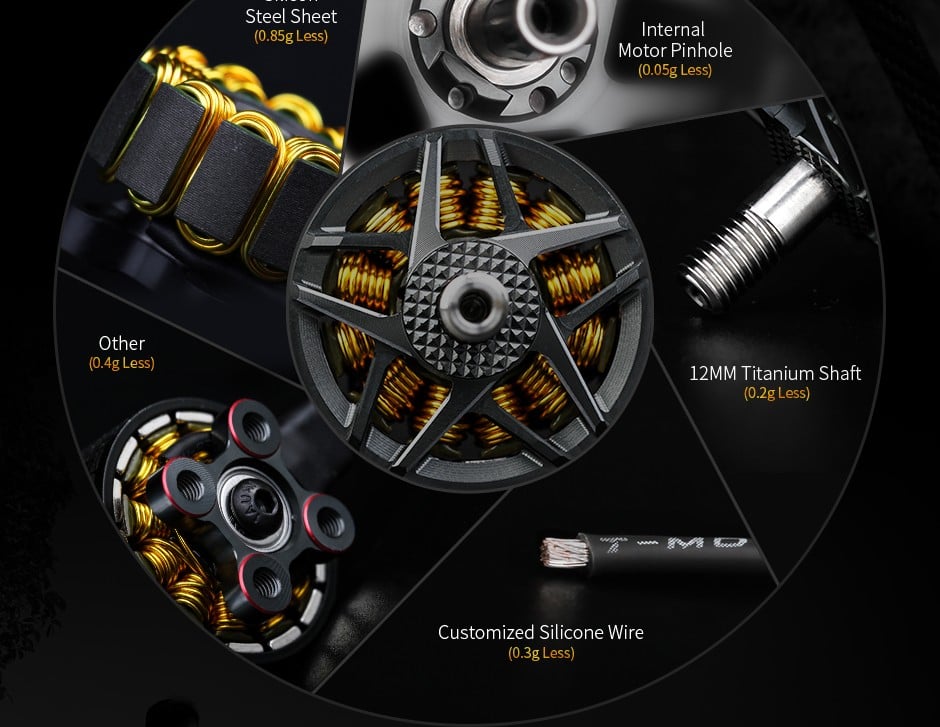

• Around 9% lighter than the F60 Pro III for quicker throttle response

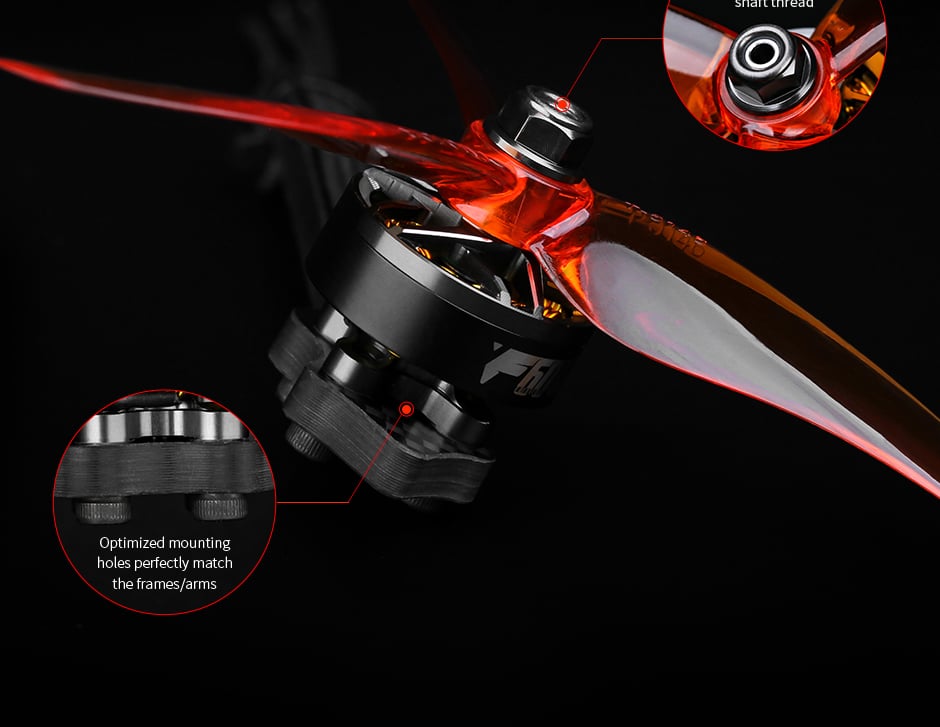

• Anti-slip bell grips the propeller, and a lock screw makes the bell easy to remove for maintenance

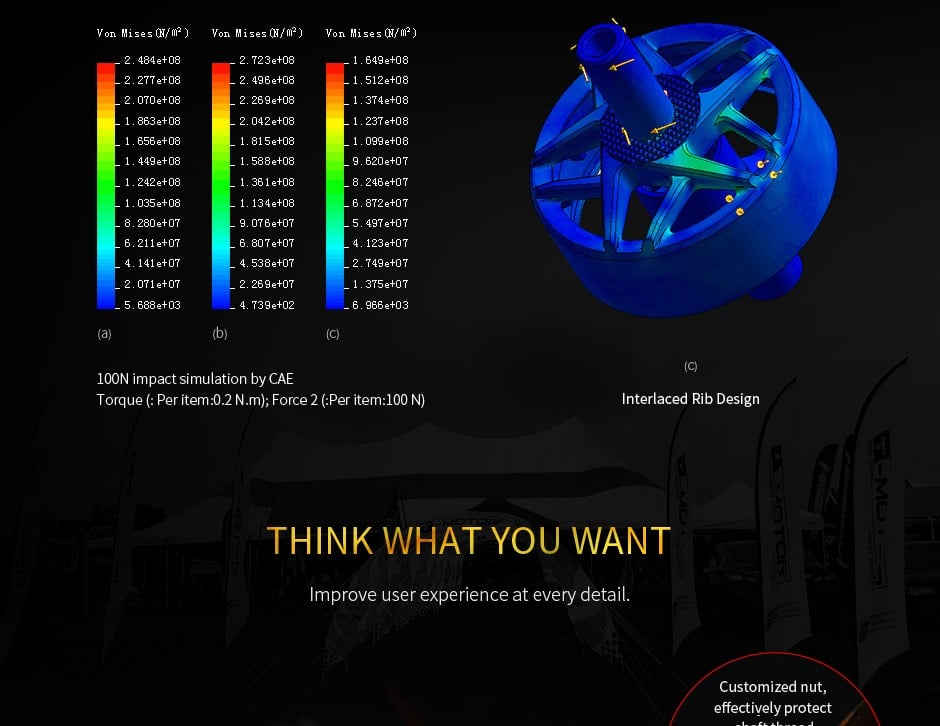

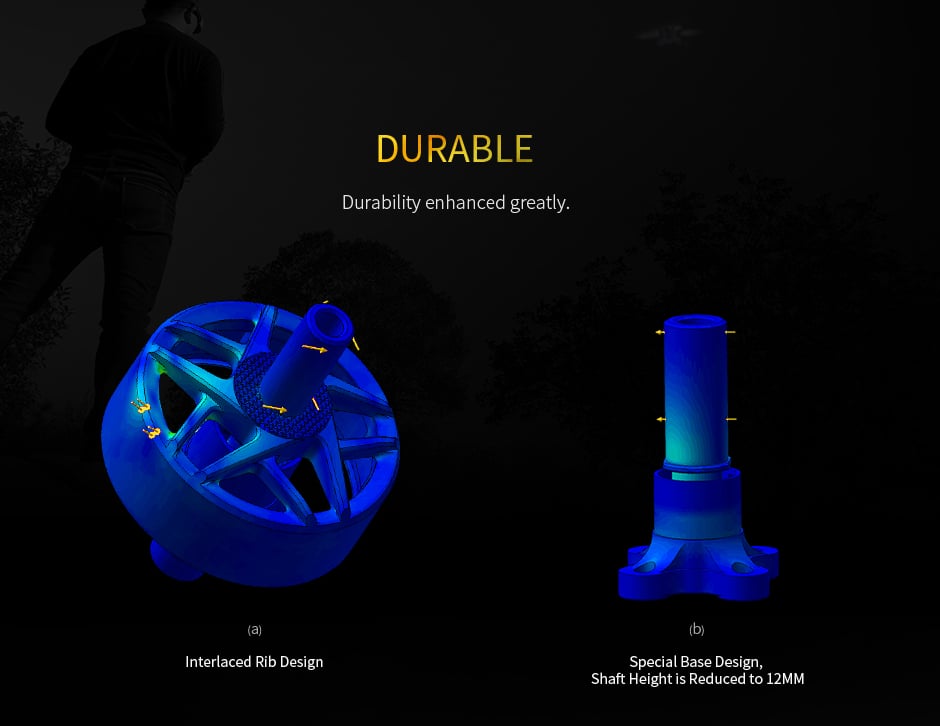

• Interlaced rib design and a custom prop nut that protects the shaft thread

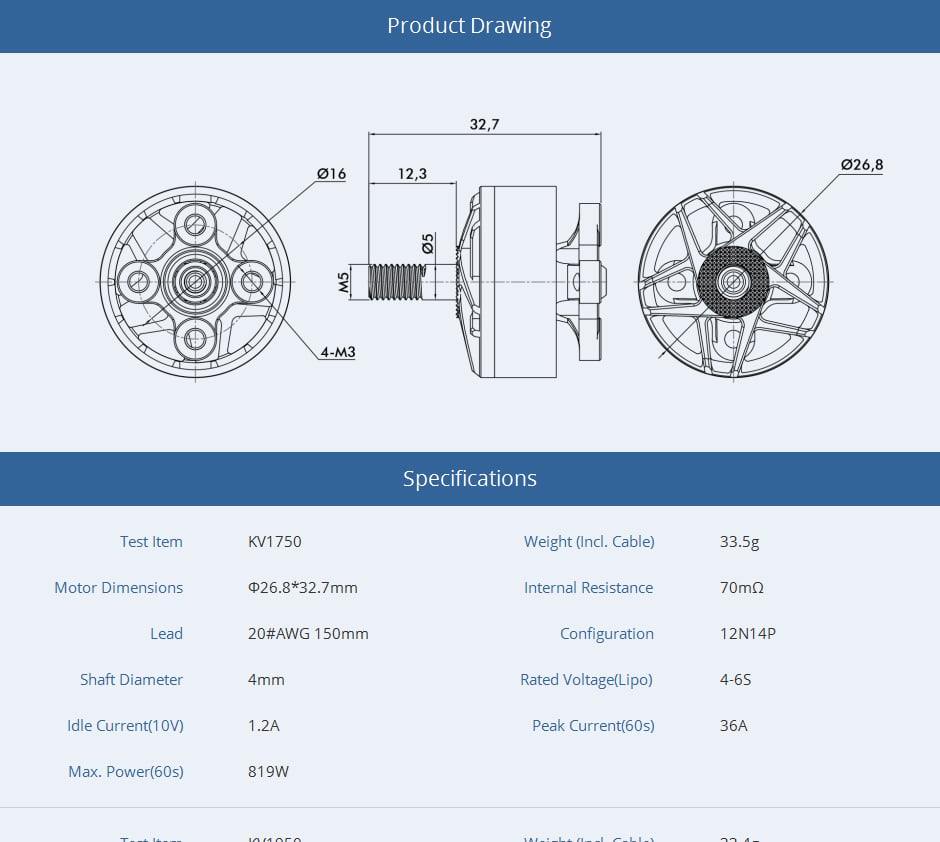

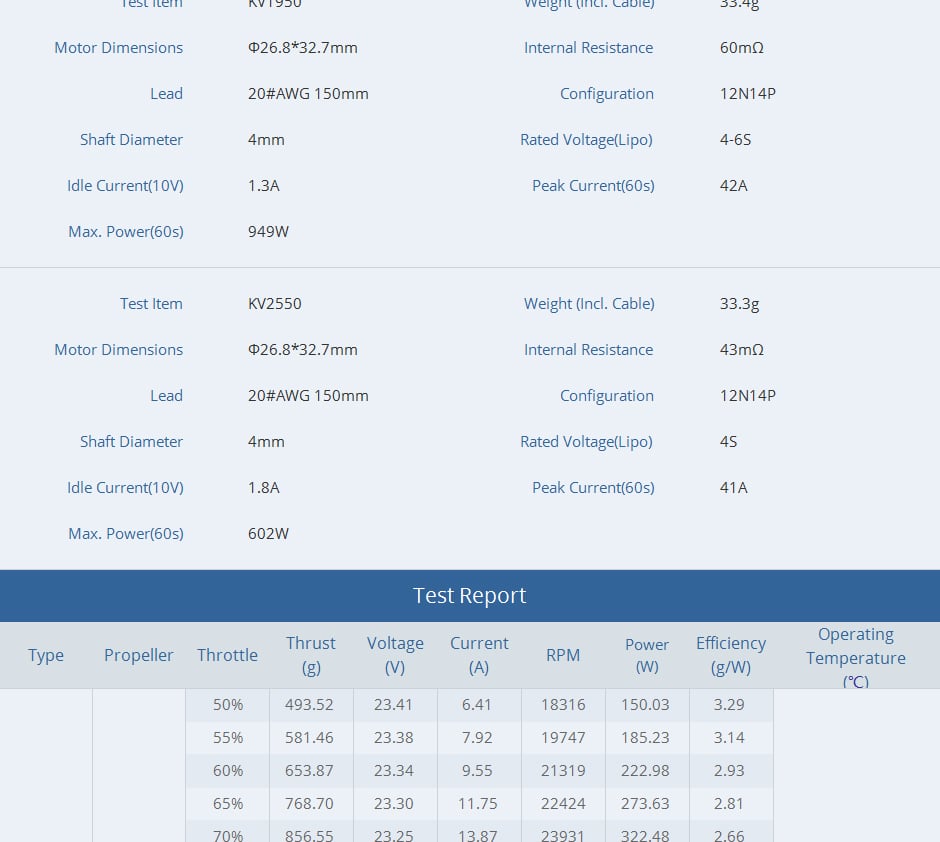

Specifications

• Stator: 2207.5 (22 × 7.5 mm)

• KV options: 1750KV, 1950KV, 2550KV

• Bearings: EZO

• Temperature after 1 min at full throttle: 88°C (1950KV), 61°C (2550KV)

As a rule of thumb, 1750KV and 1950KV suit 6S builds while 2550KV suits 4S. Each motor is sold singly, so order four for a quad.
