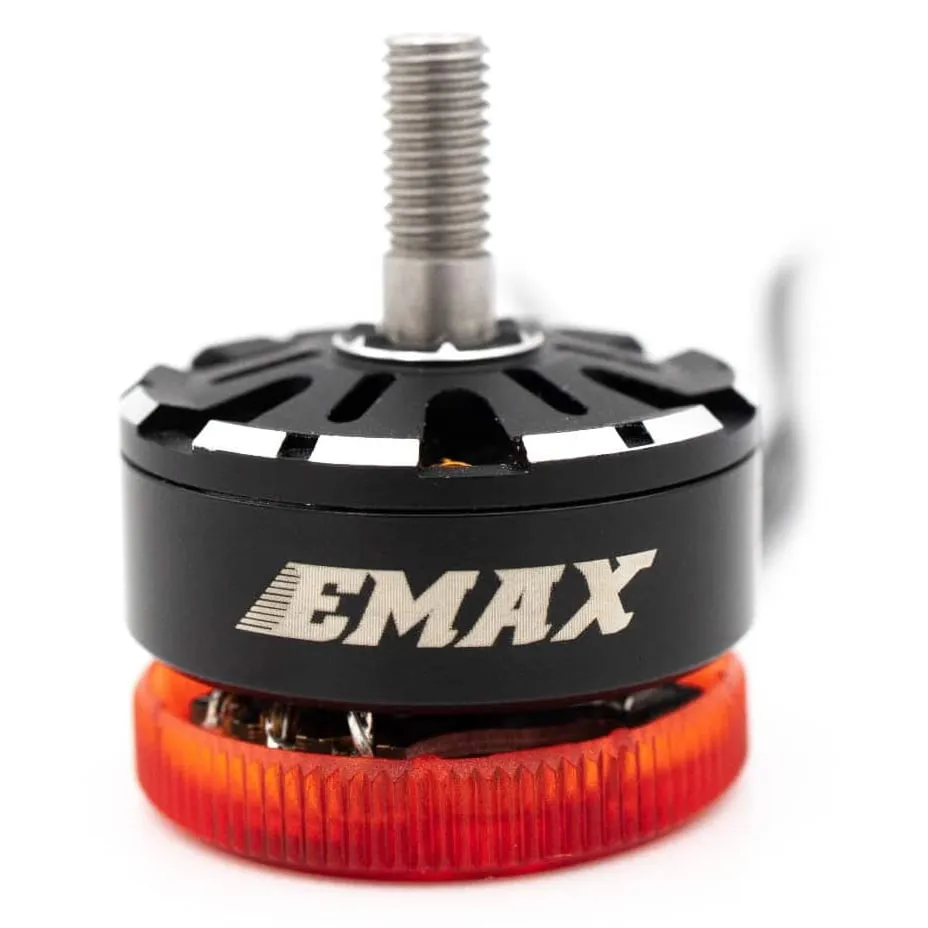

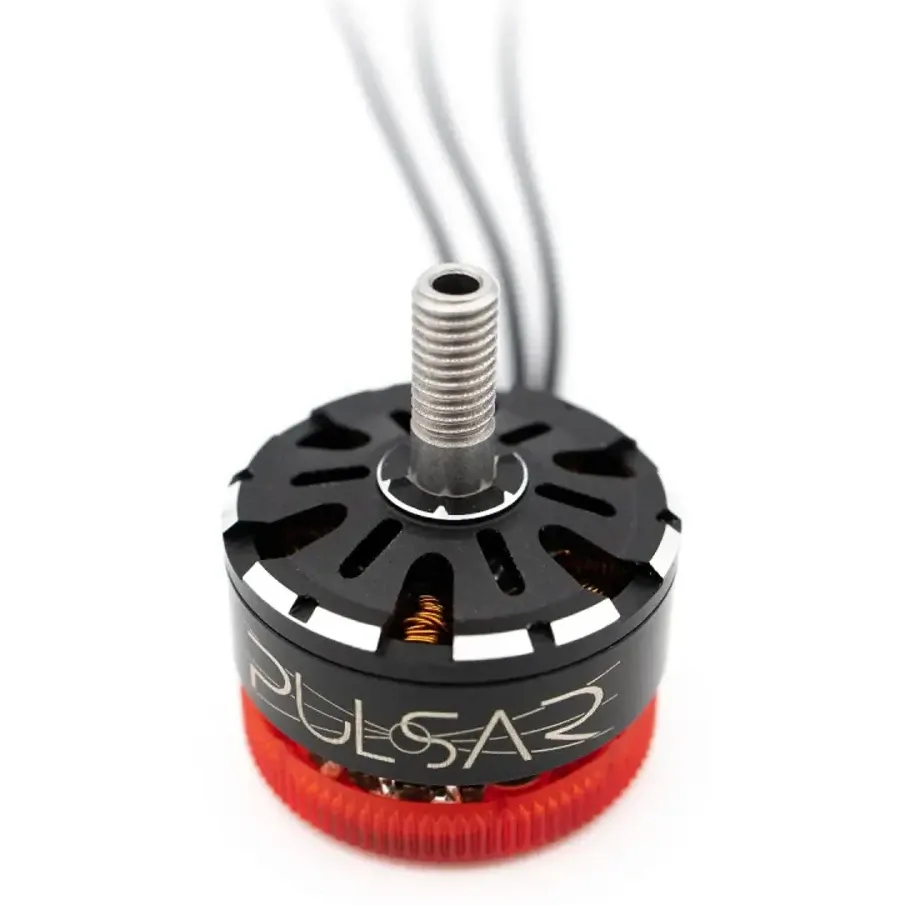

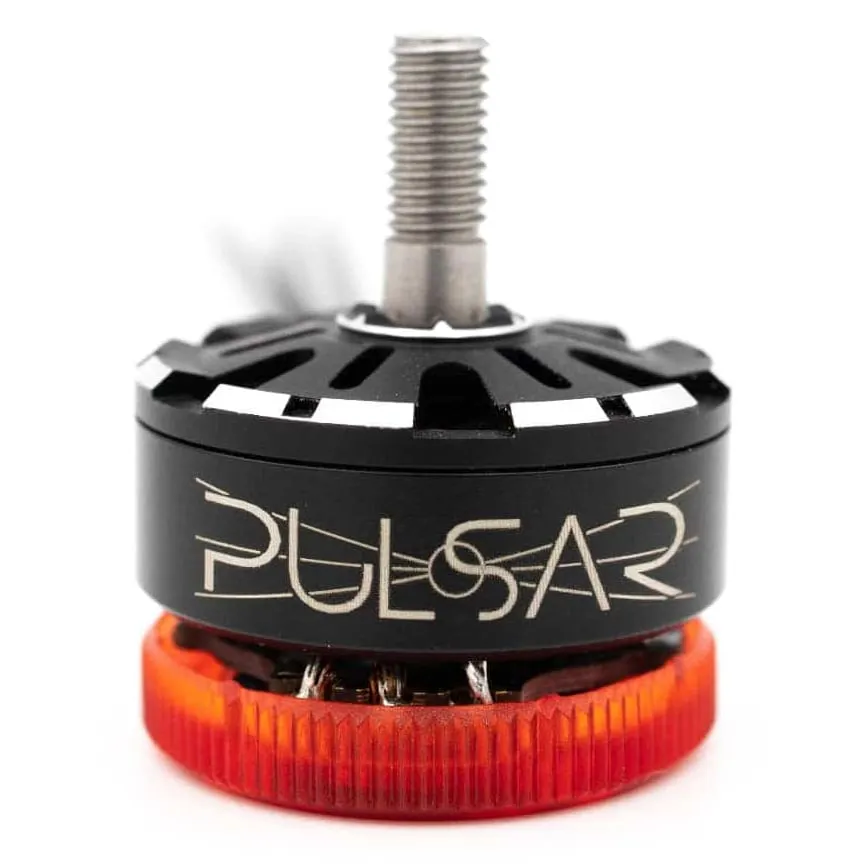

EMAX Pulsar LED 2207 2450KV Brushless Motor

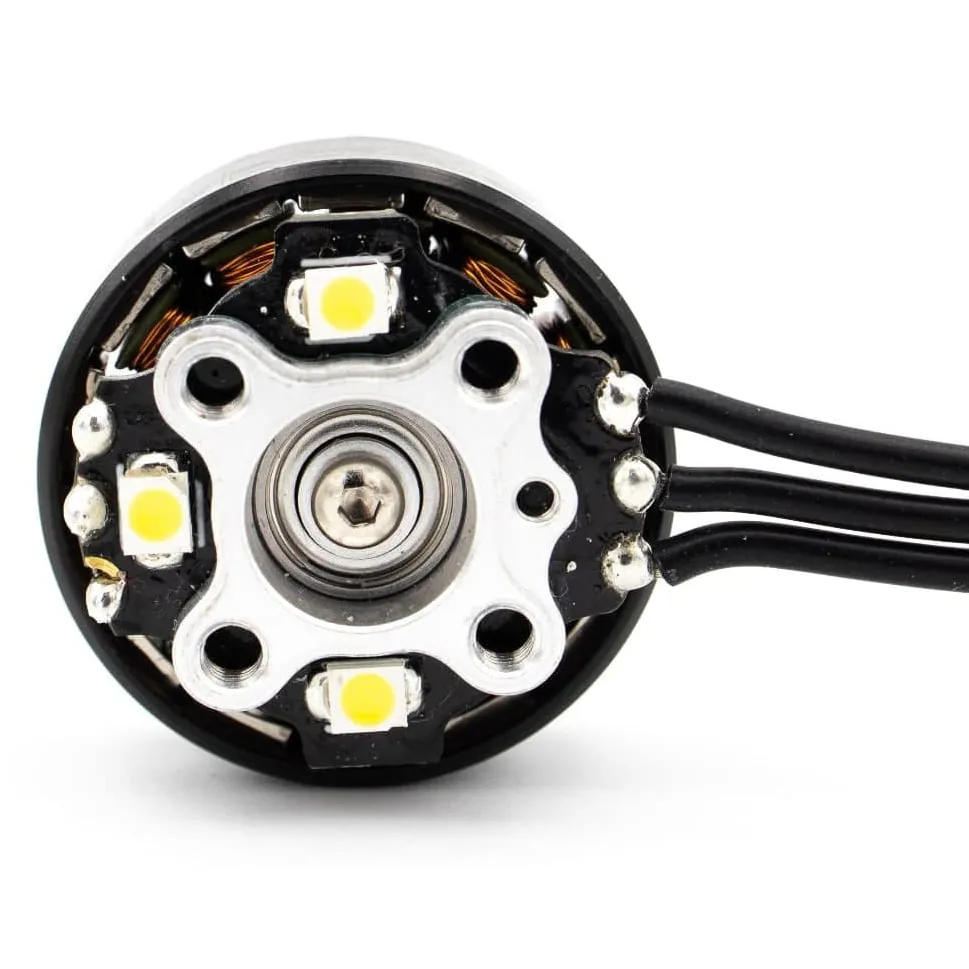

EMAX's Pulsar LED is a 2207 brushless motor with three LEDs built into its base whose brightness follows the current drawn — the harder you push the throttle, the brighter it glows. At 2450KV it is set up for 3–4S LiPo on 5–5.5 in props, suiting 5-inch freestyle quads and pilots who fly at dusk and want the quad easy to track.

Key features

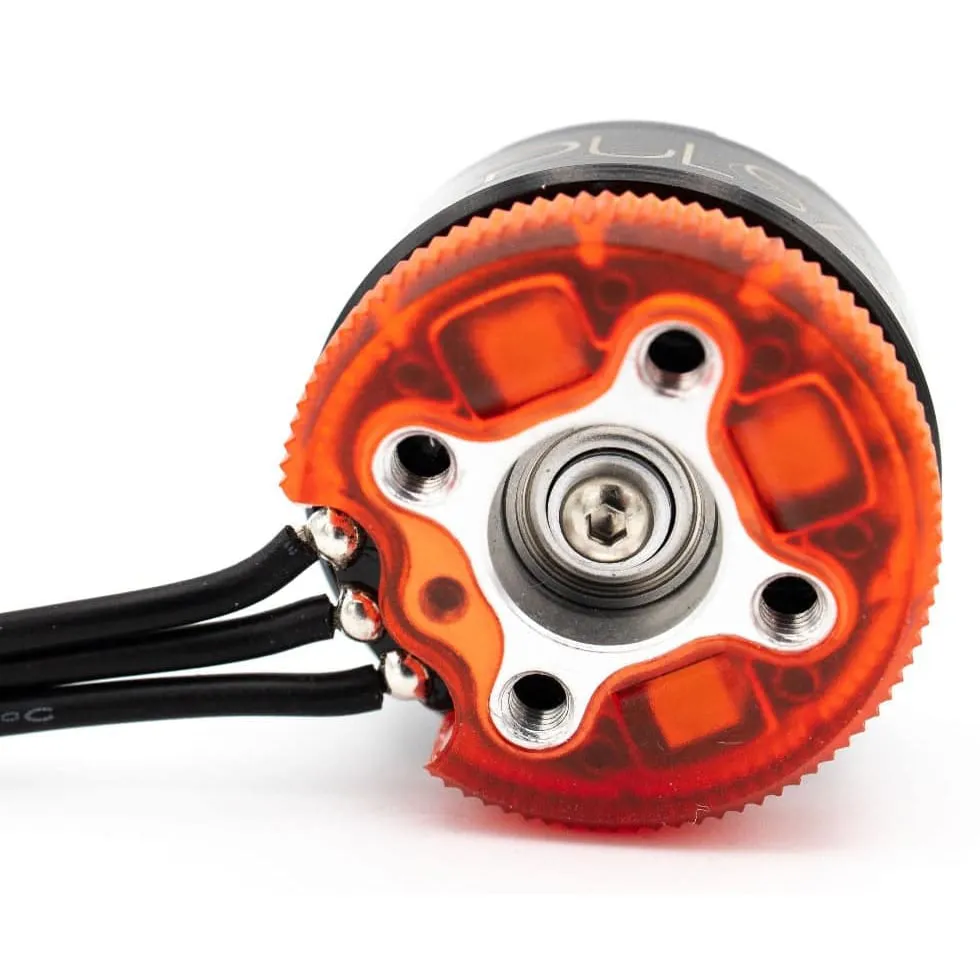

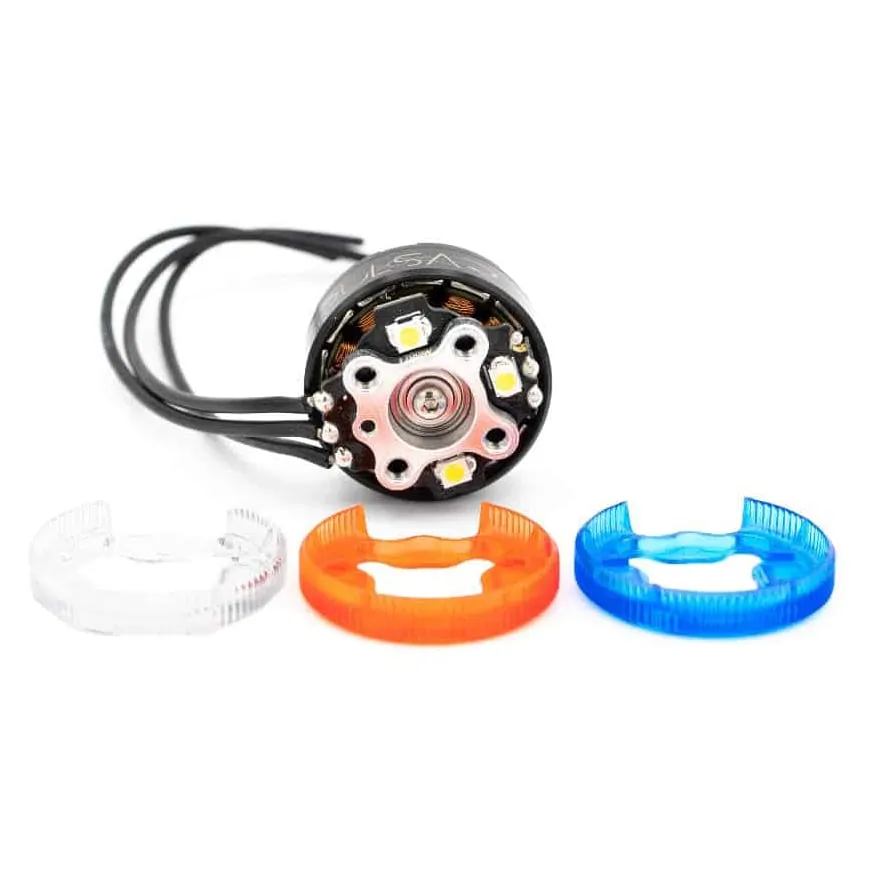

• Throttle-reactive lighting: swap between the included red, blue and clear translucent bases to change the glow colour.

• 12N14P layout with N52 arc magnets and composite multi-strand windings.

• EZO 9 × 4 × 4 mm bearings and a hollow steel shaft with an M5 prop thread; an aluminium M5 nylock nut is supplied.

• Up to 1710 g thrust on 4S, with a 43 A peak current.

Specifications

• Stator: 2207 (22 × 7 mm)

• KV: 2450

• Configuration: 12N14P

• Battery: 3–4S LiPo

• Recommended props: 5–5.5 in

• Max thrust: 1710 g (4S)

• Rated current: 13 A

• Peak current: 43 A

• Prop shaft: M5

• Bearings: EZO 9 × 4 × 4 mm

• Dimensions: 27.5 mm diameter × 34.2 mm length

• In the box: 1 motor; red, blue and clear translucent bases; 5 × M3×7 mm and 5 × M3×6 mm screws; aluminium M5 nylock nut; bell washer and screw

Size your ESC for the 43 A peak — choose one rated at 45 A or more for 4S flying. Two screw lengths are supplied: use the shortest that fully engages the motor base on your arm thickness, and check that no screw tip touches the windings.
