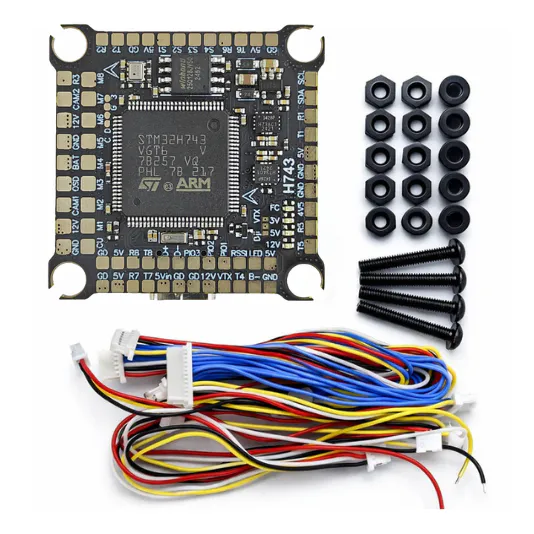

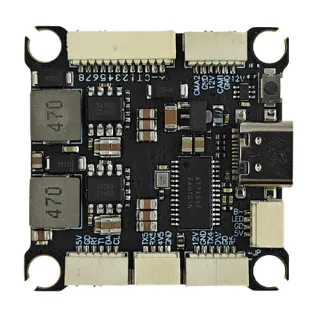

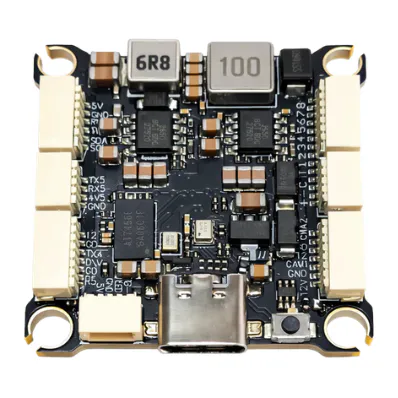

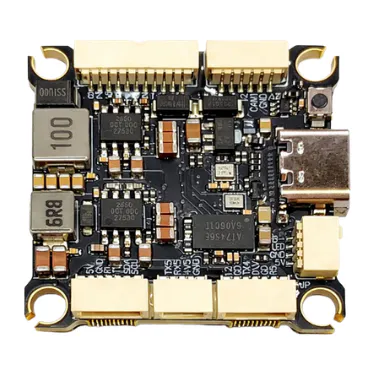

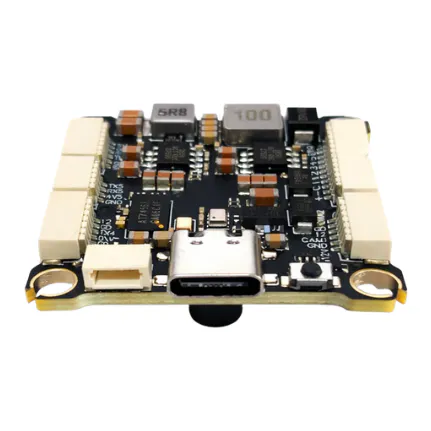

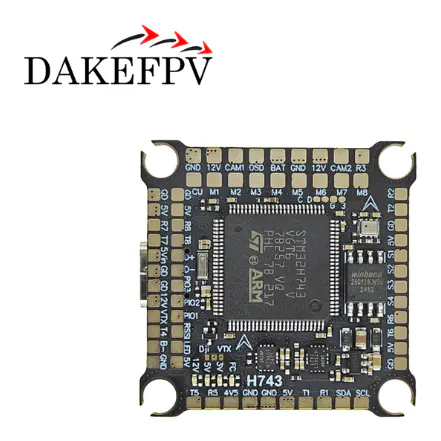

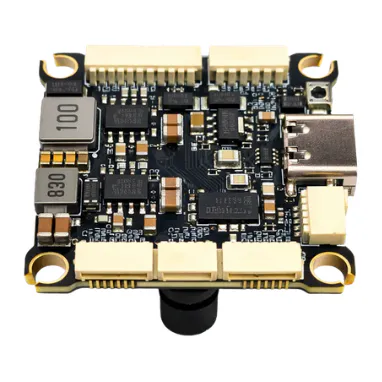

DAKEFPV H743 Flight Controller

The Dakefpv H743 is a high-power flight controller built around the STM32H743 MCU, aimed at ArduPilot navigation builds, macro-quads and cinelifters that need more processing headroom than older F4 or F7 boards.

Key features

• STM32H743VGT6 MCU with dual ICM42688 gyros for a clean, redundant gyro signal even under heavy vibration.
• Onboard BMP280 barometer for altitude hold alongside dedicated I2C pads for external compasses and airspeed sensors.
• Switchable 12V and 5V BEC outputs cover VTXs, servos, gimbals and other peripherals without extra regulators.
• 16MB integrated blackbox flash and a USB Type-C port for logging and configuration without an SD card.
• Supports Betaflight and ArduPilot firmware on the DAKEFPVH743 target, so the same board suits freestyle or autonomous missions.
• Generous UART count leaves room for GPS, telemetry, an ELRS receiver and a digital VTX link at once.

Specifications

• MCU: STM32H743VGT6
• Gyro: Dual ICM42688
• Barometer: BMP280
• OSD: AT7456E
• Input voltage: 3–12S LiPo
• Mounting size: 30.5x30.5mm, M4 holes
• Weight: 8 g

The extra UARTs and dual-gyro core make this a solid choice for long-range and autonomous rigs wiring up HD video, ELRS and telemetry alongside GPS navigation.
