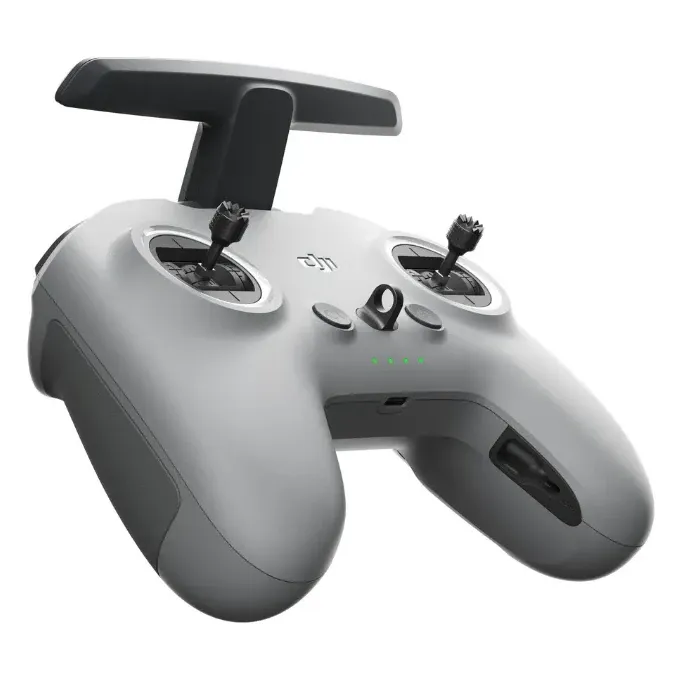

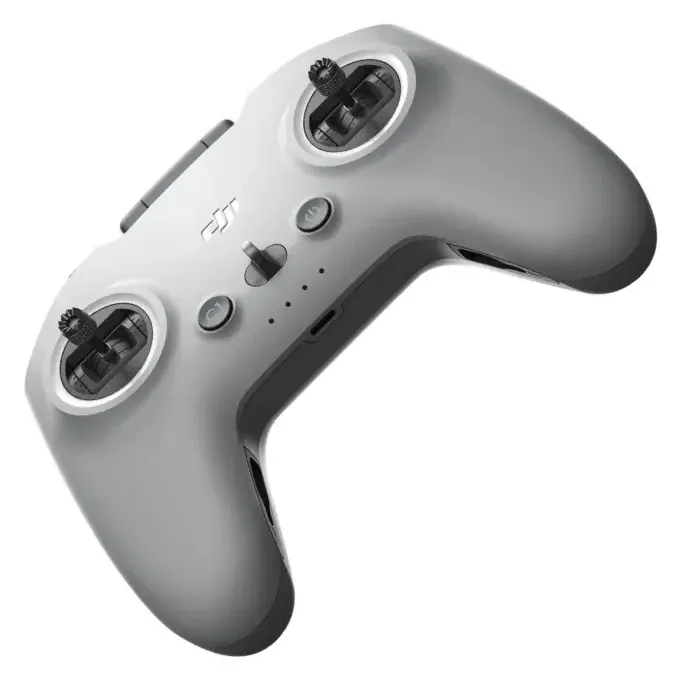

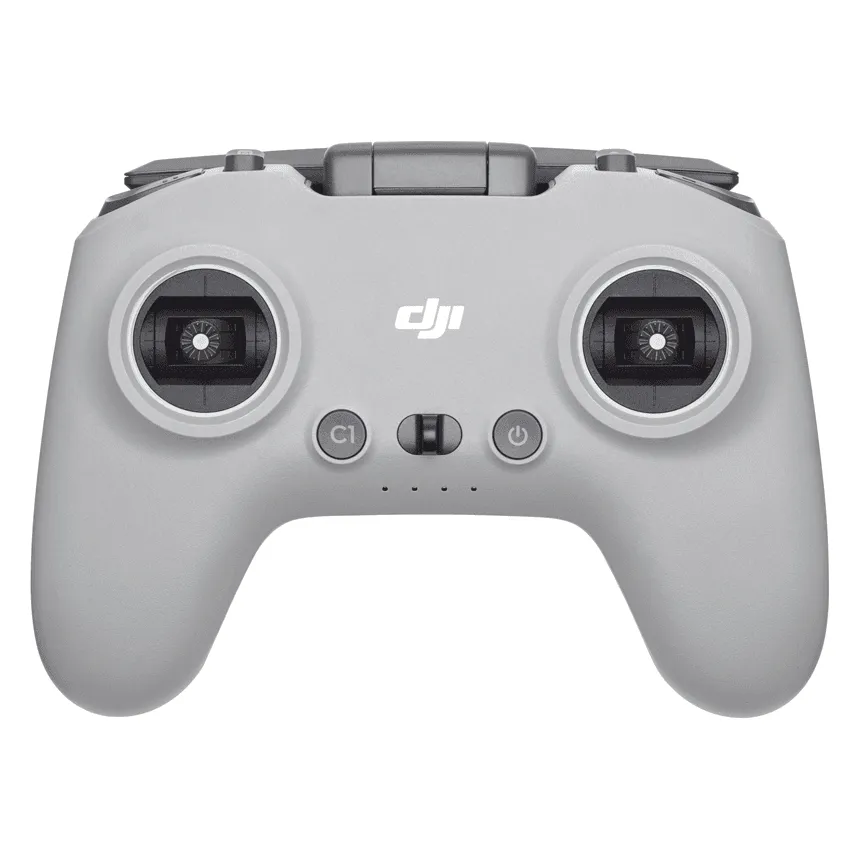

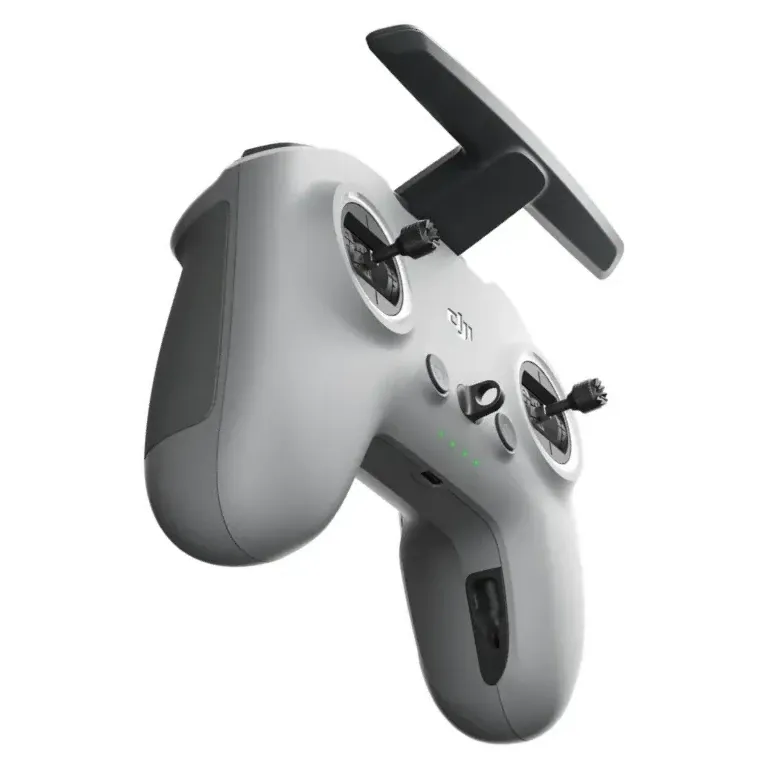

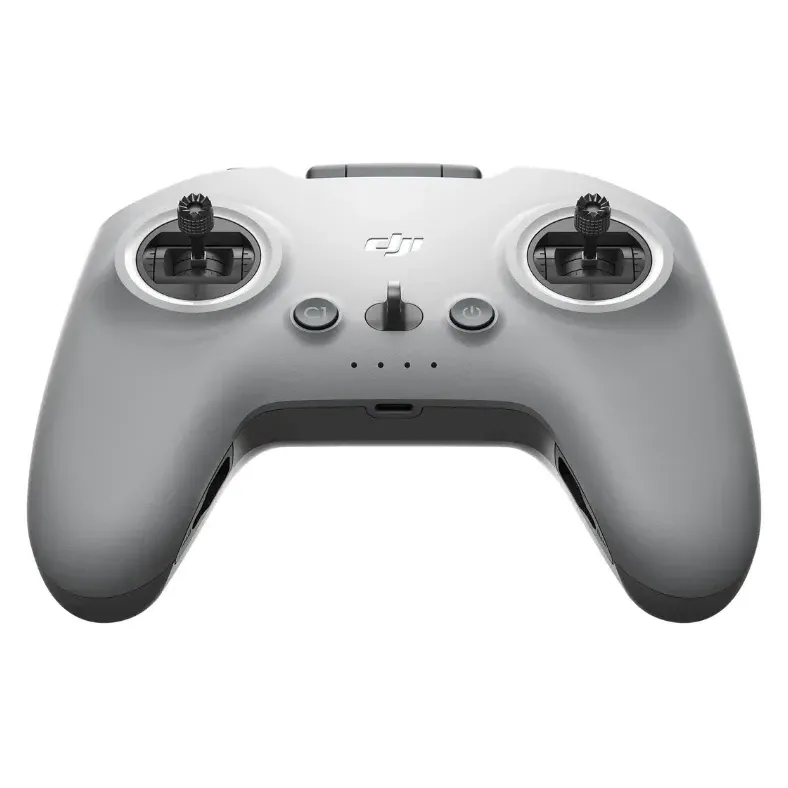

DJI FPV Remote Controller 2

DJI's second-generation FPV radio, built for the DJI FPV drone and DJI Avata and also used with the DJI Digital FPV System and the O3 Air Unit on custom builds. It is smaller and lighter than the original DJI FPV controller and adds Hall-effect gimbals for finer stick control.

Key features

• Contactless Hall-effect gimbals for precise, durable stick sensing

• Dual-band 2.4 GHz and 5.8 GHz link with control latency of around 7 ms

• Up to 10 km range under FCC rules, 6 km under CE

• About 9 hours of operation per charge; recharges in roughly 2.5 hours over USB-C

• Switchable between Mode 1 and Mode 2 stick layouts, with firmware updates through DJI Assistant 2

Specifications

• Operating frequencies: 2.400–2.4835 GHz, 5.725–5.850 GHz

• Max transmission distance: 10 km (FCC), 6 km (CE/SRRC/MIC)

• Transmitter power (EIRP), 2.4 GHz: ≤28.5 dBm (FCC), ≤20 dBm (CE)

• Transmitter power (EIRP), 5.8 GHz: ≤31.5 dBm (FCC), ≤14 dBm (CE)

• Control latency: approx. 7 ms

• Operating time: approx. 9 hours

• Charging time: approx. 2.5 hours

• Dimensions: 190 × 140 × 51 mm

• Weight: approx. 346 g

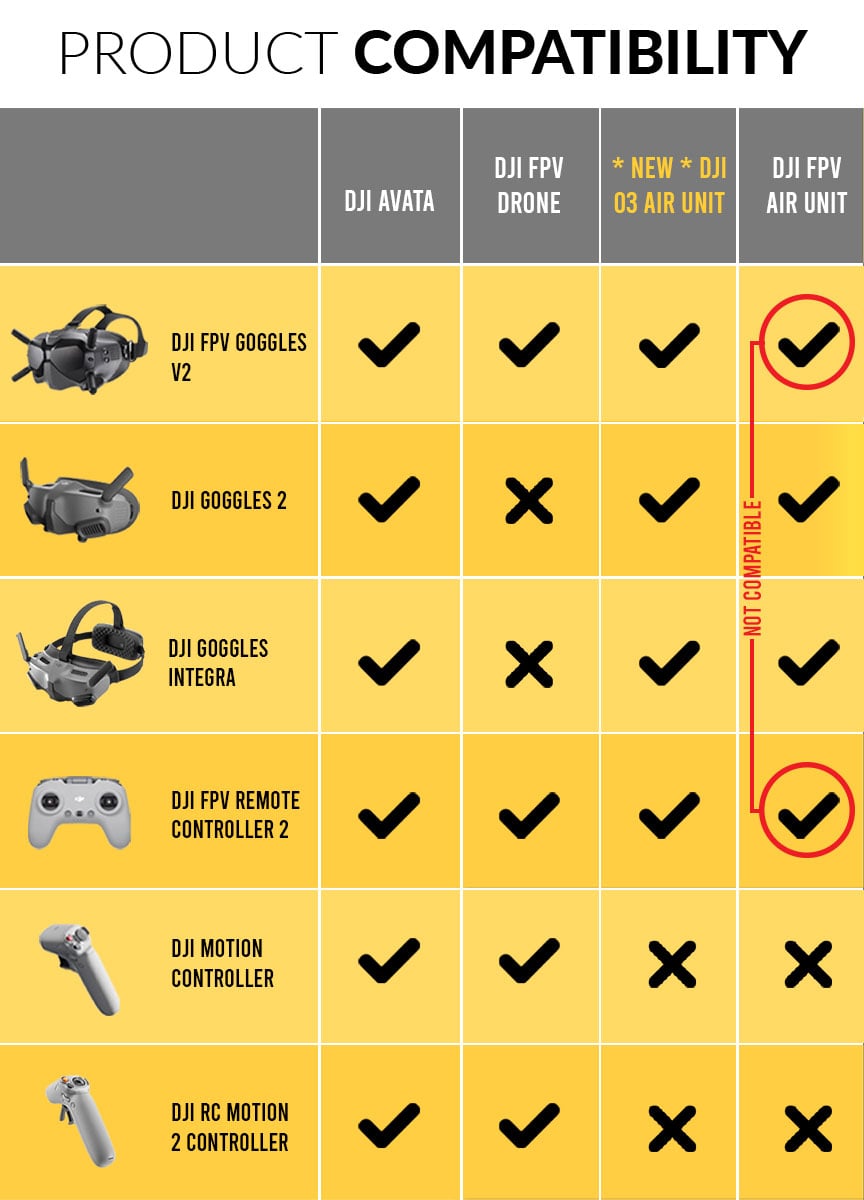

With DJI FPV Goggles, link the drone to the goggles first and then bind the controller. It works only within DJI's system — it cannot bind to ELRS, Crossfire or other third-party receivers — and DJI Avata 2 needs the FPV Remote Controller 3 instead.
