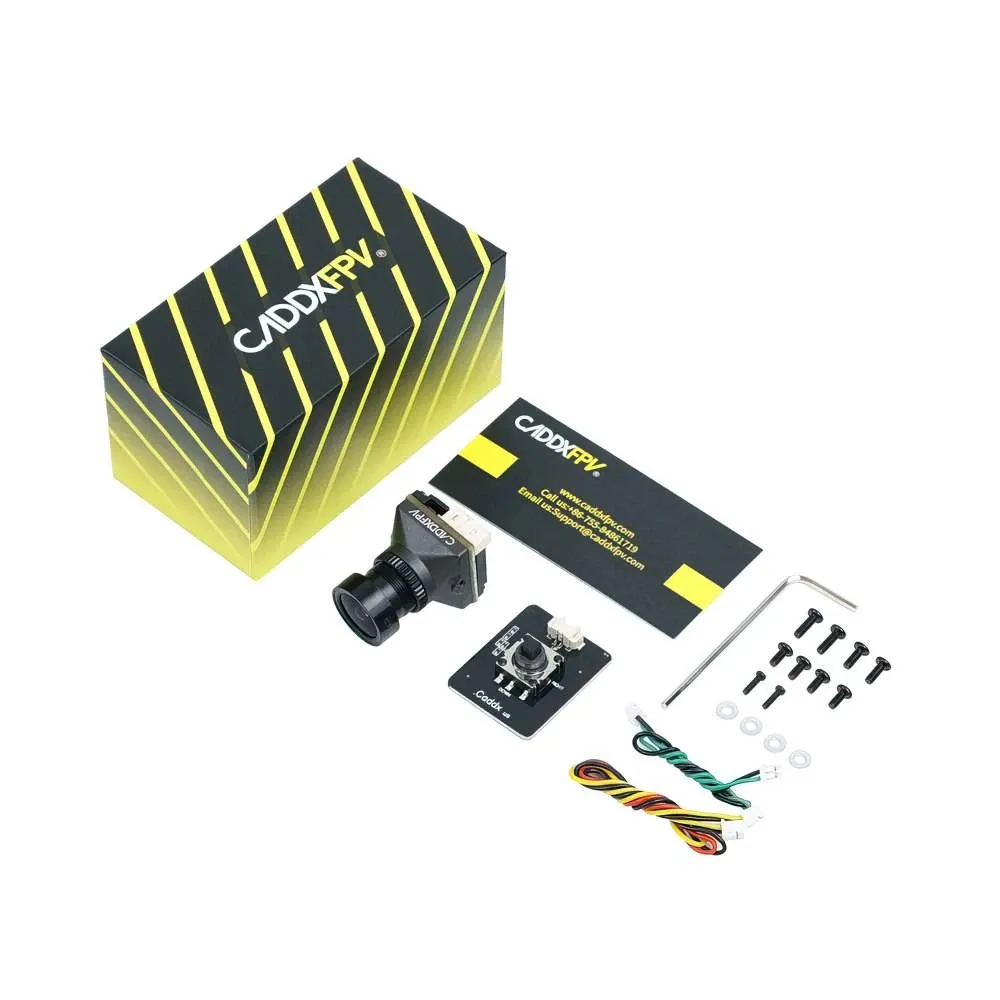

Caddx Ratel Pro Analog Camera
SKU CADDX-RATEL-PRO-CAM
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The Caddx Ratel Pro is a micro analogue FPV camera built around a 1/1.8-inch BSI sensor and Caddx's Blacklight low-light technology, giving clear colour images by day and usable black-and-white vision after dark. Its 19mm metal case is a direct fit for standard analogue camera mounts on freestyle and racing quads.
Key features
- 1500TVL horizontal resolution with a 125° field of view for a wide, natural view in flight.
- Blacklight day/night switching with Super WDR keeps detail visible in both bright and shadowed scenes.
- Wide 4.5-27V input works across 2S to 6S systems without a separate voltage regulator.
- Switchable 4:3 and 16:9 image output matches whichever aspect ratio your goggles or VTX use.
- Lightweight metal case at 9.5g aids heat dissipation without adding meaningful weight to the build.
Specifications
- Sensor: 1/1.8" BSI
- Resolution: 1500TVL
- FOV: 125°
- Minimum illumination: 0.00001 lux
- TV system: NTSC / PAL (switchable)
- Input voltage: DC 4.5-27V
- Video output: CVBS
- Dimensions: 19 x 19 x 27mm
- Weight: 9.5g
Suits pilots finishing a new analogue quad or swapping out a worn front camera who want low-light performance without moving to a digital video link.
| Camera Size | 19mm |
|---|---|
| FPV System | Analog |
| Aspect Ratio | 4:3, 16:9 |
| Made in India | No |
| Brand | Caddx |
| Sensor Size | 1/1.8" |
| Weight | 9.5 g |
| FOV | 125 deg |
| TVL | 1500 |
| Thermal | No |
| Night Vision | Yes |
