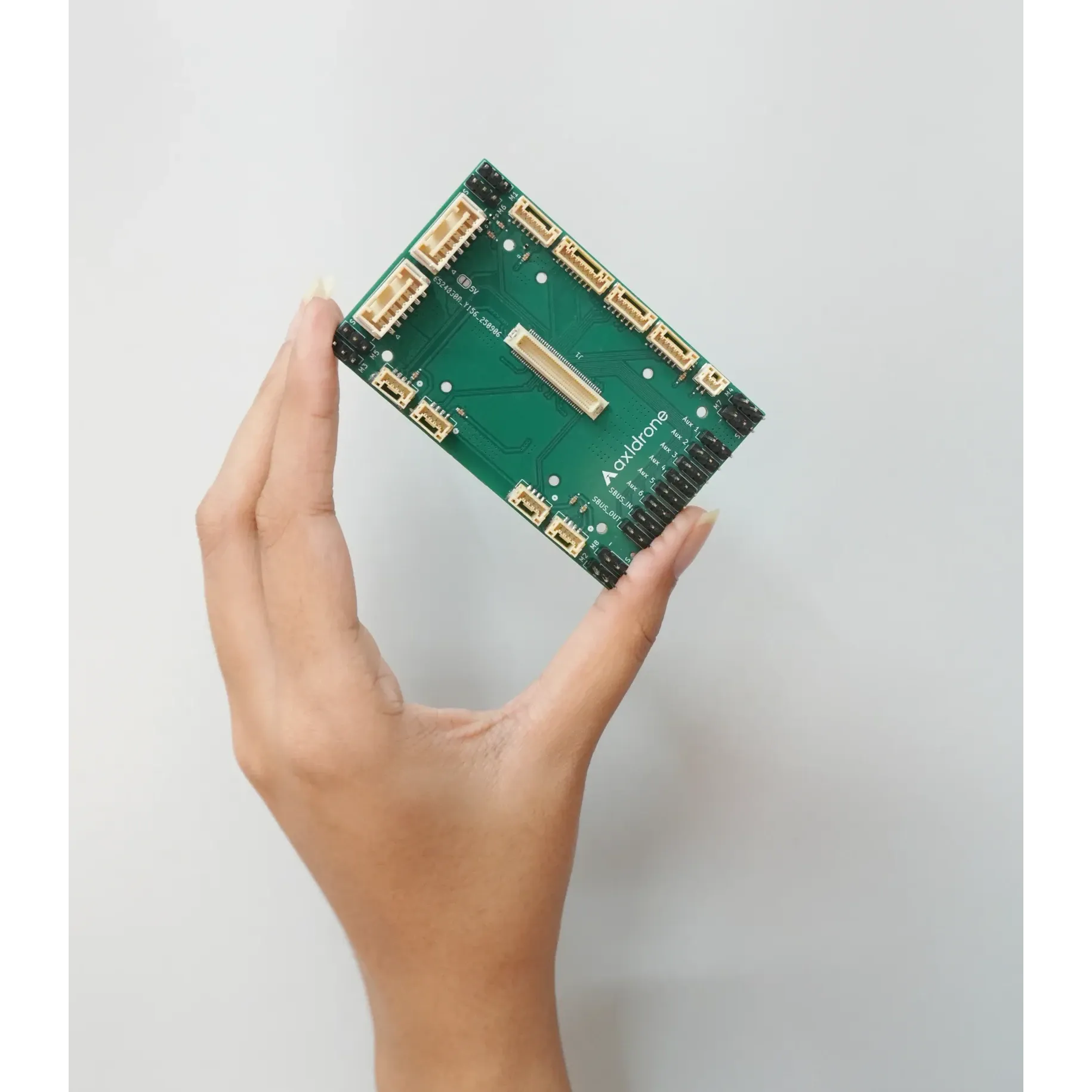

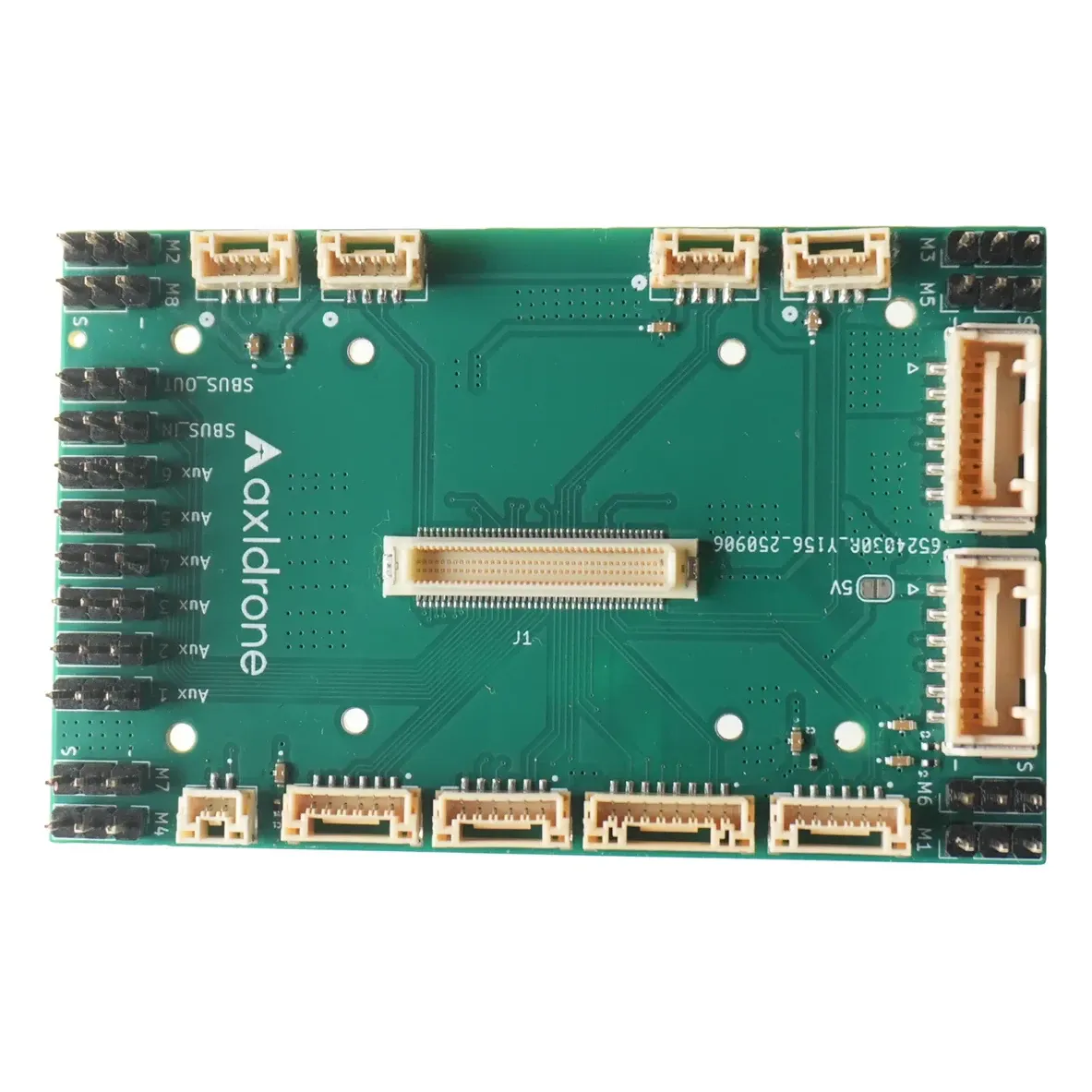

AXL Carrier Board for Cube Orange Plus Autopilot

AXL's carrier board is the baseboard a CubePilot Cube Orange Plus autopilot plugs into. It breaks the Cube's signals out to labelled connectors for motors, servos, GPS, telemetry and a companion computer, and is made in India for multirotor, fixed-wing, VTOL and rover builds running ArduPilot or PX4. The Cube itself is sold separately.

Key features

• Two redundant power inputs keep the autopilot running if one power module or lead fails
• 8 motor outputs (M1–M8) plus 6 auxiliary servo outputs
• Two GPS ports, two UARTs, CAN and I²C for sensors, telemetry radios and smart peripherals
• Dedicated SBC port for wiring in a companion computer
• SBUS in and out on standard 2.54 mm headers, a buzzer port and USB for flashing and setup
• 21 g and 80 × 50 × 12 mm, rated for –10 °C to 80 °C

Specifications

• Compatible autopilot: CubePilot Cube Orange Plus
• Dimensions: 80 × 50 × 12 mm
• Weight: 21 g
• Power input: 5 V, 2 × power ports
• PWM outputs: 8 × motor (M1–M8)
• Servo outputs: 6 × AUX
• RC input: SBUS in/out (2.54 mm)
• Serial: 2 × UART (SERIAL1, SERIAL2)
• GPS ports: 2 (GPS1, GPS2)
• CAN / I²C: 1 × CAN1, 1 × I²C
• Companion computer: 1 × SBC port
• USB: 1 (firmware flashing and configuration)
• Operating temperature: –10 °C to 80 °C

To use the redundancy, feed each power port from its own 5 V power module. Order the Cube Orange Plus, GPS and power modules separately.
