The Flywoo EL24P TCXO is a micro 2.4GHz ELRS receiver with an IPEX connector for an external dipole antenna and a temperature-compensated crystal oscillator (TCXO) that keeps the RF frequency locked despite board heat or weather swings.

Key features

TCXO holds MCU clock accuracy steady across temperature changes, improving RC link performance and range.

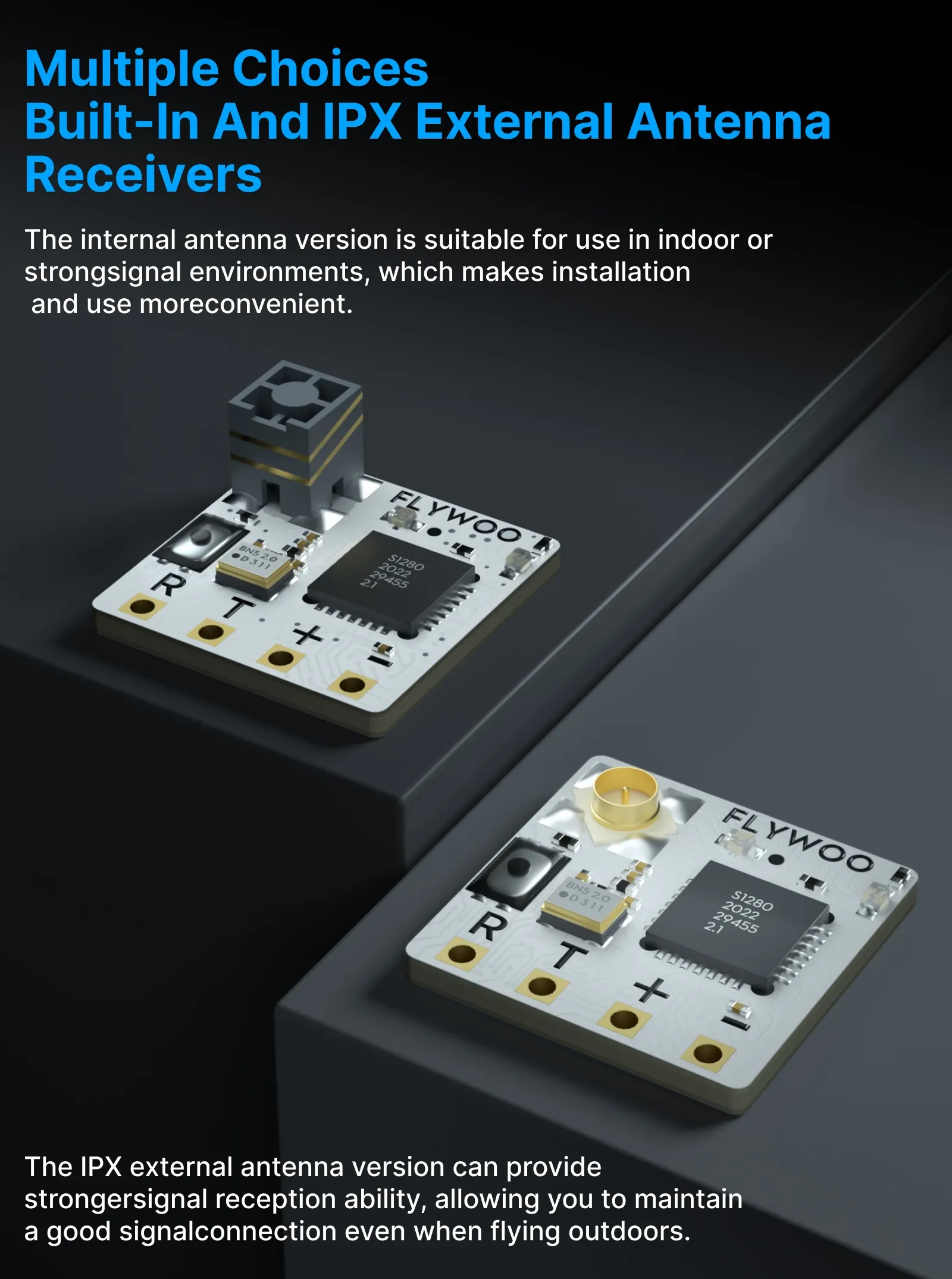

IPEX connector accepts an external dipole antenna, rather than a fixed onboard antenna.

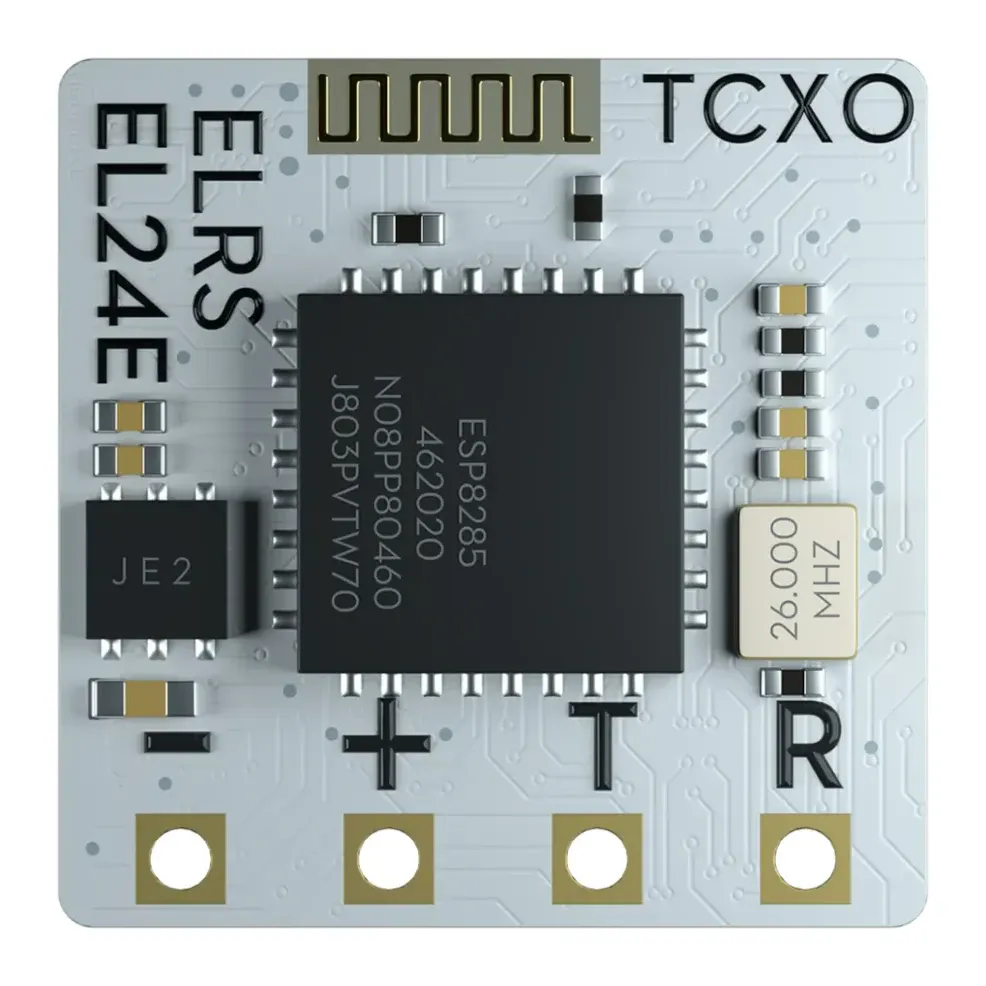

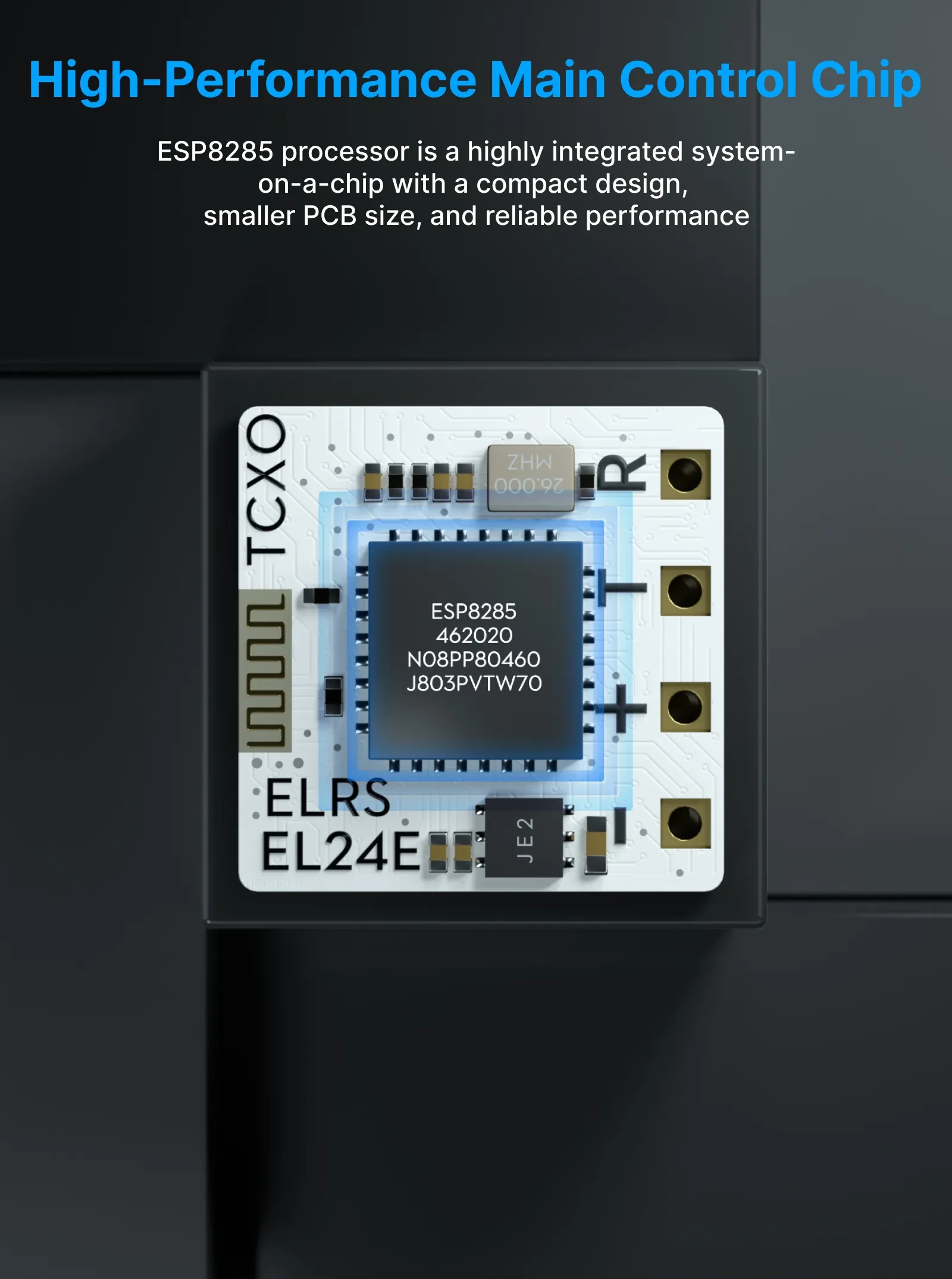

Driven by the ESP8285 MCU and SX1280 (or SX1281) RF module for low-latency ExpressLRS performance.
Firmware upgradable over WiFi.

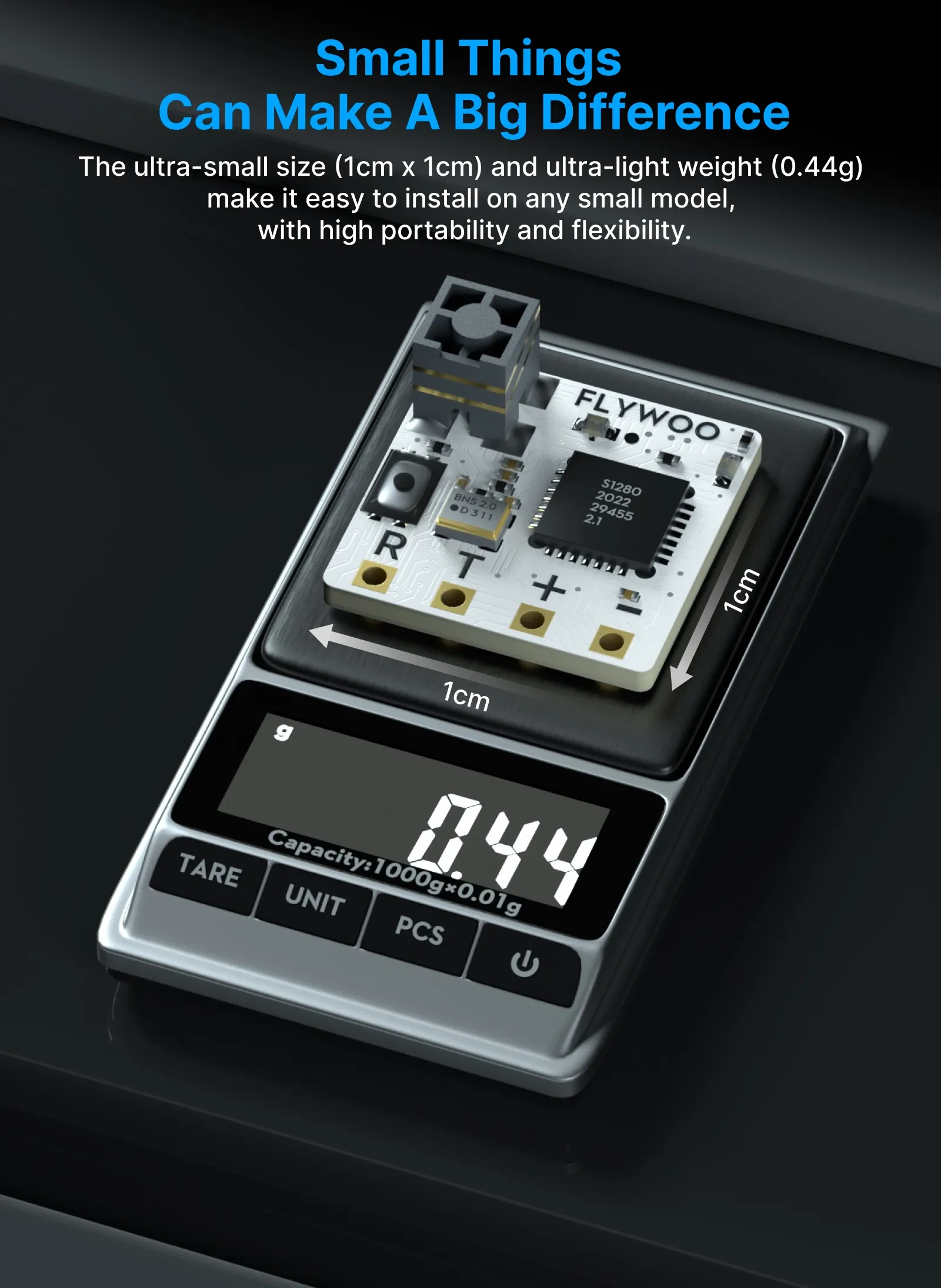

Ultra-lightweight at under half a gram, excluding the antenna.

Specifications

MCU: ESP8285
RF module: SX1280 / SX1281
Oscillator: TCXO

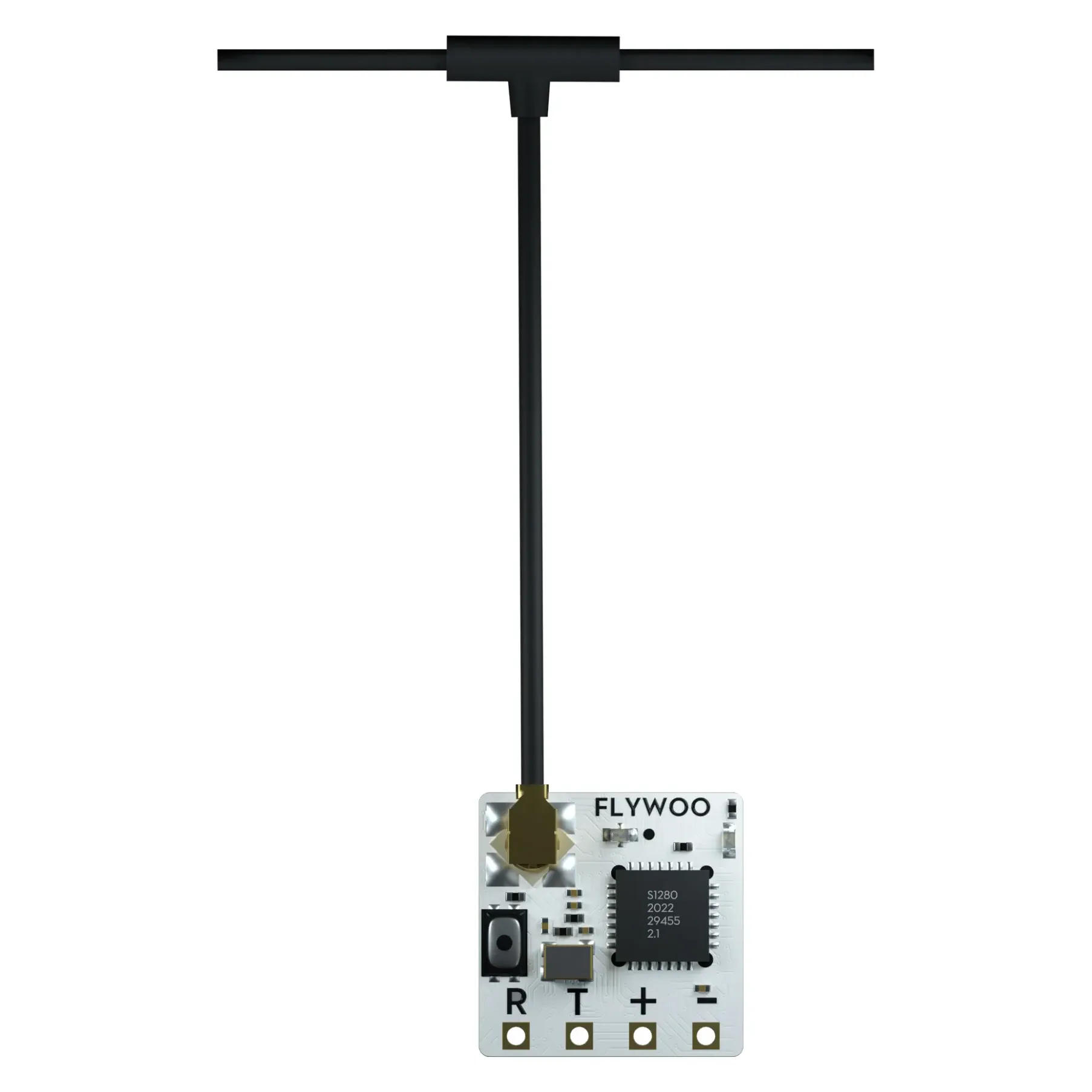

Antenna: IPEX connector, external dipole
Frequency range: 2400-2500MHz
Receive refresh rate: 25Hz-500Hz
Working voltage: 5V
Communication protocol: CRSF (Betaflight)

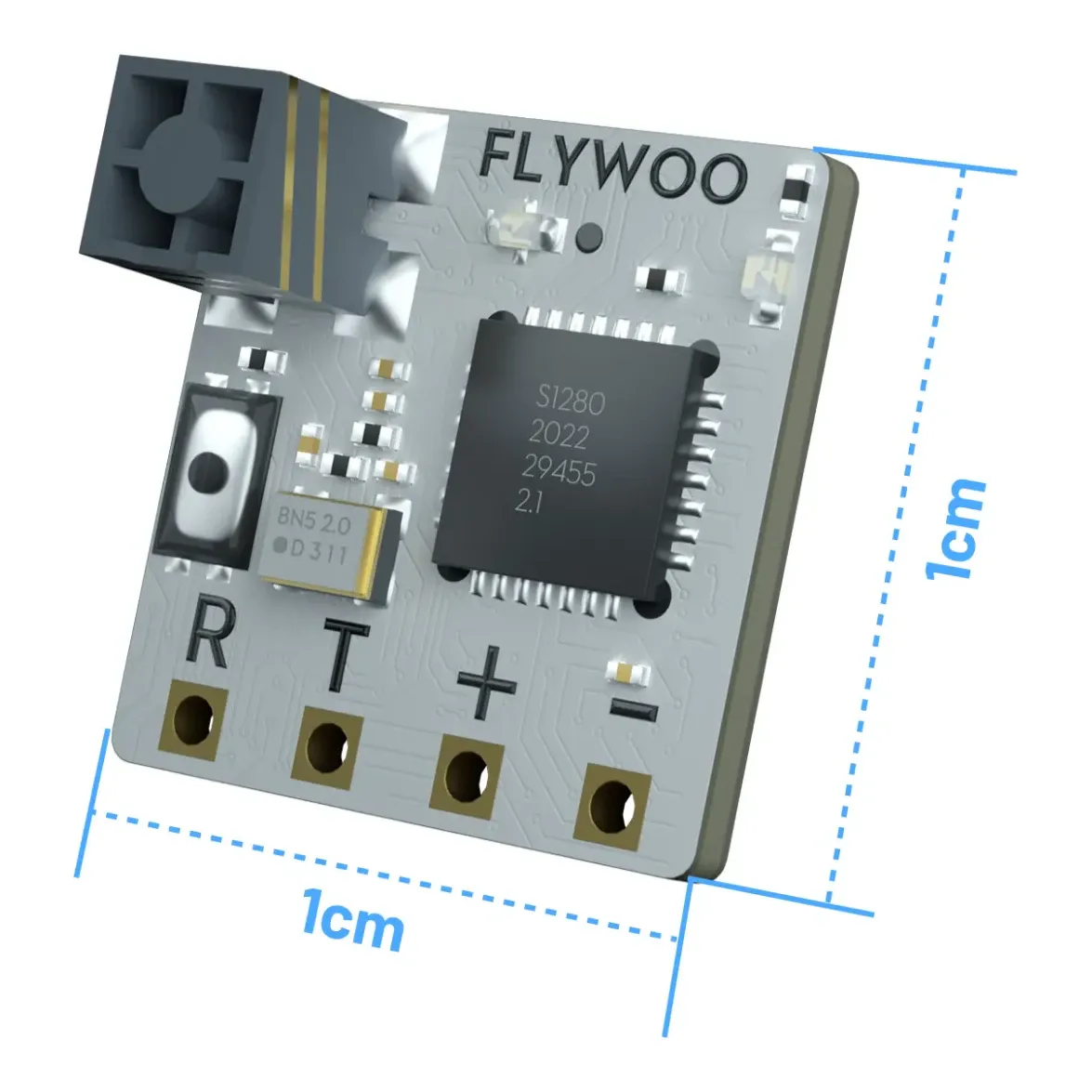

Dimensions: 10 x 10 x 6mm

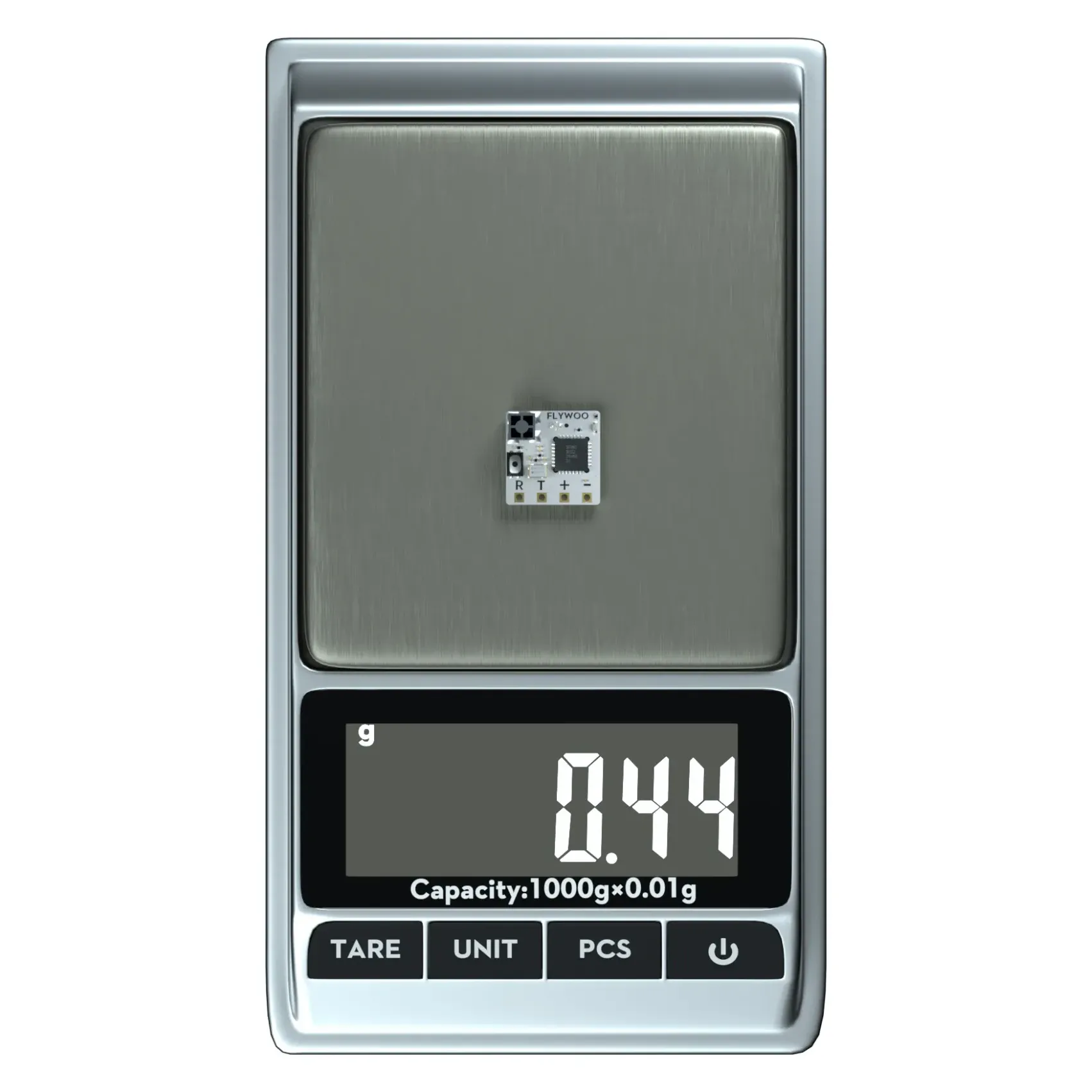

Weight: 0.44g (without antenna)

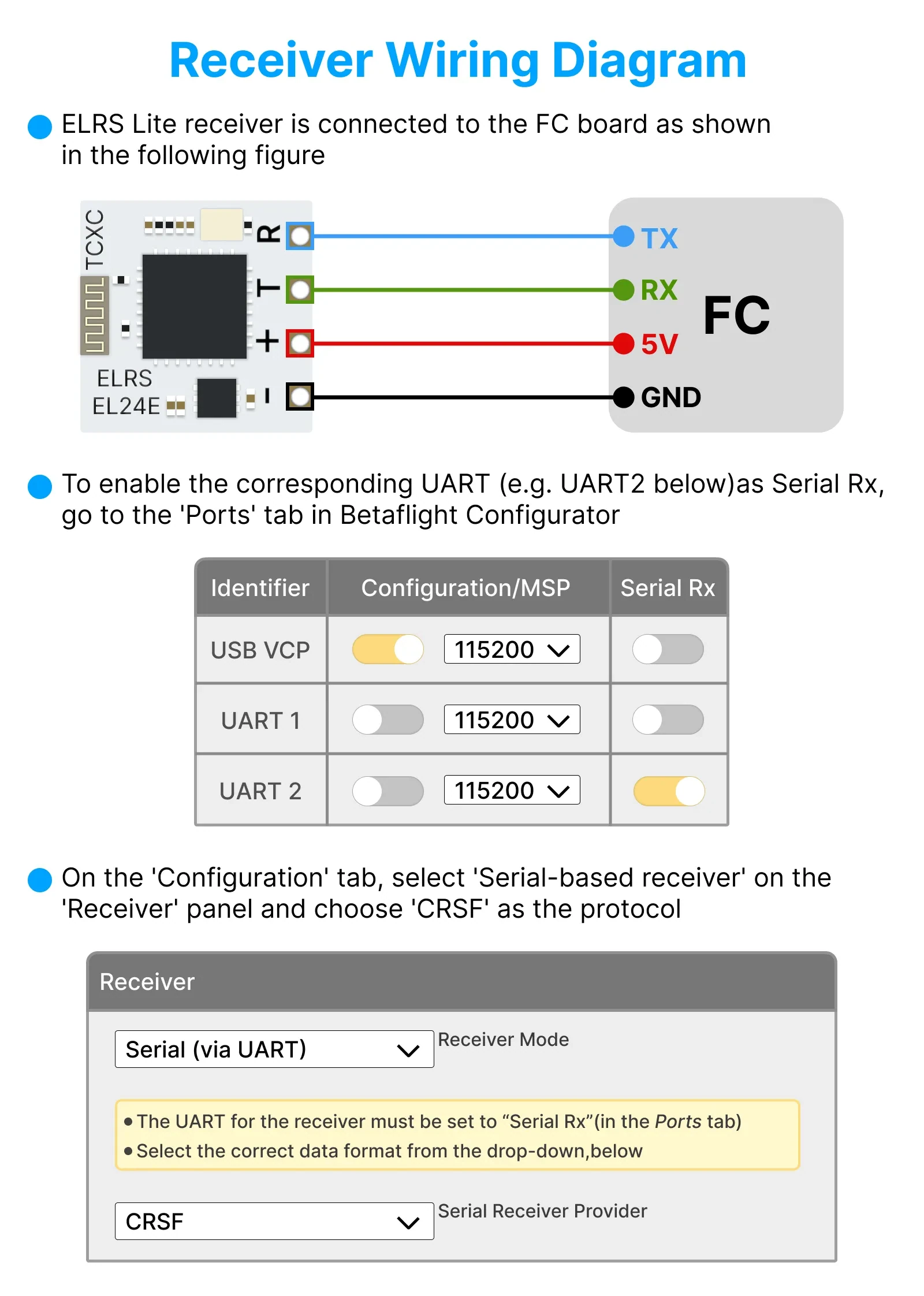

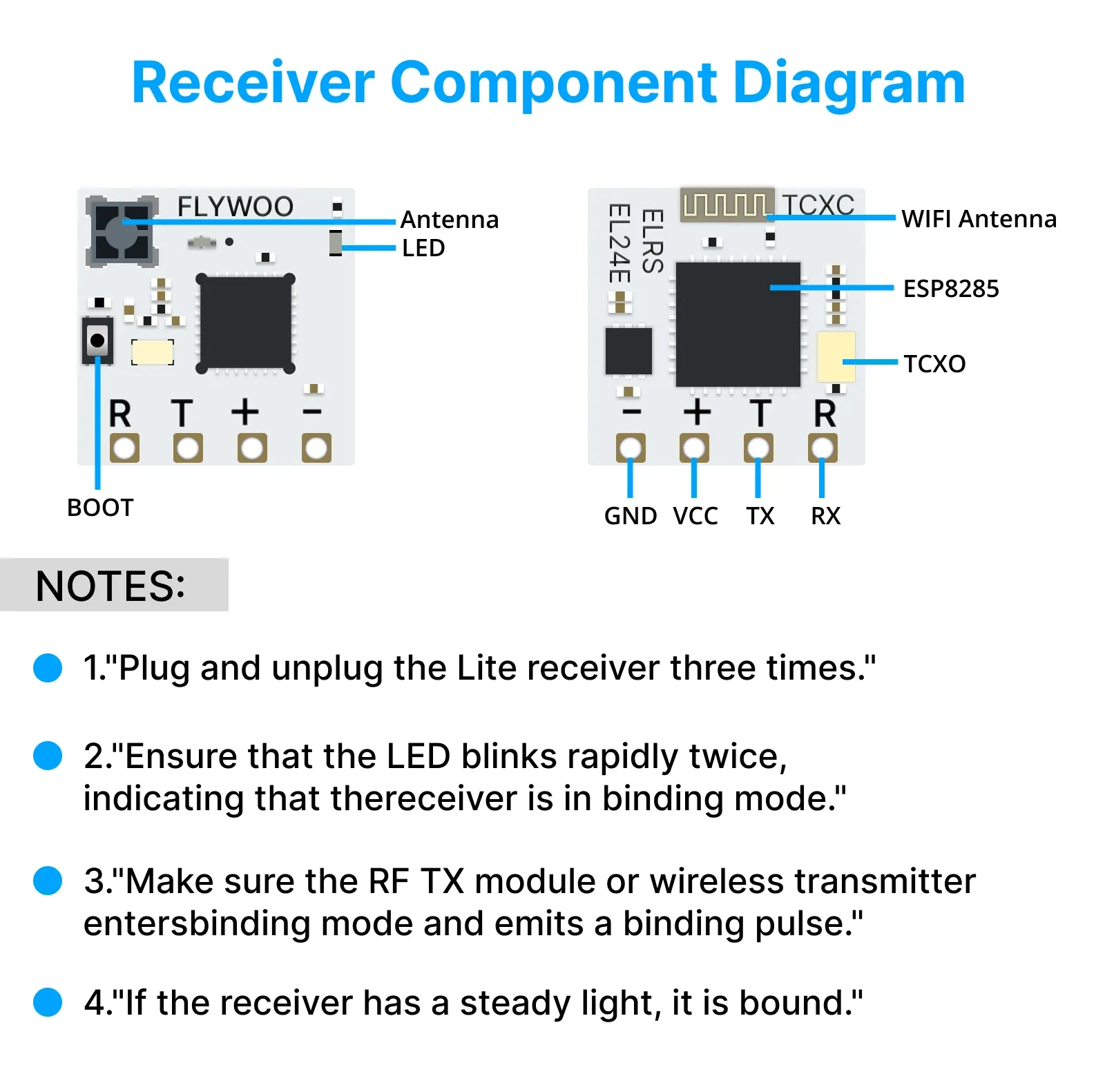

Connects via standard 4-wire UART (5V, GND, TX, RX) wiring to any modern flight controller. The dipole antenna and mount give a stronger link on frames with room for an external whip, over an all-in-one whoop build.
