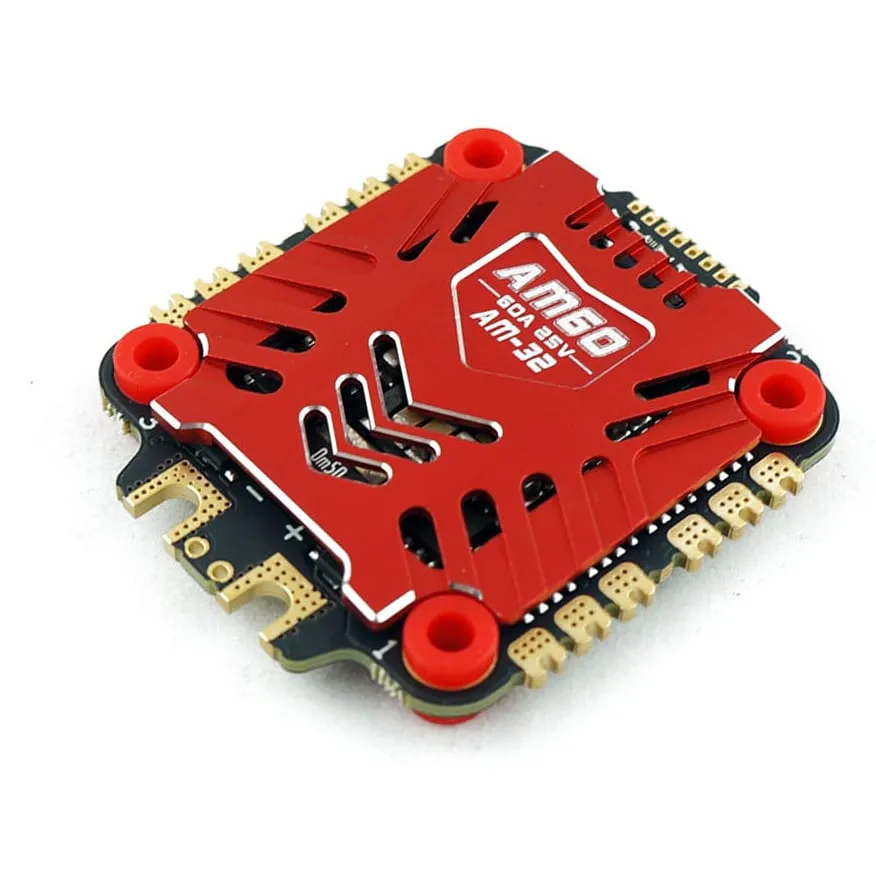

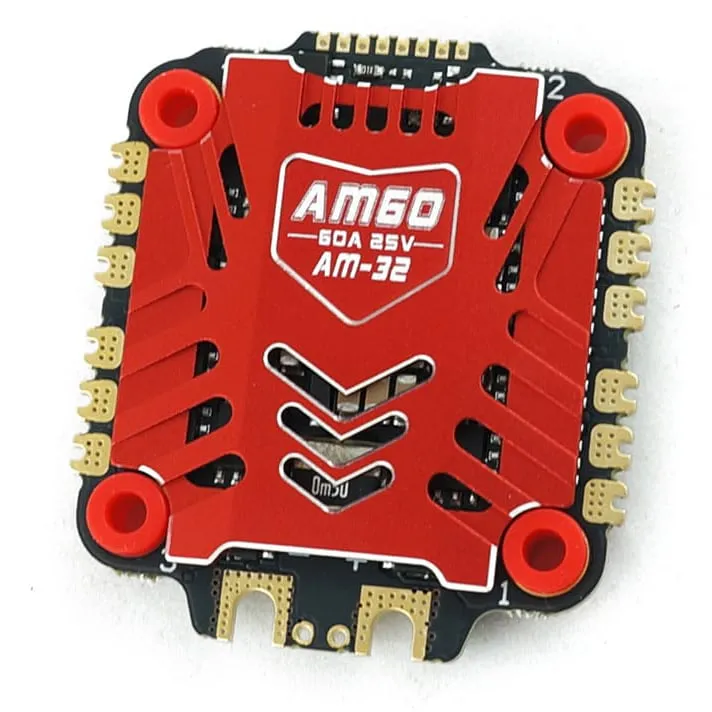

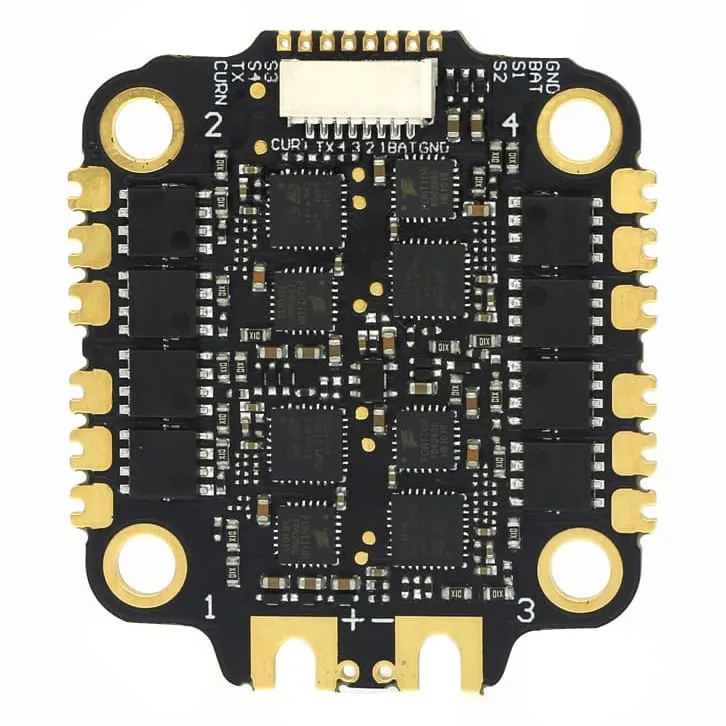

Skystars AM60 60A 3–6S AM32 4-in-1 ESC (30×30)

The Skystars AM60 is a 60A 4-in-1 ESC tailored for 5-inch freestyle, racing, and mid-range 7-inch builds. Running open-source AM32 firmware on a fast 32-bit processor, it provides exceptionally smooth motor start-ups, tight throttle linearity, and native support for bidirectional DShot and Betaflight RPM filtering without relying on proprietary licensing.

Key features

• Open-source AM32 firmware delivers advanced 32-bit processing and high-frequency PWM driving.
• Integrated current sensor and telemetry output for real-time ESC monitoring.
• Large solder pads for straightforward heavy-gauge battery wire and motor phase connections.
• Optimised for aggressive 6S flight dynamics and high-KV motor setups.

Specifications

• Input voltage: 3-6S LiPo
• Continuous current: 60A per channel
• Peak current: 80A (10s)
• Firmware: AM32
• Protocol support: DShot150/300/600, Bidirectional DShot, PWM, Oneshot125
• BEC: None
• PCB: 6-layer, 3 oz copper, 40 V MOSFETs
• Cooling: aluminium heat sink
• Mounting pattern: 30.5x30.5mm, M3
• Dimensions: 41 x 46 x 7.6 mm
• Weight: 18 g
• In the box: ESC and battery-lead capacitor

This ESC pairs seamlessly with any standard 30.5x30.5mm flight controller, making it a highly compatible choice for high-power custom stacks.
