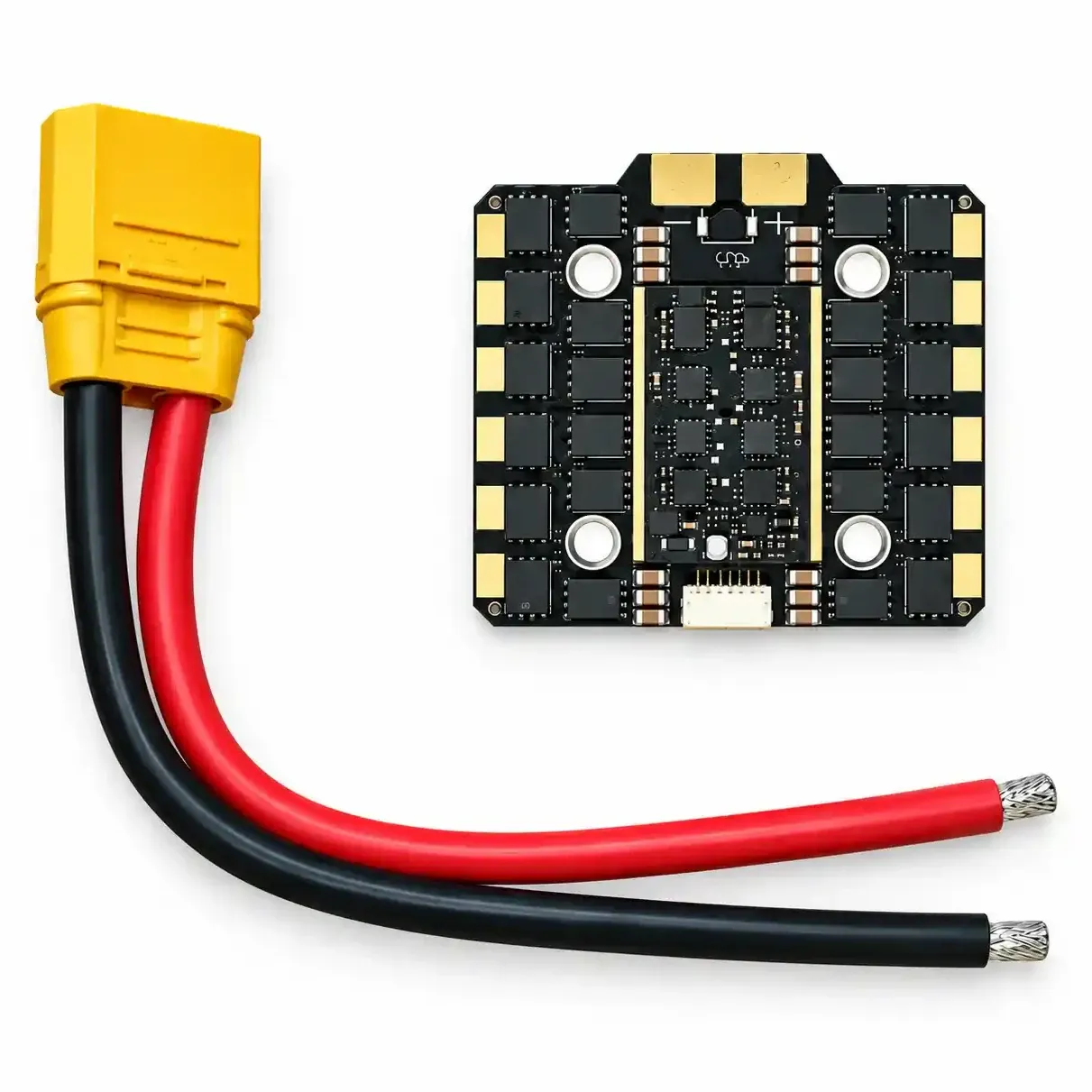

100A 3-8S 4-in-1 ESC for FPV Drones, 30.5x30.5mm

A high-current 4-in-1 ESC that drives four brushless motors from one 30.5x30.5mm board, rated 100A continuous per channel on 3S to 8S LiPo. It suits heavy long-range quads, cinelifters and high-power freestyle or racing builds that have outgrown a typical 6S stack.

Key features

• 100A continuous, 110A burst: each channel takes 110A for up to 10 seconds, giving margin for hard punch-outs and large props.
• 3S–8S input: one ESC for 6S freestyle power or 8S long-range and lifting setups.
• DShot300 and DShot600: fast digital throttle on an EFM8BB21/BB51 MCU with high-performance MOSFETs.
• 14-pin plug-and-play FC port: a single cable links it to a compatible flight controller and cuts wiring clutter.

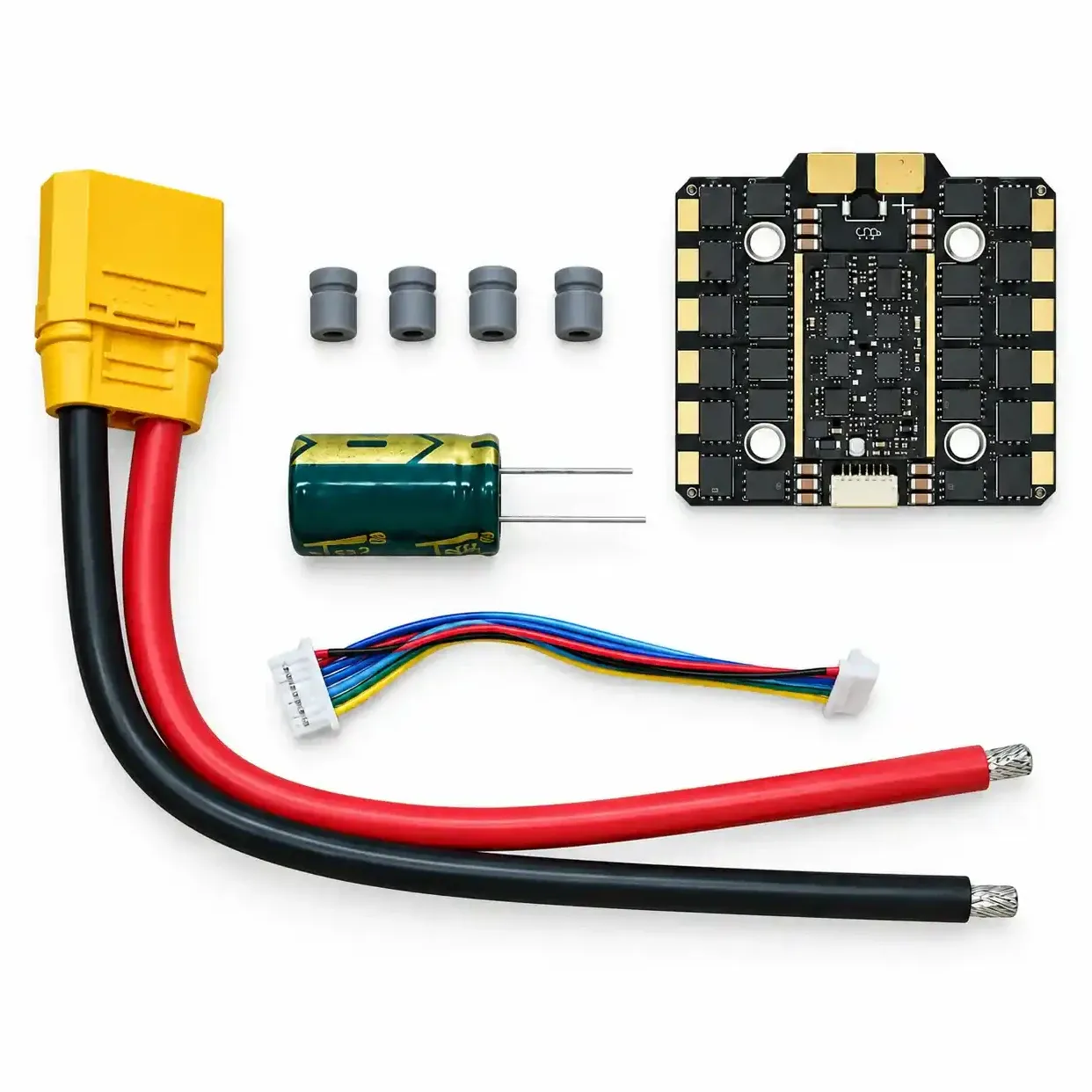

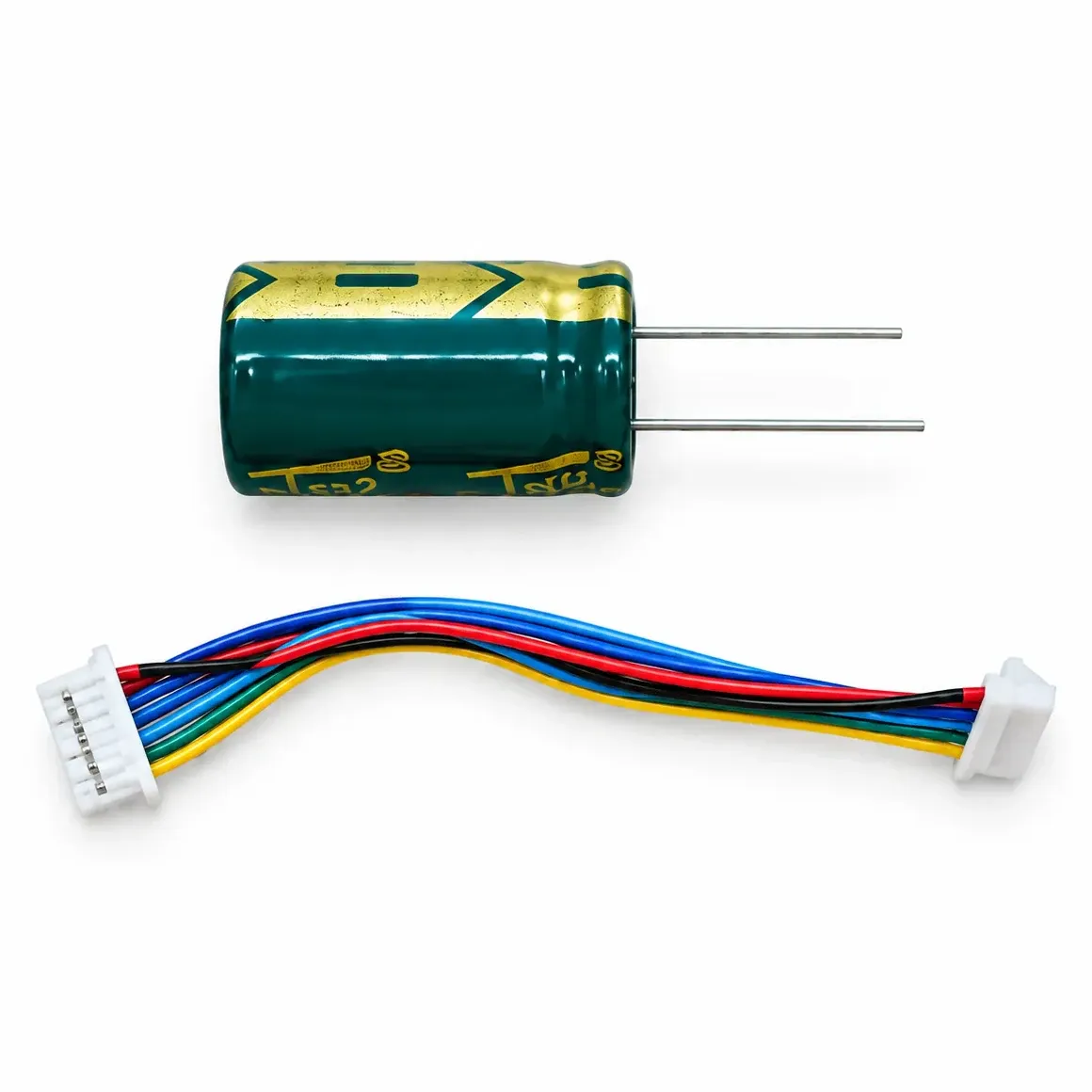

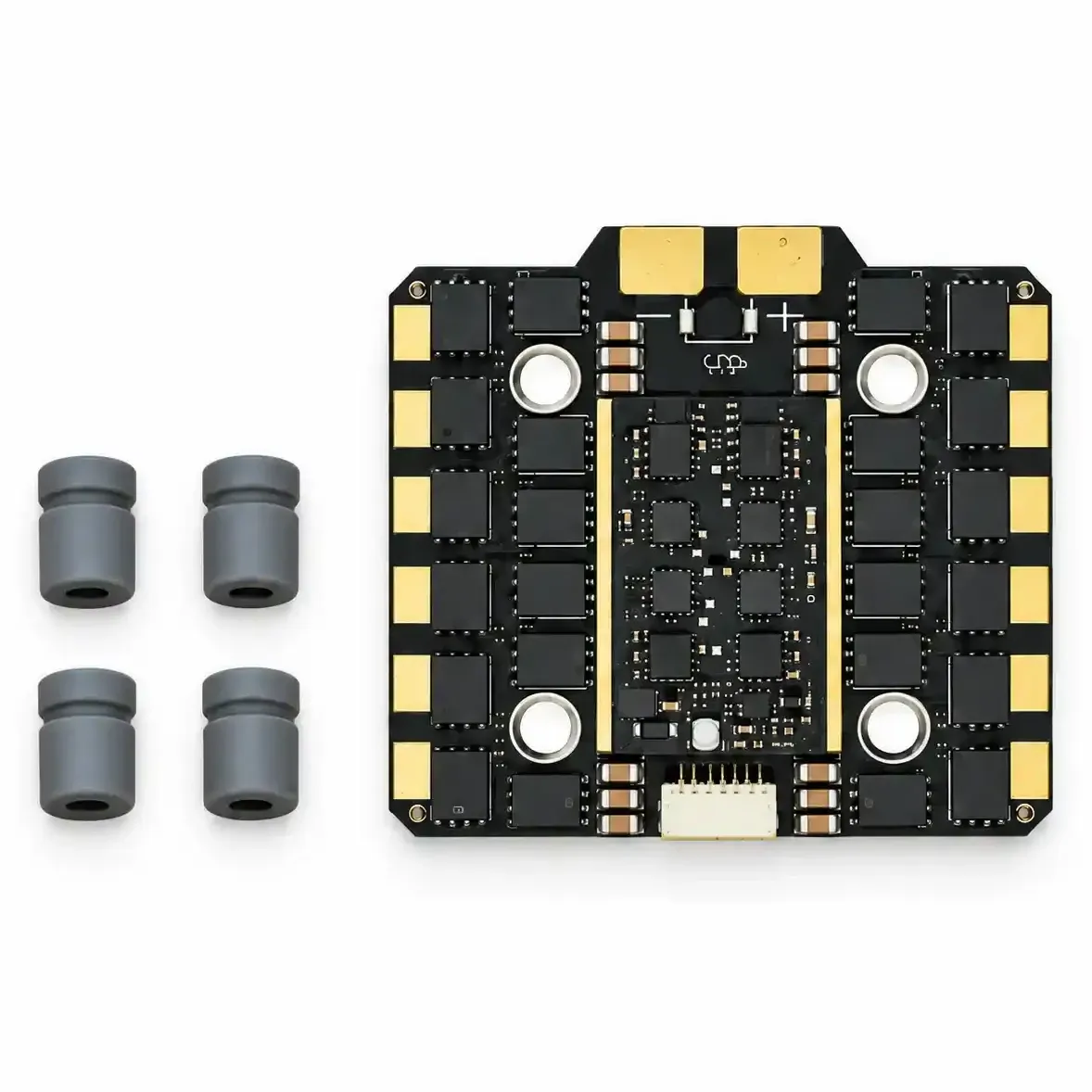

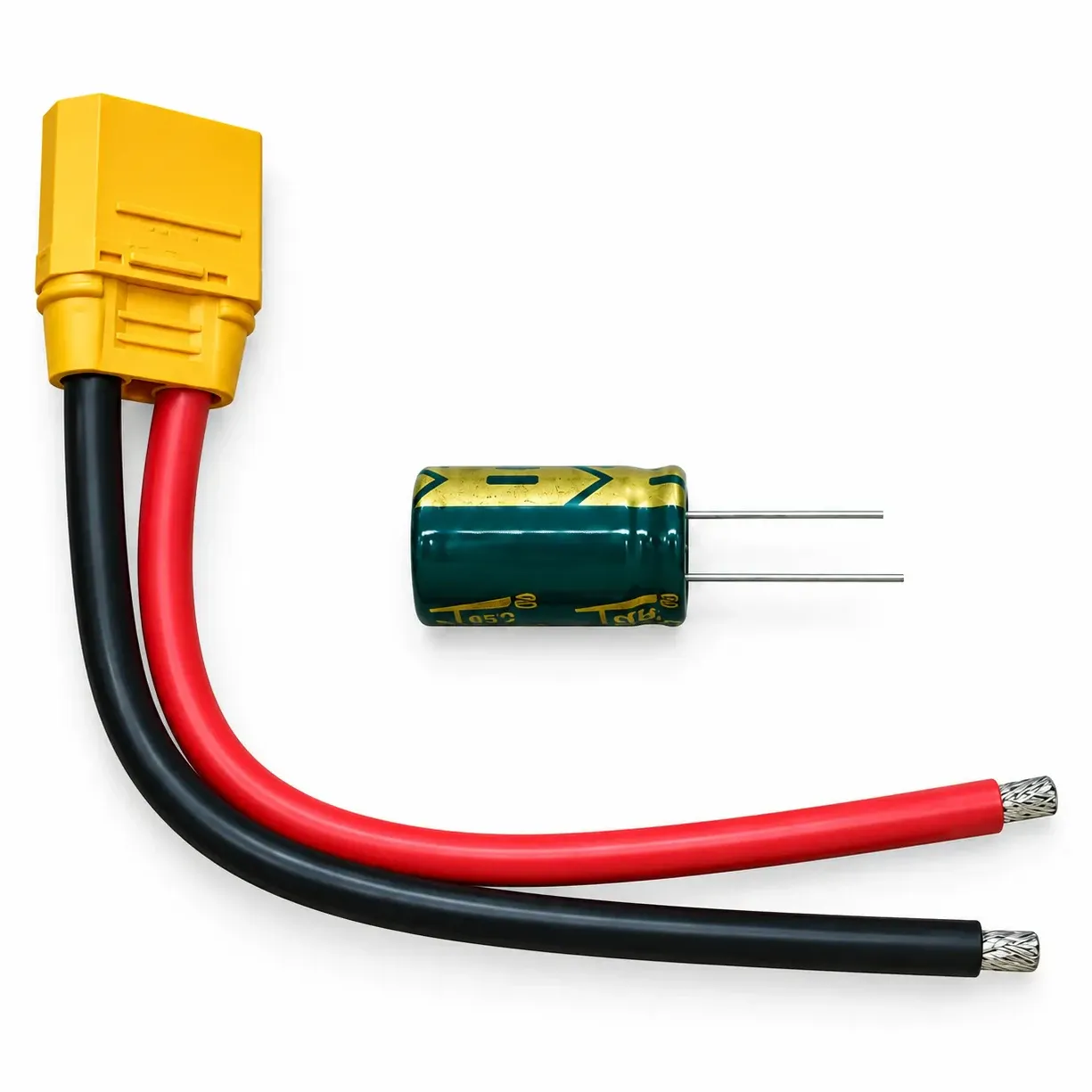

• Ready to install: vibration-damping grommets, a large capacitor for voltage-spike suppression, the FC cable and an XT90 power lead are included.

Specifications

• Continuous current: 100A x 4
• Peak current: 110A (10 s)
• Input voltage: 3S–8S LiPo (11.1–29.6V nominal)
• MCU: EFM8BB21 / BB51
• Throttle protocols: DShot300, DShot600
• Mounting: 30.5x30.5mm, 4mm holes
• FC connector: 14-pin
• Battery lead: XT90

Check the 14-pin pinout against your flight controller's ESC port before plugging in, and confirm the FC accepts 8S on its battery-voltage input if you plan to run full voltage. Choose motors whose maximum current stays under 100A per channel.
