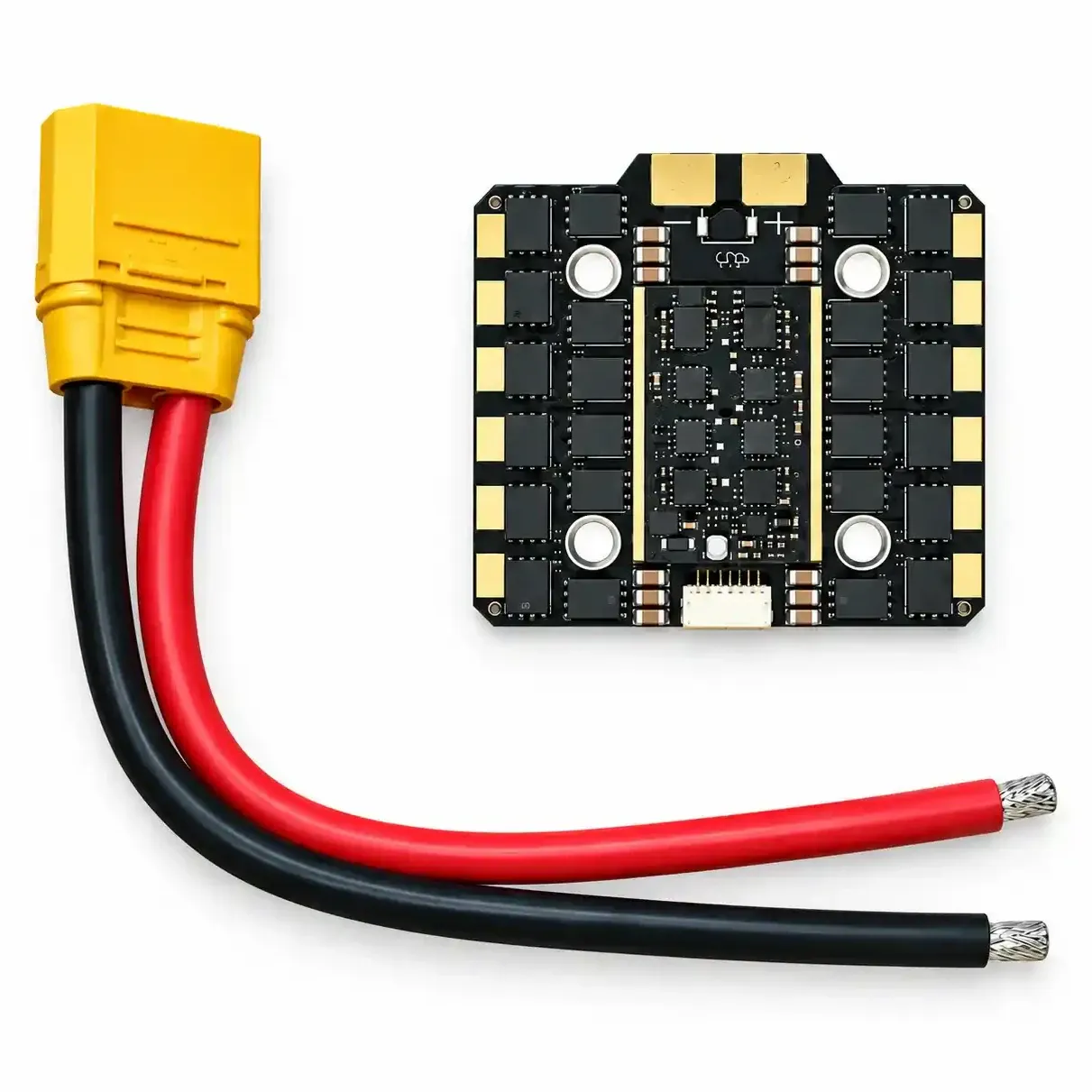

80A 3-8S 4-in-1 ESC for FPV Drones, 30.5x30.5mm

An 80A 4-in-1 ESC for 3S to 8S power systems on the standard 30.5x30.5mm stack pattern. At about 28g it suits 7-inch long-range quads, 8S freestyle builds and mid-size UAVs that need more current than a typical 6S stack delivers.

Key features

• 80A continuous, 90A burst: each channel handles 90A for up to 10 seconds through hard punch-outs.
• 3S–8S LiPo input: run 6S now and step up to 8S without changing the ESC.
• EFM8BB21/BB51 MCU with DShot300/600: fast digital throttle and high-performance MOSFETs on every channel.
• 14-pin plug-and-play FC port: one ribbon cable to a compatible flight controller keeps the stack tidy.
• Complete install kit: capacitor, ribbon cable, XT90 power lead and four 3mm vibration-damping grommets in the box.

Specifications

• Continuous current: 80A x 4
• Peak current: 90A (10 s)
• Input voltage: 3S–8S LiPo (11.1–29.6V nominal)
• MCU: EFM8BB21 / BB51
• Throttle protocols: DShot300, DShot600
• Mounting: 30.5x30.5mm, 4mm holes
• FC connector: 14-pin
• Weight: approx. 28g

Compare the 14-pin pinout with your flight controller's ESC port before connecting the ribbon cable, and check the FC is rated for 8S if you intend to fly on full voltage.
