TBS Lucid 8S 4-in-1 ESC
TBS Lucid 8S 4-in-1 ESC
TBS
4-in-1 ESCs

TBS Lucid 8S 4-in-1 ESC

₹6,899Incl. GST

SKU TBS-LUCID-8S-4IN1

Mounting Size: 30.5x30.5ESC Current: 60 AInput Voltage: 3–8SESC Firmware: AM32
Dispatched within 3 business days — quality-checked in Gurugram

Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.

Questions about this part? Ask us on WhatsApp

Buying in bulk? Ask for a better price on WhatsApp or by email.

Product details

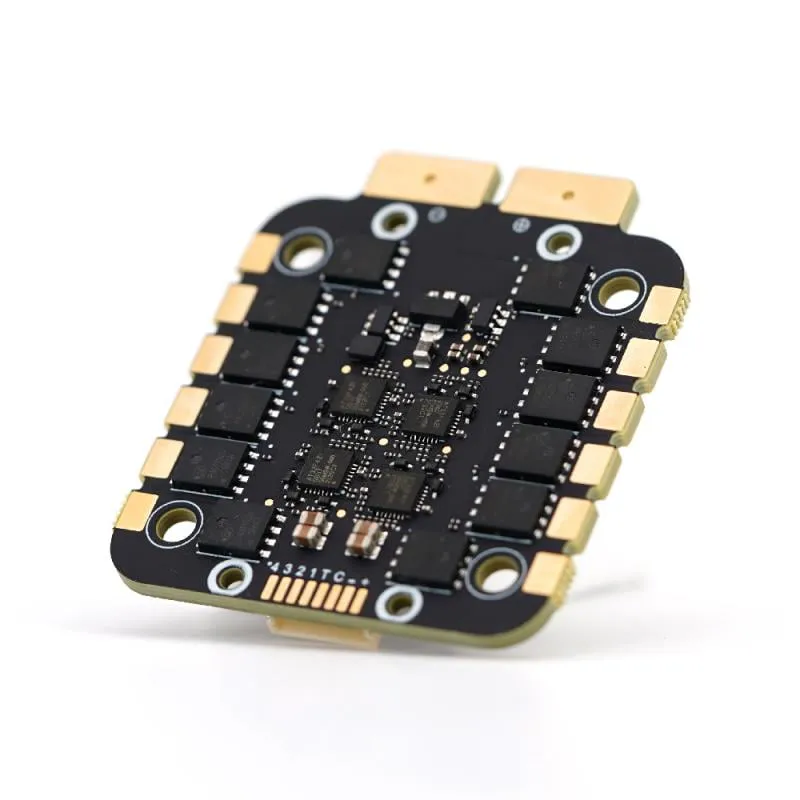

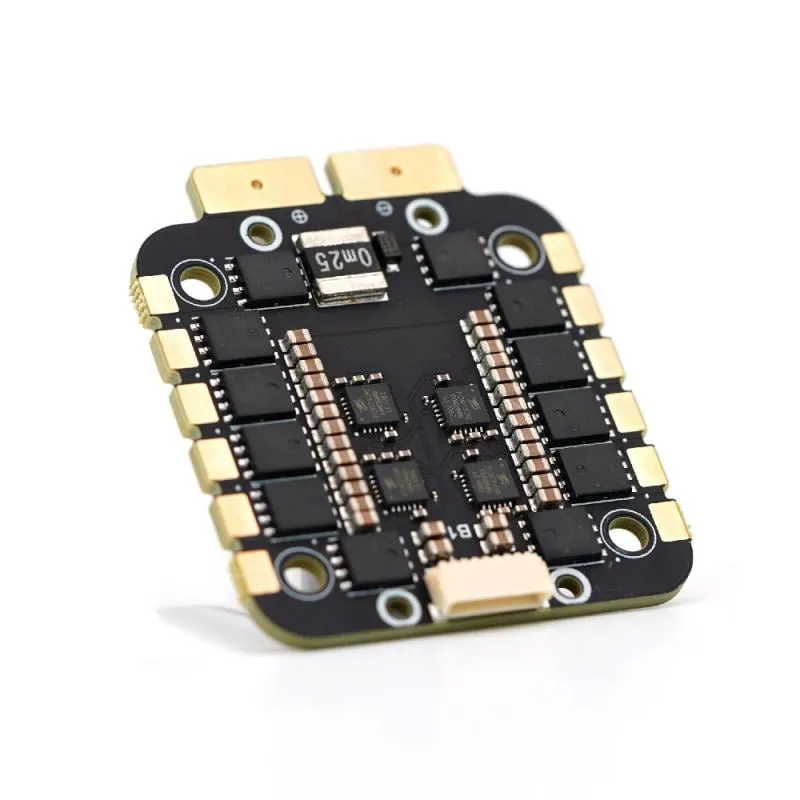

The TBS Lucid 8S 4-in-1 ESC is an AM32-firmware speed controller built around an 8-layer high-current PCB, sized to bolt onto TBS's Gorilla mount or a standard 30.5x30.5mm stack for 3–8S freestyle and racing builds.

Key features

  • 60A continuous (60s) and 85A peak (10s) current rating per motor output
  • Bi-directional DShot 300/600 and KISS ESC telemetry for RPM filtering and live current readback
  • Dual mounting: TBS Gorilla-mount (39.5x16.0mm) or standard 30.5x30.5mm, with brackets for 20x20mm stacks
  • No onboard BEC — pair with a flight controller or PDB that supplies 5V
  • 8-layer high-current-density PCB with roughly double the typical onboard capacitance for clean power delivery

Specifications

  • ESC firmware: AM32
  • Rated current: 60A continuous (x4)
  • Peak current: 85A (x4)
  • Input voltage: 3–8S LiPo
  • Protocol: Bi-directional DShot 300/600, KISS telemetry
  • Size: 50 x 42mm
  • Weight: 17.58g (22g with brackets)
  • Mounting: Gorilla-mount / 30.5x30.5mm / 20x20mm (bracket)

Ships with an XT60 power connector, a 560uF 8S capacitor, an aluminium top bracket for 20x20mm FCs and mounting hardware for the 30x30 pattern — rated for propellers up to 11 inches, with 7-inch-plus needing good airflow.
