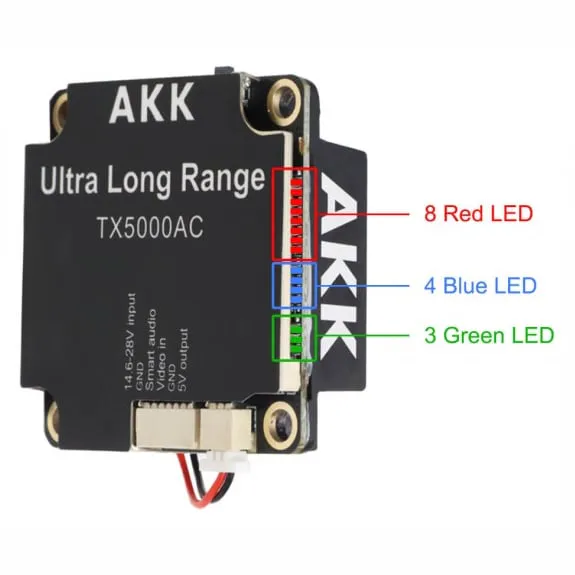

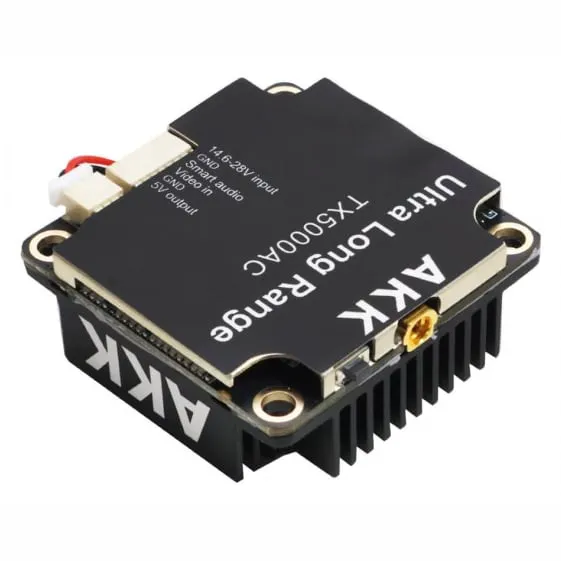

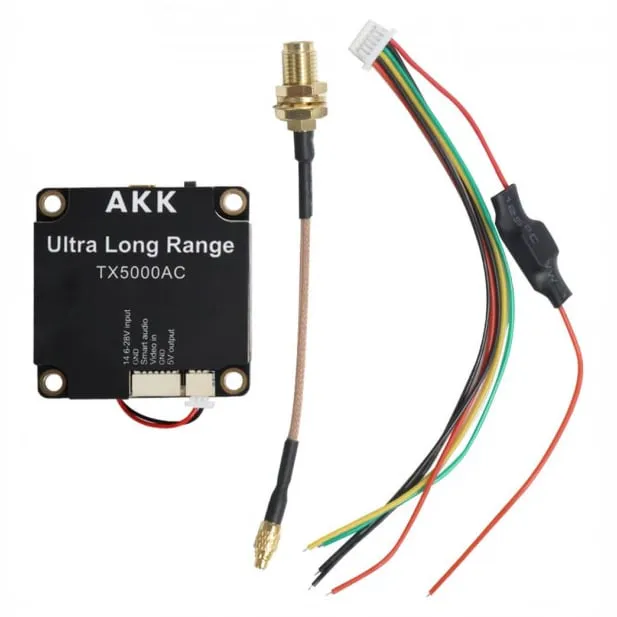

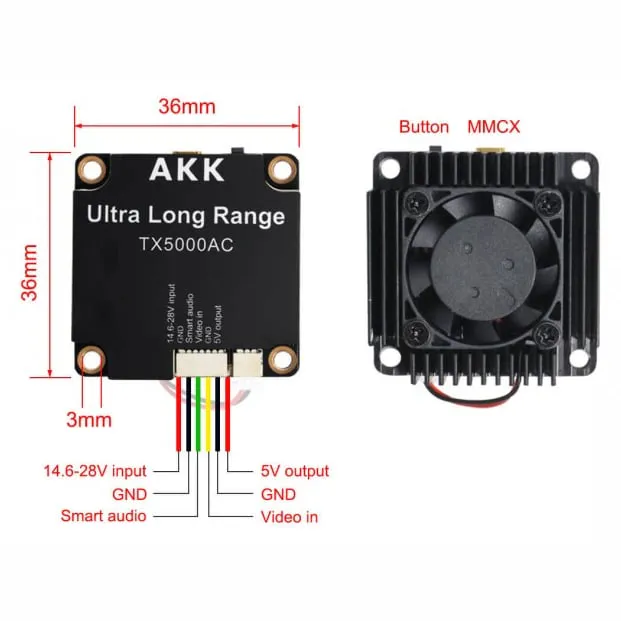

AKK TX5000AC Ultra Long Range 5W 80CH VTX (4.9–6G)

The AKK TX5000AC is a high-power analog video transmitter engineered for extreme long-range FPV missions, mountain surfing, and long-endurance fixed-wing UAV platforms. Delivering up to 5000 mW (5 W) of RF output across an extended frequency spectrum, it pushes analog video penetration far beyond conventional transmitters.

Key features

• Extended 4.9–6.0 GHz spectrum: Operates across 80 channels spanning standard 5.8 GHz FPV frequencies as well as lower and upper bands, helping pilots avoid congested airwaves and RF interference.
• Extreme penetration capability: High RF output provides reliable video link stability over extreme distances and challenging terrain profiles where standard-power transmitters drop out.
• Dedicated long-range architecture: Suited for fixed-wing aircraft and exploration multirotors requiring consistent analog video over long separation distances.

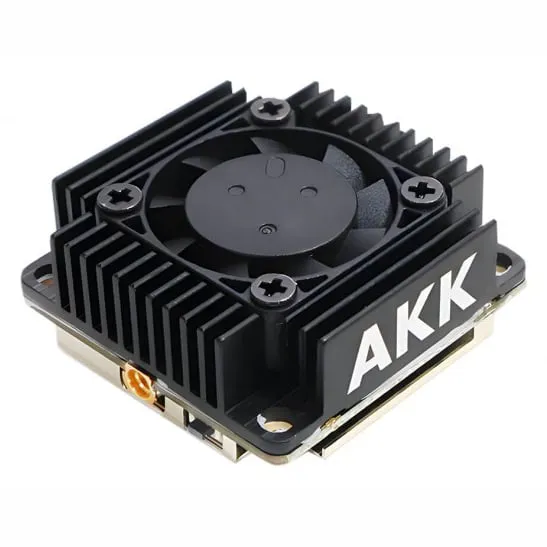

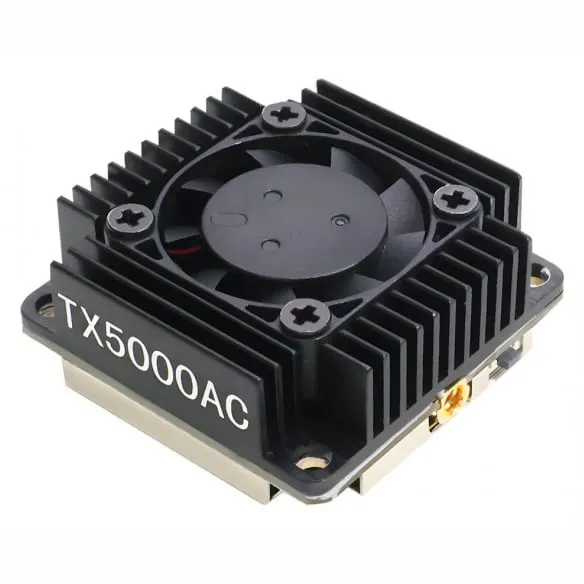

• Airflow and thermal management: High-wattage transmission generates significant heat; installing the unit in direct prop wash or active airflow is essential to maintain performance.

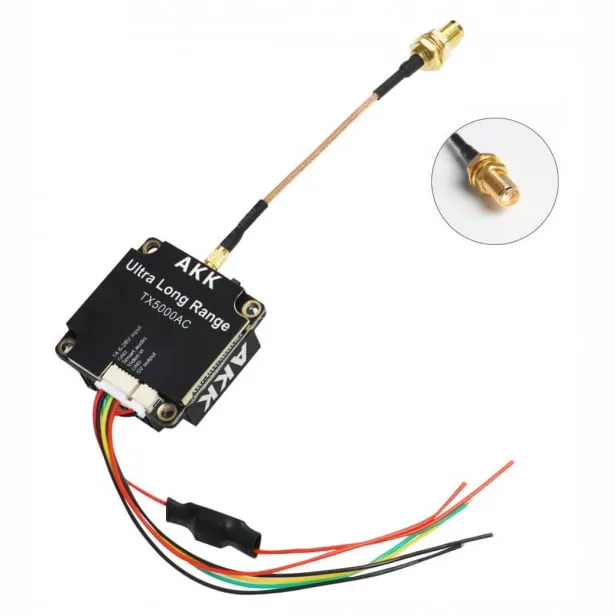

Always ensure a correctly rated antenna capable of covering the 4.9–6.0 GHz spectrum is securely connected before applying power to the VTX. Due to the 5000 mW RF output, bench testing at full power without airflow should be avoided to protect the internal output amplifier.
