AKK FX2 Dominator 2W VTX

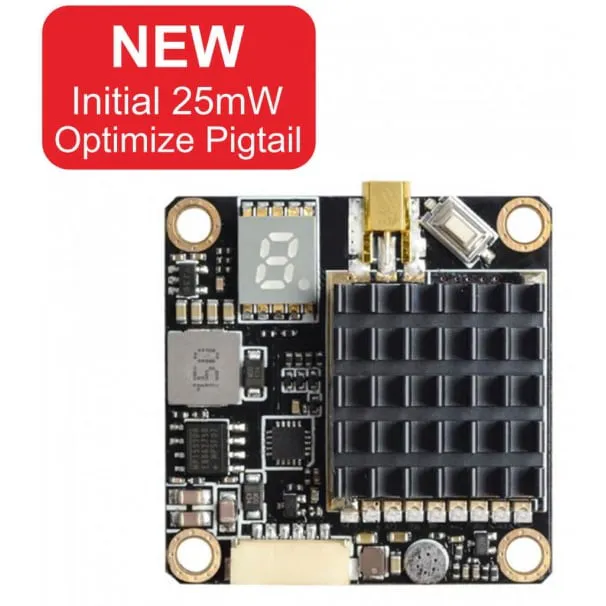

The AKK FX2 Dominator 2W is a high-power 5.8GHz analog video transmitter engineered for extreme long-range FPV, mountain surfing, and heavy-lift cinelifters that demand maximum signal penetration. Featuring an updated board design, it delivers a massive 2000mW maximum output to push through dense foliage and long distances, while introducing a 25mW starting power level for safe bench testing and local compliance.

Key features

• Adjustable output power scaling from 25mW up to a full 2W for extreme range and obstacle penetration.
• SmartAudio support allows remote VTX channel, band, and power adjustments via your OSD or radio.
• Built-in 5V BEC to cleanly power your analog FPV camera directly from the VTX.
• Integrated onboard microphone for real-time flight audio feedback.

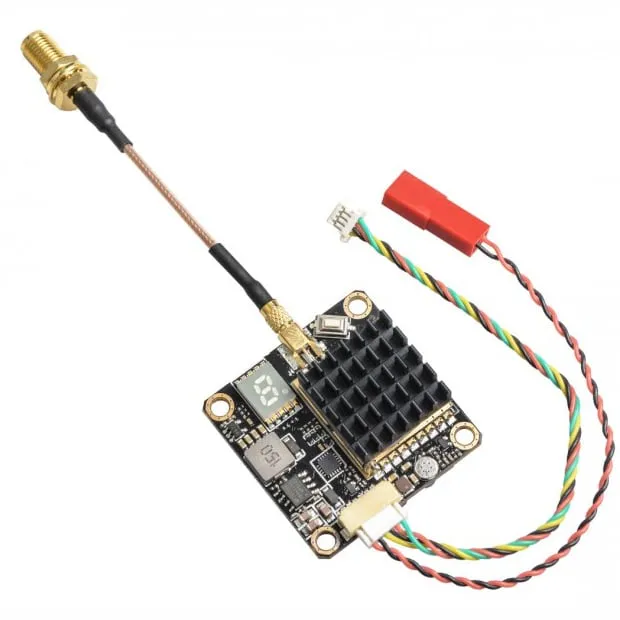

• Features an optimized MMCX antenna pigtail layout for secure mounting and reduced signal loss.

Specifications

• Input voltage: 2-6S (7-26V)
• Output power: 25mW / 250mW / 500mW / 1000mW / 2000mW
• Frequency band: 5.8GHz
• Control protocol: SmartAudio
• Antenna connector: MMCX
• Mounting pattern: 30.5x30.5mm
• Weight: 18.5g (without antenna)

Designed with a standard 30.5x30.5mm mounting pattern, this VTX stacks seamlessly above your flight controller in most 5-inch to 10-inch frames. Ensure your build provides adequate airflow over the heat sink when transmitting at 1000mW or 2000mW to prevent thermal throttling during flight.
