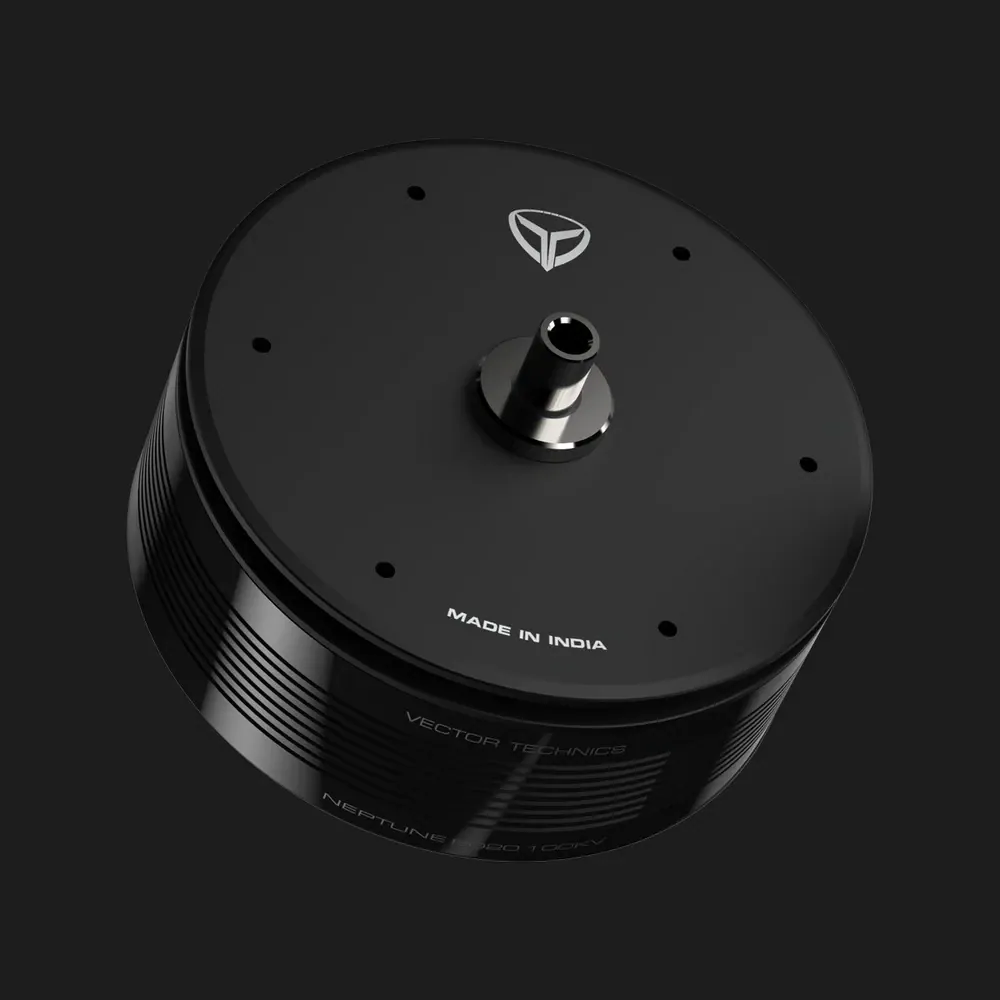

Vector Technics 8020 PRO Motor

Vector Technics 8020 PRO is a large-format, India-made brushless motor for 12S heavy-lift and long-range platforms running propellers up to 34 inches. Its big 8020 stator delivers strong low-RPM torque for endurance cruisers and heavy cinematic rigs, and it ships in two KV options to match your prop and voltage.

Key features

• 8mm output shaft and 89.4mm motor diameter for large, high-thrust propellers.
• IP45-rated housing for everyday outdoor heavy-lift use.
• Runs on 44–52V (12S LiHV) power systems.
• 100KV is tuned for maximum efficiency at low RPM; 120KV trades some efficiency for more headroom at a heavier all-up weight.
• Rated design life of 1000 hours between overhauls.

Specifications

• KV: 100 KV or 120 KV
• Shaft diameter: 8 mm
• Motor diameter: 89.4 mm
• Motor length: 45.5 mm
• Voltage range: 44–52 V (12S LiHV)
• Max continuous current: 40 A (100KV) / 50 A (120KV), 180s rating
• Max propeller size: 34 in
• Max thrust: up to 16 kg (propeller-dependent)
• Ingress protection: IP45
• Weight: approx. 710 g

Choose 100KV for the lowest-RPM, highest-efficiency cruise on large props, or 120KV for more responsiveness at a heavier all-up weight; both variants share the same mount pattern and shaft.
