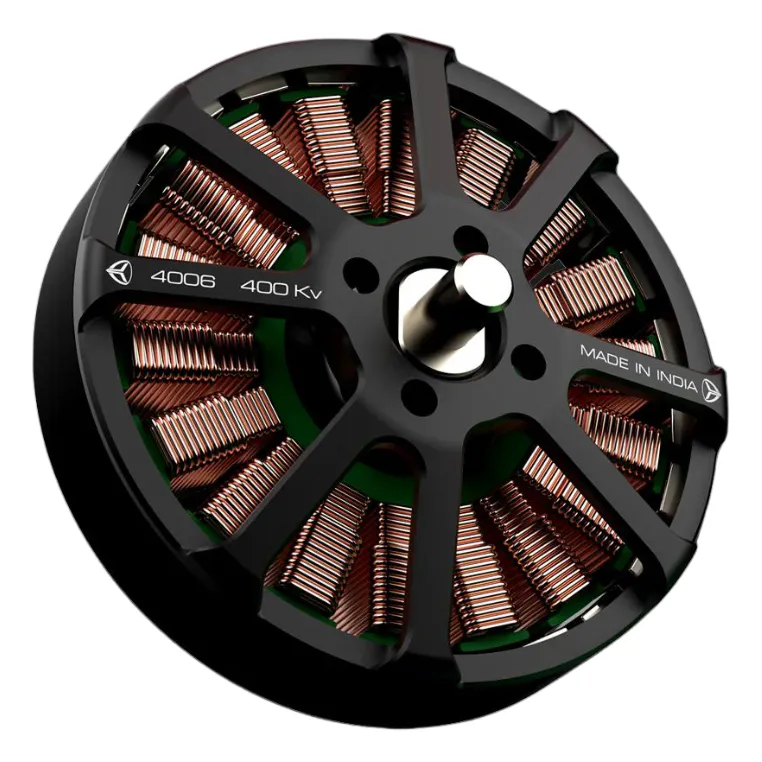

Vector Technics 4006 SL Motor

The Vector Technics 4006 SL is a pancake-style motor engineered and built in India for heavy-lift long-range platforms, commercial aerial work and large cinelifters. Offered in 380KV, 400KV and 440KV windings, it runs on 24V (6S LiHV) power and swings propellers from 12 to 16 inches.

Key features

• IP45-rated construction resists dust and moisture during outdoor and agricultural operation
• Dual SKF 619/4-2RS bearings support a 4mm shaft over a rated 1000-hour design life
• Delivers up to 2.2kg of max thrust for carrying survey, spraying or cinema payloads
• Wide 40mm stator diameter with a low 6mm height gives efficient low-RPM torque

Specifications

• Stator Dimensions: 40mm diameter × 6mm height
• Motor size: 44.6 x 20 mm
• Configuration: 18N24P
• Shaft: 4mm
• Bearings: Dual SKF 619/4-2RS
• Motor mount: 4x M3 on 25 mm circle
• Prop mount: 6x M3 on 12 mm circle
• Max continuous current (180 s): 9 A / 233 W (380KV), 12 A / 280 W (440KV)
• Ingress protection: IP45
• Max thrust: 2.2kg
• Propeller compatibility: 12"–16"
• Input voltage: 24V (6S LiHV)
• Weight: approx. 66g

Choose the 380KV winding for maximum endurance on larger props, or step up to 440KV for a punchier throttle response under heavier cinelifter payloads.
