Ultra 1600 5.8GHz 1.6W Adjustable VTX

The Ultra 1600 is a high-power 5.8GHz analog video transmitter built for long-range FPV and heavy signal penetration in high-interference environments. Delivering up to 1.6W (1600mW) of RF output, this VTX pushes a stable video feed through dense foliage, concrete structures, and over multi-kilometre distances.

Key features

• 1.6W Maximum Output: High transmission power suited for extended-range cruising or flying in dense bando environments.
• Adjustable Power Levels: Scale down the output for pit use, group flying, or close-range proximity to conserve battery and manage component heat.
• Standard 5.8GHz Compatibility: Works natively with standard 5.8GHz analog FPV goggles, ground stations, and receiver modules.

Specifications

• Frequency: 4.9-5.8GHz, 64 channels, 3 regional frequency tables
• Output power: Pit / 25 / 200 / 400 / 800 / 1600 mW
• Input voltage: 7-36V (2-8S)
• Camera output: 5V / 600mA
• Control protocol: IRC Tramp
• Antenna connector: MMCX

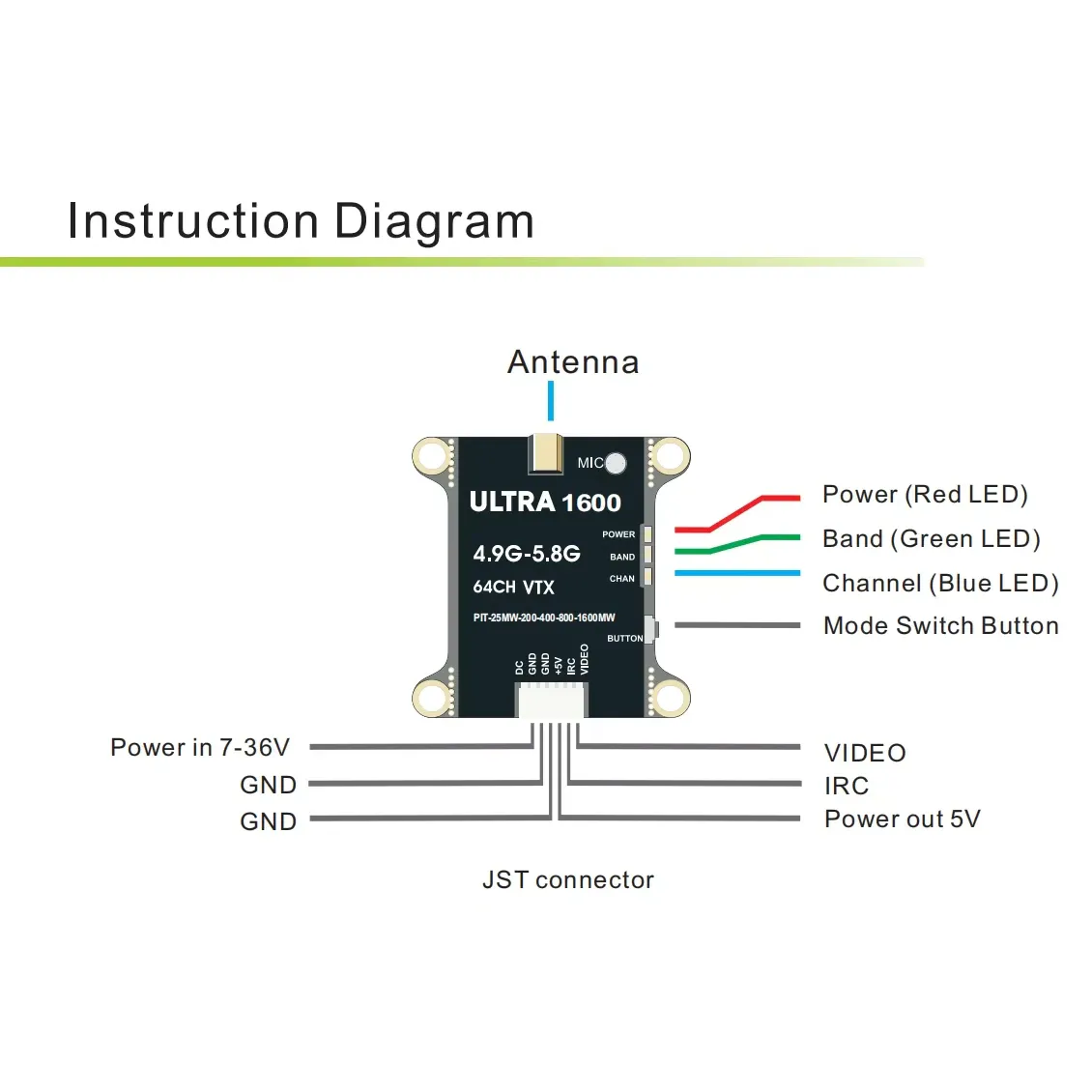

• Cable connector: GH1.25 6-pin
• Microphone: built in
• Protection: over-temperature protection
• Mounting: 30.5x30.5 mm (M3)
• Dimensions: 36.5 x 36.5 x 12 mm
• Weight: 15 g (without cable)

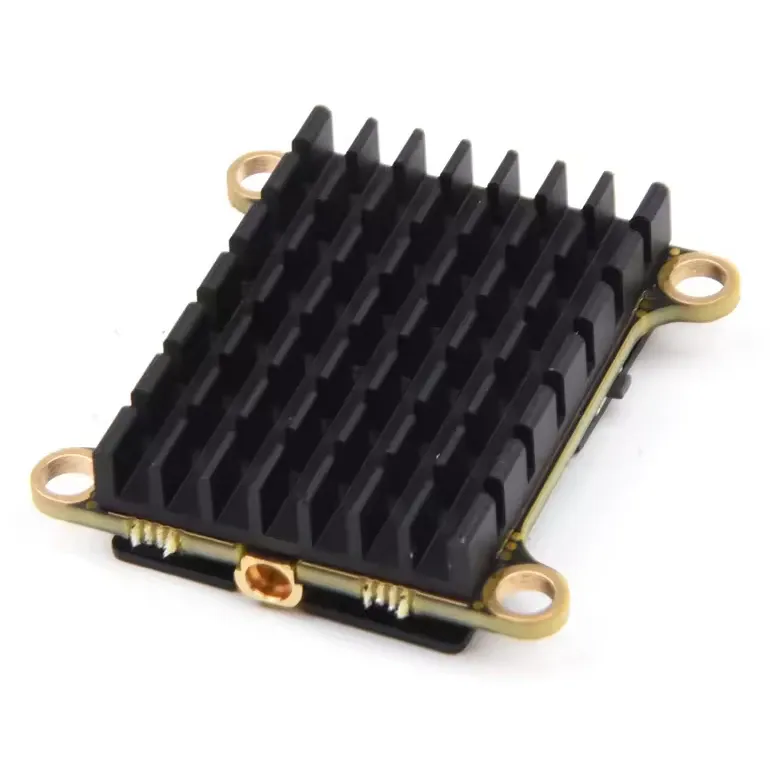

Ideal for 7-inch long-range builds, fixed-wing FPV aircraft, and freestyle rigs pushing the limits of line-of-sight. When operating this VTX at its higher power settings, ensure your frame design provides adequate airflow across the board to prevent thermal throttling.
