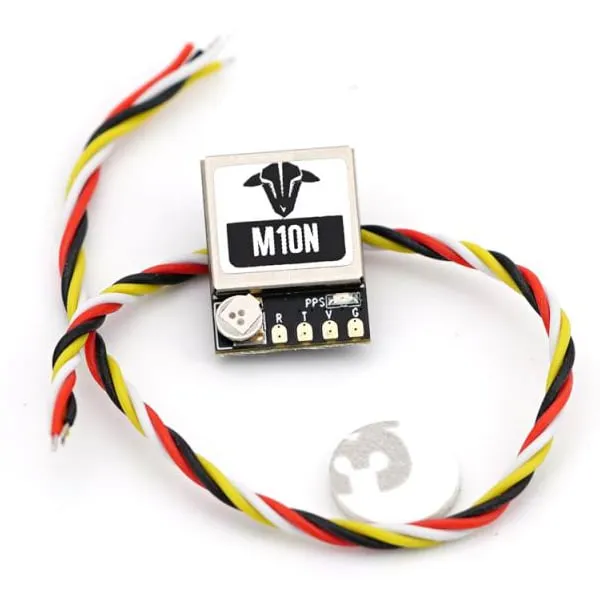

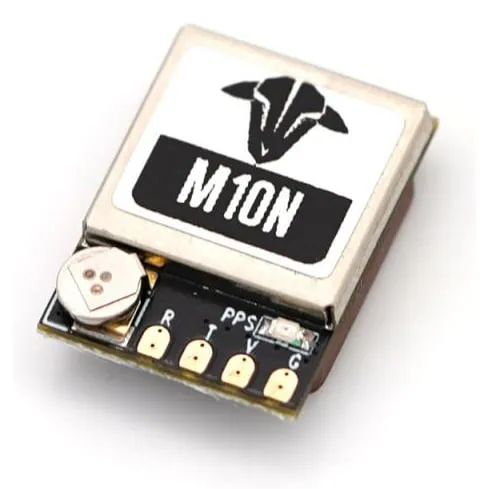

TBS M10N GPS Module

The TBS M10N GPS is a compact GNSS module built around the M10050 chipset, giving flight controllers multi-constellation position data for GPS-assisted navigation, rescue and return-to-home functions.

Key features

• Multi-constellation reception across GPS, Galileo, BeiDou and QZSS, aided by SBAS and QZSS augmentation.
• 2.0m CEP horizontal accuracy with a 0.3° dynamic heading accuracy.
• Fast acquisition: 1-second hot start, 27-second cold start.
• Compact 16.5 x 12.3mm footprint weighing just 3g, on a 4-pin 1.00mm connector.
• Rated from -40°C to +85°C operating, with flash memory that retains its configuration after power is removed.
• PPS LED shows fix status: off with no fix, flashing blue once it has a 3D fix.

Specifications

• GNSS Chipset: M10050
• Size: 16.5 x 12.3 x 6.0mm
• Weight: 3g
• Input Voltage: 3.6–5.5V
• Power draw: 15mA at 5V
• Output: TTL UART, NMEA and UBX protocols
• Baud rate: 4800–921600bps (115200bps default)
• Update rate: 0.25–18Hz (10Hz default)

Mount the antenna clear of carbon and power wiring; the PPS LED gives a quick visual check of fix status before you fly.
