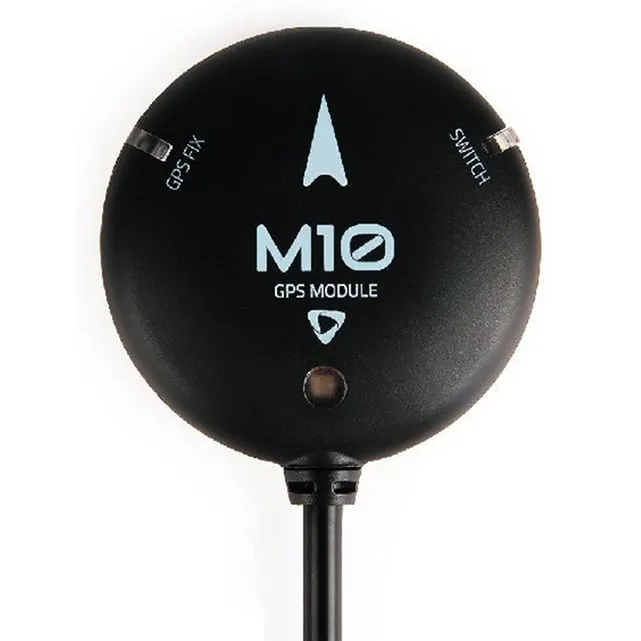

Holybro M10 Standard GPS

The Holybro M10 Standard GPS delivers rapid satellite acquisition and accurate positioning for ArduPilot and PX4 builds. Built around the u-blox M10050 receiver, it tracks multiple GNSS constellations concurrently, ensuring tight position locks for heavy-lift multirotors, fixed-wing aircraft, and autonomous rovers.

Key features

• Powered by the 10th-generation u-blox M10 architecture for high-sensitivity tracking and fast cold starts.

• Integrated IST8310 magnetometer (compass) provides precise yaw and heading data.

• Large 25x25x4mm ceramic patch antenna maintains strong signal integrity in challenging RF environments.

• Pre-crimped GHR 1.25mm 10-pin connector offers direct compatibility with Pixhawk 6C, 6X, and other standard flight controllers.

Specifications

• Receiver: u-blox M10050

• Compass: IST8310

• Antenna: 25 x 25 x 4 mm ceramic patch

• Concurrent GNSS: GPS, Galileo, GLONASS, BeiDou

• Input Voltage: 4.7-5.2V

• Dimensions: 32 x 32 x 12 mm

• Weight: 21g

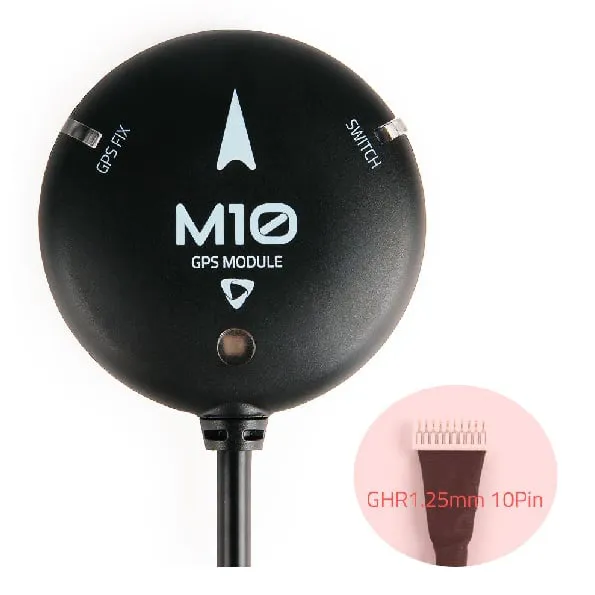

• Connector: GHR 1.25mm 10-pin

With its standard 10-pin layout, this module is ready to integrate directly into the modern Pixhawk flight controller ecosystem without re-pinning or soldering.
