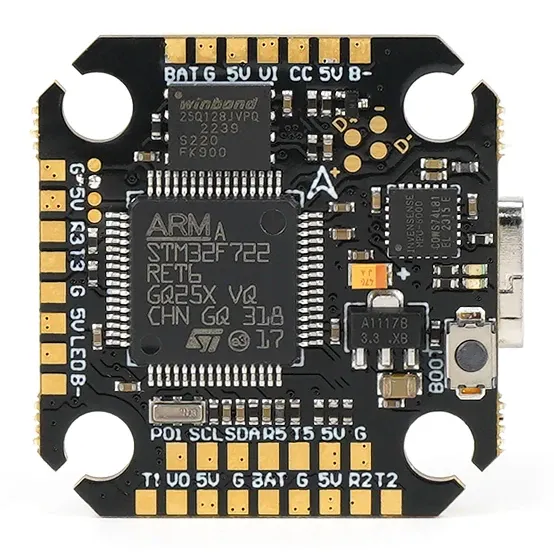

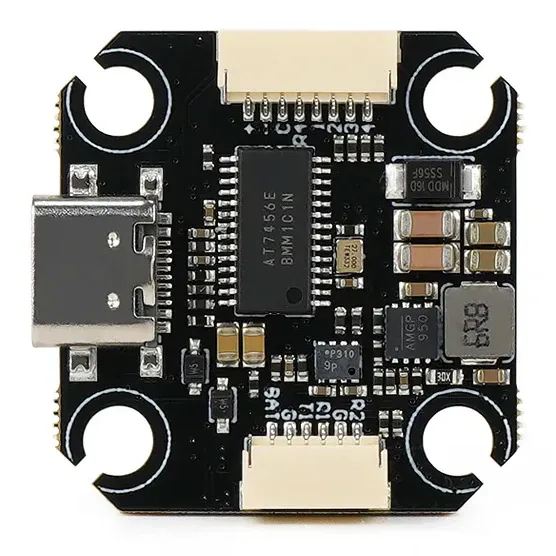

Axisflying Argus Mini F7 Flight Controller (MPU6000)
SKU AXIS-ARGUS-MINI-F7-MPU6000
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The AxisFlying Argus Mini F7 is a compact flight controller tailored for lightweight 3-inch to 5-inch FPV freestyle and racing builds. Built around a fast F7 processor and the highly sought-after MPU6000 gyro, it delivers exceptional noise rejection and locked-in flight performance without relying on heavy filtering.
Key features
- Features the industry-favourite MPU6000 gyro for clean resonance handling and straightforward tuning.
- Includes a direct plug-and-play connector for the DJI O3 Air Unit and other digital HD VTX systems.
- Onboard 5V BEC (3A max) powers receivers, GPS modules and other accessories.
- Compact 20x20mm mounting pattern designed for space-constrained mini-quad frames.
Specifications
- MCU: STM32F722RET6
- Gyro: MPU6000
- Input voltage: 4-6S LiPo
- Mounting pattern: 20x20mm (M2/M3)
- OSD: AT7456E
- Blackbox: 16MB Flash
- BEC: 5V/3A
- UARTs: 5
- Motor outputs: 4
- Dimensions: 28.5 x 27 x 6.2 mm
- Weight: 5 g
- Supported firmware: Betaflight
With a built-in barometer and 16MB of Blackbox storage, this flight controller gives you all the essential data logging and altitude-tracking features needed for precise tuning and mid-range flights.
| Integrated Receiver | No |
|---|---|
| Mounting Size | 20x20 |
| Integrated VTX | No |
| FC Processor | F722 |
| Gyro | MPU6000 |
| Input Voltage | 4–6S |
| Made in India | No |
| Brand | Axisflying |
| Supported Firmware | Betaflight |
| Barometer | Yes |
| UARTs | 5 |
| Weight | 5 g |
| Motor Outputs | 4 |
