Tarot TL3504 Analog AV to 1080p HDMI Module 300mm

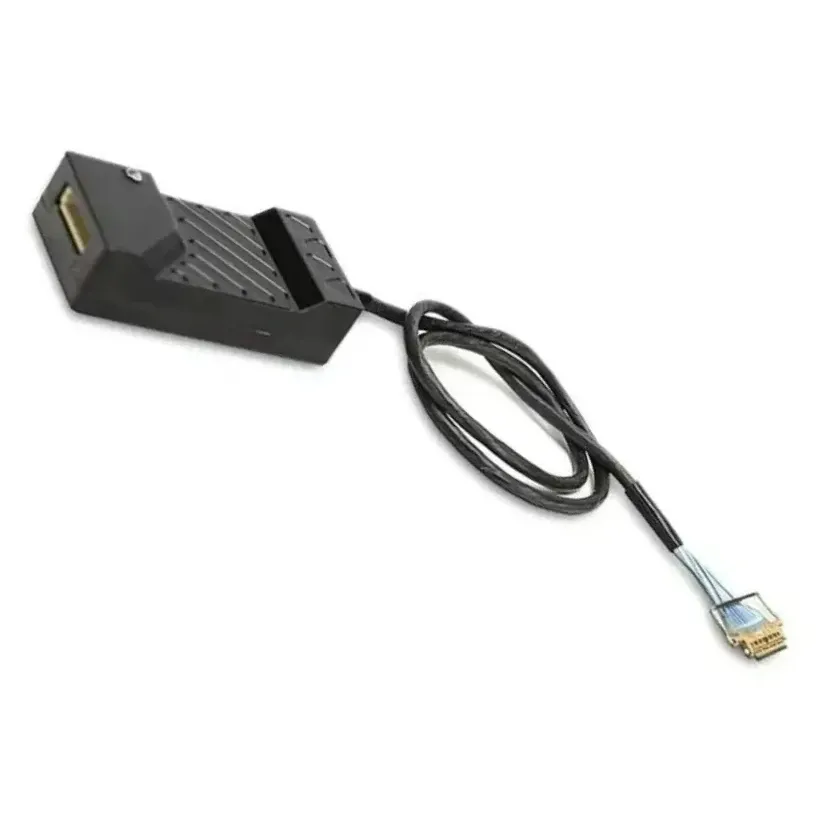

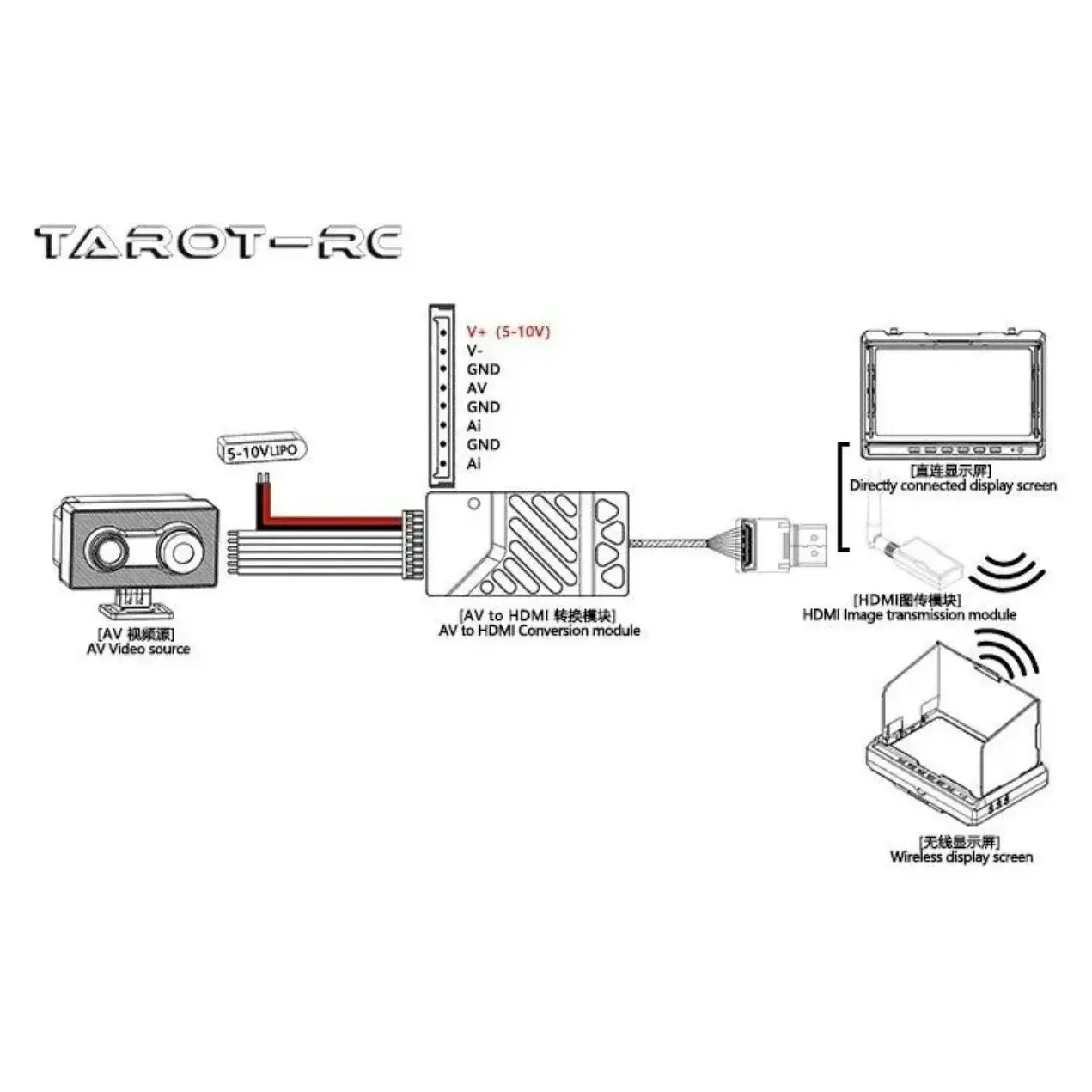

The Tarot TL3504 converts an analog AV (composite) video signal to HDMI at up to 1080p, so a drone camera, gimbal or video receiver feed can go into HDMI equipment such as monitors and capture devices. At 12 g and 37.3 × 19.4 × 9.75 mm it fits easily into an airframe or a ground-station case.

Key features

• Output resolution switches between 1080p and 720p with a physical button
• 120 ms conversion latency from a high-performance video chip
• One-way conversion only: AV in, HDMI out
• Red LED stays lit while the module is powered

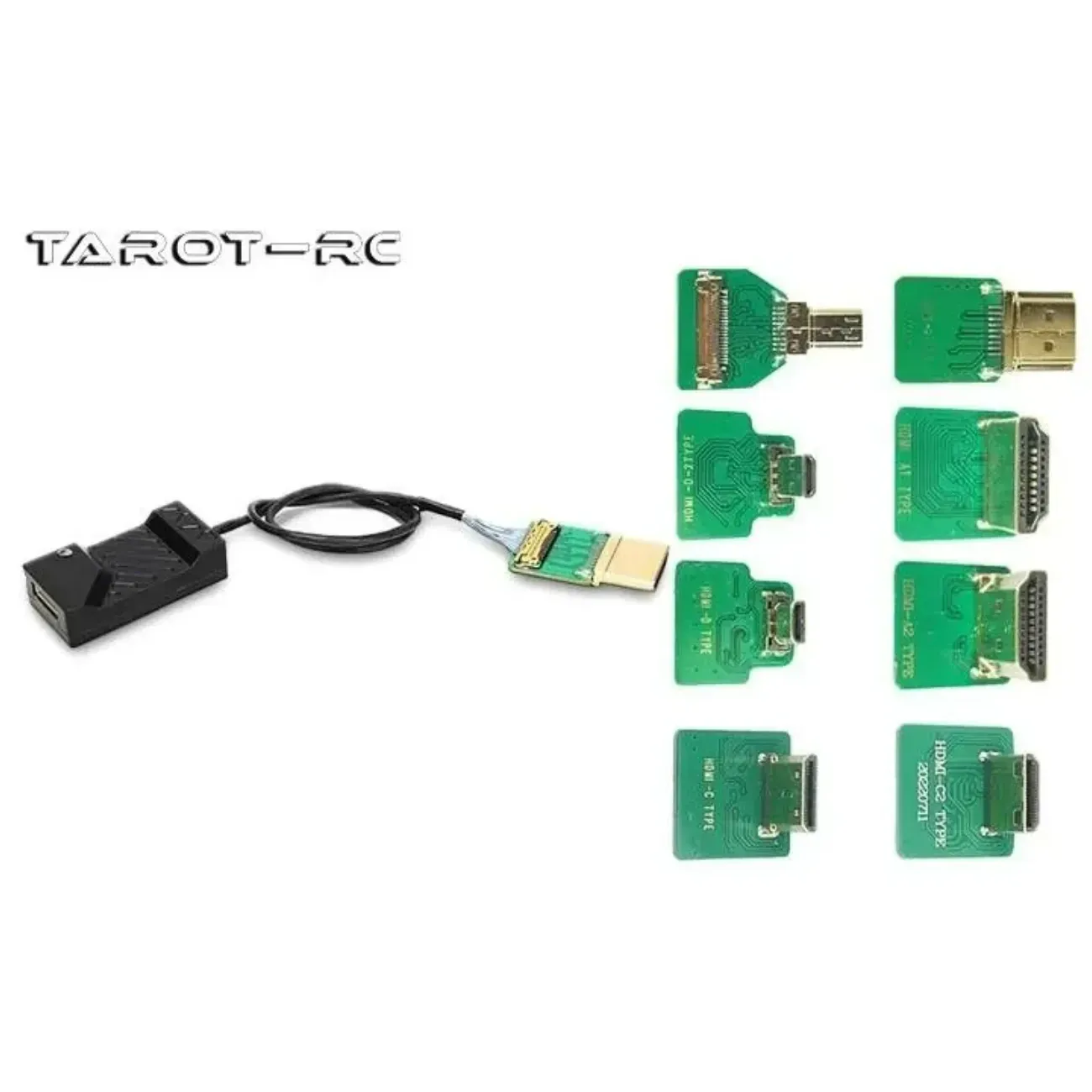

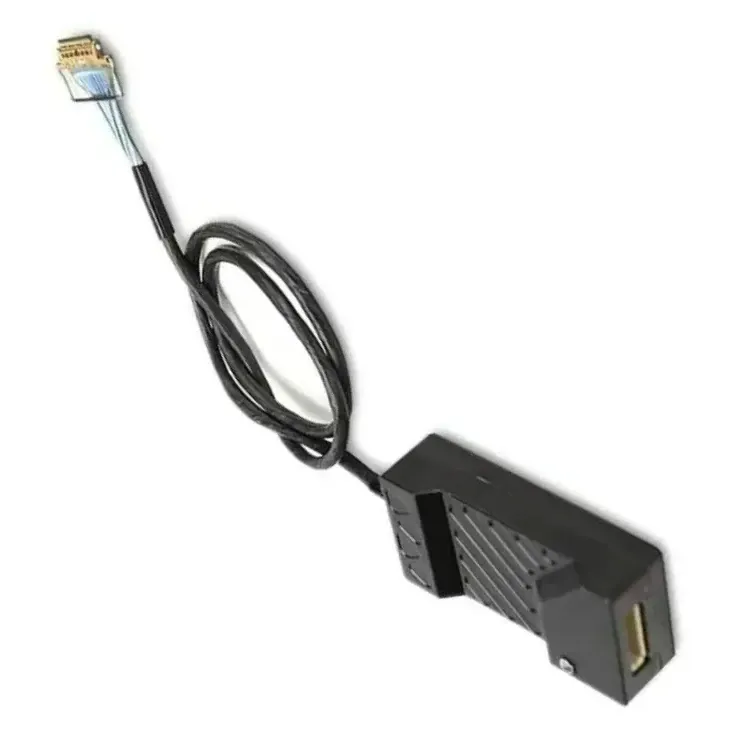

• Supplied with a 300 mm HDMI output lead; 500 mm replacement leads are available, and it pairs with Tarot TL10A11-series adapters

Specifications

• Input voltage: 5–10 V
• Latency: 120 ms
• Output: HDMI, 1080p / 720p selectable
• HDMI cable length: 300 mm
• Operating temperature: −20 °C to 50 °C
• Dimensions: 37.3 × 19.4 × 9.75 mm
• Weight: 12 g
• In the box: AV-to-HDMI module with 300 mm cable, 8-pin 1.0 mm single-ended cable (150 mm), adhesive pad

With 120 ms of latency it suits monitoring, recording and payload viewing rather than FPV piloting. Feed it from a 5–10 V BEC rail; a 3S pack (12.6 V fully charged) is above its input range.
