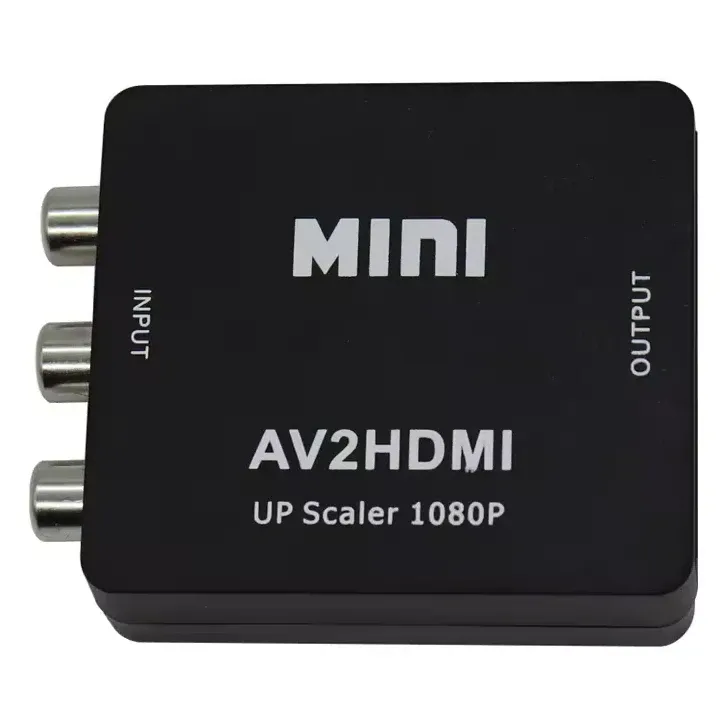

Mini AV to HDMI 1080P Converter Adapter (RCA/CVBS)

A pocket-size converter that turns an analog composite (RCA/CVBS) video signal and its stereo audio into a single HDMI output. In an FPV kit it puts the AV feed from an analog video receiver, goggles or DVR onto an HDMI TV, monitor or capture device, so spectators and students can watch the flight on a big screen.

Key features

• Outputs 720p or 1080p at 60Hz over HDMI from a standard-definition composite input
• Video and audio travel together in the HDMI signal, kept in sync
• Accepts PAL, NTSC 3.58, NTSC 4.43, SECAM, PAL/M and PAL/N, so PAL and NTSC FPV cameras both work
• Driver-free plug and play, powered over the included USB cable
• 66 × 55 × 20 mm and about 40 g, easy to keep in a field bag

Specifications

• Input: RCA composite video (CVBS) with stereo audio
• Output: HDMI, 720p / 1080p, 60Hz
• Video standards: PAL, NTSC 3.58, NTSC 4.43, SECAM, PAL/M, PAL/N
• Dimensions: 66 × 55 × 20 mm
• Weight: 40 g
• In the box: converter, USB cable

If your receiver or goggles have a 3.5 mm AV-out jack, add a 3.5 mm-to-RCA AV cable to reach the converter's RCA inputs. The same unit also brings older consoles, camcorders, VCRs and DVD players onto modern HDMI screens.
