SIYI Ethernet to HDMI OSD Converter with MP4 Recording

SIYI's Ethernet to HDMI converter takes the RTSP video stream from a SIYI link or gimbal camera and outputs it over Micro-HDMI to a monitor, field screen or video switcher, with no laptop or tablet in between. It can overlay MAVLink telemetry from the SIYI link as an on-screen display and record the stream to a microSD card, making it a practical ground-side add-on for HM30 operators and SIYI optical pod users.

Key features

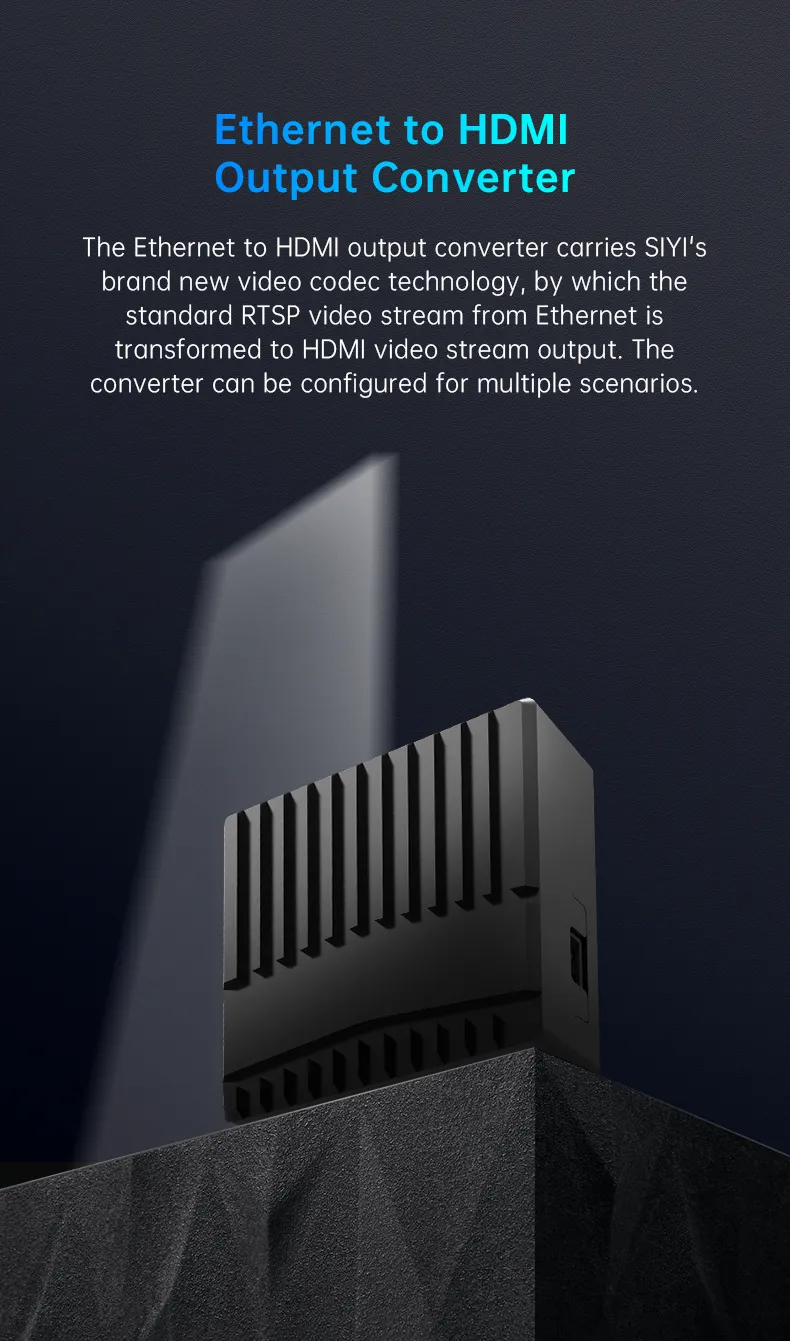

• Converts a standard RTSP stream on Ethernet into HDMI video output.

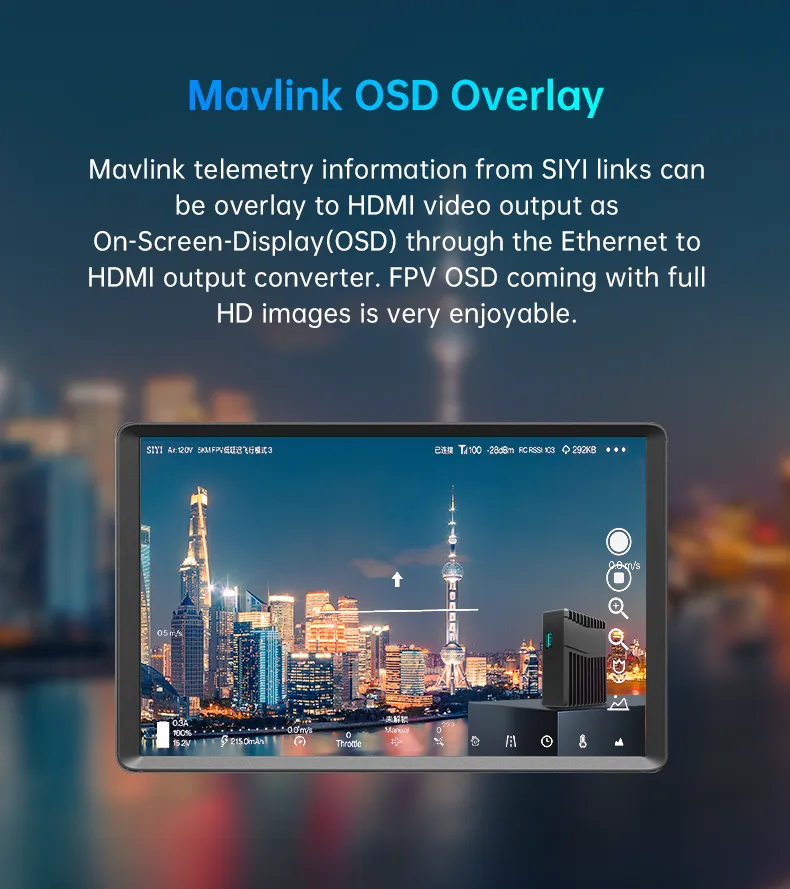

• MAVLink telemetry from SIYI links overlaid as an OSD, switchable on or off.

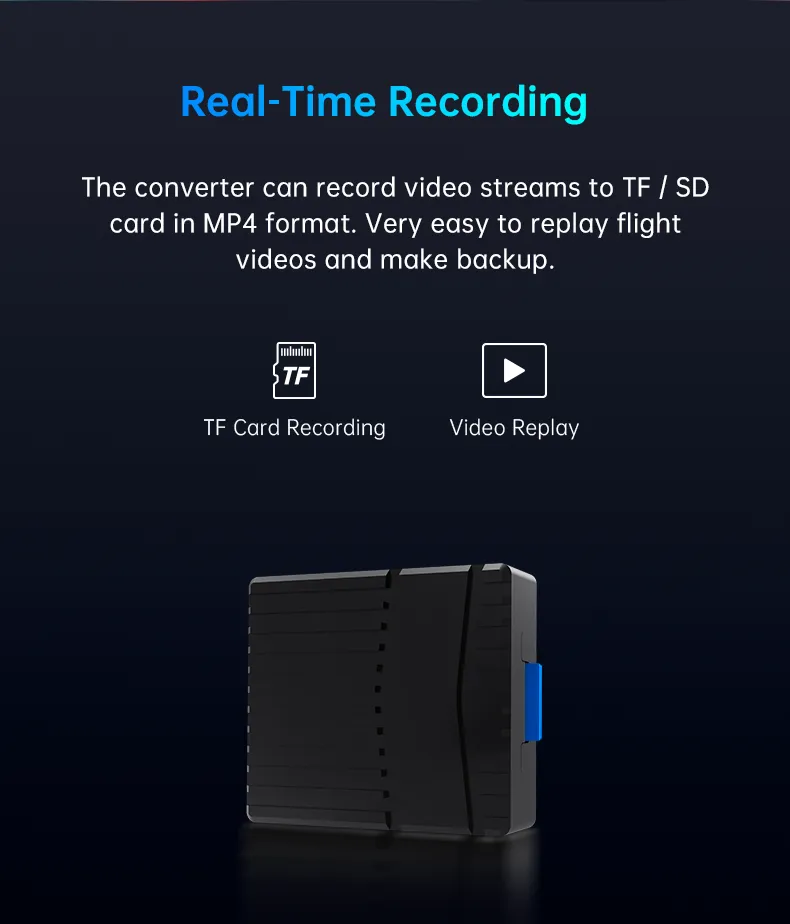

• Records to microSD in MP4 at 1080p30 or 720p30, 12Mbps.

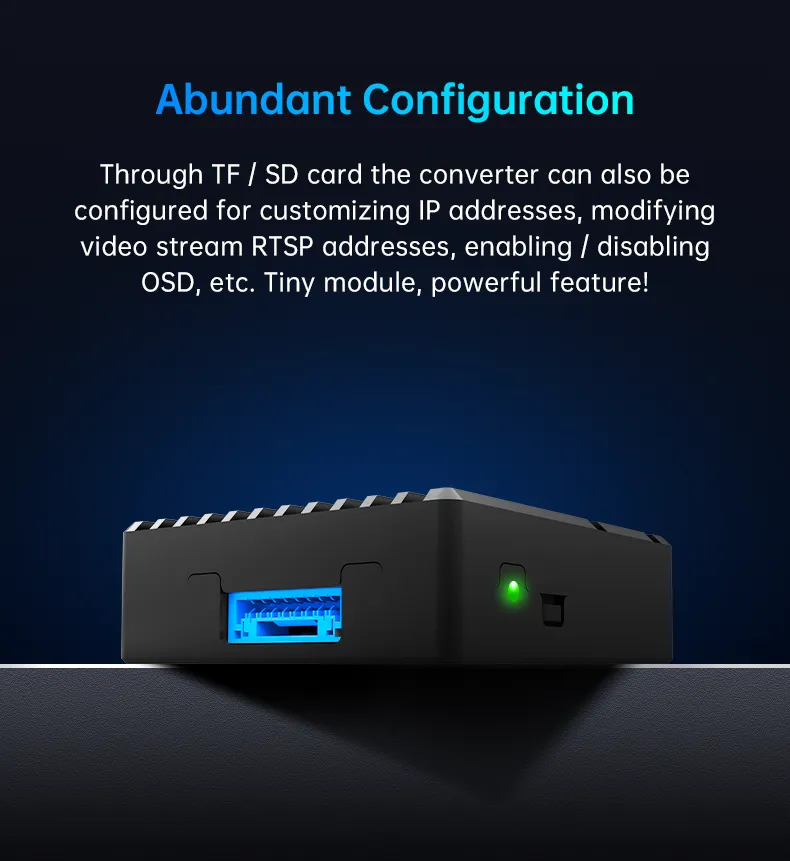

• Configurable IP address and RTSP stream address to suit different cameras.

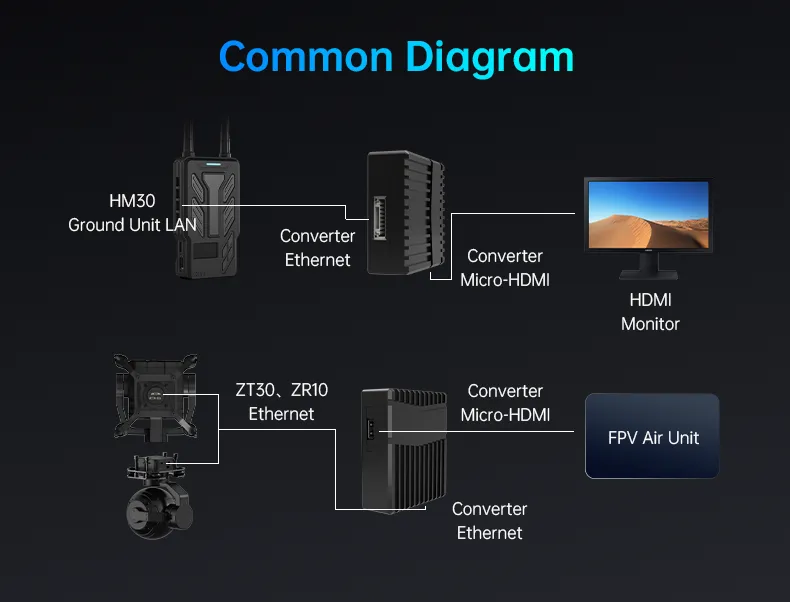

• Compatible with the SIYI HM30 ground unit and the ZR10 and ZT30 optical pods.

• Runs from 8.4–25.2V and draws 1.5W on average.

Specifications

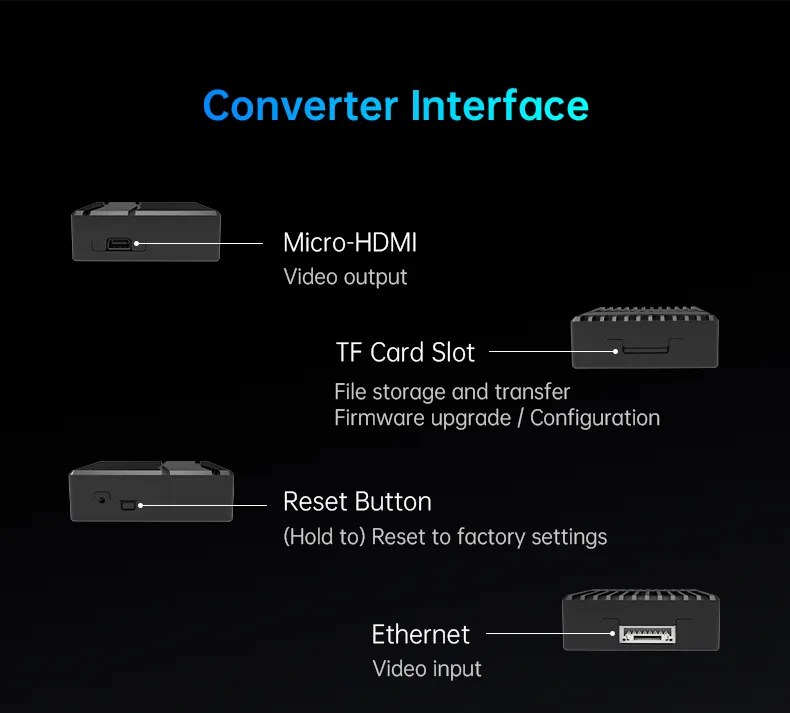

• Video input: Ethernet (RTSP)

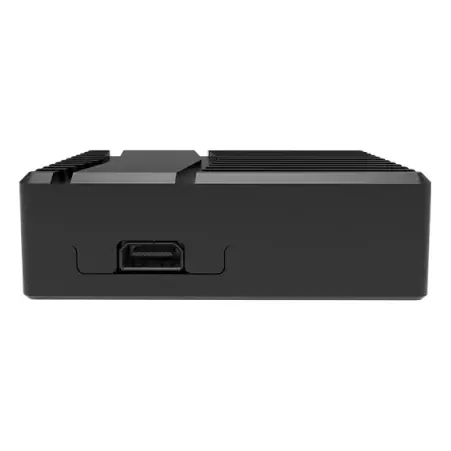

• Video output: Micro-HDMI

• Recording: MP4, 1080p (1920 × 1080) or 720p (1280 × 720) at 30fps, 12Mbps

• Storage: microSD Class 10, up to 128GB, FAT32 or exFAT

• Operating voltage: 8.4–25.2V

• Power consumption: 1.5W average, 5W peak

• Dimensions: 42 × 37 × 13mm

• Weight: 25g

• Operating temperature: −10 to 50°C

Most monitors need a Micro-HDMI to HDMI cable. Set the converter's IP and RTSP address to match your ground unit or camera stream before heading to the field.
