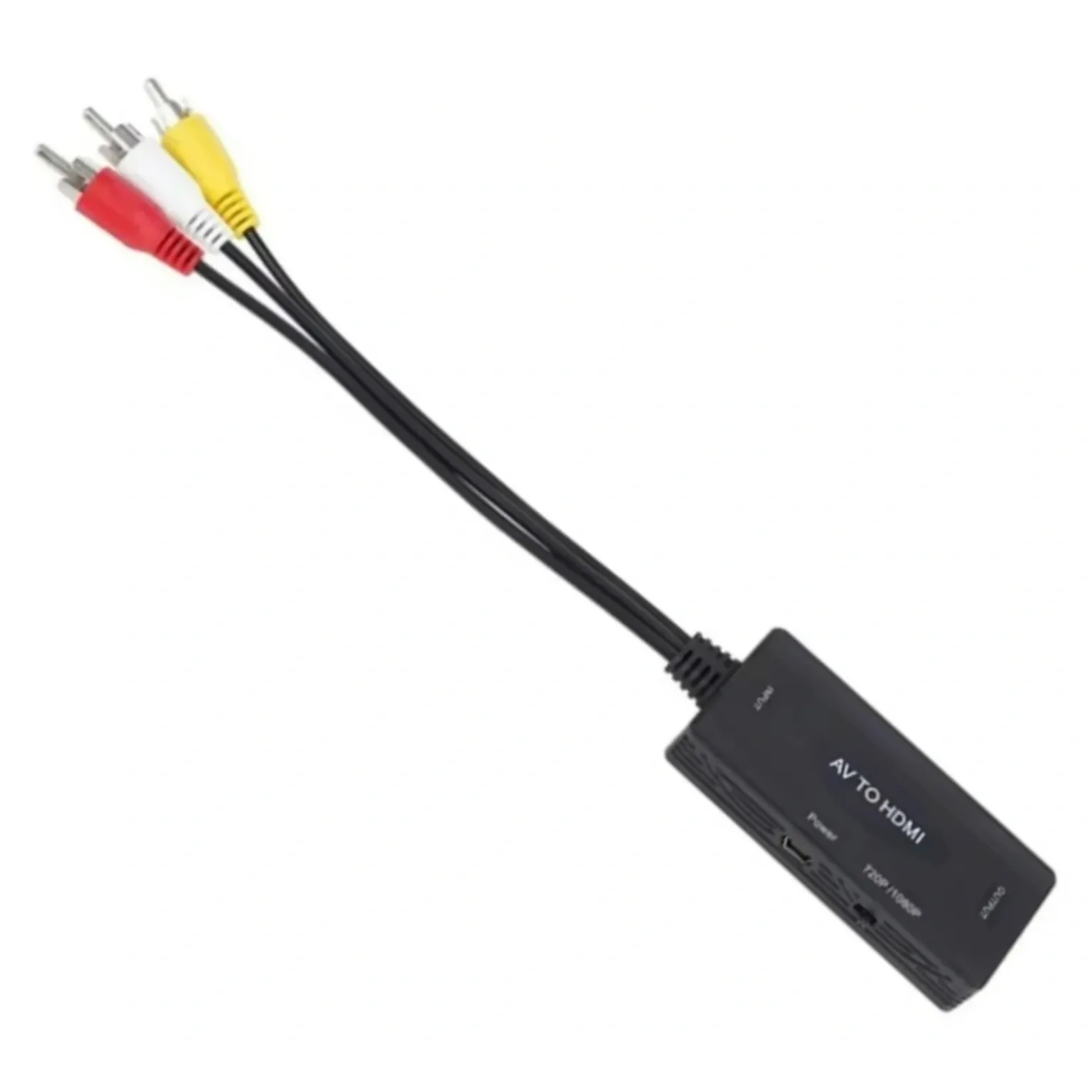

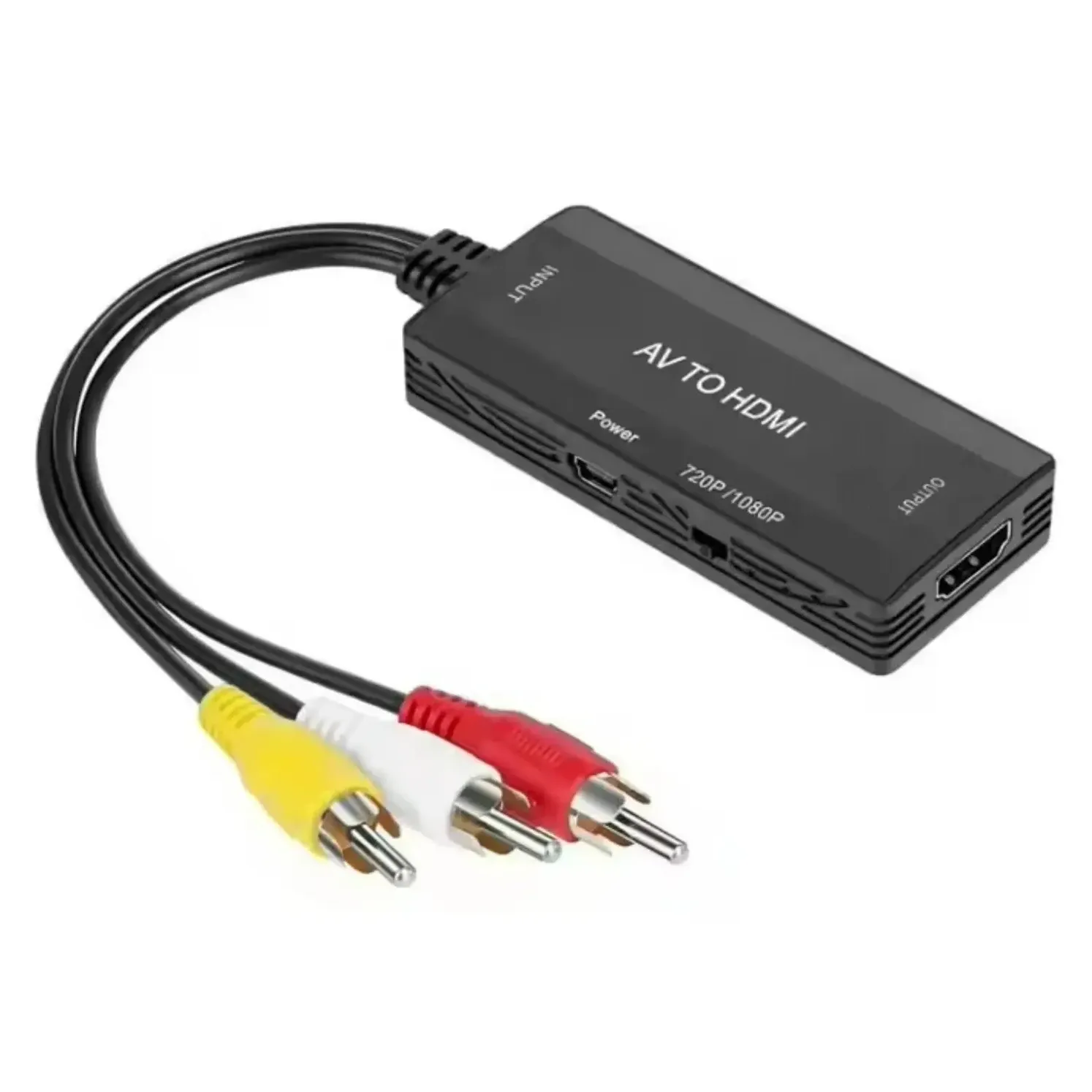

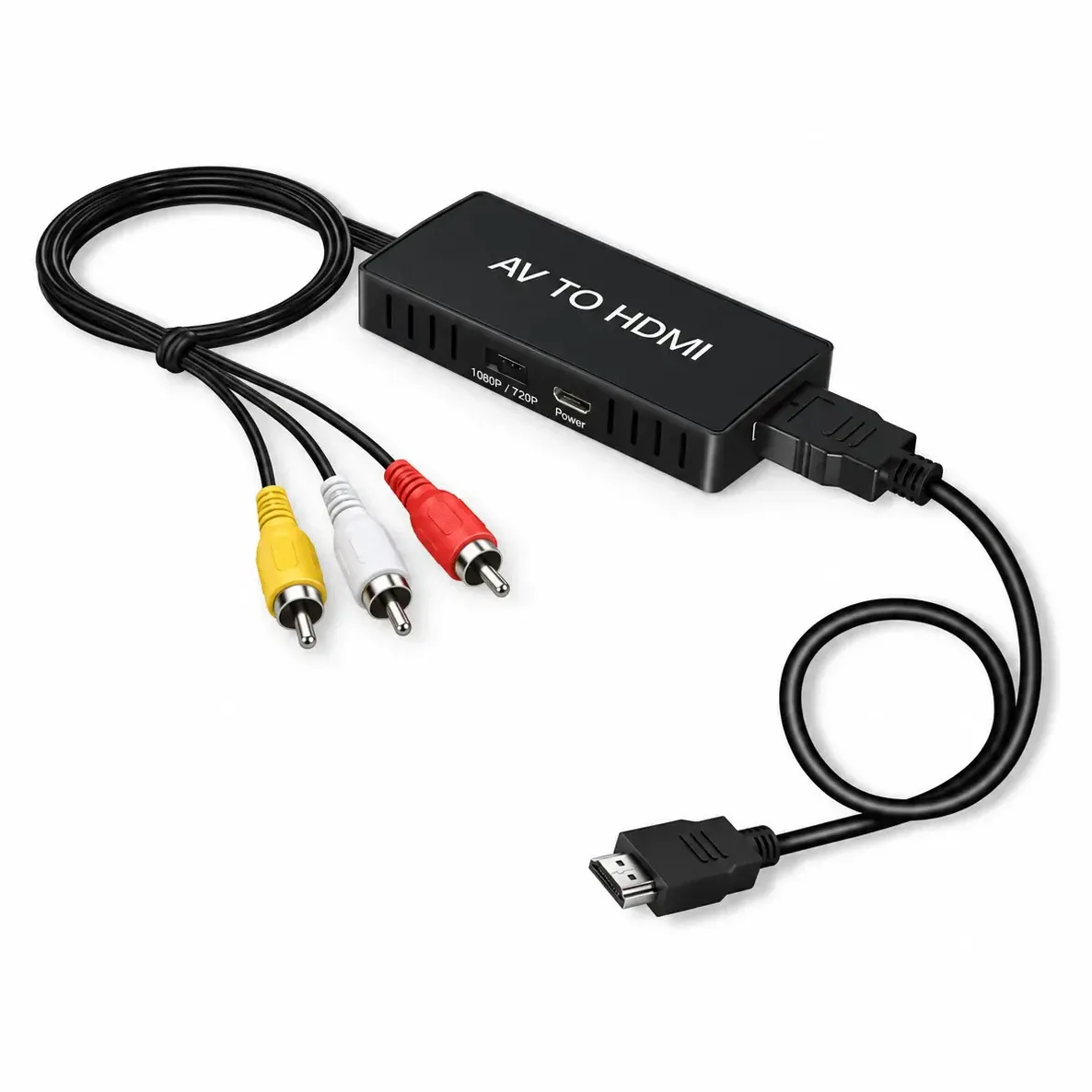

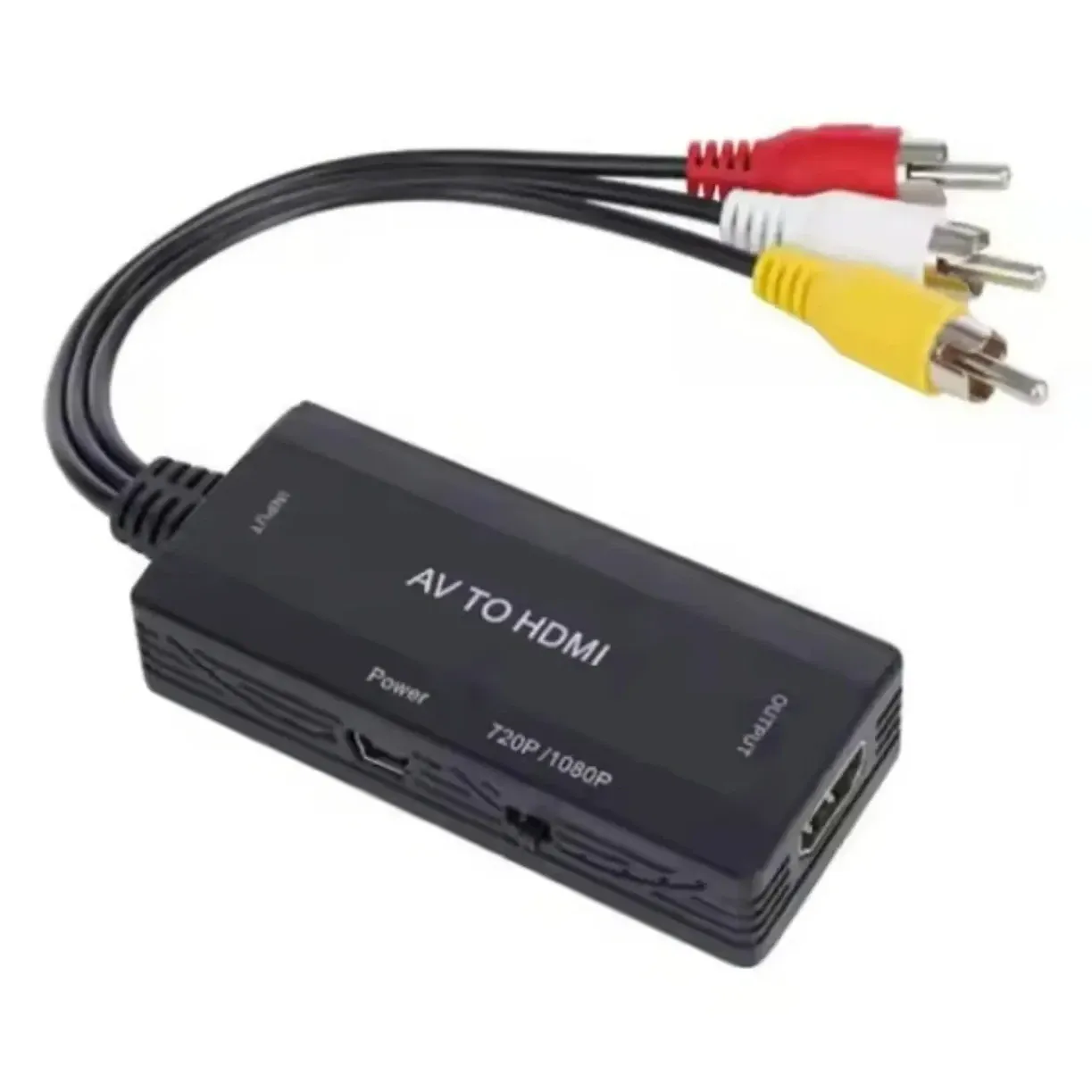

AV to HDMI Video Converter 1080p (Mini AV2HDMI)

A compact composite-to-HDMI converter that turns the yellow, white and red RCA output of an analog FPV receiver or any other composite source into an HDMI signal at 1080p or 720p, 60 Hz. Use it to put an analog FPV feed on a TV, HDMI monitor or capture device for spectators, race-day screens or recording.

Key features

• Accepts PAL, NTSC 3.58, NTSC 4.43, SECAM, PAL/M and PAL/N, so both PAL and NTSC FPV cameras work
• Auto-detects the incoming format and scales it to 1080p or 720p at 60 Hz
• 162 MSPS sampling with black/white level expansion, colour transition improvement and blue stretch for a cleaner picture
• Passes stereo audio through to HDMI alongside the video
• Driver-free, plug-and-play operation

Specifications

• Input: 1 × RCA composite video + stereo audio (yellow, white, red)
• Output: 1 × HDMI
• Output resolution: 1080p 60 Hz or 720p 60 Hz
• Input standards: PAL, NTSC 3.58, NTSC 4.43, SECAM, PAL/M, PAL/N
• In the box: converter, user manual

The input is RCA only: receivers or goggles with a 3.5 mm AV jack need a 3.5 mm-to-RCA cable, which is not in the box.
